12 Valve 2nd Gen Dodge Cummins 94-98 Discussion of 12 Valve 5.9 Liter Dodge Cummins Diesels with P7100 Injection Pumps

O ring or fire ring

Thread Tools

Search this Thread

Old Dec 27, 2013 | 09:00 AM
  #41
94 12valve's Avatar
Diesel Bomber
Joined: Jan 2009
Posts: 3,504
Likes: 157
From: Pylesville, Maryland
Default

yes that what I mean when I'm talking about retorquing with o rings upon install I run through the normal torque pattern with all nuts and studs, than break one loose at a time and retorque after that that's it.

I personally have not seen a blown gasket with no retorques after initial install with o rings.

Reply
Old Dec 27, 2013 | 09:16 AM
  #42
mysterync's Avatar
Diesel Bombers Sponsor
Joined: Mar 2007
Posts: 3,791
Likes: 367
From: Blowing Rock,NC
Default

Originally Posted by 94 12valve
yes that what I mean when I'm talking about retorquing with o rings upon install I run through the normal torque pattern with all nuts and studs, than break one loose at a time and retorque after that that's it.

I personally have not seen a blown gasket with no retorques after initial install with o rings.
Been doing this 7 years seen 4 blow a gasket. Should be retorqued after one complete warm up to operating temp. One after 600 or so miles and one at 1500 miles. If they still pull after the last one need to do it again in 500 miles.

Sent from my SCH-I605 using Tapatalk 2

Reply
Old Dec 28, 2013 | 06:54 AM
  #43
JBearSVT's Avatar
Diesel Bomber
Joined: Oct 2010
Posts: 1,325
Likes: 59
From: New England
Default

LOL... with that schedule I'll be done with it in a few days.

Reply
Old Dec 28, 2013 | 01:09 PM
  #44
ClintD.'s Avatar
Thread Starter
|
Diesel Enthusiast
Joined: Oct 2013
Posts: 122
Likes: 7
Default

So after taking the head off I discovered that the guy who installed my head studs didn't put a new head gasket in. And one of the head studs was not completely screwed in. The guy messing with it now took the stud out with his fingers without using a tool. Awesome workmanship.

Reply
Old Dec 28, 2013 | 01:28 PM
  #45
mysterync's Avatar
Diesel Bombers Sponsor
Joined: Mar 2007
Posts: 3,791
Likes: 367
From: Blowing Rock,NC
Default

Originally Posted by ClintD.
So after taking the head off I discovered that the guy who installed my head studs didn't put a new head gasket in. And one of the head studs was not completely screwed in. The guy messing with it now took the stud out with his fingers without using a tool. Awesome workmanship.
The stud should turn out by hand. If they are tightened down you risk breaking a stud. Are the holes atleast bottom tapped? It was virtually blown when started if he re-used the gasket.

Sent from my SCH-I605 using Tapatalk 2

Reply
Old Dec 28, 2013 | 02:32 PM
  #46
4x4manonbroke's Avatar
Diesel Bomber
Joined: Jun 2010
Posts: 3,202
Likes: 143
From: Tacoma
Default

WOW ... fantastic .. they do say in my instructions that you can use some red Loctite ... which will help keep the stud from vibrating loose .... not a bad idea ... probably gonna do that for mine .. I like insurance

Reply
Old Dec 28, 2013 | 04:15 PM
  #47
ClintD.'s Avatar
Thread Starter
|
Diesel Enthusiast
Joined: Oct 2013
Posts: 122
Likes: 7
Default

So I've been trying to get ahold of the guy who didn't change the gasket. No returned text and won't answer the phone or call back. What a professional.

Reply
Old Dec 28, 2013 | 11:24 PM
  #48
4x4manonbroke's Avatar
Diesel Bomber
Joined: Jun 2010
Posts: 3,202
Likes: 143
From: Tacoma
Default

sounds like a guilty conscience too me ....

Reply
Old Dec 30, 2013 | 07:05 PM
  #49
ClintD.'s Avatar
Thread Starter
|
Diesel Enthusiast
Joined: Oct 2013
Posts: 122
Likes: 7
Default

Did some research on the guy who I'm having the problems with. I'm finding out I should have done the research before I had the work done. There are multiple complaints about this guy. And if I don't hear from him soon I will put his name out on all message boards.

Reply
Old Dec 31, 2013 | 03:12 PM
  #50
mysterync's Avatar
Diesel Bombers Sponsor
Joined: Mar 2007
Posts: 3,791
Likes: 367
From: Blowing Rock,NC
Default

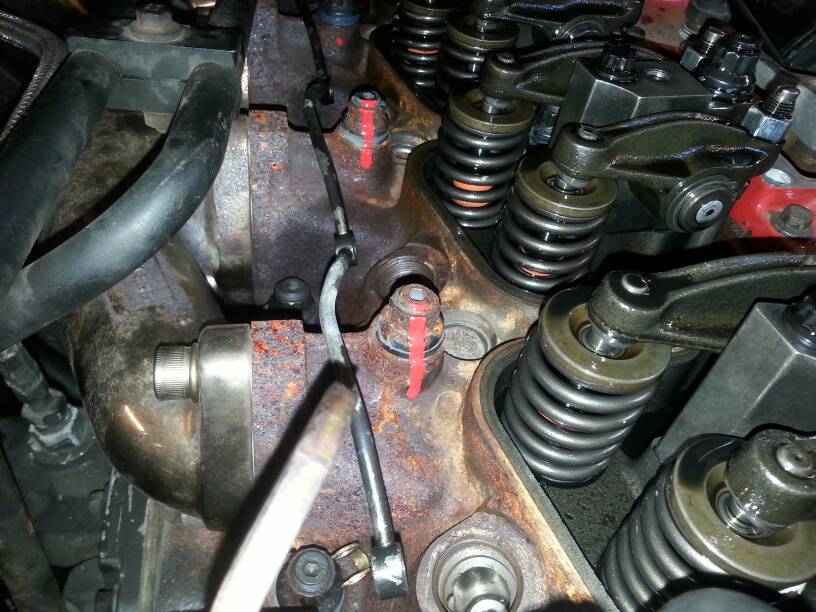

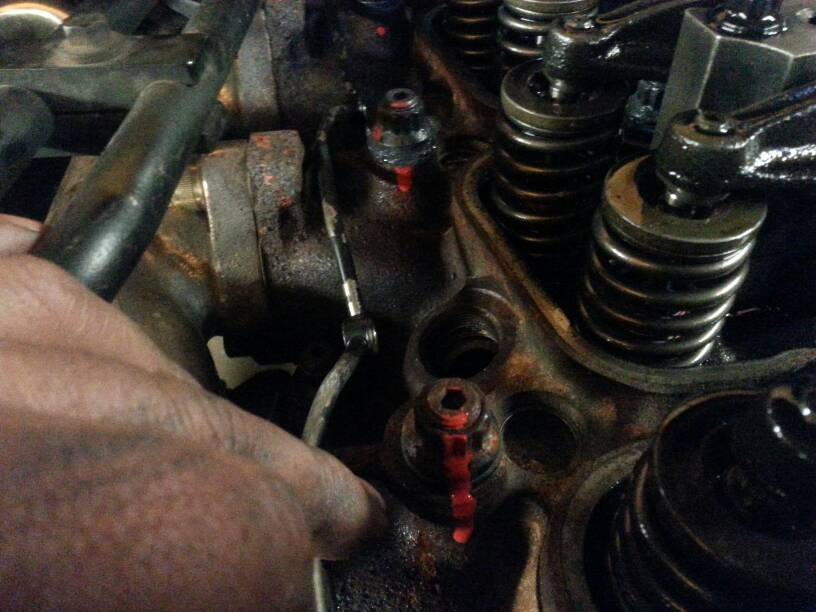

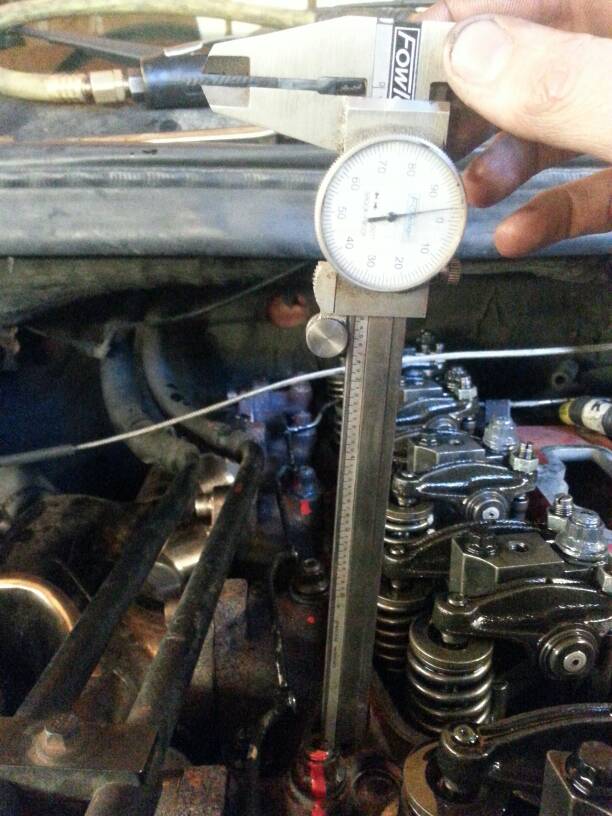

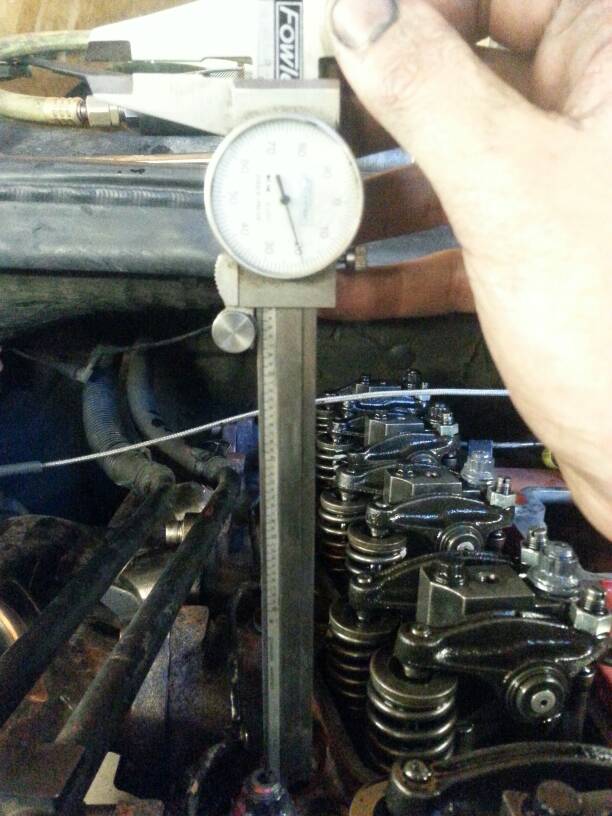

Just to stress the importance of retorque when using rings. This truck has already had 1 retorque.

Sent from my SCH-I605 using Tapatalk 2

Attached Thumbnails O ring or fire ring-uploadfromtaptalk1388524282815.jpg   O ring or fire ring-uploadfromtaptalk1388524301031.jpg   O ring or fire ring-uploadfromtaptalk1388524330597.jpg   O ring or fire ring-uploadfromtaptalk1388524353250.jpg
Reply
