Pulling Questions

Reply Subscribe

Thread Tools

Search this Thread

#11

08-18-2010, 08:54 PM

94 12valve

Diesel Bomber

Join Date: Jan 2009

Location: Pylesville, Maryland

Posts: 3,504

Likes: 59

Received 157 Likes on 142 Posts

you only need 1. I loaded and unloaded the suspension many times and the bars don't load up until the axel tries to wrap

Reply Like

#12

08-19-2010, 12:33 PM

oglejust

Diesel Wrench

Thread Starter

Join Date: Oct 2008

Location: paris illinois

Posts: 556

Likes: 2

Received 19 Likes on 19 Posts

how is ur driveshaft loop connected so it'll move with the driveshaft?

Reply Like

#13

08-19-2010, 01:10 PM

94 12valve

Diesel Bomber

Join Date: Jan 2009

Location: Pylesville, Maryland

Posts: 3,504

Likes: 59

Received 157 Likes on 142 Posts

Name: CIMG0353.jpg
Views: 31
Size: 166.1 KB

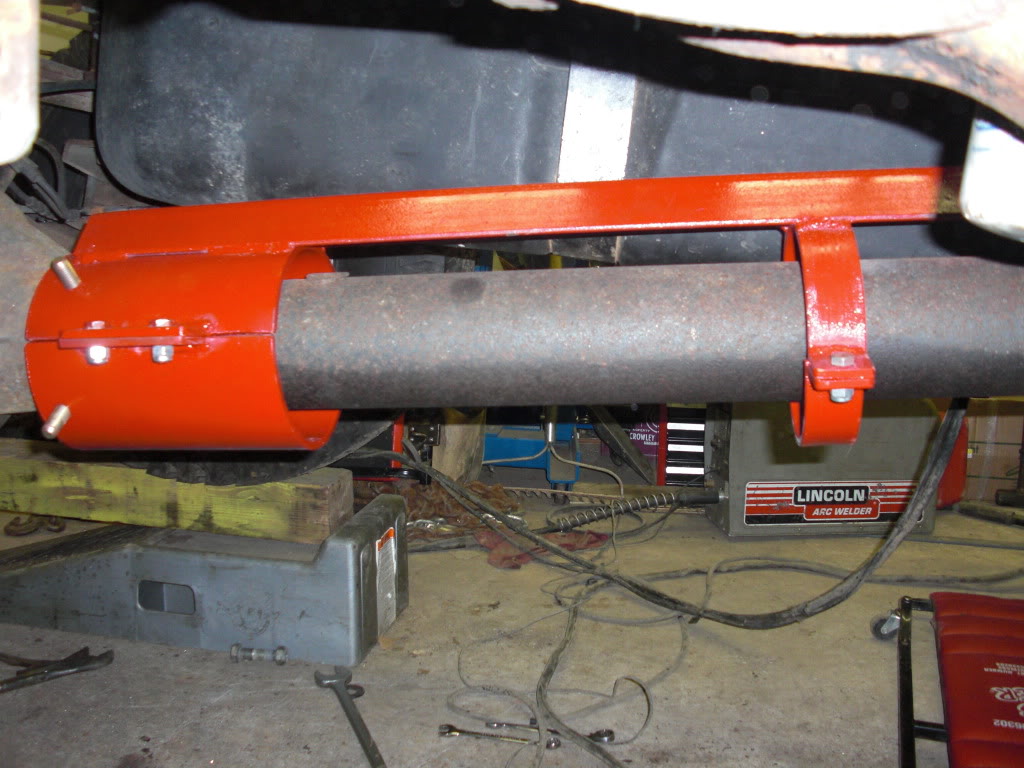

the t case side has a solid mount and the upside down bolts allow the loop to slide foward and backward on the rear.

---AutoMerged DoublePost---

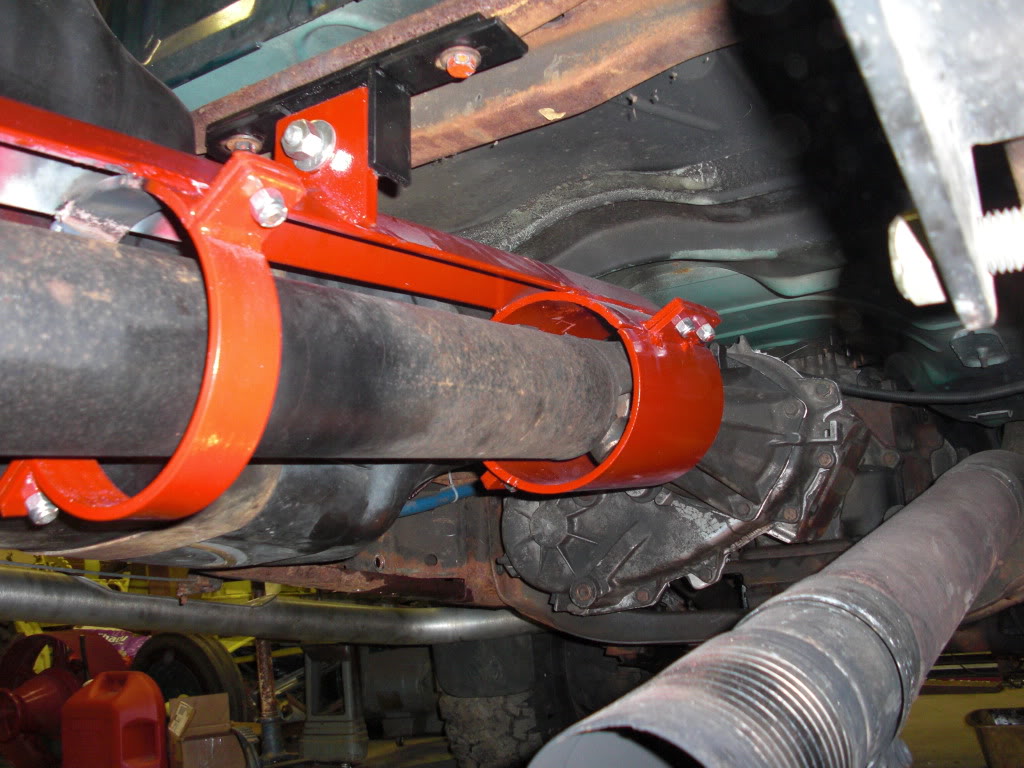

here is the solid front mount
Name: CIMG0354.jpg
Views: 19
Size: 178.1 KB

Name: CIMG0354.jpg
Views: 19
Size: 178.1 KB

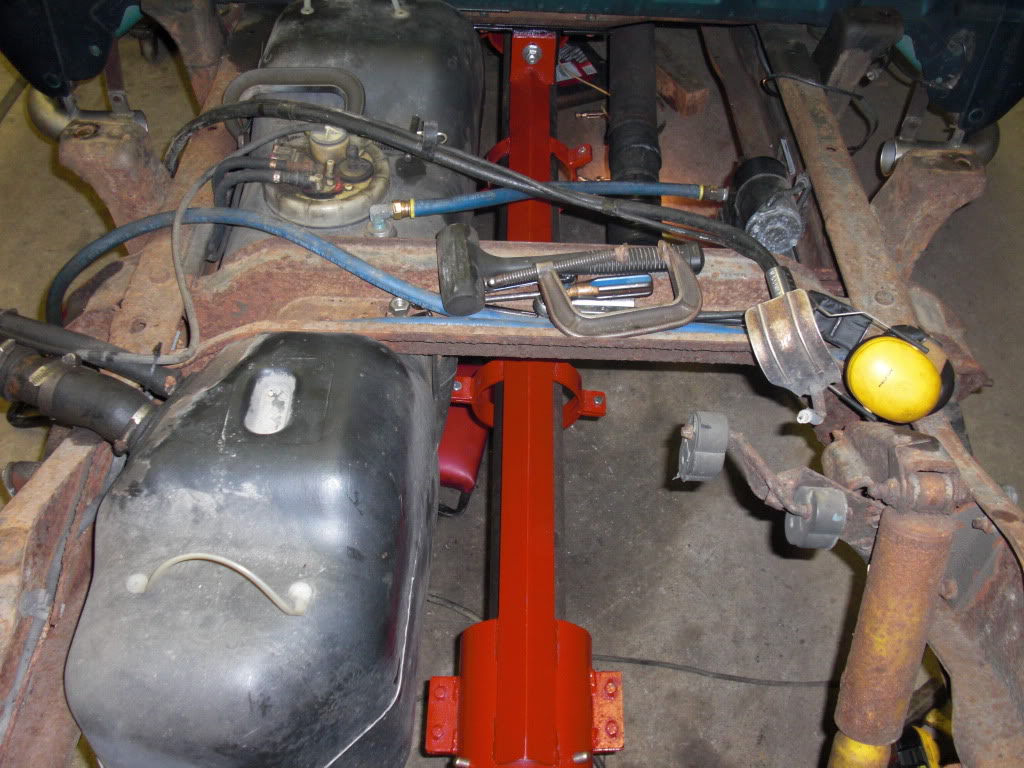

Top view

Name: CIMG0352.jpg
Views: 17
Size: 177.7 KB

Last edited by 94 12valve; 08-19-2010 at 01:10 PM. Reason: Automerged Doublepost

Reply Like

#14

08-19-2010, 04:00 PM

oglejust

Diesel Wrench

Thread Starter

Join Date: Oct 2008

Location: paris illinois

Posts: 556

Likes: 2

Received 19 Likes on 19 Posts

thats a pretty slick setup on the driveshaft loop

Reply Like

#15

08-19-2010, 09:57 PM

94 12valve

Diesel Bomber

Join Date: Jan 2009

Location: Pylesville, Maryland

Posts: 3,504

Likes: 59

Received 157 Likes on 142 Posts

it works very well

My first hook after I built them I broke 2 u joints

. Thankfully I put them on when I did, that could have been very bad

Reply Like

#16

08-19-2010, 10:05 PM

oglejust

Diesel Wrench

Thread Starter

Join Date: Oct 2008

Location: paris illinois

Posts: 556

Likes: 2

Received 19 Likes on 19 Posts

Idk if ill go thru the work of making mine all 1 piece. Ill probably do the t case part like u did and have a separate 1 for at the diff

Reply Like

#17

08-19-2010, 10:17 PM

94 12valve

Diesel Bomber

Join Date: Jan 2009

Location: Pylesville, Maryland

Posts: 3,504

Likes: 59

Received 157 Likes on 142 Posts

thats up to you, I made it so I can get the driveshaft out with the top half still in place. I have to unbolt 12 1/2 bolts and the bottom will fall right out.

Reply Like
