Default Oil Tube to oilpan on om617

what is the best way to handle this oil tube
I have hook the breather from the valve cover to my intake pipe but not sure what
would be the best way to handle this tube

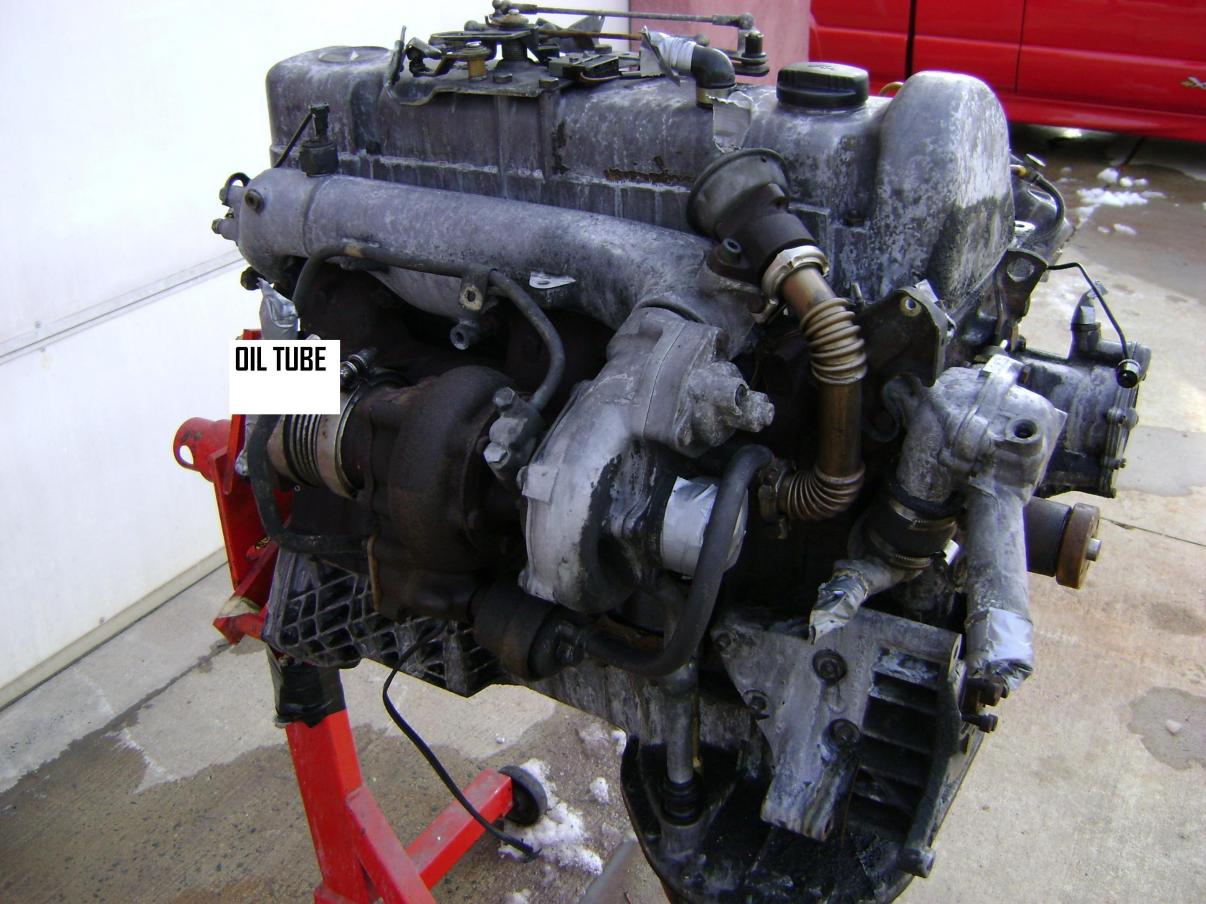

VetteOil Tube to oilpan on om617-oil-tube-om617.jpg

  #2
Old 03-23-2011, 07:56 AM
Walkenvol's Avatar
Diesel Fan
Join Date: Jun 2010
Posts: 77
Received 1 Like on 1 Post
Default

Are you referring to the metal tube that runs from the turbo around the back of the motor? If so, I understood that to be the required oil supply to the turbo.

  #3
Old 03-23-2011, 09:13 AM
Corvette74's Avatar
Diesel Fan
Thread Starter
Join Date: Sep 2010
Location: North Carolina
Posts: 85
Received 0 Likes on 0 Posts
Default

No this line ran from the airfilter to the oil pan in the MB

  #4
Old 03-24-2011, 12:24 PM
FTE's Avatar
FTE
FTE is offline
Diesel Wrench
Join Date: Dec 2009
Location: Vancouver Wa
Posts: 730
Received 33 Likes on 31 Posts
Default

It is the oil return drain from the valve cover breather. It is there to recapture oil from excessive blow-by, the pressure was vented to the air cleaner, then the oil drains back to the pan.

  #5
Old 03-24-2011, 12:55 PM
Corvette74's Avatar
Diesel Fan
Thread Starter
Join Date: Sep 2010
Location: North Carolina
Posts: 85
Received 0 Likes on 0 Posts
Default

If I run a line from the valve cover breather to my air intake on my turbo would there be to much oil going into the turbo and them just cap that return line.
Vette

  #6
Old 03-24-2011, 11:02 PM
FTE's Avatar
FTE
FTE is offline
Diesel Wrench
Join Date: Dec 2009
Location: Vancouver Wa
Posts: 730
Received 33 Likes on 31 Posts
Default

As long as you don't have too much blow-by. My 85 cali motor didn't have the drain tube, it used a different air cleaner and basically ran the breather tube to the top of the air cleaner.

  #7
Old 03-25-2011, 05:14 AM
Corvette74's Avatar
Diesel Fan
Thread Starter
Join Date: Sep 2010
Location: North Carolina
Posts: 85
Received 0 Likes on 0 Posts
Default

Would the worst time it would do is just burn the oil from the blow by?
Vette.

  #8
Old 03-25-2011, 01:14 PM
deck60's Avatar
Diesel Enthusiast
Join Date: Jan 2011
Location: South Dakota
Posts: 337
Likes: 0
Received 17 Likes on 16 Posts
Default

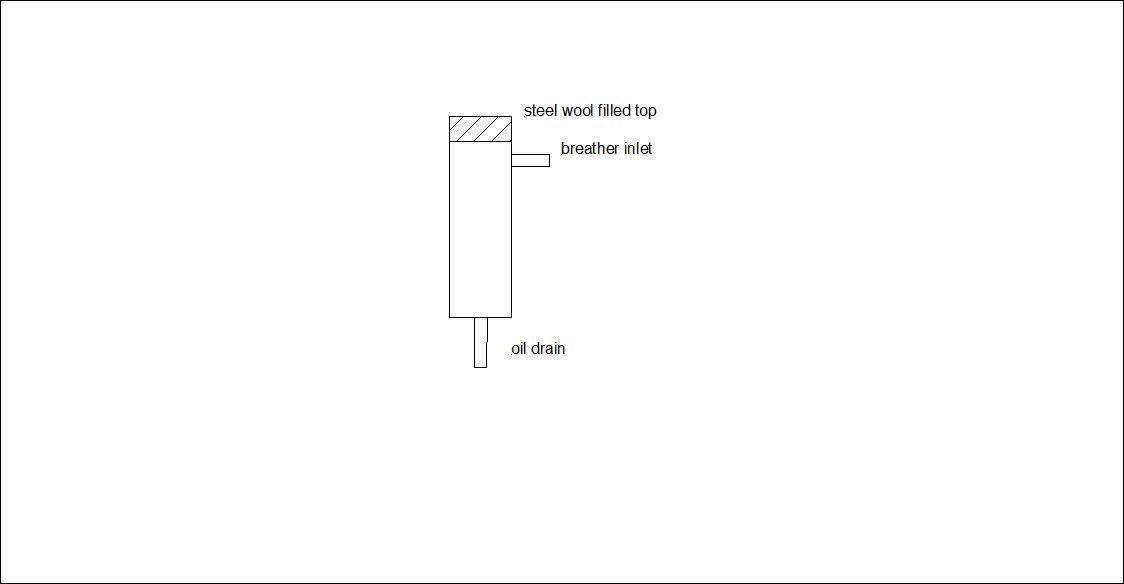

take a piece of 1.250 black pipe nipple 4" long put a cap on 1 end drill a bunch of .250 holes in stuff it full of steel wool and on the bottom make a fitting that will fit into the return and on the side weld in a fitting that will adapt to the blow by tube should work

then it will drain back into pan

Attached Thumbnails Oil Tube to oilpan on om617-oil-drain.jpg
