That's a Banks TwinRam intake feed-horn. It by itself doesn't add any power, it helps better distribute the incoming charge-air. IIRC, Banks doesn't sell them anymore, but there are a few others who do. I think M&H (timing advance thingy) sells one.
#24

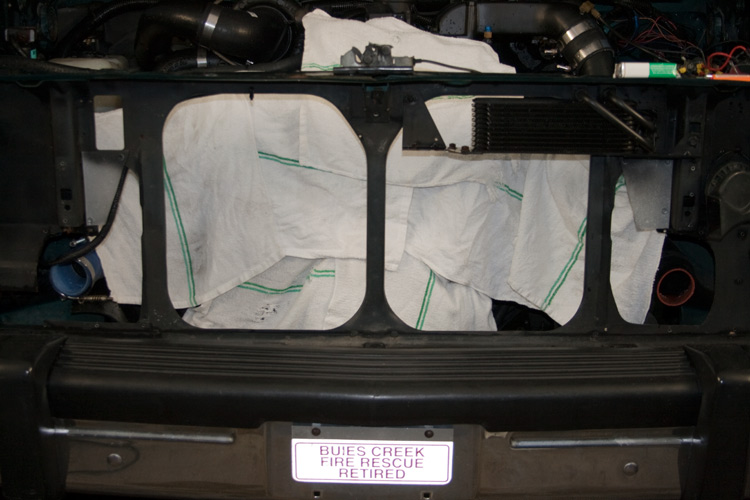

I cleared everything from in front of the radiator support, opened it up a little . . .

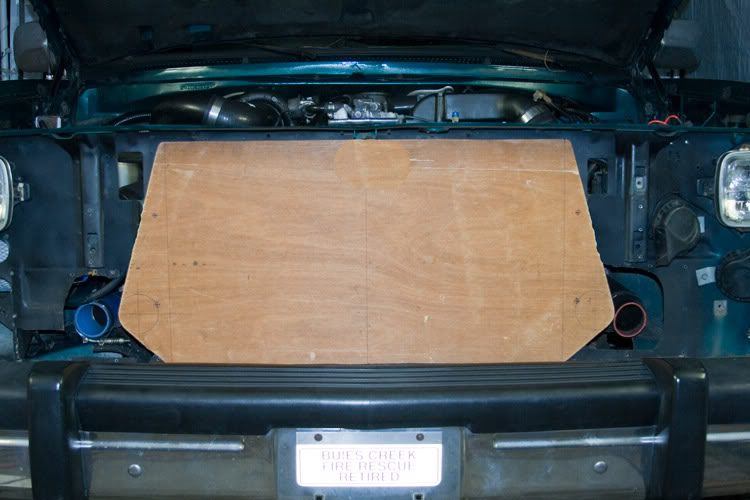

Then cyphered the biggest IC I could fit in there and made a prototype to ensure it'd fit . . . .

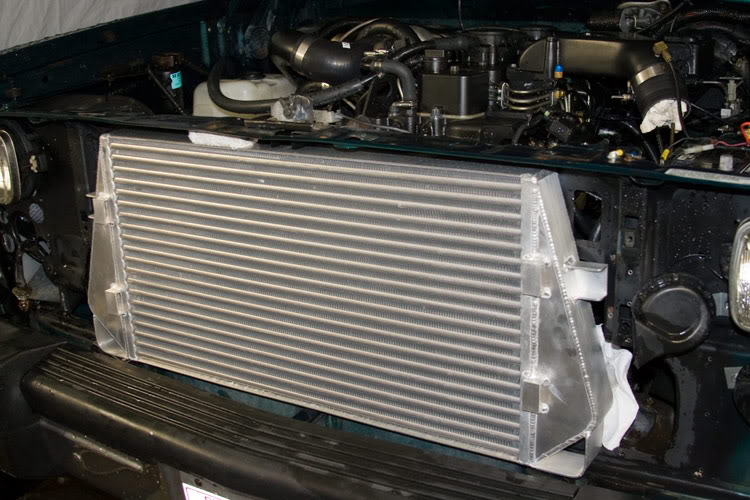

I then sent those measurements to Joe Hellman who built the IC as per my spec.

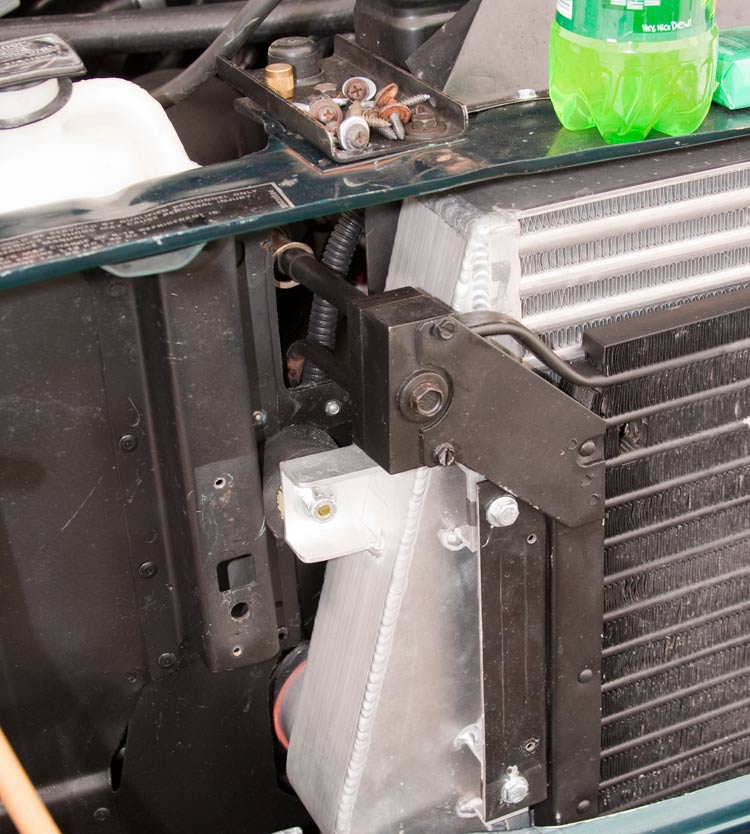

I included rubber isolation mounts for the IC and mounts for the AC's condenser coil . . . .

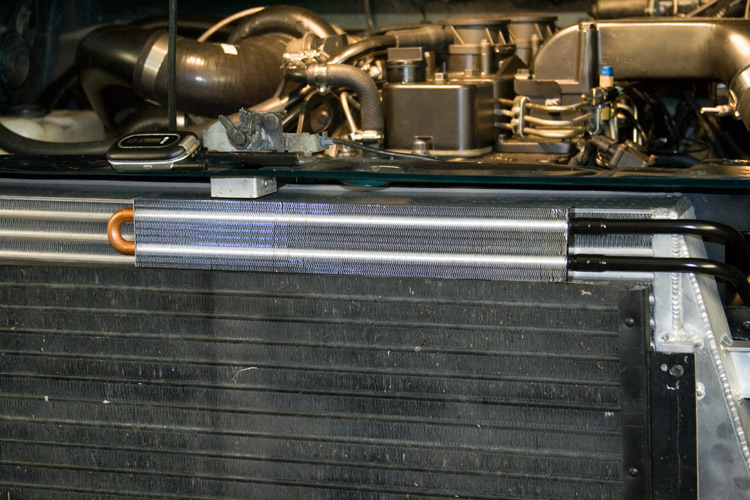

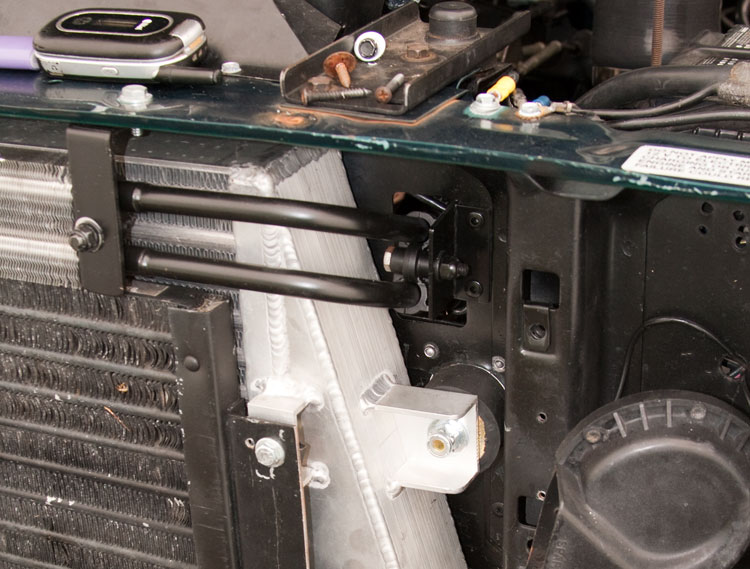

I had to custom make a trans oil cooler to fit in with everything else . . .

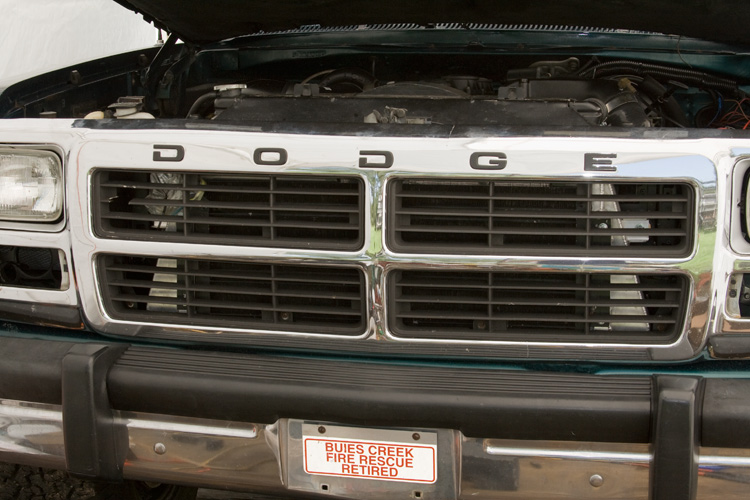

With a three inch thick core, it's a very tight fit . . . (I've since painted the end-tanks black) . . .
The individual passages that make up the core are 1/2" with the in/out pipes being 3 or 3 1/2" (I can't remember right now) resulting in VERY low pressure drop. It's guaranteed up to 100psig.
Then cyphered the biggest IC I could fit in there and made a prototype to ensure it'd fit . . . .
I then sent those measurements to Joe Hellman who built the IC as per my spec.
I included rubber isolation mounts for the IC and mounts for the AC's condenser coil . . . .
I had to custom make a trans oil cooler to fit in with everything else . . .
With a three inch thick core, it's a very tight fit . . . (I've since painted the end-tanks black) . . .
The individual passages that make up the core are 1/2" with the in/out pipes being 3 or 3 1/2" (I can't remember right now) resulting in VERY low pressure drop. It's guaranteed up to 100psig.
#25
#26
Joe makes good stuff.
