5.9L Rotary Performance Discussion of 12 Valve 5.9 Liter Dodge Cummins Diesels with Rotary Injection Pumps Related To Performance And Longevity

fuel pin question

Thread Tools

Search this Thread

  #41
Old 11-06-2009, 02:14 AM
Gunmetal's Avatar
Diesel Enthusiast
Join Date: Aug 2009
Location: USA
Posts: 102
Received 4 Likes on 3 Posts
Default

Originally Posted by Muddyswampdonkey
Piers diesel PDR has a pin that is cut "deaper then the denny t II its the factory pin machined but looks clean ....doesnt wear $75 us
Any pin that starts out as a factory pin is no good, there's just not enough material there to work with.
A good pin will be made from a solid piece of stock and will be heat treated.
Avoid bullydog and ddp because of weak heat treats.

Denny makes a good pin, but it is really aggressive. Good if you want max power, but it will affect fuel economy.
I went with Mikes Old Smoky power pin. Mike designed the original, allowed ddp to use his design initially (now they make them without permission), and bullydog copied his design also.
I've read multiple places Bullydog pins groove badly because of lower quality steel and poor heat treat, so buyer beware. I suspect Bullydog gets them from DDP.


Last edited by Gunmetal; 11-06-2009 at 02:18 AM.
  #42
Old 11-06-2009, 09:32 AM
RSWORDS's Avatar
BOMBARDIER

Join Date: Mar 2007
Location: Gloucester, VA
Posts: 11,159
Received 918 Likes on 537 Posts
Default

Originally Posted by Muddyswampdonkey
Piers diesel PDR has a pin that is cut "deaper then the denny t II its the factory pin machined but looks clean ....doesnt wear $75 us
I dont know how they pulled that off, there is not enough room in teh stock pin to get anywhere NEAR a DennyT Stage 2 or teh M&H pins....

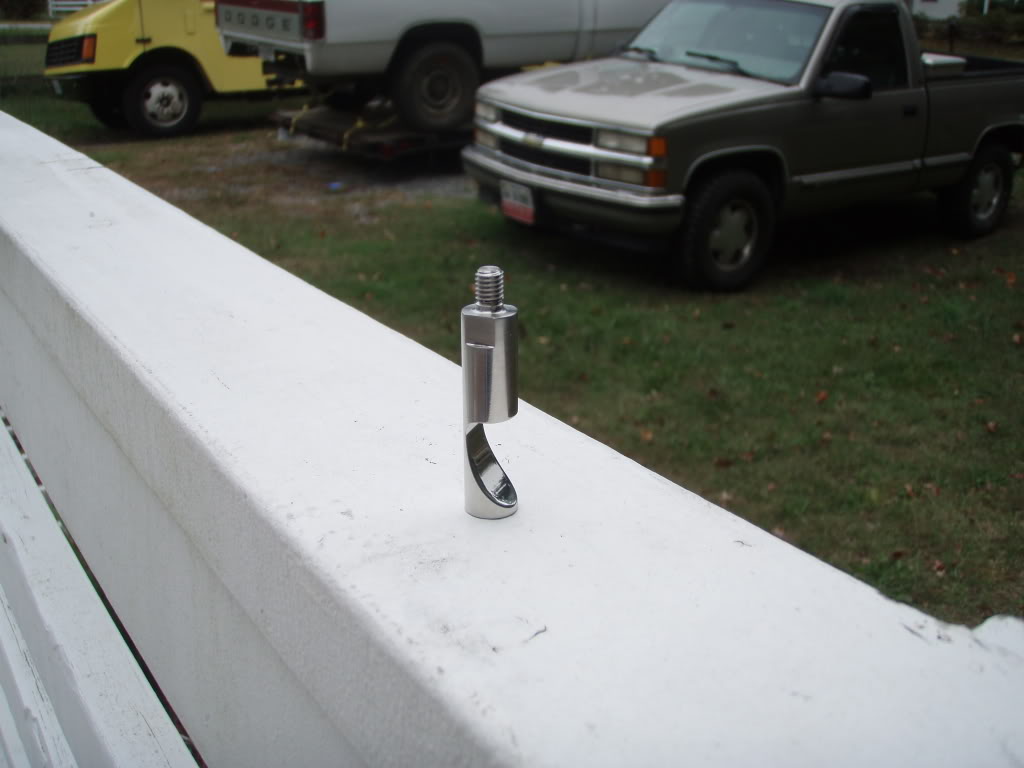

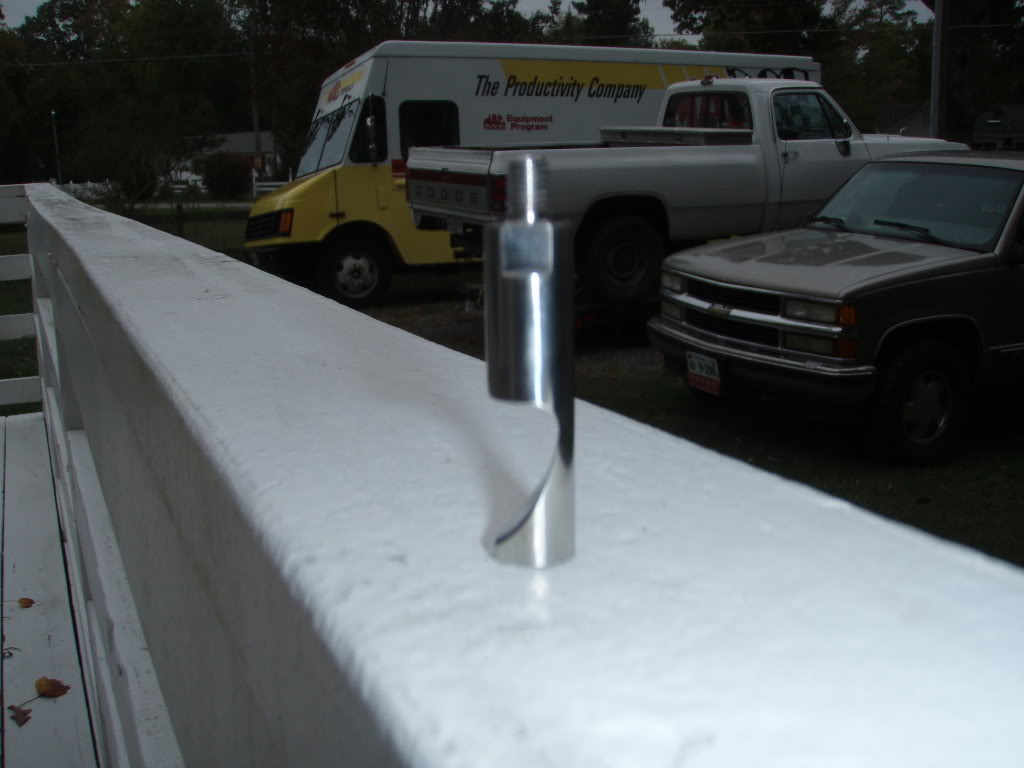

Here is the DennyT Stage 2
Name:  PA240015.jpg
Views: 125
Size:  61.3 KB
Name:  PA240017.jpg
Views: 136
Size:  63.4 KB

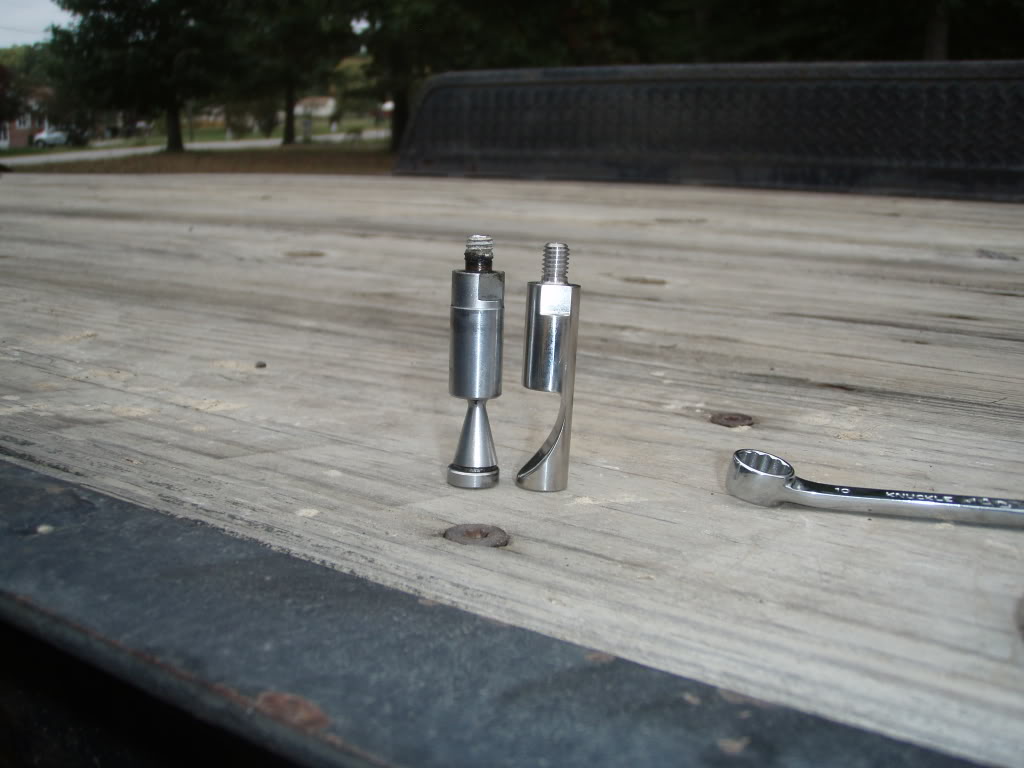

Here are the two pins side by side. You can see the difference. The stock pin on the left is rotated to its deepest setting. You can pick up a little more with grinding, but you will never get anywhere near an aftermarket pin.

Name:  PA240023.jpg
Views: 100
Size:  77.5 KB
