24v fuel pressure question
#1
24v fuel pressure question
my uncles about to buy a 2002 5speed standard cab,4x4, long bed 24v with 100,000 miles. He is scared about the lift pump going out and messing up the injection pump.so he is going to buy a fuel gauge to always watch fuel pressure, what fuel pressure should it always be putting out and when do we know when to change the lift pump.
#2
#3

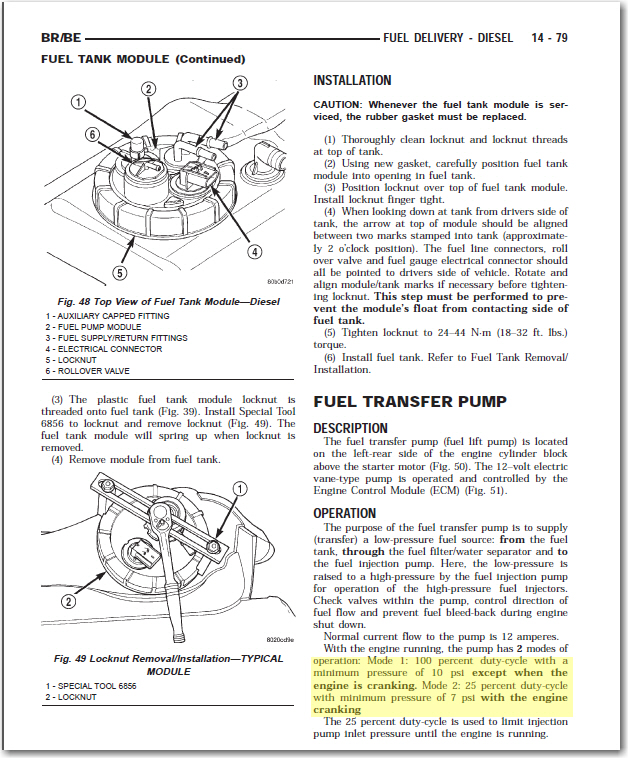

service manual says 10psi+

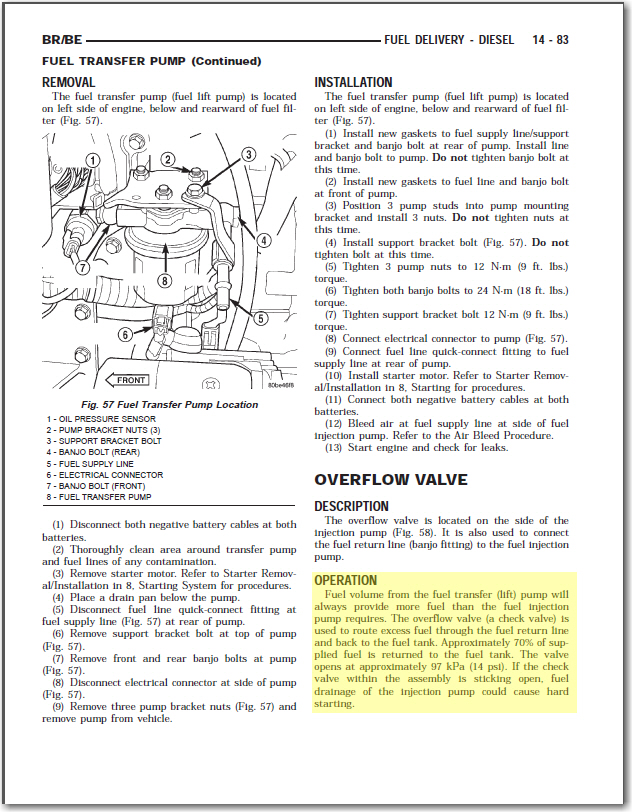

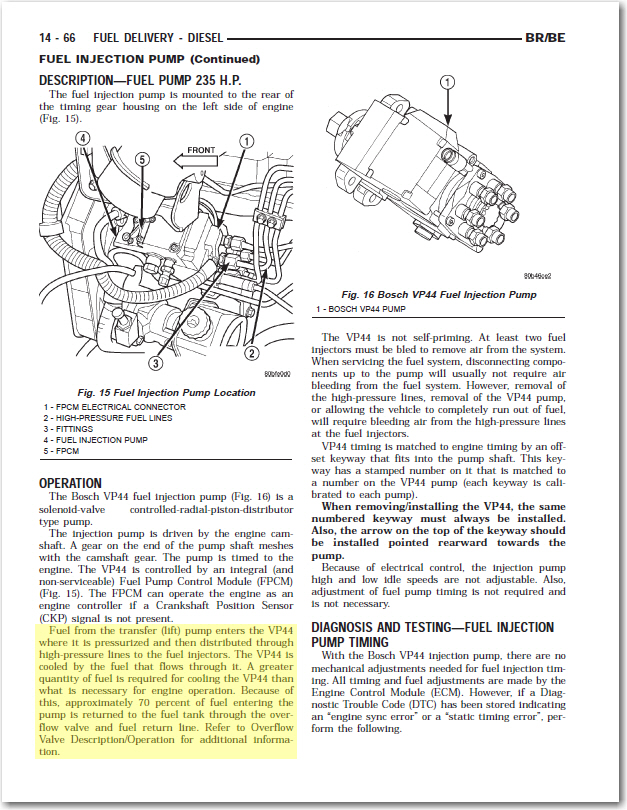

service manual also says 14psi is when fuel is returned to the tank via overflow valve and approx 70% of fuel is returned basically to help cool the injection pump (and lubricate)
so to me that says: 14psi - 23psi is about the ideal pressure range... stay above 14 and below 23 at all times and you should be in good shape.
mine idles at 18-21psi (depends on if tank is full or not) and runs WOT @ maximum power level at 16psi...
service manual also says 14psi is when fuel is returned to the tank via overflow valve and approx 70% of fuel is returned basically to help cool the injection pump (and lubricate)
so to me that says: 14psi - 23psi is about the ideal pressure range... stay above 14 and below 23 at all times and you should be in good shape.
mine idles at 18-21psi (depends on if tank is full or not) and runs WOT @ maximum power level at 16psi...
