Diesel Bombers

12 Valve 2nd Gen Dodge Cummins 94-98 Discussion of 12 Valve 5.9 Liter Dodge Cummins Diesels with P7100 Injection Pumps

Star Wheel

Thread Tools

Search this Thread

Old Feb 22, 2010 | 06:28 PM
Share
  #11
ztk7220's Avatar
Diesel Fan
Joined: Jan 2010
Posts: 77
Likes: 0
From: Freeport, Michigan
Default
mount it on the exhaust manofold before the turbo where all the exhaust from all the cylenders come together.

Reply
0
Old Feb 23, 2010 | 05:50 AM
Share
  #12
wes-cummins's Avatar
Diesel Wrench
Joined: Dec 2009
Posts: 576
Likes: 10
From: wisconsin
Default
dont drill in the center of the manifold drill just back of center, ive been told the back cylinders run hotter, and if you drill in the center you could crack it

Reply
0
Old Feb 23, 2010 | 09:16 AM
Share
  #13
94 12valve's Avatar
Diesel Bomber
Joined: Jan 2009
Posts: 3,504
Likes: 157
From: Pylesville, Maryland
Default
Originally Posted by hotcummins
yes you are
you are raising the fuel at less boost
but you have the same amount of fuel on the top end. so same overall horsepower but more smoke on the bottom end

Reply
0
Old Feb 23, 2010 | 11:40 AM
Share
  #14
Dr. Evil's Avatar
BOMBARDIER
Joined: Mar 2007
Posts: 23,293
Likes: 1,322
From: North of You
Default
Originally Posted by 2.S.F.L
I was thinking about getting a pyro gauge, were abouts are you guys mounting the sensor on the exhaust?
Like this:

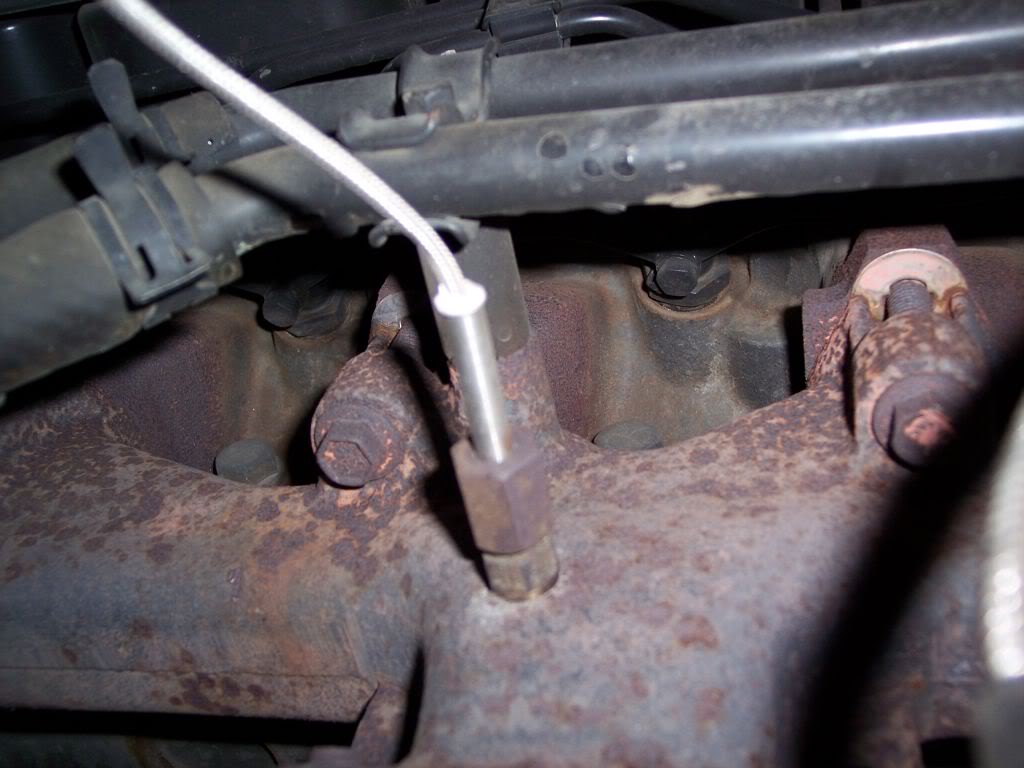

Name: 110_2359.jpg Views: 158 Size: 84.5 KB

Heres another shot:

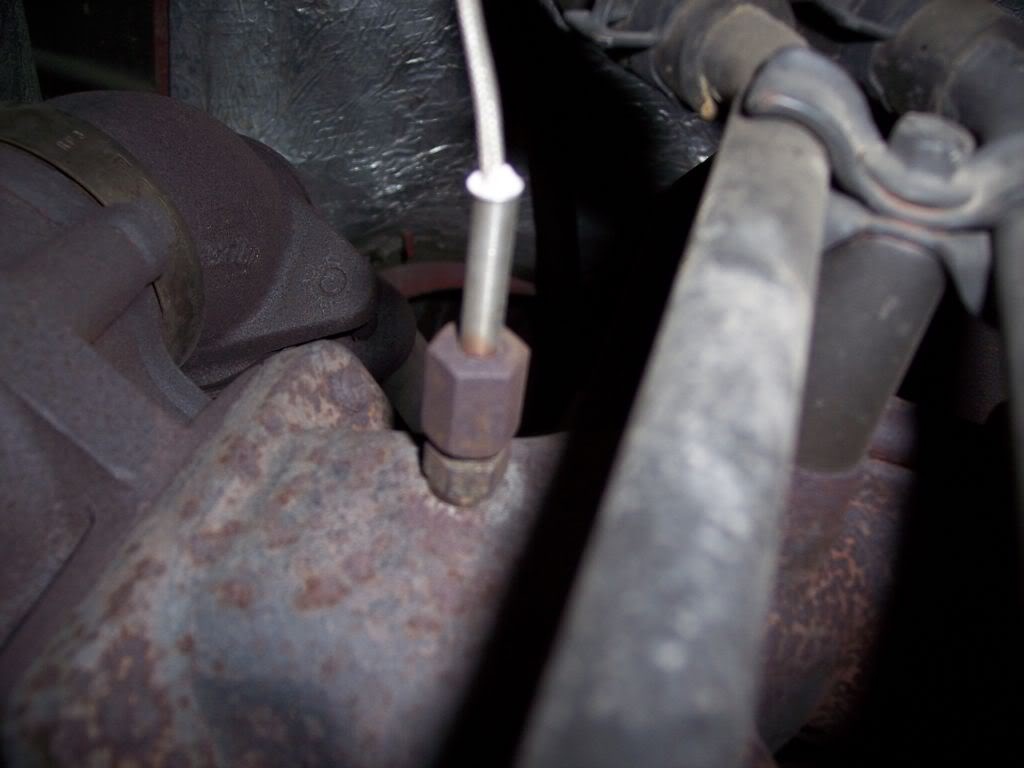

Name: 110_2365.jpg Views: 146 Size: 56.8 KB

Another:

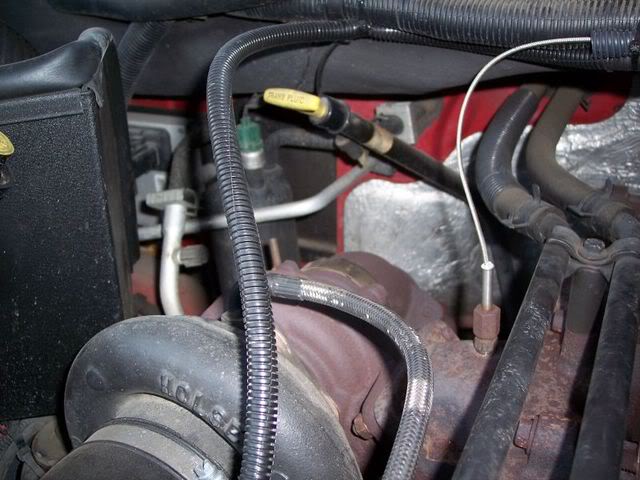

Name: 110_1845.jpg Views: 180 Size: 58.5 KB

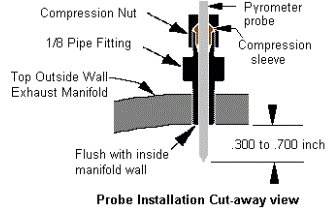

Name: pyromount.jpg Views: 116 Size: 15.4 KB

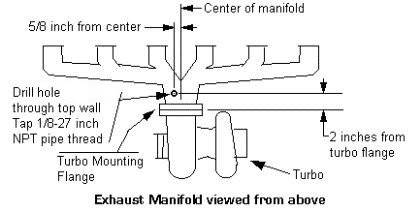

Name: pyrohole.jpg Views: 130 Size: 18.2 KB

Reply
1
Old Feb 23, 2010 | 12:24 PM
Share
  #15
Cameron's Avatar
Diesel Enthusiast
Joined: Jul 2007
Posts: 108
Likes: 1
From: Sacramento
Default
how many clicks of the star wheel is it for one full turn?

Reply
0
Old Feb 23, 2010 | 03:11 PM
Share
  #16
wes-cummins's Avatar
Diesel Wrench
Joined: Dec 2009
Posts: 576
Likes: 10
From: wisconsin
Default
some where between 15-20, i dont rly count the clicks i either put if FF or half way

Reply
0
Old Feb 23, 2010 | 05:18 PM
Share
  #17
2.S.F.L's Avatar
Thread Starter
|
Diesel Fan
Joined: Feb 2010
Posts: 18
Likes: 0
From: Cranbrook B.c
Default
ok thanks guys.

Reply
0
