Oil Pressure
#1
Oil Pressure
Do any of you guys have a mechanical oil pressure guage? My sender crapped out so I installed a guage. I dont like what its telling me. My oil pressure fluctuates between 85-90 psi on the high side and will drop under 30 psi when I have the truck stopped, at which point the oil pressure alarm dings. Keeep in mind that I am running 0W40 synthetic and not 15W40 conventional.
Anyone else have a similar experience?
Anyone else have a similar experience?
#3
I pulled the 1/8" plug on the top of the oil filter housing. Ran 1/4" S.S. braided line through firewall directly to the pressure guage. The guage is reading correctly as I checked it with pneumatic calibration equipment. As well, I originally installed a different guage and it read the same.
Seems like the oil pump might be shatting the bed.
Seems like the oil pump might be shatting the bed.
Last edited by Dr. Evil; 04-22-2008 at 10:04 PM.
#4
#5
#6
Do any of you guys have a mechanical oil pressure guage? My sender crapped out so I installed a guage. I dont like what its telling me. My oil pressure fluctuates between 85-90 psi on the high side and will drop under 30 psi when I have the truck stopped, at which point the oil pressure alarm dings. Keeep in mind that I am running 0W40 synthetic and not 15W40 conventional.
Anyone else have a similar experience?
Anyone else have a similar experience?
I pulled the 1/8" plug on the top of the oil filter housing. Ran 1/4" S.S. braided line through firewall directly to the pressure guage. The guage is reading correctly as I checked it with pneumatic calibration equipment. As well, I originally installed a different guage and it read the same.
Seems like the oil pump might be shatting the bed.
Seems like the oil pump might be shatting the bed.
1. good gauge
2. decent installation
3. good quality fluids - Full synthetics run much more "interesting" than dino diesel blends
What I don't get is where is this oil pressure alarm? Is it aftermarket or part of the gauge?
#7
To me this sounds pretty normal under the following conditions:
1. good gauge
2. decent installation
3. good quality fluids - Full synthetics run much more "interesting" than dino diesel blends
What I don't get is where is this oil pressure alarm? Is it aftermarket or part of the gauge?
1. good gauge
2. decent installation
3. good quality fluids - Full synthetics run much more "interesting" than dino diesel blends
What I don't get is where is this oil pressure alarm? Is it aftermarket or part of the gauge?

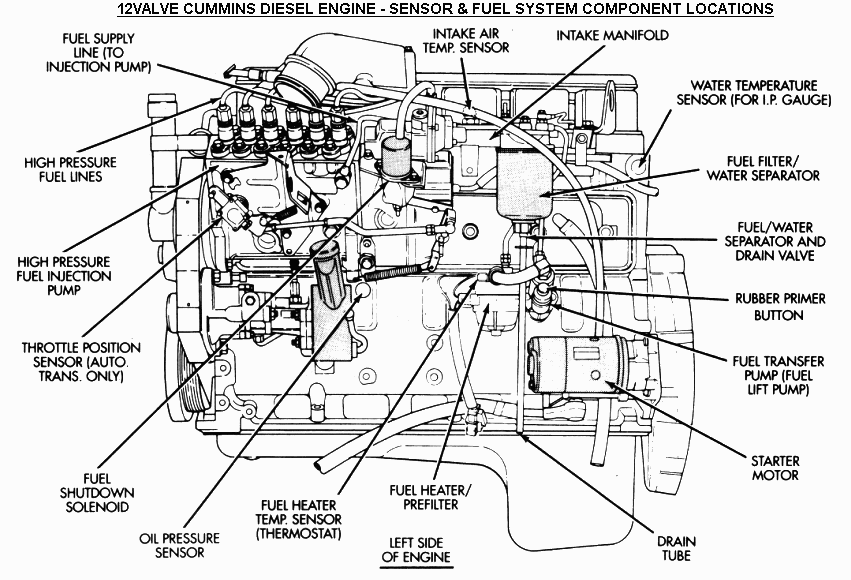

The stock oil pressure alarm from the pressure sender:
#8
I run a mechanical gauge and its T'd off the factory sensor area.I run Schaeffer 15w40 Moly Bond X200 synthetic in mine and its at 40-50 at idle and runs about 80 when your going down the road at full speed.Are you sure the sensor,since its reading is taken from the factory sender is not showing false and activating the buzzer?.....Andy
#9
Thanks for your input Andy....
On cold startup Im seeing 80 psi or so...drops some once it warms up. But, generally when things are good and hot (remember this is with 0W40 synthetic) and I come to a stop the pressure on the mechanical drops just under 40 psi (at which time the factory oil pressure guage drops off to 0 and the buzzer dings). Ive never had the mechanical guage drop below 30 psi.
You think thats still ok or is my oil pump about to take a long nap? I understand the oil pumps i these things are pretty stout and Ive never heard of many guys having problems with them.
On cold startup Im seeing 80 psi or so...drops some once it warms up. But, generally when things are good and hot (remember this is with 0W40 synthetic) and I come to a stop the pressure on the mechanical drops just under 40 psi (at which time the factory oil pressure guage drops off to 0 and the buzzer dings). Ive never had the mechanical guage drop below 30 psi.
You think thats still ok or is my oil pump about to take a long nap? I understand the oil pumps i these things are pretty stout and Ive never heard of many guys having problems with them.
Last edited by Dr. Evil; 05-02-2008 at 01:35 PM.
#10
From what I can remember, 30 psi at idle is normal.. The higher pressures at higher rpm are at the filter can right? If thats upstream of your filter, it would make sense as you might see up to 10 psi drop across the filter. Also the stock pressure location is in the main rail and after the cooler and would read in the 60 psi range. Seems all is fine but the sender at this point Doc...
