Oil Pressure
#23

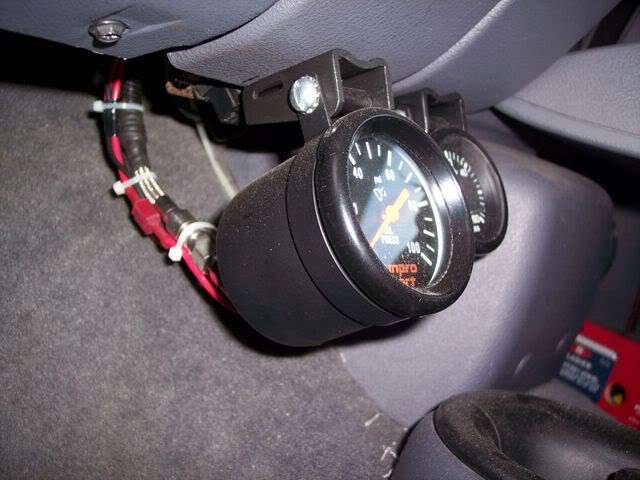

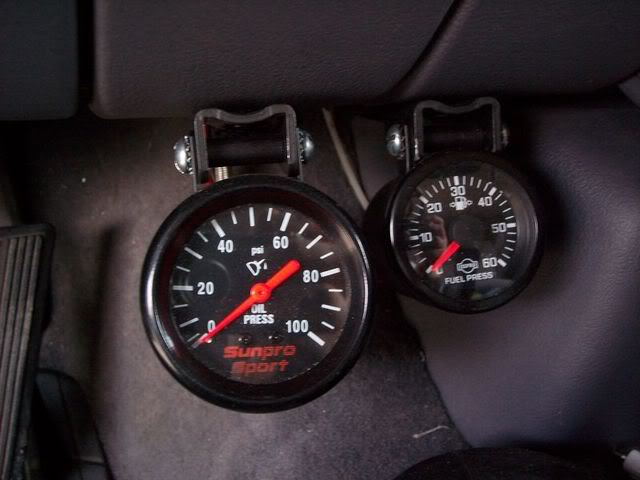

Here are the pics (yes, I know they suck but I didnt have time to take it apart):
I uses S.S. fittings, but you could use brass as it is about half the cost.
P/N's:
SS-400-1-2: SS-400-1-2 - SS Swagelok Tube Fitting, Male Connector, 1/4 in. Tube OD x 1/8 in. Male NPT
SS-4P4T: SS-4P4T - SS Quarter-Turn Instrument Plug Valve, 1/4 in. Swagelok Tube Fitting, 1.6 Cv
SS-4BHT: SS-4BHT-120 - PTFE-Lined, SS Braided Hose Assembly, 1/4 in. SS Swagelok Tube Adapters, 120 in. (3.0 m) Length - will have to figure out how much line you will need (in inches)
SS-400-7-2: SS-400-7-2 - SS Swagelok Tube Fitting, Female Connector, 1/4 in. Tube OD x 1/8 in. Female NPT
You will need another adapter - Justin, PM me if you are going to use this setup and we can discuss.
I uses S.S. fittings, but you could use brass as it is about half the cost.
P/N's:
SS-400-1-2: SS-400-1-2 - SS Swagelok Tube Fitting, Male Connector, 1/4 in. Tube OD x 1/8 in. Male NPT
SS-4P4T: SS-4P4T - SS Quarter-Turn Instrument Plug Valve, 1/4 in. Swagelok Tube Fitting, 1.6 Cv
SS-4BHT: SS-4BHT-120 - PTFE-Lined, SS Braided Hose Assembly, 1/4 in. SS Swagelok Tube Adapters, 120 in. (3.0 m) Length - will have to figure out how much line you will need (in inches)
SS-400-7-2: SS-400-7-2 - SS Swagelok Tube Fitting, Female Connector, 1/4 in. Tube OD x 1/8 in. Female NPT
You will need another adapter - Justin, PM me if you are going to use this setup and we can discuss.
Last edited by Dr. Evil; 06-06-2008 at 09:05 AM.
#26
#27

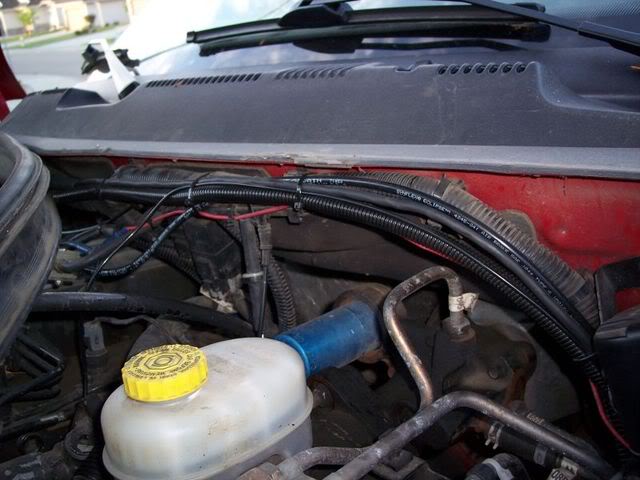

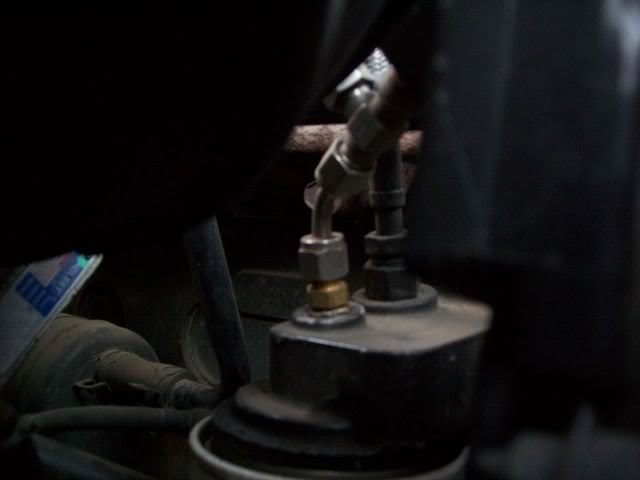

The guage under the hood is oil pressure and its installed on the secondary port on the oil filter housing. Its been there awhile now and seems ok but it does hammer pretty good - eventually the Bourdon tube inside will stretch or possibly fail but I will either change the gauge or take it off altogether (that is a 160 psi guage BTW). Theres no good reason that I installed the guage under the hood other than I have a bunch of extra guages and fittings in my tickle trunk . The oil runs into the cab through the 1/4" braided S.S. line which is good for a few thousand psi.
Last edited by Dr. Evil; 06-06-2008 at 08:37 AM.
