02 7.3l antifreeze leak - Diesel Bombers

Ford Powerstroke 99-03 7.3L Discussion of 99-03 7.3 Liter Ford Powerstroke Turbo Diesels

02 7.3l antifreeze leak

Reply




  #1
Old 02-21-2015, 02:04 PM
Newbie
Thread Starter
Join Date: Feb 2015
Posts: 1
Thanks: 0
Thanked 1 Time in 1 Post
Default 02 7.3l antifreeze leak

Hey ya'll, I got a 2002 7.3 leaking antifreeze. Last time I drove the truck was about 2 months ago, its been parked in my garage ever since. I was walking in the garage today and I noticed antifreeze on the ground, not a whole lot but enough that I need to get the problem resolved. It looks to me like its leaking out of the two main hose clamps on the water pump? I look around all the seems of the water pump and I can see fluid. Also two other small spots of fluid (guessing antifreeze, but no smell) on the garage floor, back by where the starter is located. The clear coolant tank looked pretty dirty inside. I'm gonna have a coolant flush done, then do I replace the water pump? Or is this something deeper. Where to start? I've attached pictures so you can see what I'm looking at.

Any input would be greatly appreciated.
Thank you

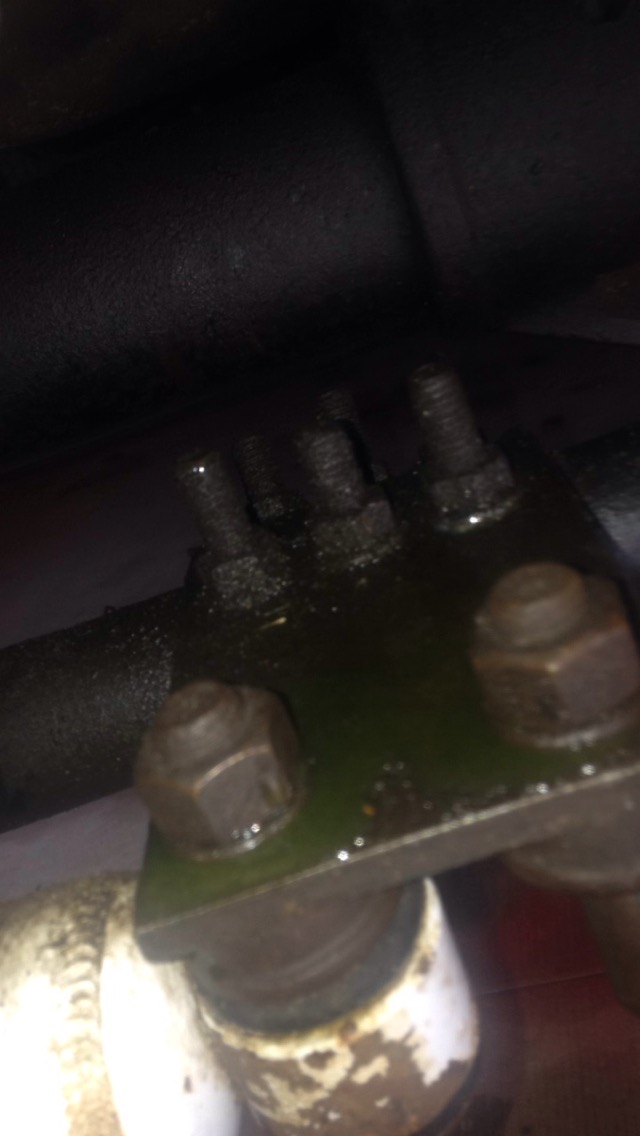

The picture with the 3 arrows is a top view, the picture with one arrow is a underside view, and the last picture is my steering stabilizer where most the fluid is leaking from.

02 7.3l antifreeze leak-img_2038.jpg

02 7.3l antifreeze leak-img_2039.jpg

02 7.3l antifreeze leak-img_2040.jpg


Last edited by jorttel; 02-21-2015 at 02:09 PM. Reason: Wrong size photos
Reply With Quote
The Following User Says Thank You to jorttel For This Useful Post:
geatgavi (02-22-2015)
  #2
Old 02-22-2015, 09:50 PM
detroitdiesel idi's Avatar
Diesel Enthusiast
Join Date: Nov 2012
Location: michigan
Posts: 421
Thanks: 0
Thanked 37 Times in 36 Posts
Default

Can't quite pinpoint leak as pics aren't very clear I would replace water pump and thermostat housing n I bet she wld be leak free thermostat housings warp because they are so thin and begin to leak they make upgraded ones on ebay . also if u buy a new water pump it will come with a new elbow and oring just make sure when u remove the water pump there is no signs of cavitations in the front cover.

Reply With Quote
