Normal egt's
#1
#2

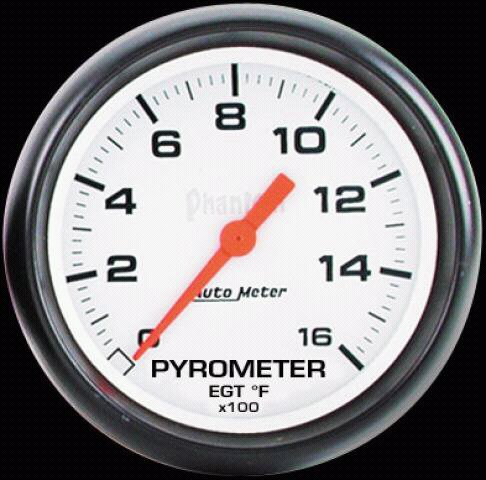

Depends on your mods and such, but normal PRE TURBO egt's will be 500-700* at 55mph.
Higher alt will cause higher EGT's...
Red line is 1250*. You can go over that for short periods of time, passing, racing and such, but 1250* is where you are on your own.
IH rates the motor for 1250* sustained egt's. You can tow all day at 1250*, but when your over that, your on your own.
Higher alt will cause higher EGT's...
Red line is 1250*. You can go over that for short periods of time, passing, racing and such, but 1250* is where you are on your own.
IH rates the motor for 1250* sustained egt's. You can tow all day at 1250*, but when your over that, your on your own.
#4
#6

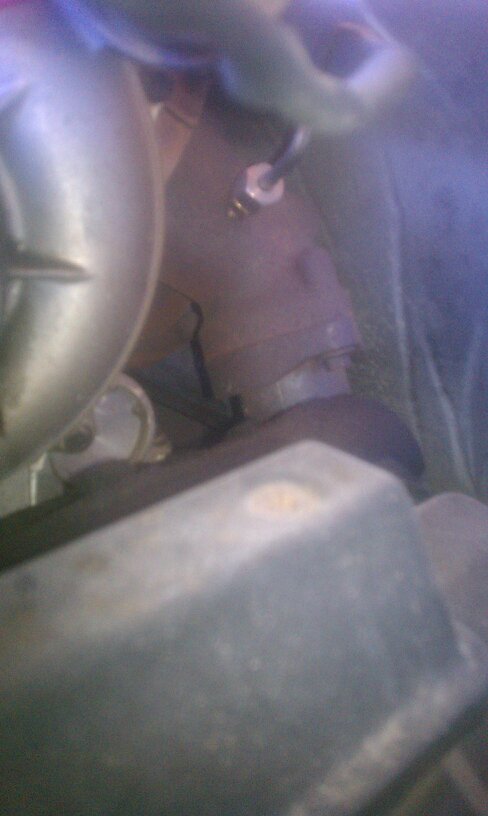

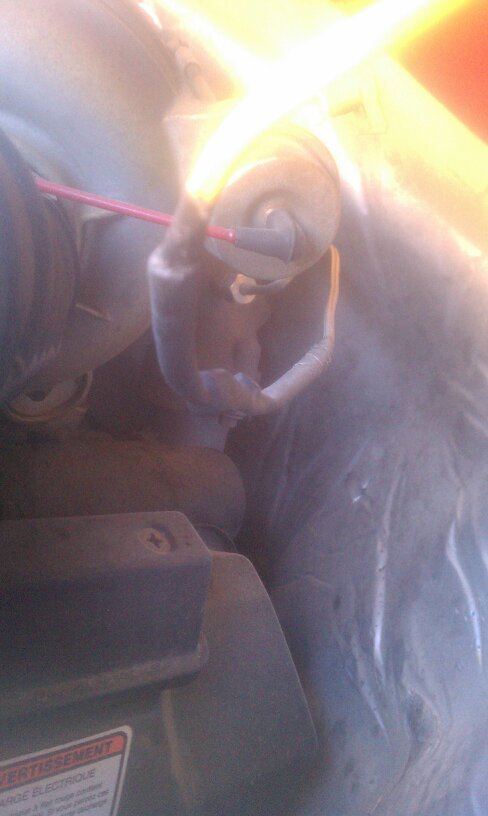

wheres the probe? my 95 truck someone had a gauge already installed when i got it and it reads super low b/c its drilled in the exhaust pipe back by the trans!!! it should be in the exhaust manifold rite off the engine on the drivers side. do a search on here, someone has some nice pictures of exact location.
#8
#9
#10
