Help!! Is this a glow plug harness leak?? Photos included
#11
05-07-2012, 04:31 PM
Fixed it!

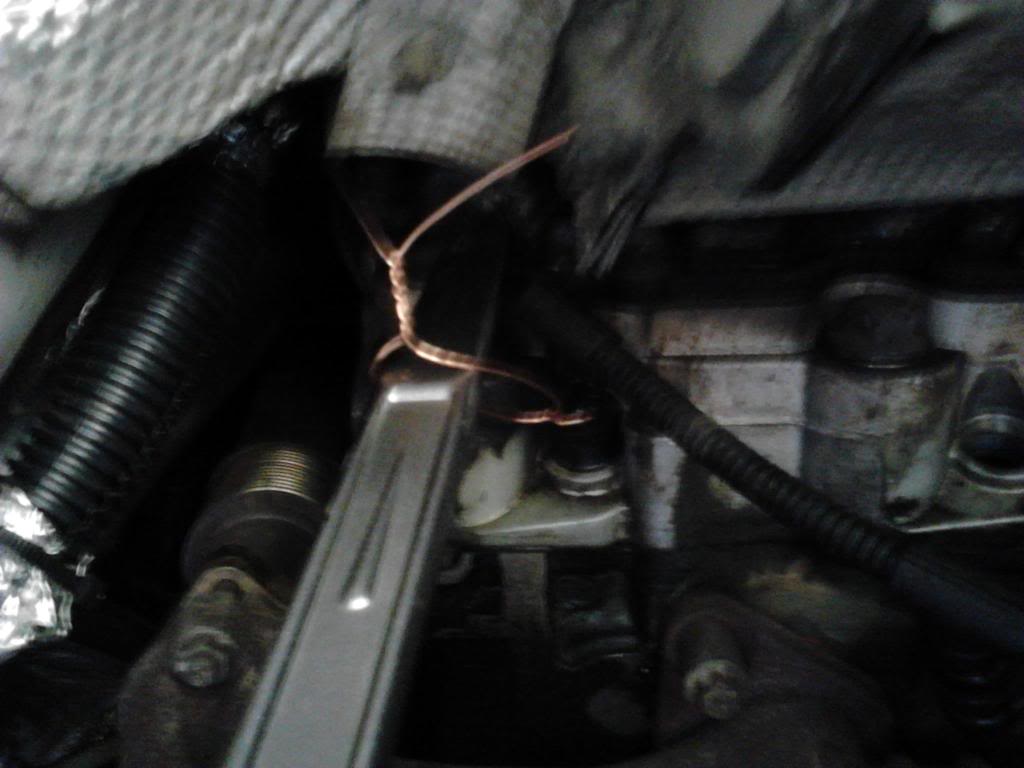

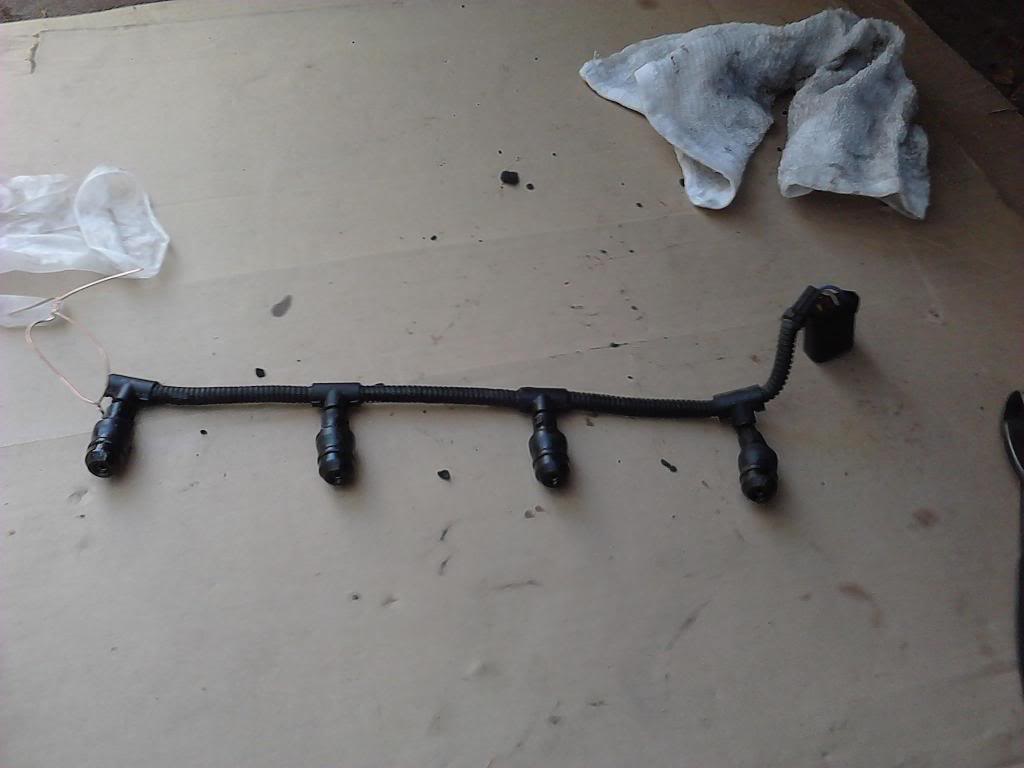

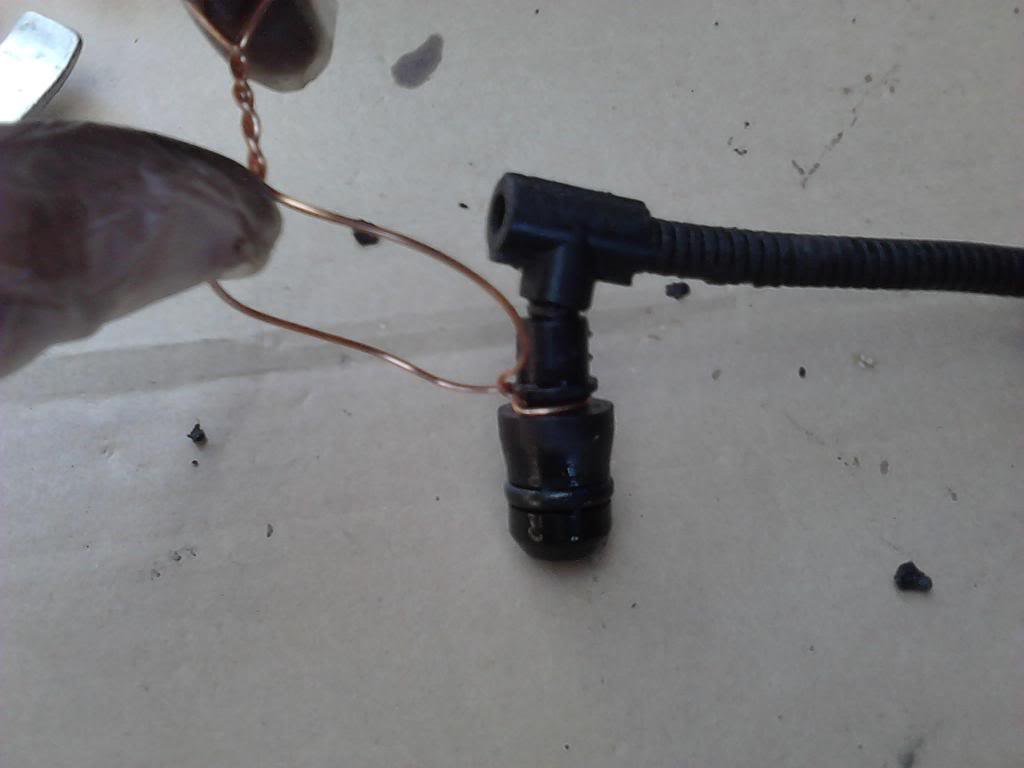

It only took a few minutes to remove the harness and install the new one. I took some thin wire and wrapped it around the harness boot. Then took a small pry bar and used it for leverage to pull out each boot. The harness came out in one piece. I probably could have got new o rings and re used it but I already had the new one ($62 from the dealer). I did use some wheel bearing grease on the o rings of the new harness. No more leaks!

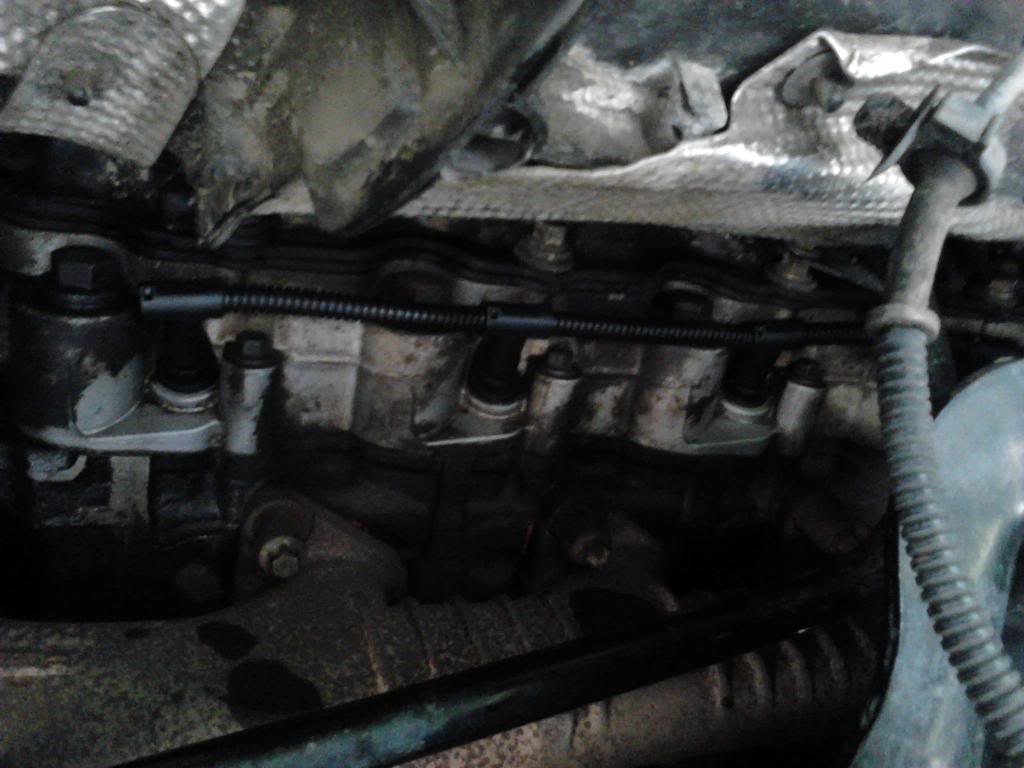

The last picture is the new harness installed.
It only took a few minutes to remove the harness and install the new one. I took some thin wire and wrapped it around the harness boot. Then took a small pry bar and used it for leverage to pull out each boot. The harness came out in one piece. I probably could have got new o rings and re used it but I already had the new one ($62 from the dealer). I did use some wheel bearing grease on the o rings of the new harness. No more leaks!
The last picture is the new harness installed.
The following users liked this post:
Mdub707 (05-11-2012)
