1997 GMC CUMMINS ROLLBACK
#1
1997 GMC CUMMINS ROLLBACK

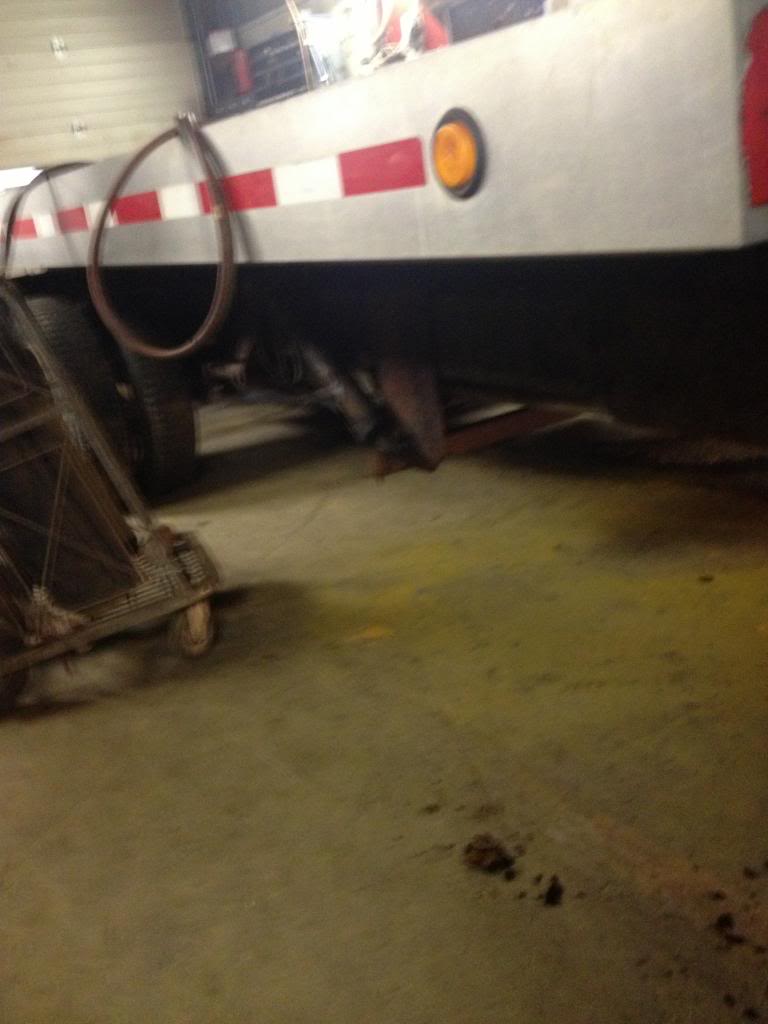

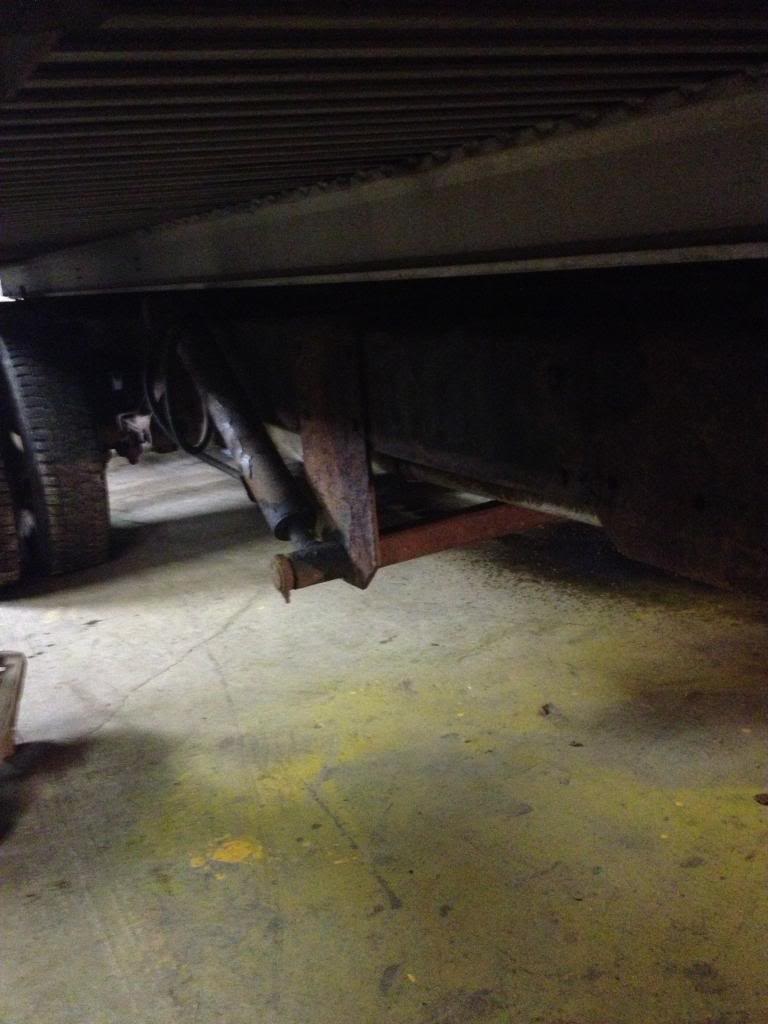

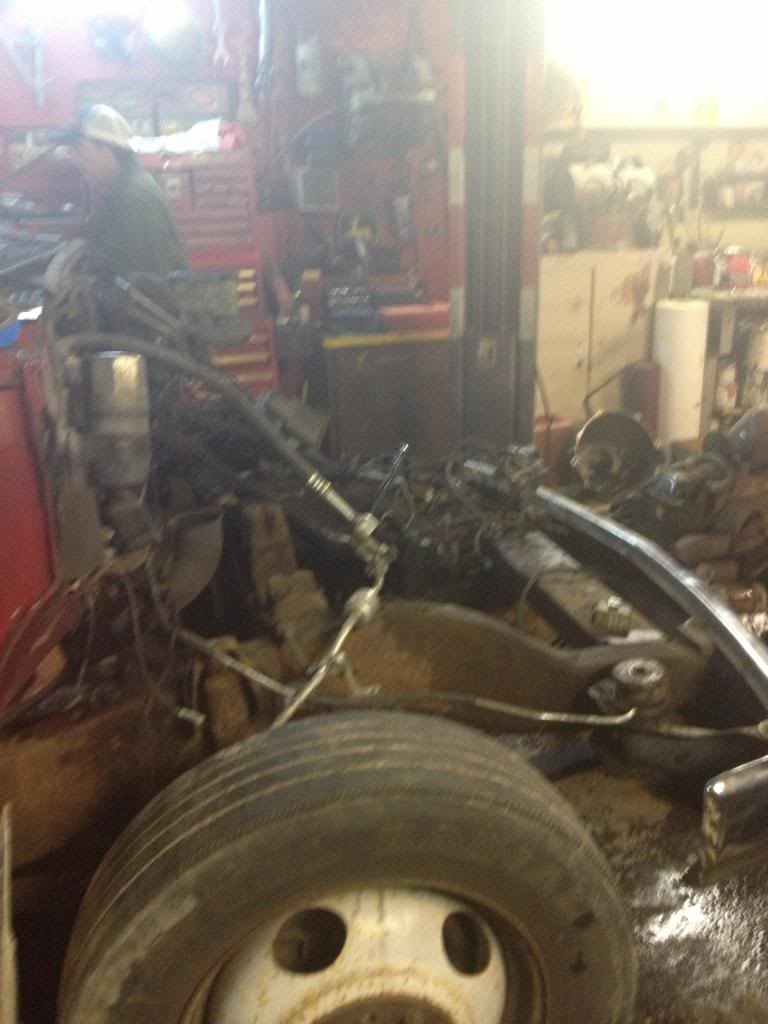

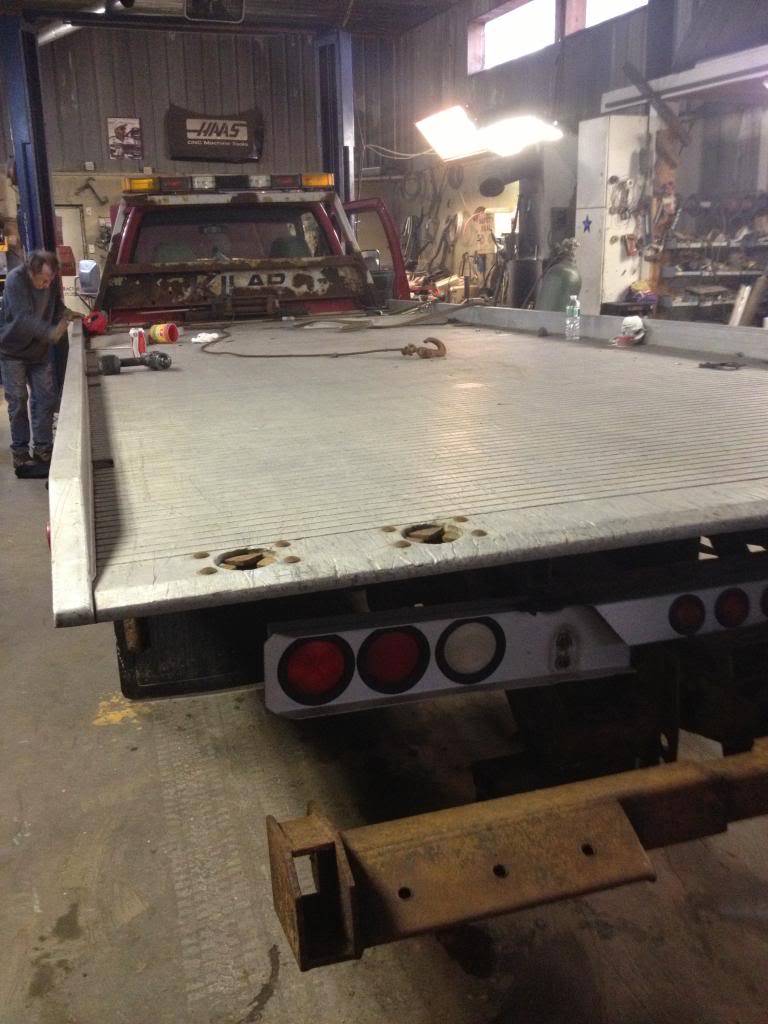

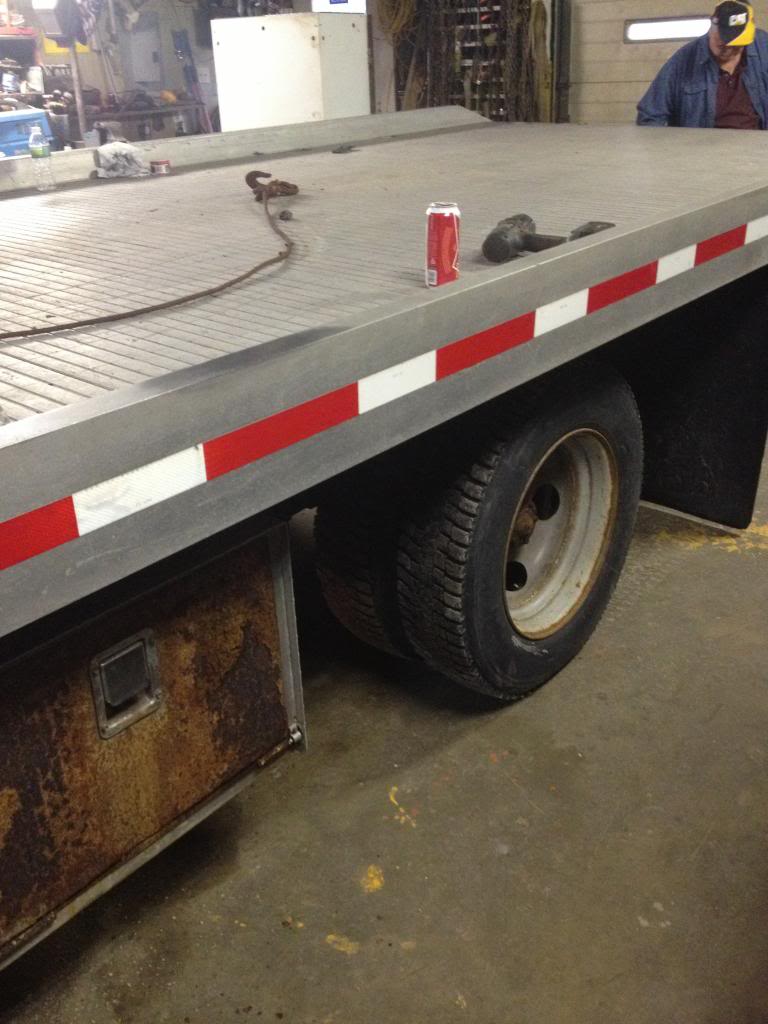

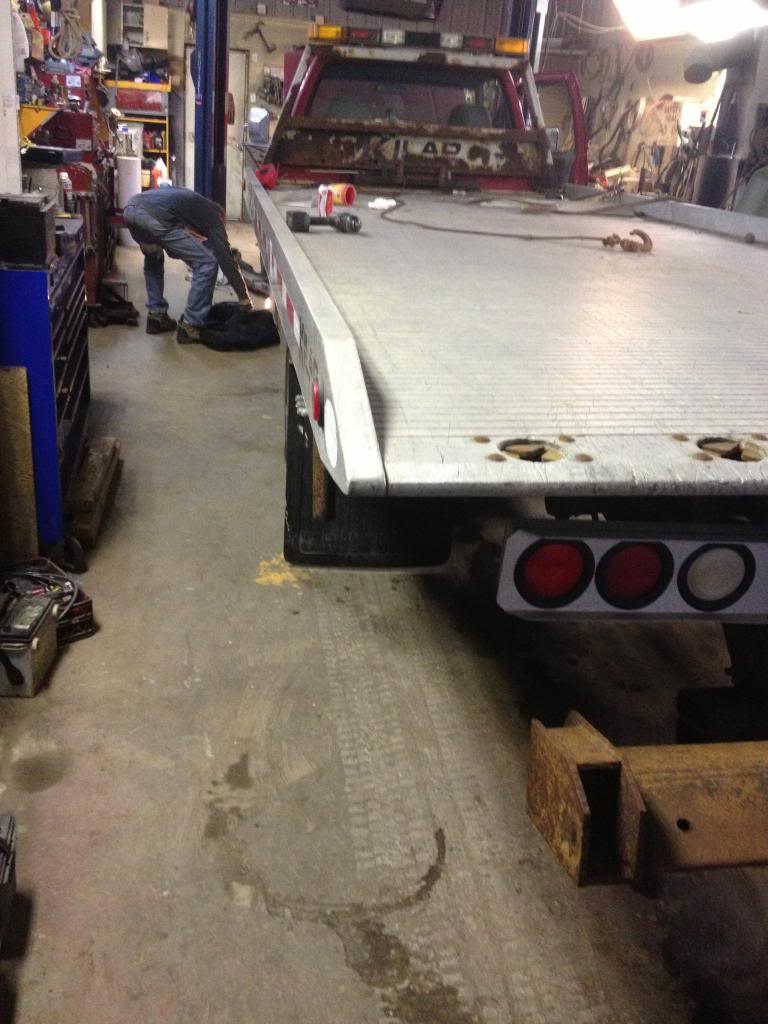

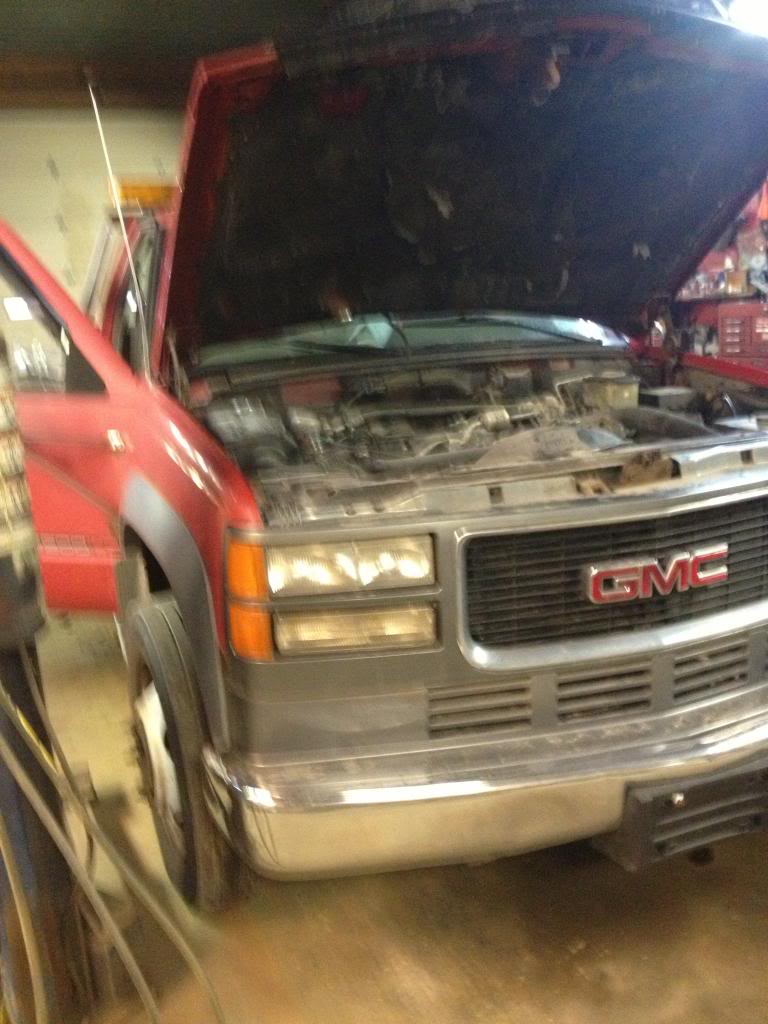

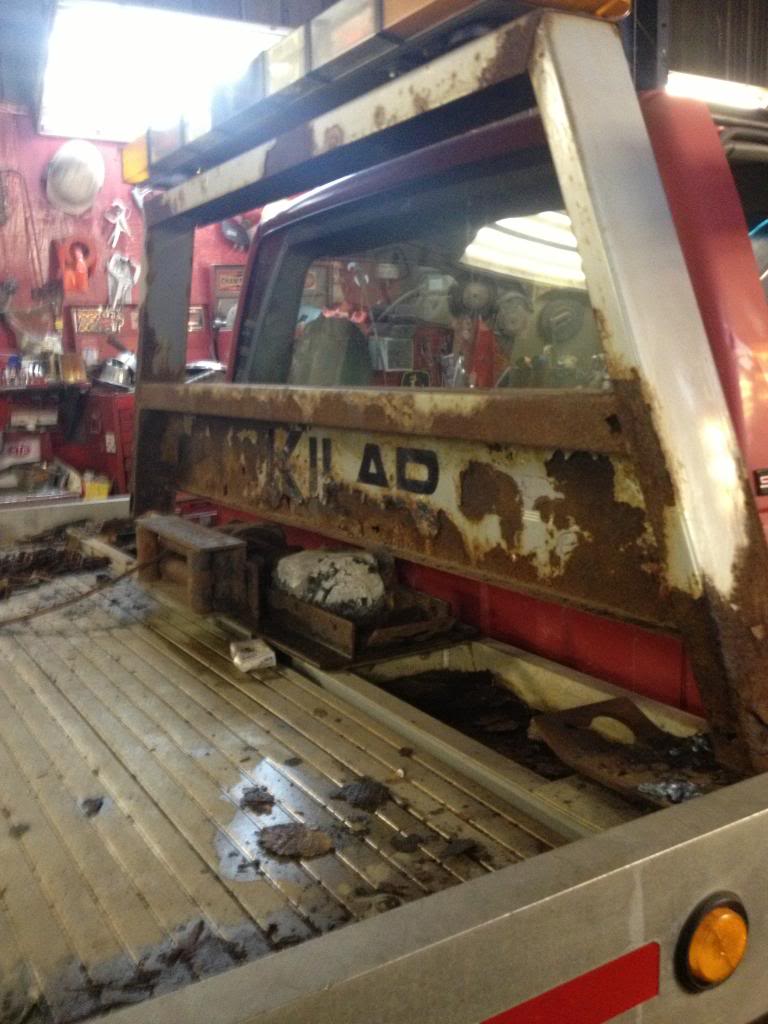

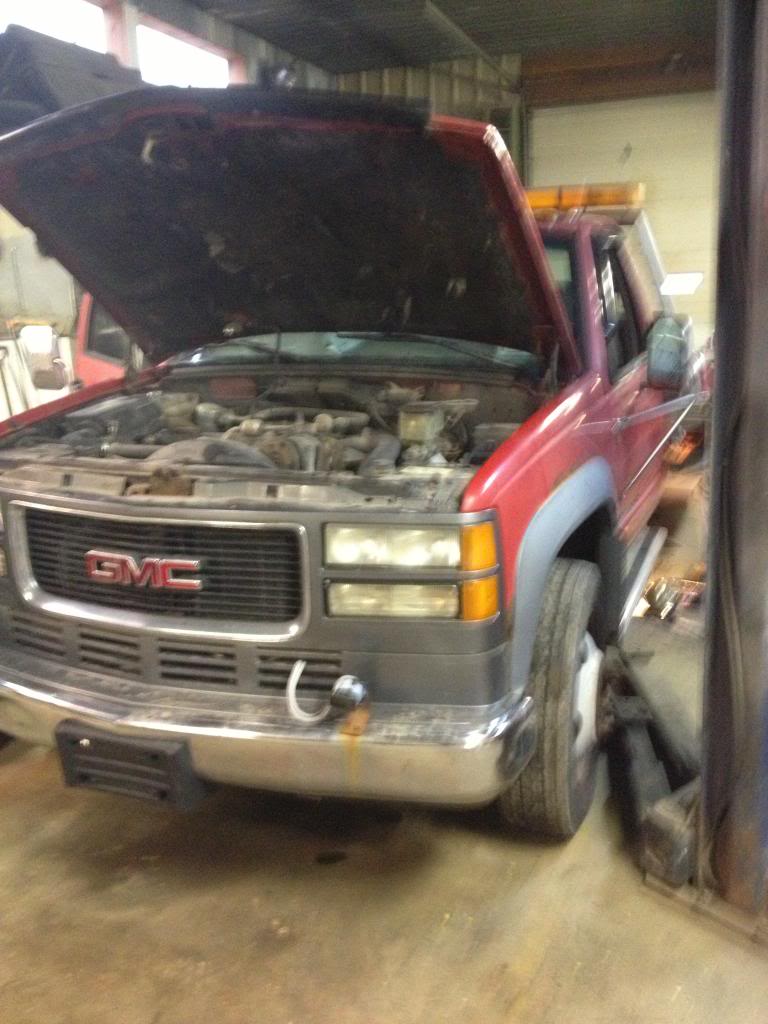

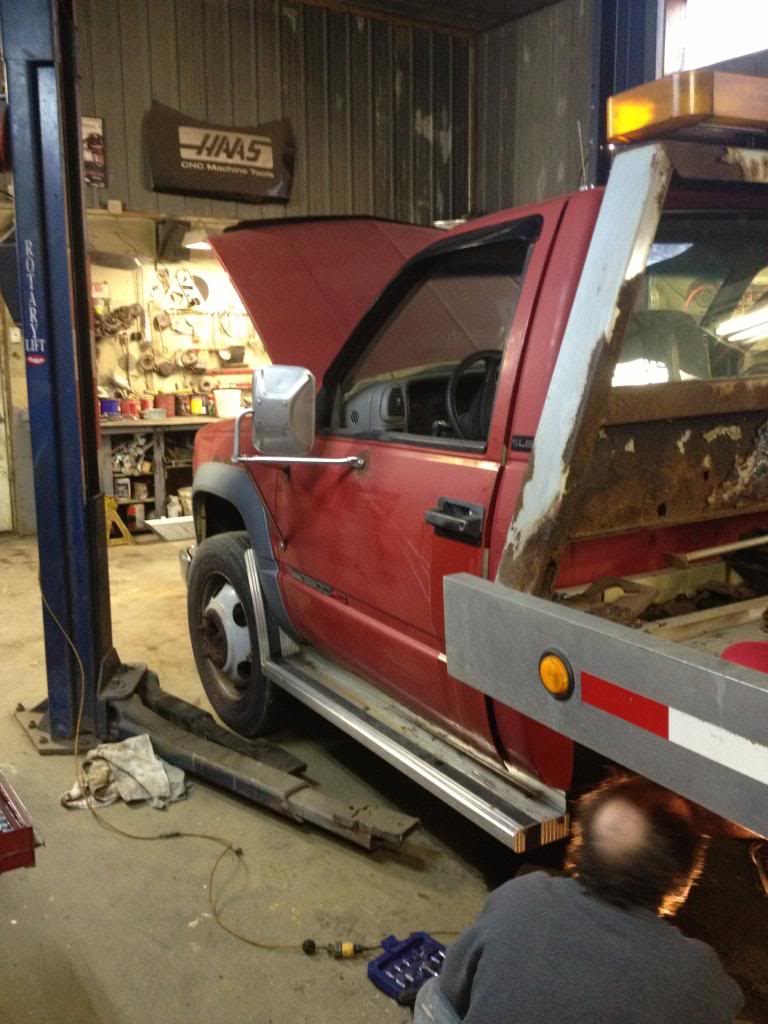

Getting close to finishing the conversion, here is what I started with not really sure what to use to post pics so hope this works
---AutoMerged DoublePost---

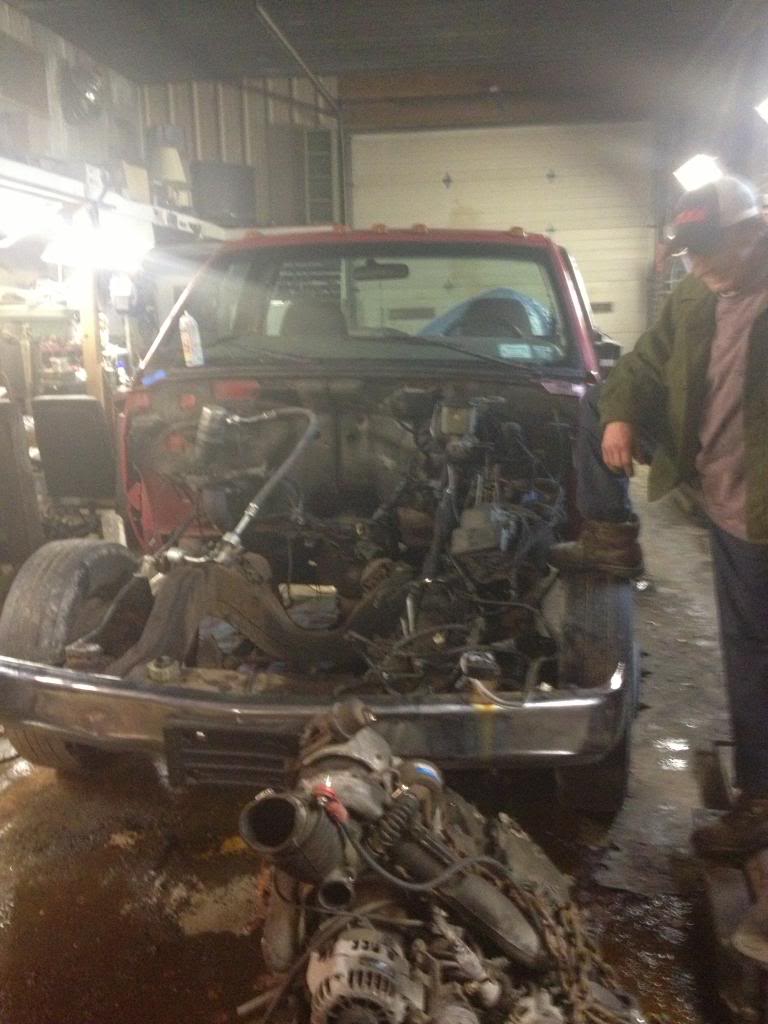

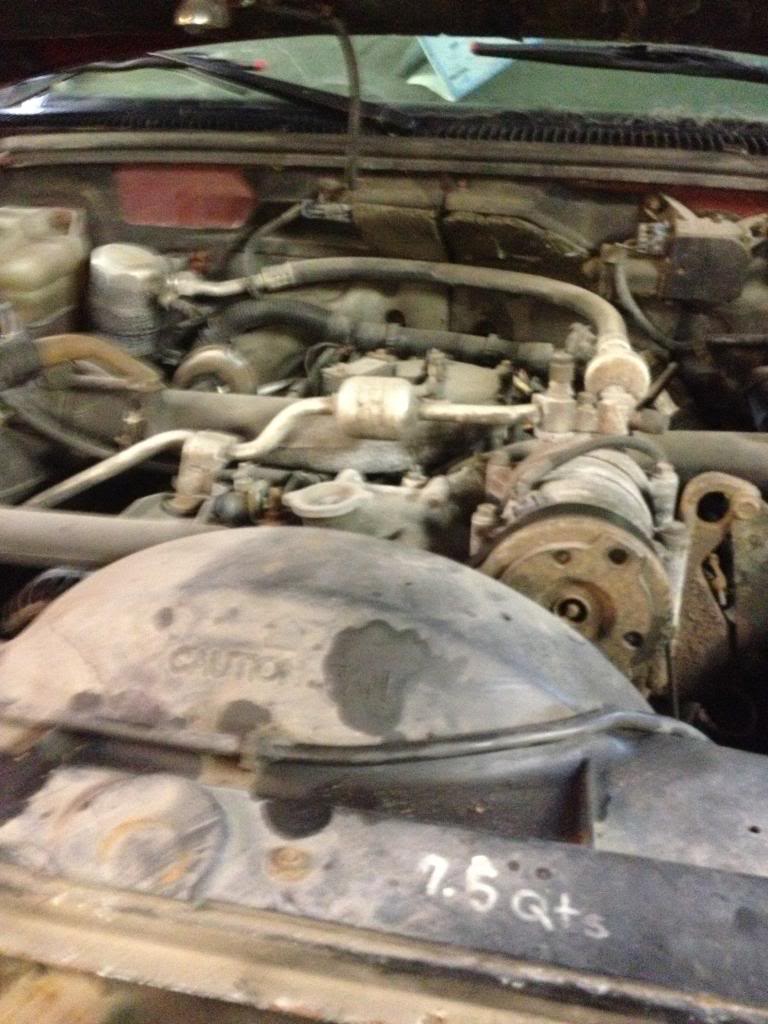

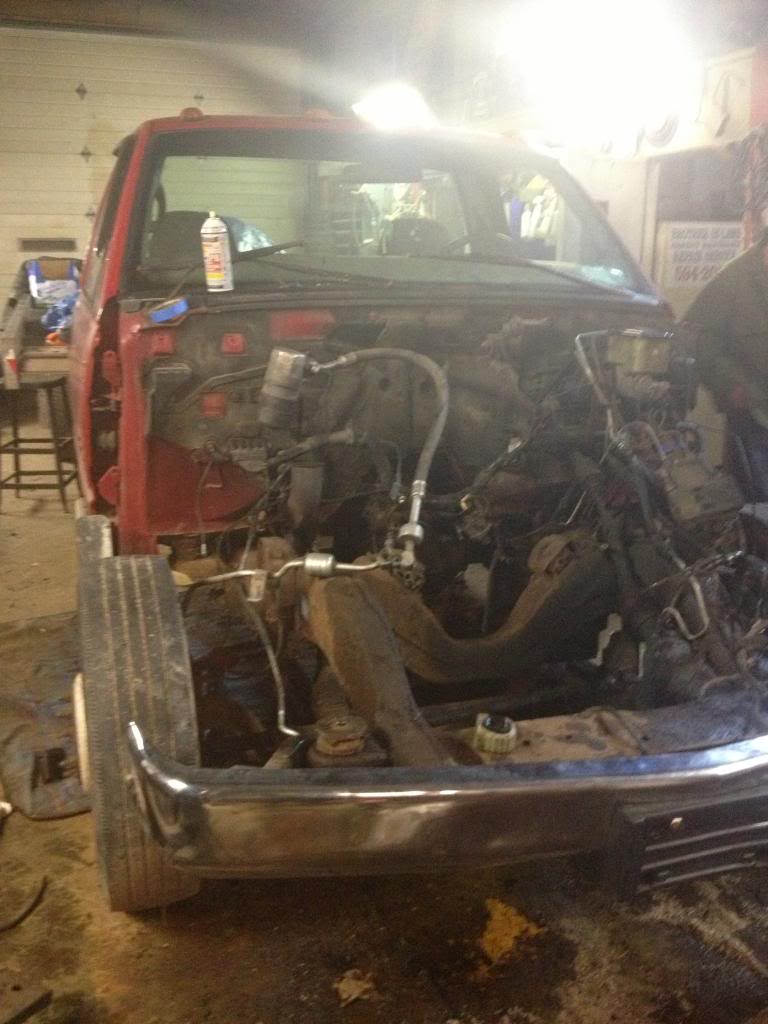

Had to pull the running 6.5 without delay
---AutoMerged DoublePost---
Had to pull the running 6.5 without delay
Last edited by ezgoin2578; 01-23-2013 at 09:59 PM. Reason: Automerged Doublepost
#2
time for some cutting and chopping of the frame to make room for the new power unit along with a little doll up of the motor

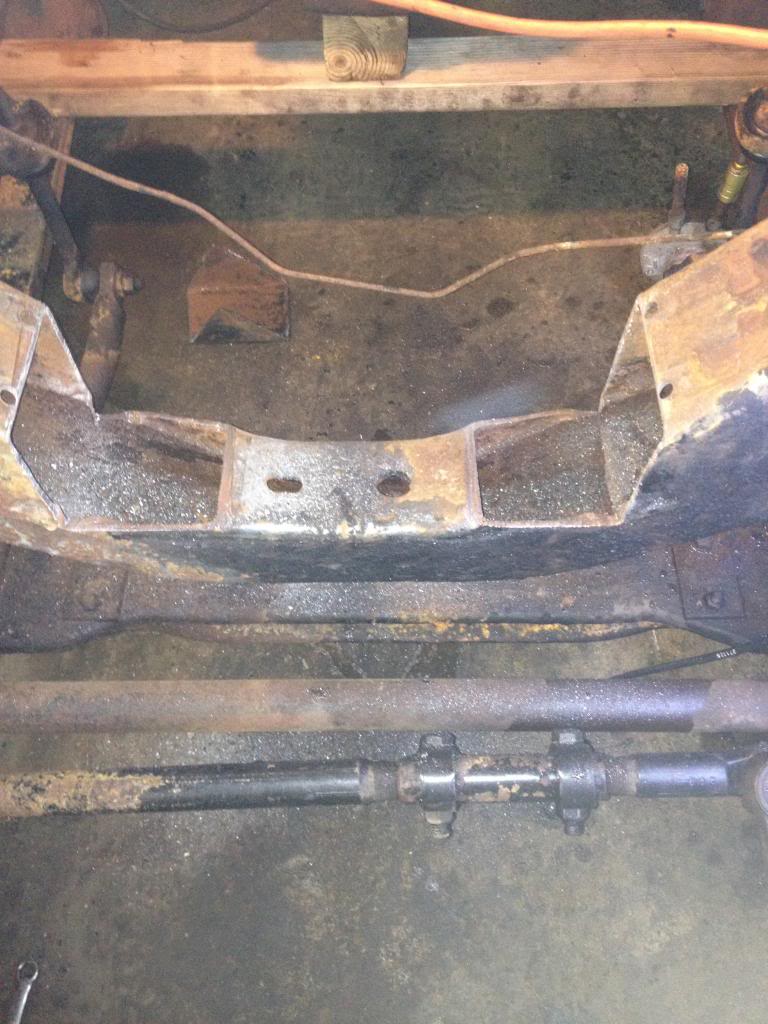

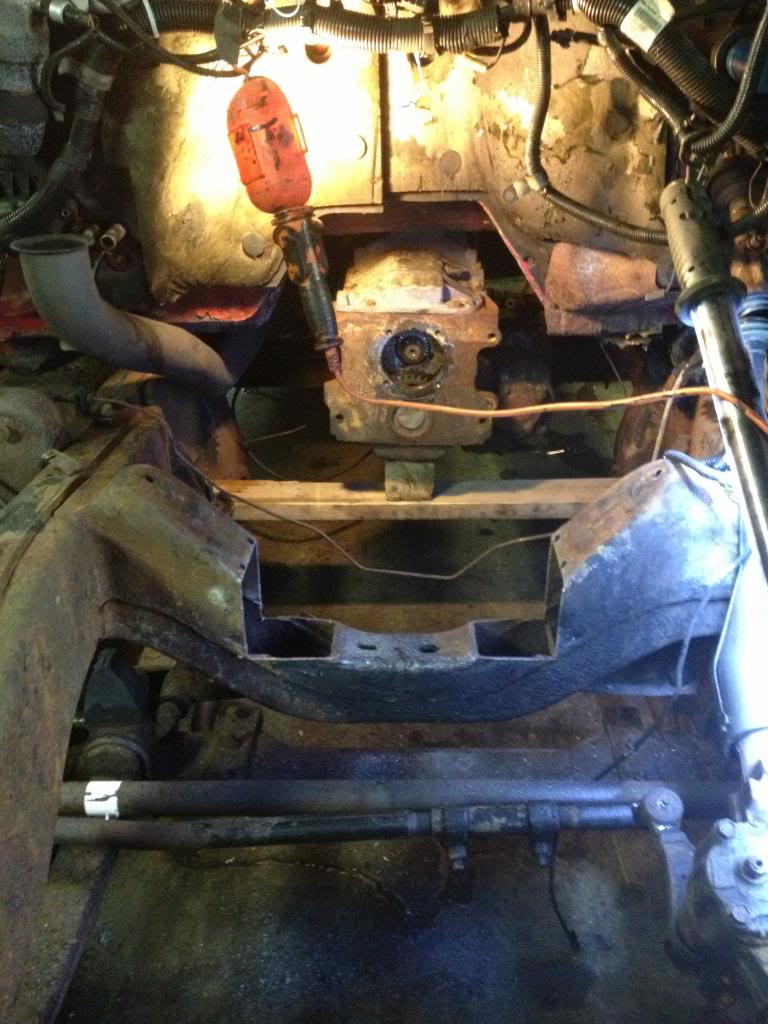

This was the first cut, much more needed to make room

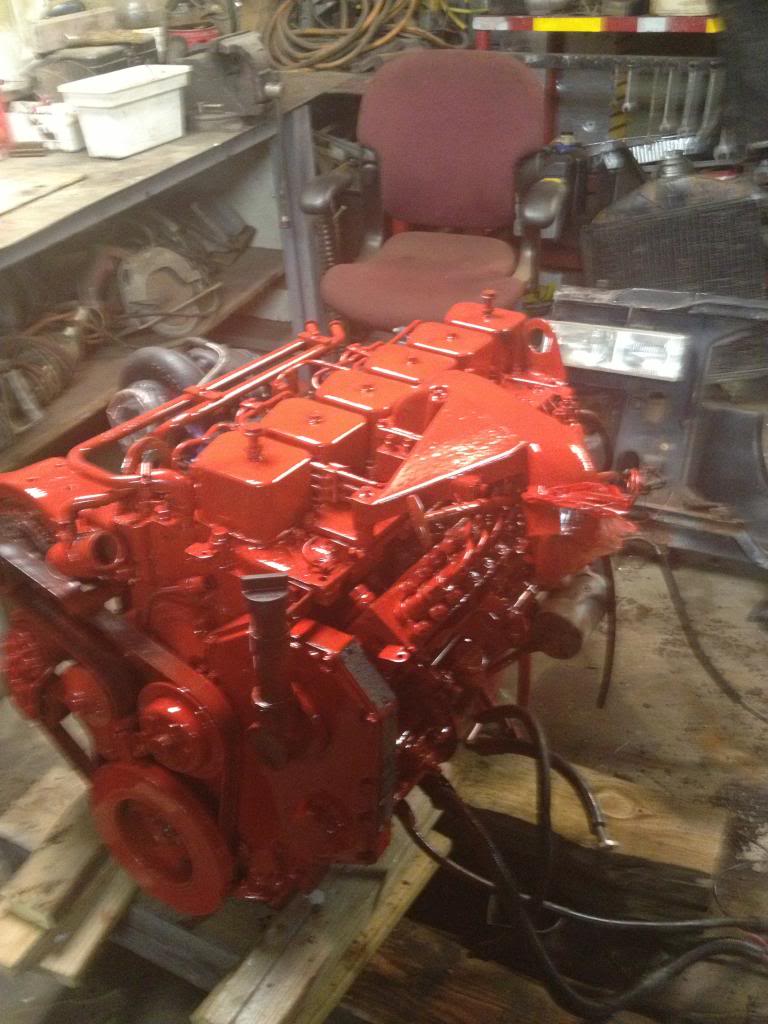

then a little doll up of the motor, love that TSC MF red

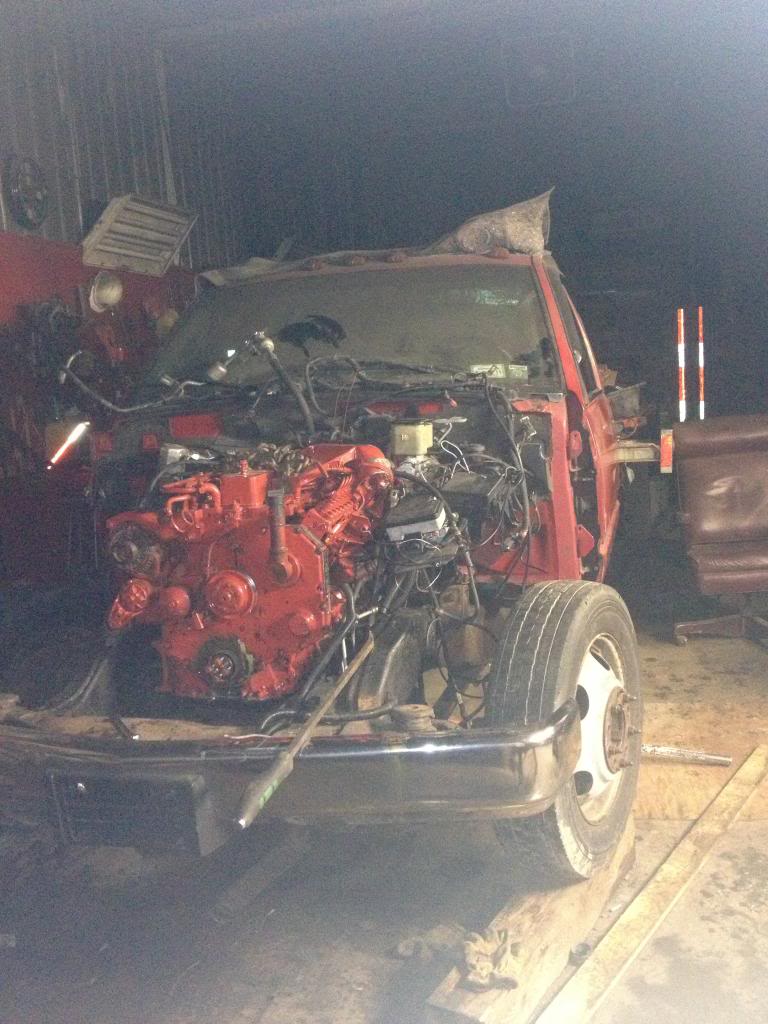

Just before mocking in to tac in mounts
[IMG]http://i1109.photobucket.com/albums/h440/ezgoin2578
/CHEVY%20CUMMINS%20CONVERSION/IMG_0689_zps0e748d74.jpg[/IMG]

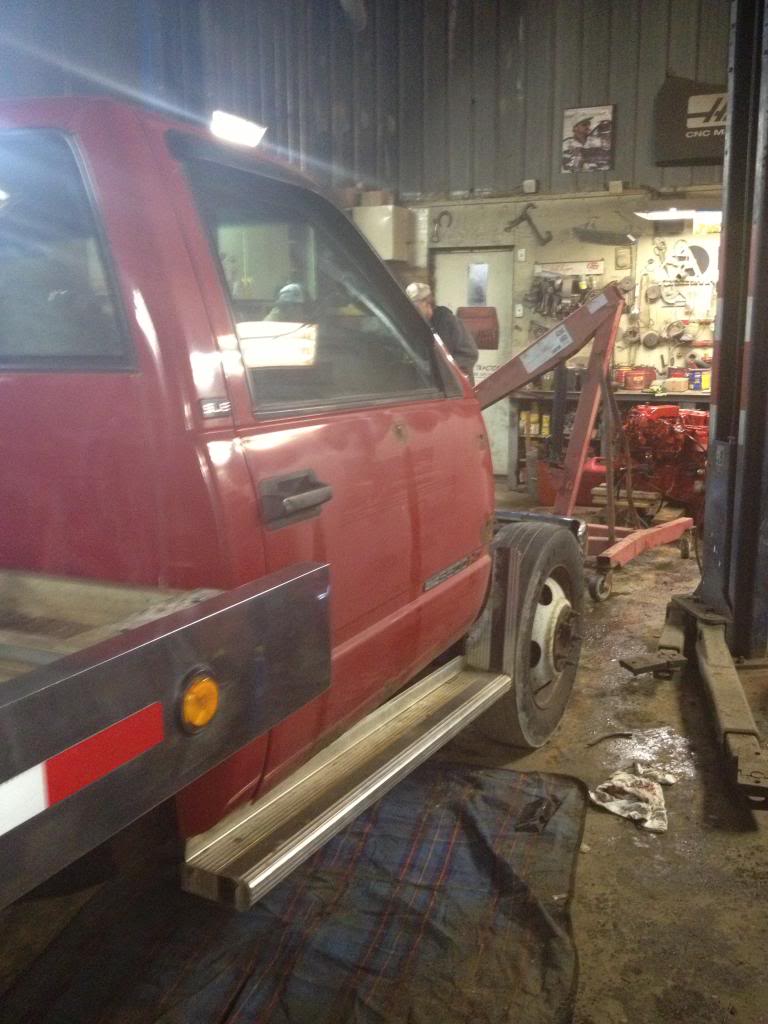

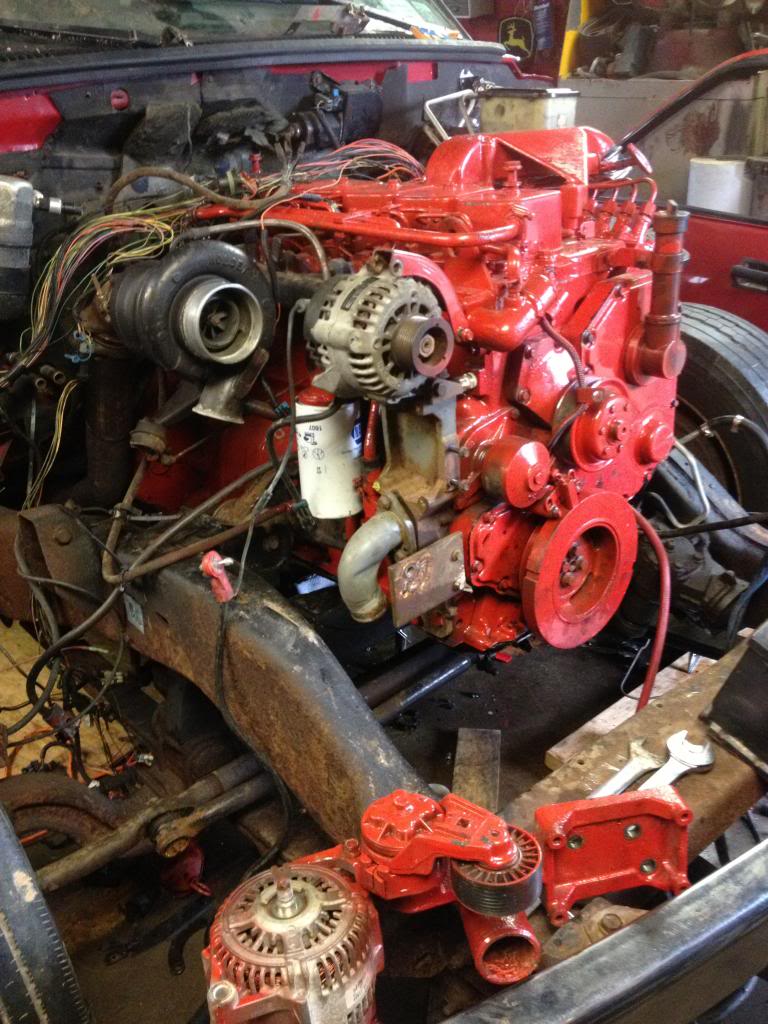

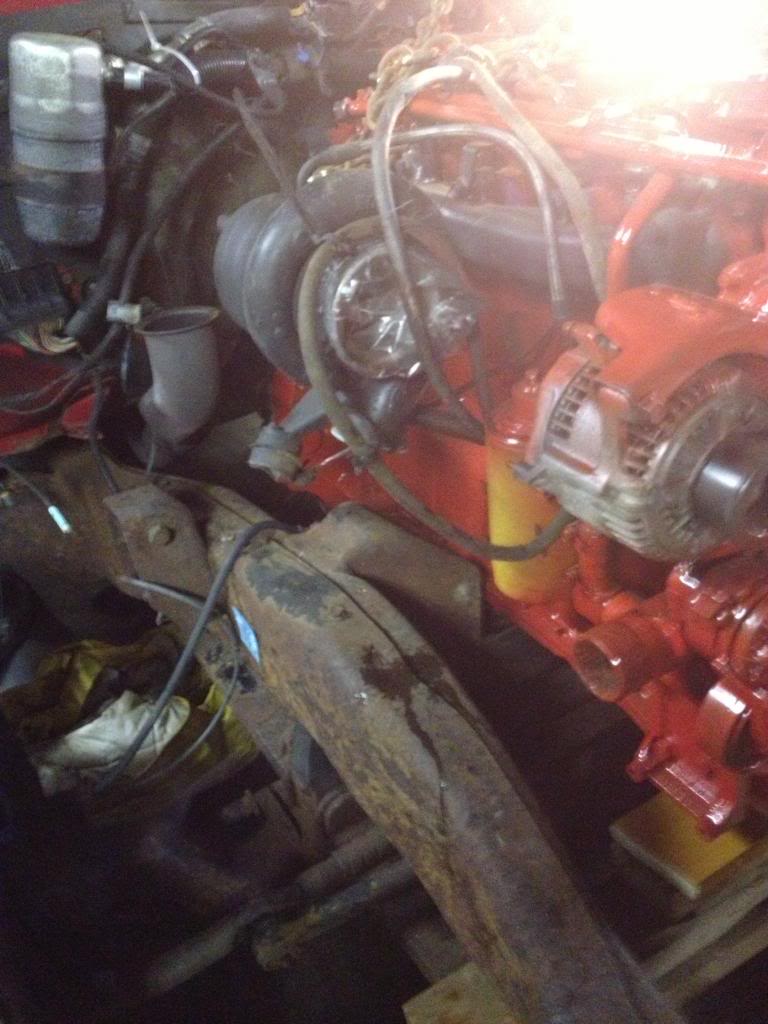

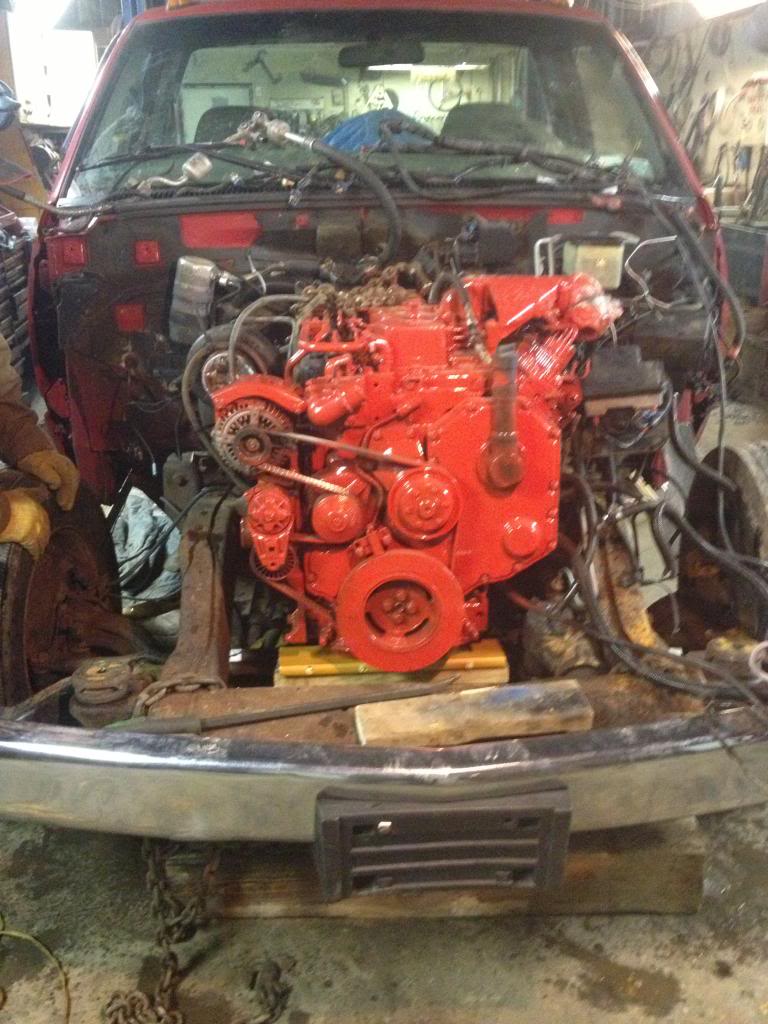

here is the motor mocked in place, I blocked it up after setting the motor with a backhoe (cherry picker started folding up from the weight of the new power unti)

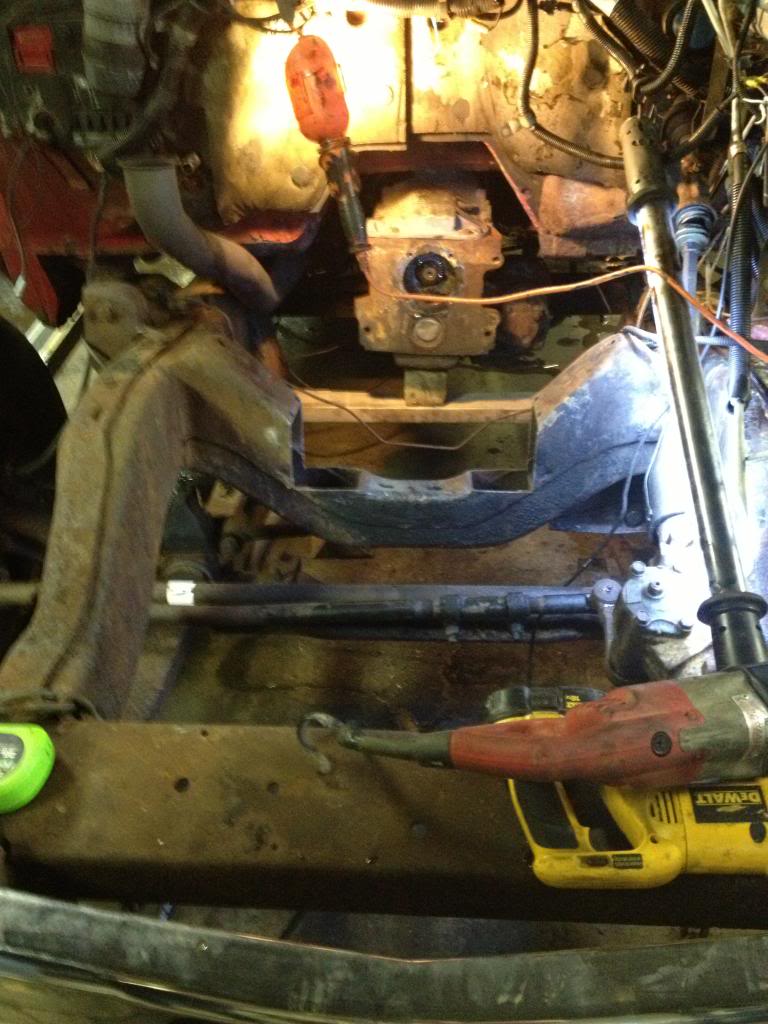

as you can see I had no room for the mounts so more cutting would be necessary
plenty of fire wall room here

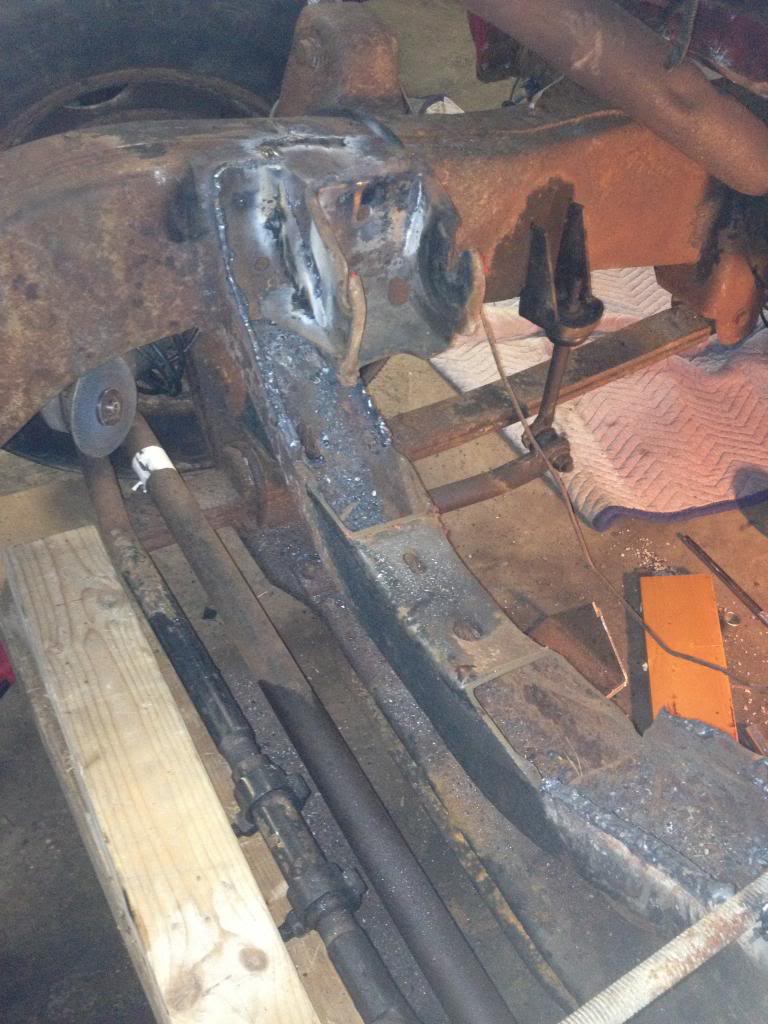

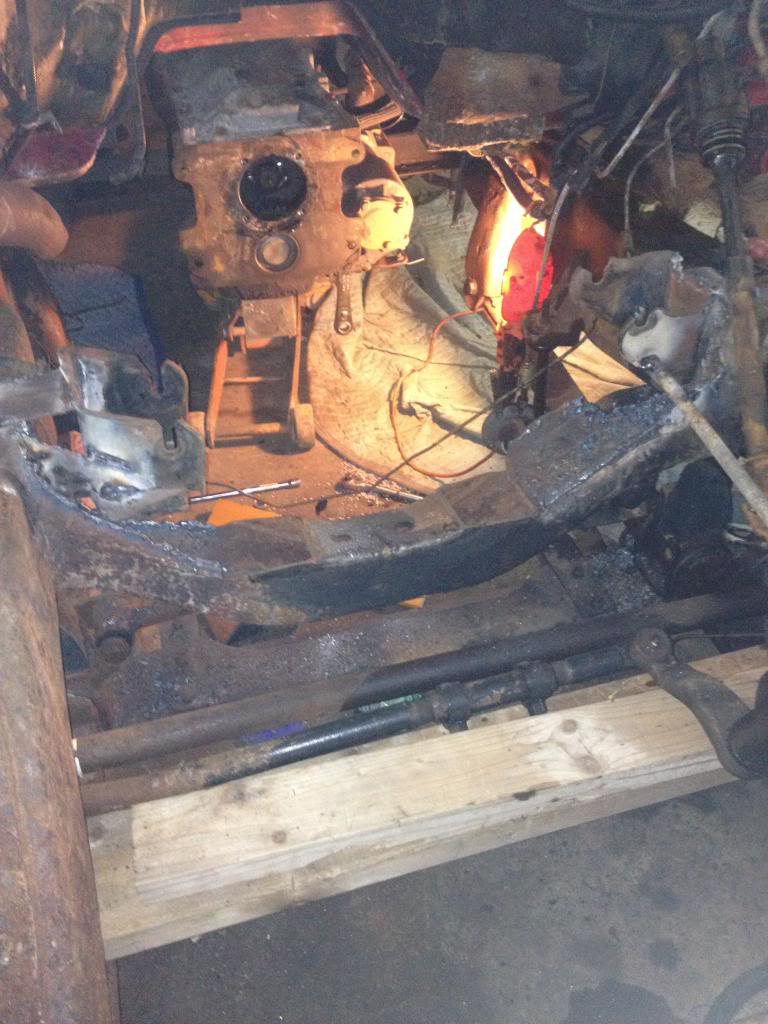

finally got all the frame clear and the mounts tacked in place

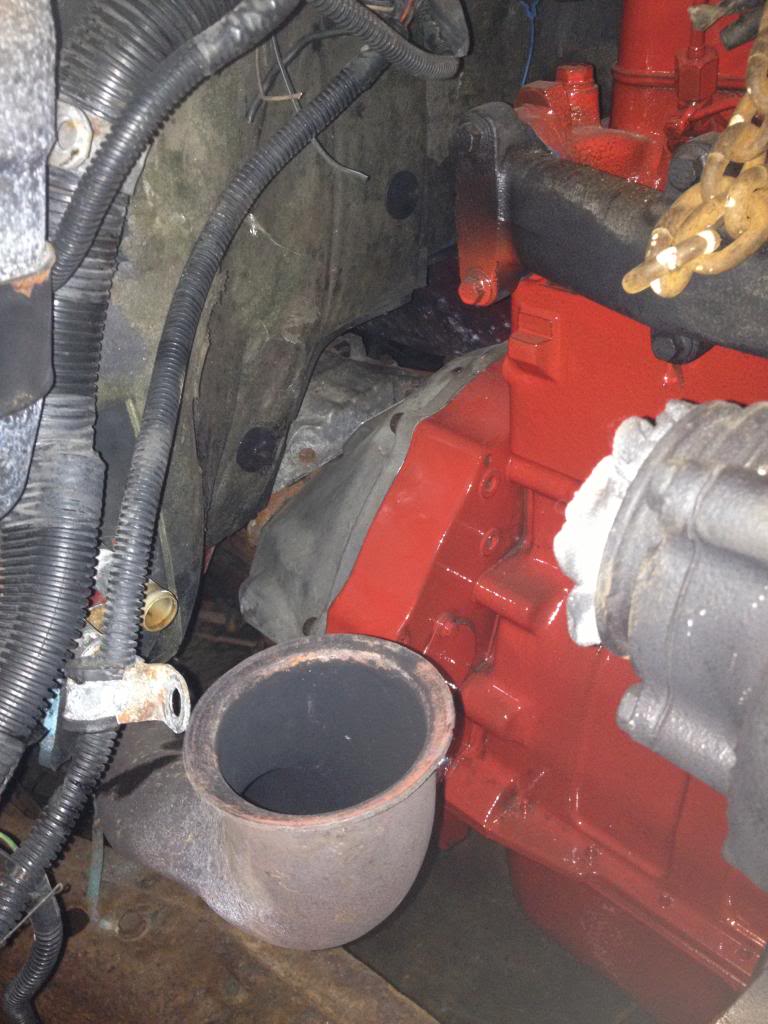

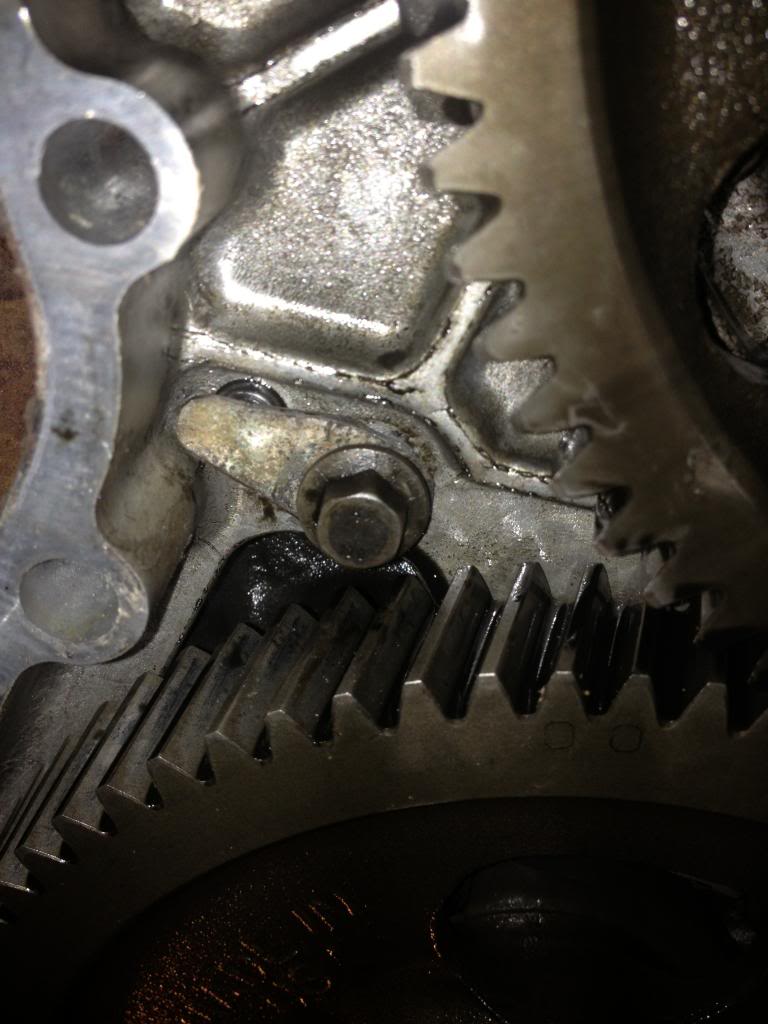

before final placement a KDP fix would be necessary

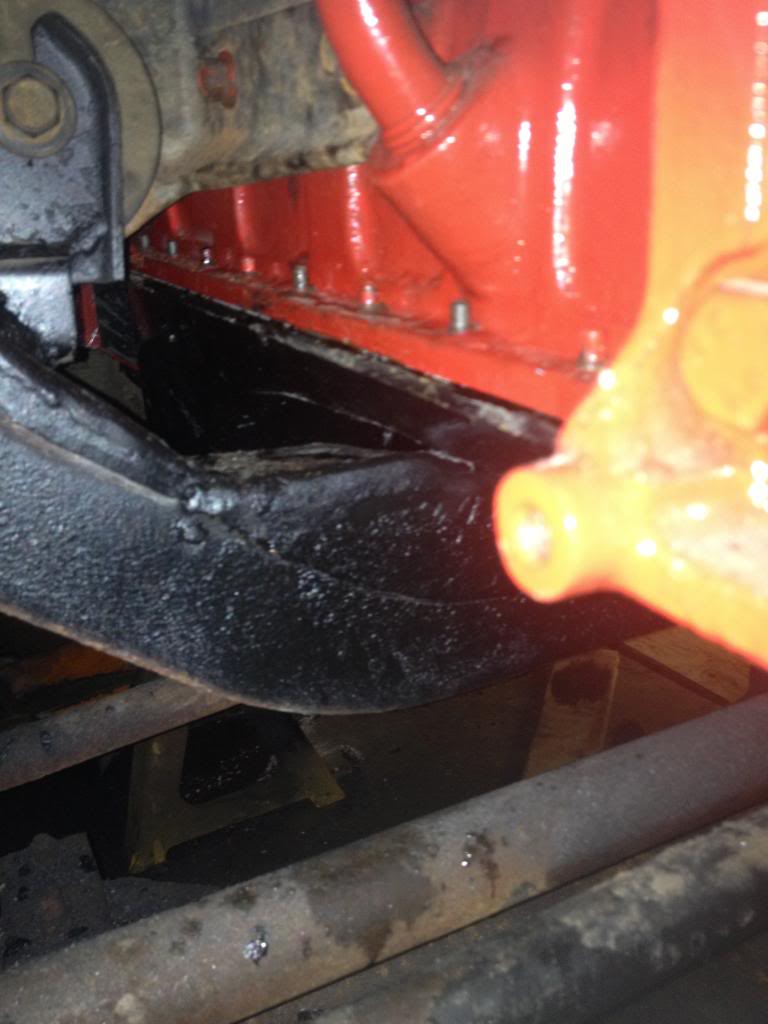

Didnt get any pics before laying the motor in its final resting place but was able to sneak a pic under motor

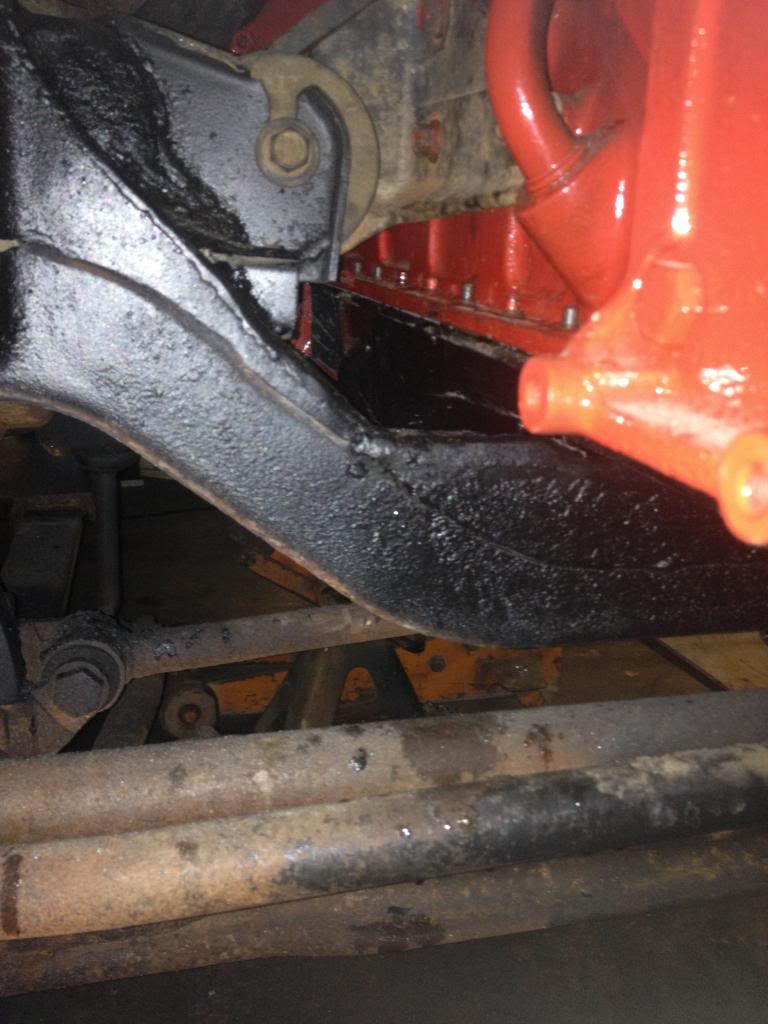

not much clearance but motor will have much more when it tilts back after bolting trans
notice the shoe horn used to get it in there
it was a toss up of which ac bracket to use but after seeing how much clearance I had with the HD frame I utilized the stock AC mount.
core support fab time

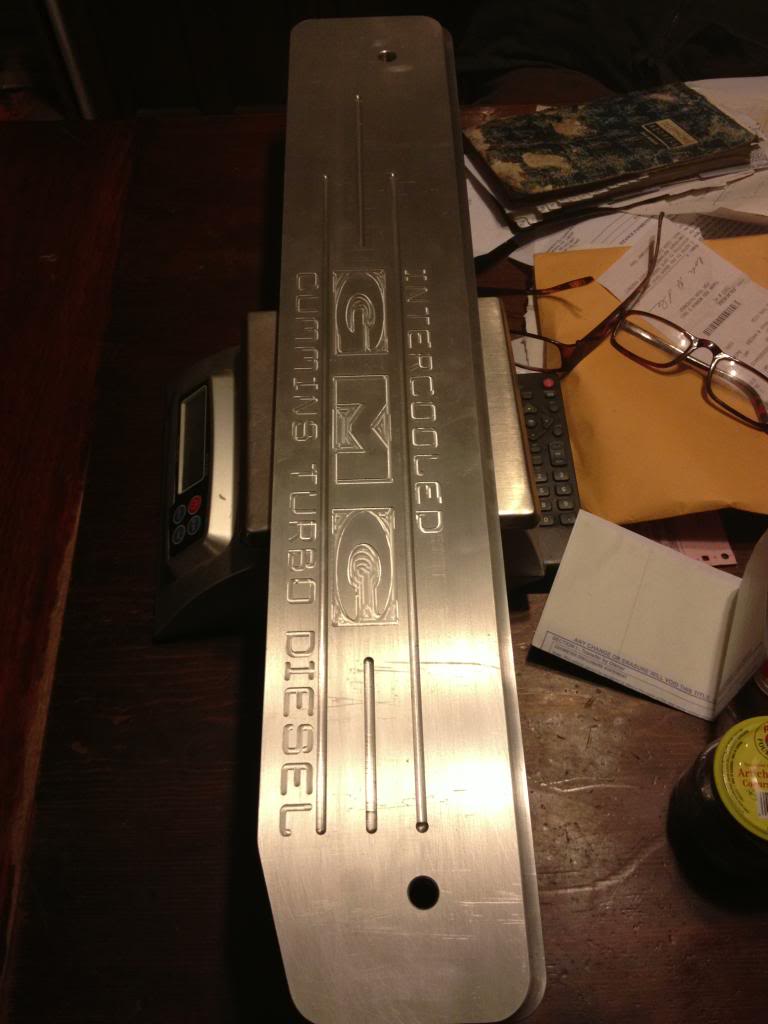

my newly CNC's valve cover cover showed, I can make these any style you want and have them on ebay, feel free to request a quote, just the standard design runs 125 so see the ebay link
---AutoMerged DoublePost---
Here is the ebay link
Cummins GMC Valve Cover | eBay
---AutoMerged DoublePost---
More pics to come, started project 12/26/12, looking to finish this weekend
This was the first cut, much more needed to make room
then a little doll up of the motor, love that TSC MF red
Just before mocking in to tac in mounts
[IMG]http://i1109.photobucket.com/albums/h440/ezgoin2578
/CHEVY%20CUMMINS%20CONVERSION/IMG_0689_zps0e748d74.jpg[/IMG]
here is the motor mocked in place, I blocked it up after setting the motor with a backhoe (cherry picker started folding up from the weight of the new power unti)
as you can see I had no room for the mounts so more cutting would be necessary
plenty of fire wall room here
finally got all the frame clear and the mounts tacked in place
before final placement a KDP fix would be necessary
Didnt get any pics before laying the motor in its final resting place but was able to sneak a pic under motor
not much clearance but motor will have much more when it tilts back after bolting trans
notice the shoe horn used to get it in there
it was a toss up of which ac bracket to use but after seeing how much clearance I had with the HD frame I utilized the stock AC mount.
core support fab time
my newly CNC's valve cover cover showed, I can make these any style you want and have them on ebay, feel free to request a quote, just the standard design runs 125 so see the ebay link
---AutoMerged DoublePost---
Here is the ebay link
Cummins GMC Valve Cover | eBay
---AutoMerged DoublePost---
More pics to come, started project 12/26/12, looking to finish this weekend
Last edited by ezgoin2578; 01-23-2013 at 10:22 PM. Reason: Automerged Doublepost
#3

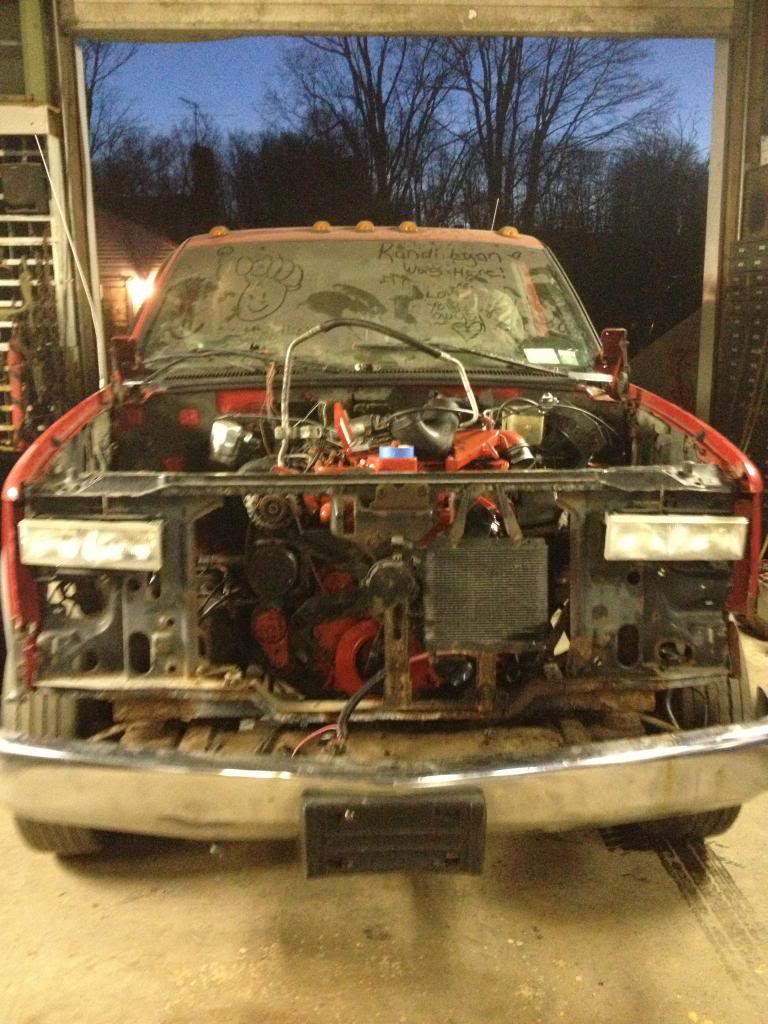

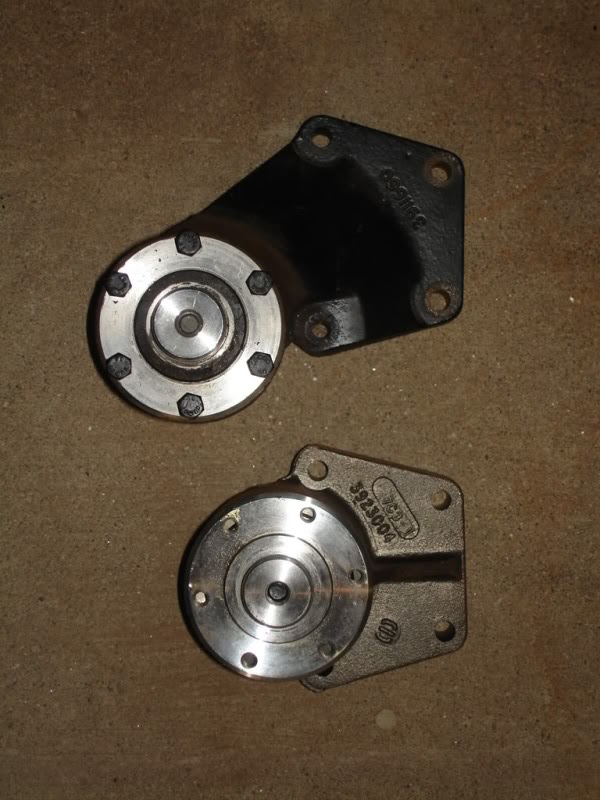

during the fab of the core support noticed stock fan location would not work, here is the new intercooled first gen fan mount i needed to use to make the radiator fit
---AutoMerged DoublePost---

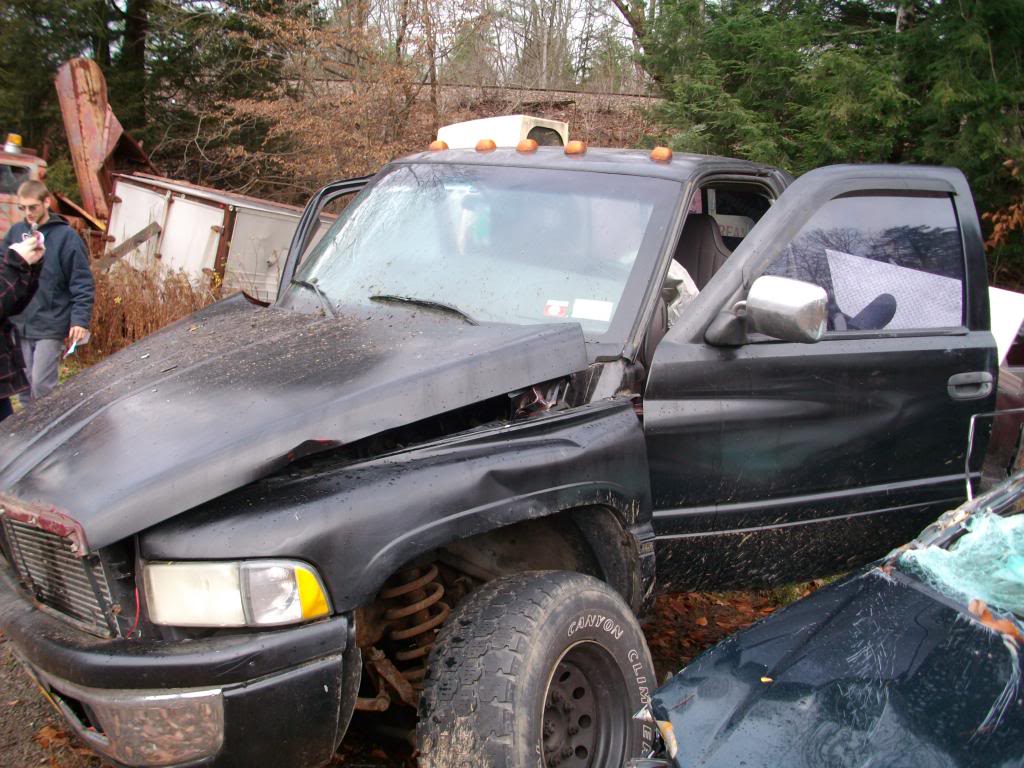

cant forget the doner, RIP 1995 dodge, the NV4500 trans was broke in half, good thing I had a spare
---AutoMerged DoublePost---
cant forget the doner, RIP 1995 dodge, the NV4500 trans was broke in half, good thing I had a spare
Last edited by ezgoin2578; 01-23-2013 at 10:32 PM. Reason: Automerged Doublepost
#4
#5
