Ok well for the starter, I found the two posts in the starter relay that turn over the engine, now I just have to wire those into the cab to the momentary switch.

Next is the getting power to the ignition.

---AutoMerged DoublePost---

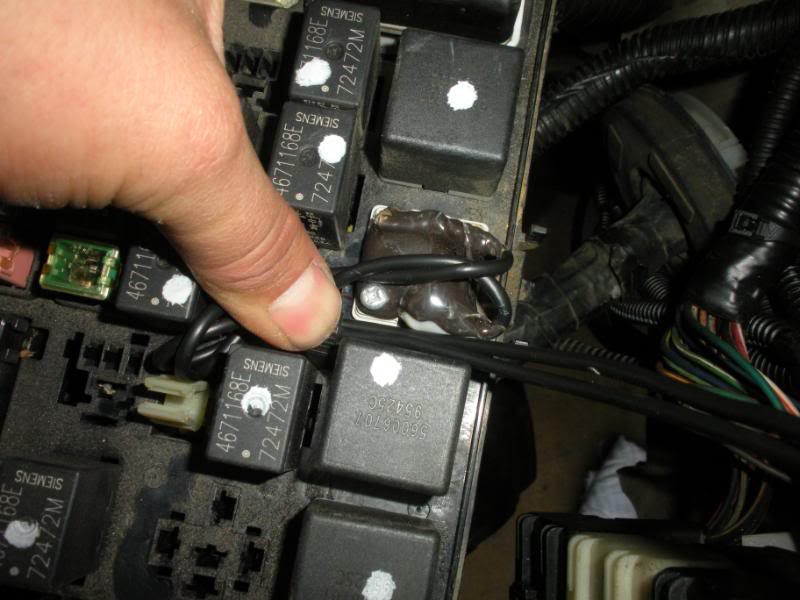

Got power running thru the ignition switch on the column and it switches on the relay inside the under-hood fuse box.

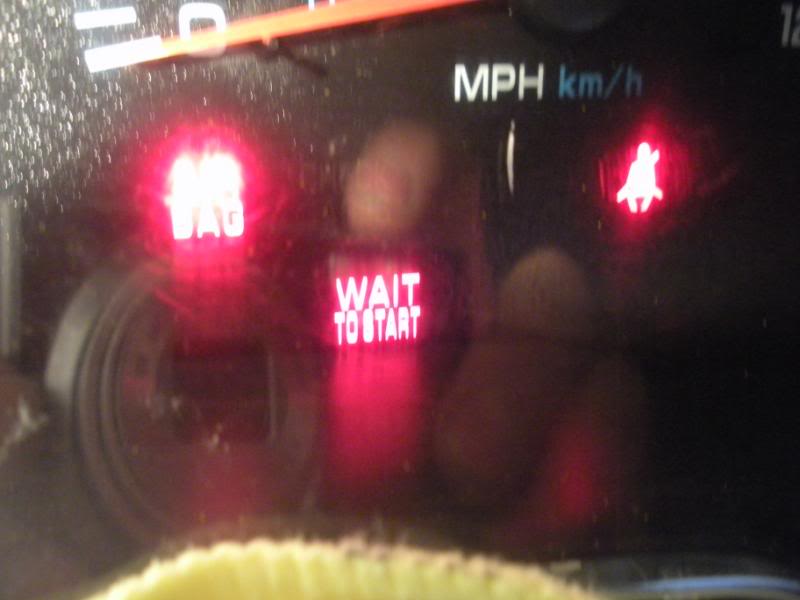

Just got gauges, well the odo and warning lights. Batt and water temp don't work. Probably just some more wires I have to energize in this ignition harness. But progress!

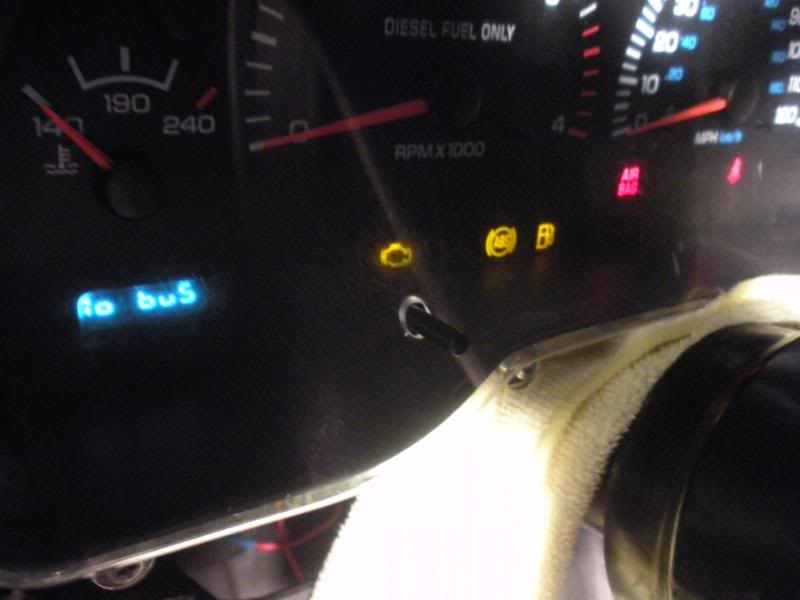

Also the odo says NO BUS.

Full detail post later on.

Tyler



im glad your getting it figured out. im only a couple hours away you should drive it up here when your done and i will help ya work out the electrical kinks



Haha I pray it doesn't have any kinks after this.

The No Bus is most likely a grounding issue with the pcm or any computer related grounds. I read that if the system sees a difference of 1.0v or greater it will throw a no bus.

Ok gauges work, oil pressure, battery voltage, and water temp are working. Success!

I'll take care of the no bus issue tomorrow, want to do some more in depth searching on that issue.



good im glad your getting it all figured out!

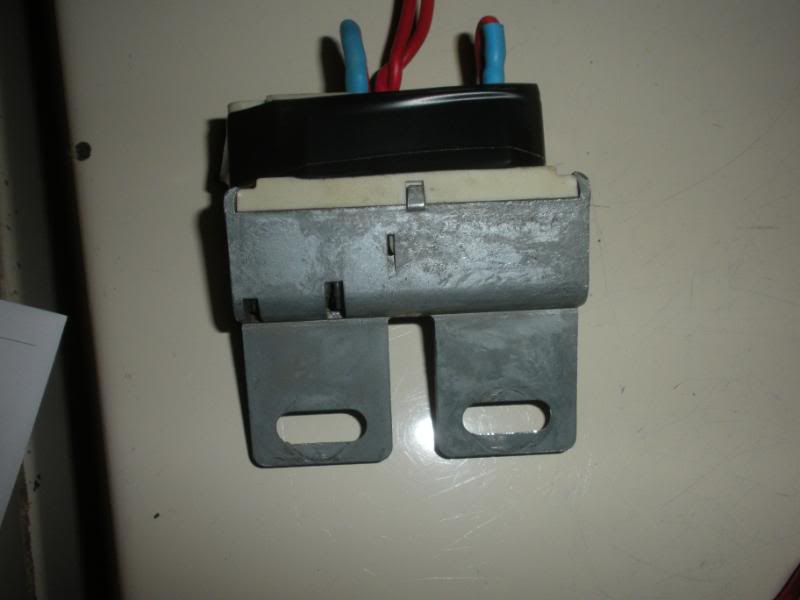

Column ignition switch

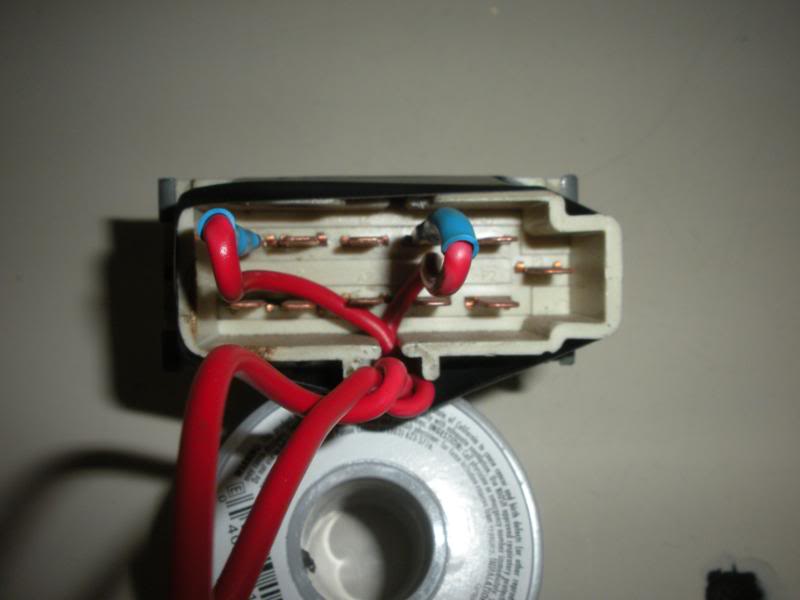

These were the prongs I used to get power



Mounted back on the column

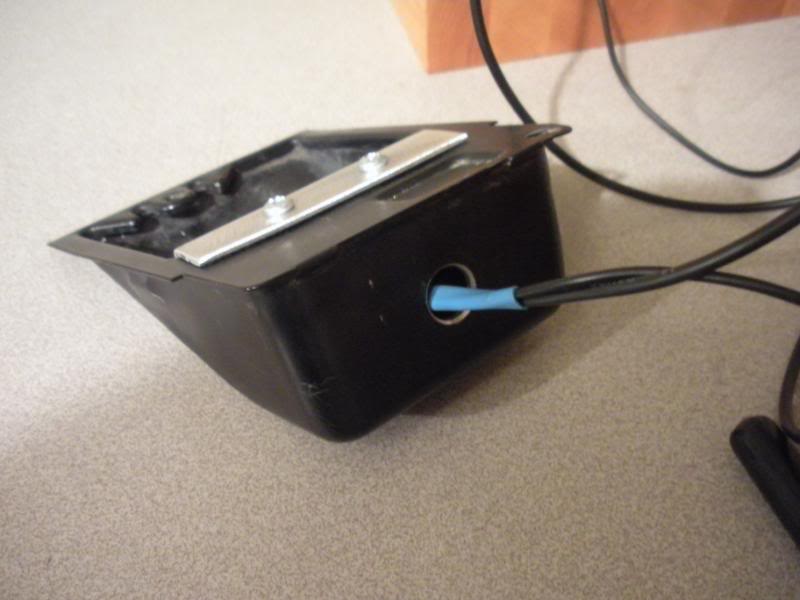

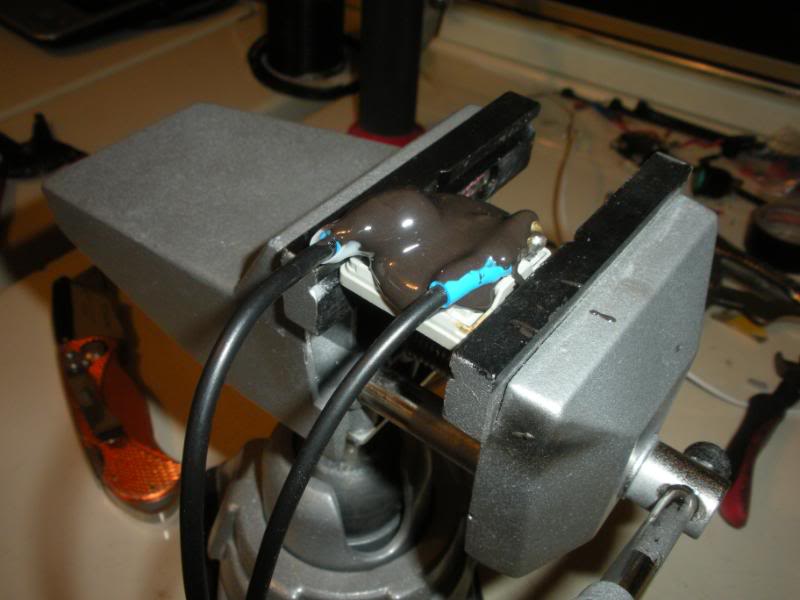

New starter lack of ''relay'' for use with a momentary switch instead

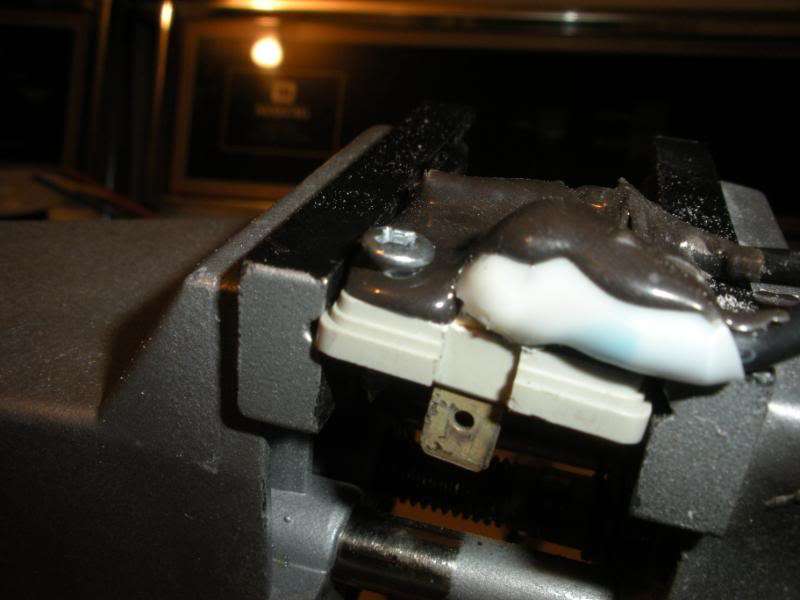

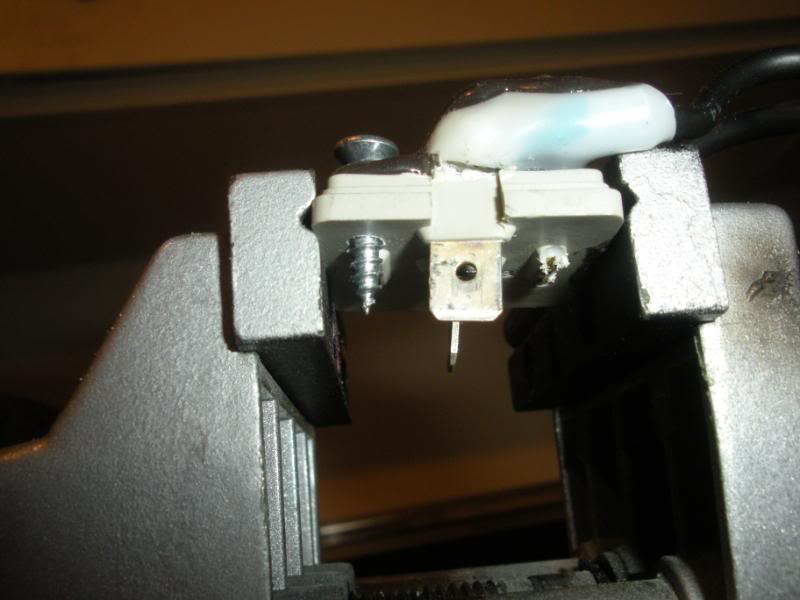

Drilled a hole thru it to make sure it doesnt move out of the connectors

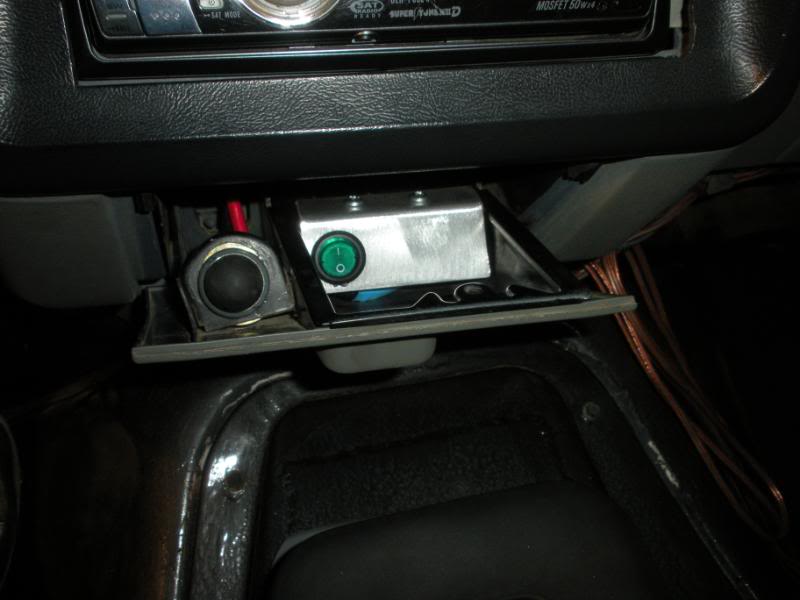

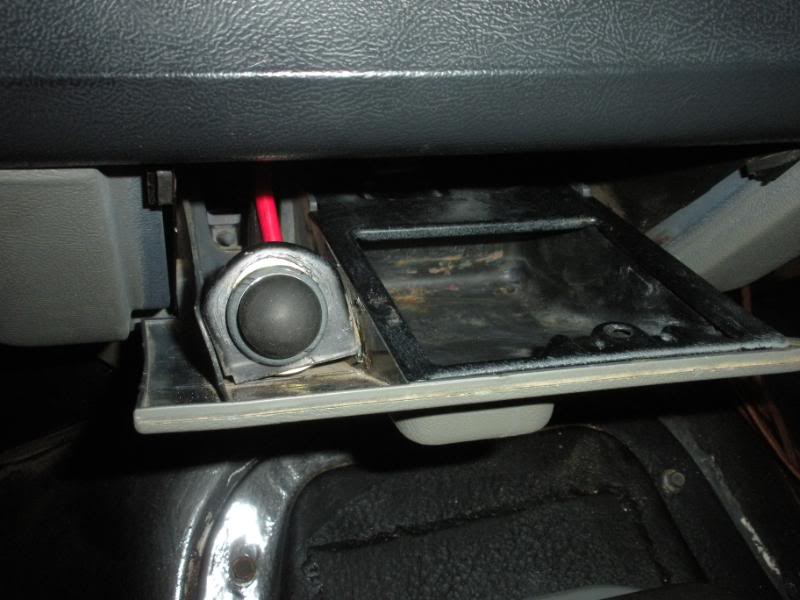

Sneaky sneaky and out of the way, no accidental touching or bumping of the starter

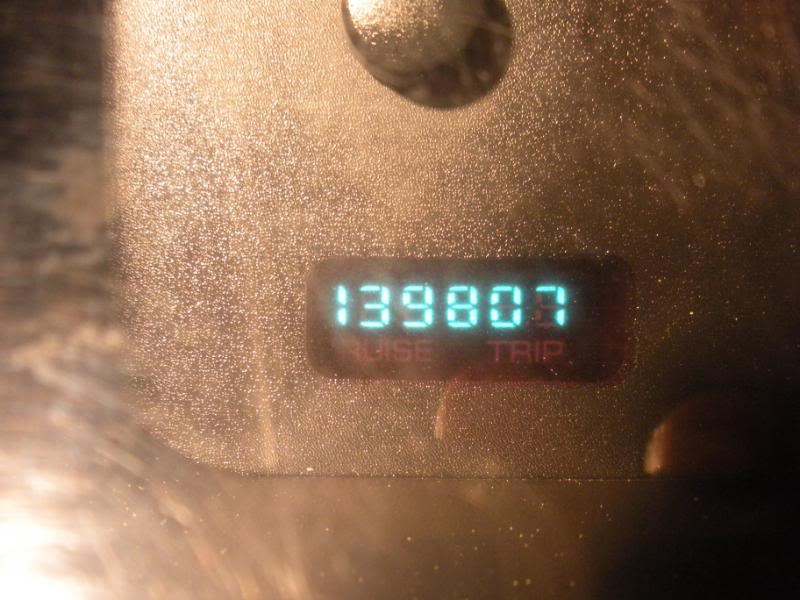

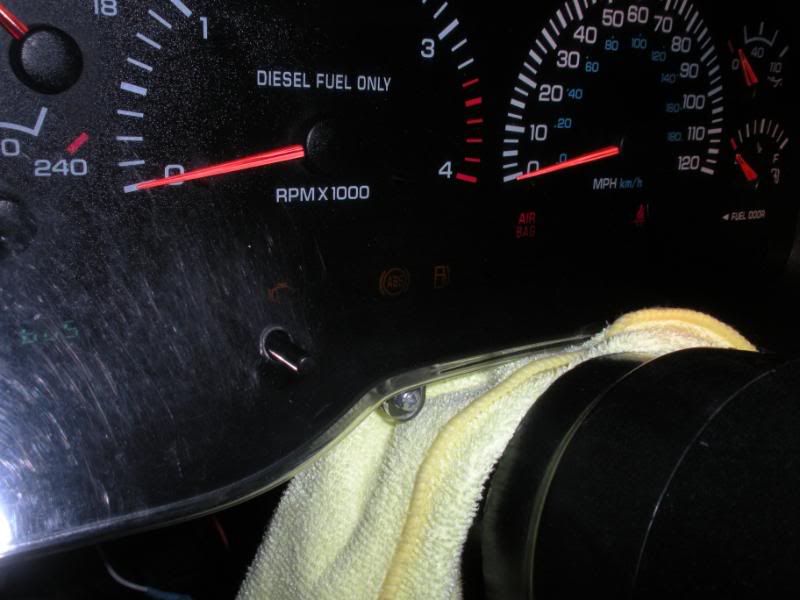

Just about 39k miles off what the engine actually has

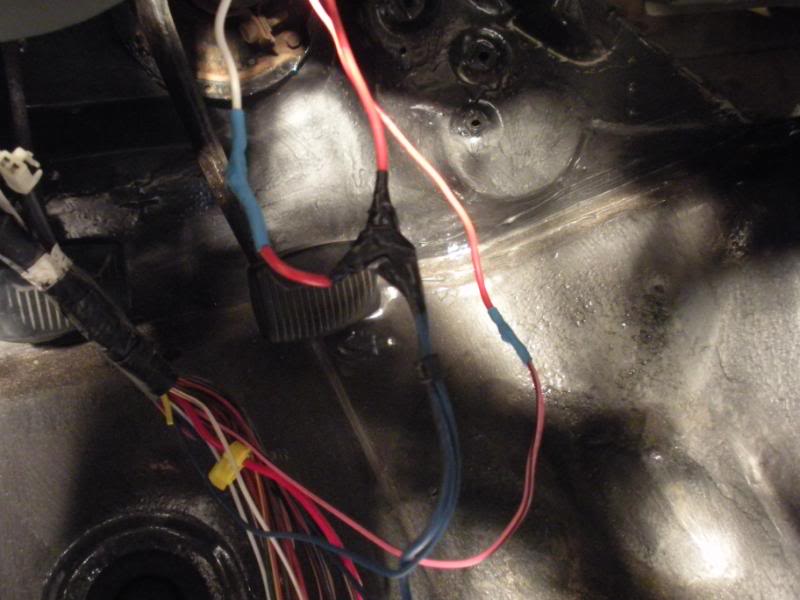

Pink and black wire is the 12v constant coming in from the ignition harness.

Big and small blue wires (well at least the big one) runs the gauges, small blue turns on the ignition according to the wiring diagrams. I just hooked the small blue wire up because I heard it engage a relay when given 12v in the under-hood fuse box.



push button start? whaaaaa



Could you send me an email for these?


Instrument Cluster / Carrier

Lighting and Horns

Radio/Stereo

My lights and stereo hookup are the next things to be done electrically.



ok selld you an email later today

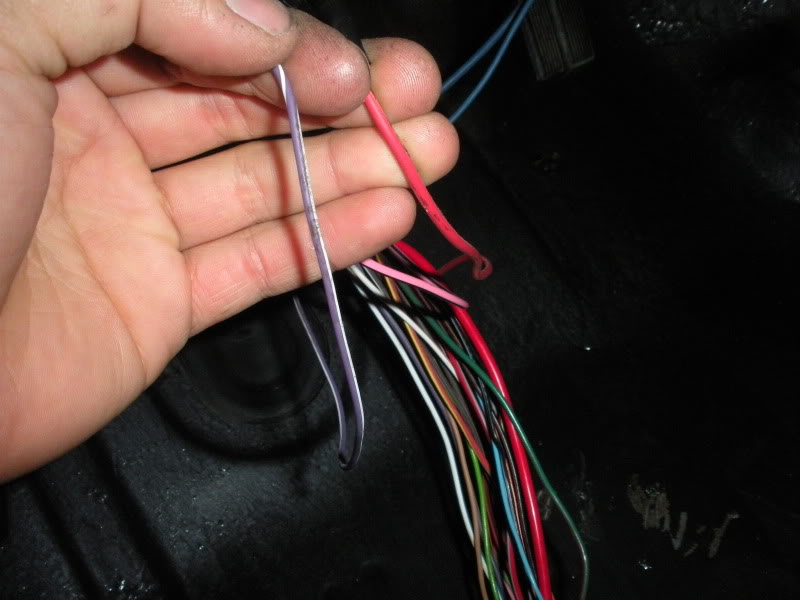

Purple/white and Red/orange are the high and low beams. So I wired these to be on at the same time since the lows originally sucked huge *****








God damn these are twice as bright as before since I wired the highs and lows on at the same time, thank god because I could never see anything.
