Compound turbo piping
#12

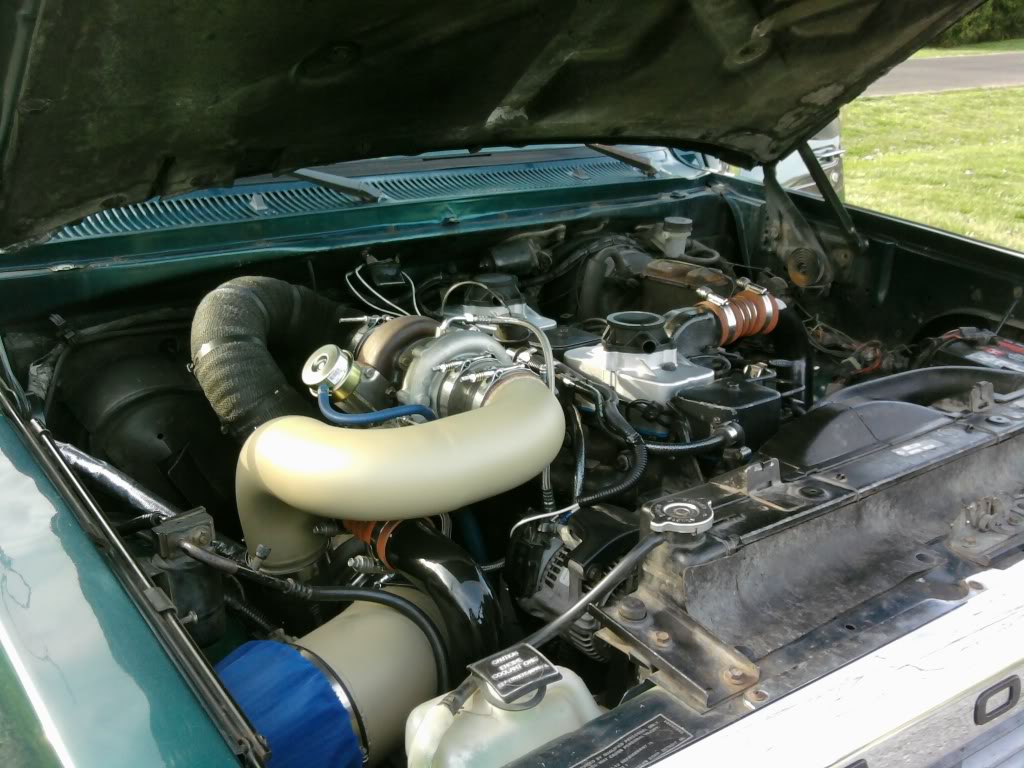

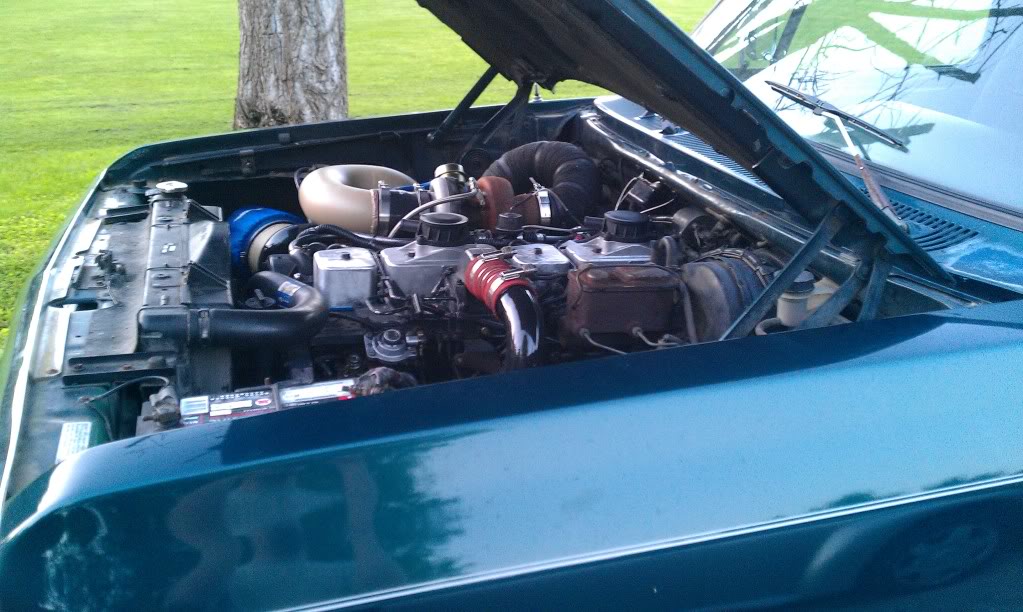

Nope. A generic rule of thumb would be to have the primary (larger turbo) flow about twice what the secondary (smaller turbo ) flows. There are several combinations that work well, but I personally run an S300G over an S475. Twins usually spool a little slower than the secondary so I went with the S300G because I wanted them to spool decently quick. These were homebuilt by me...
#15

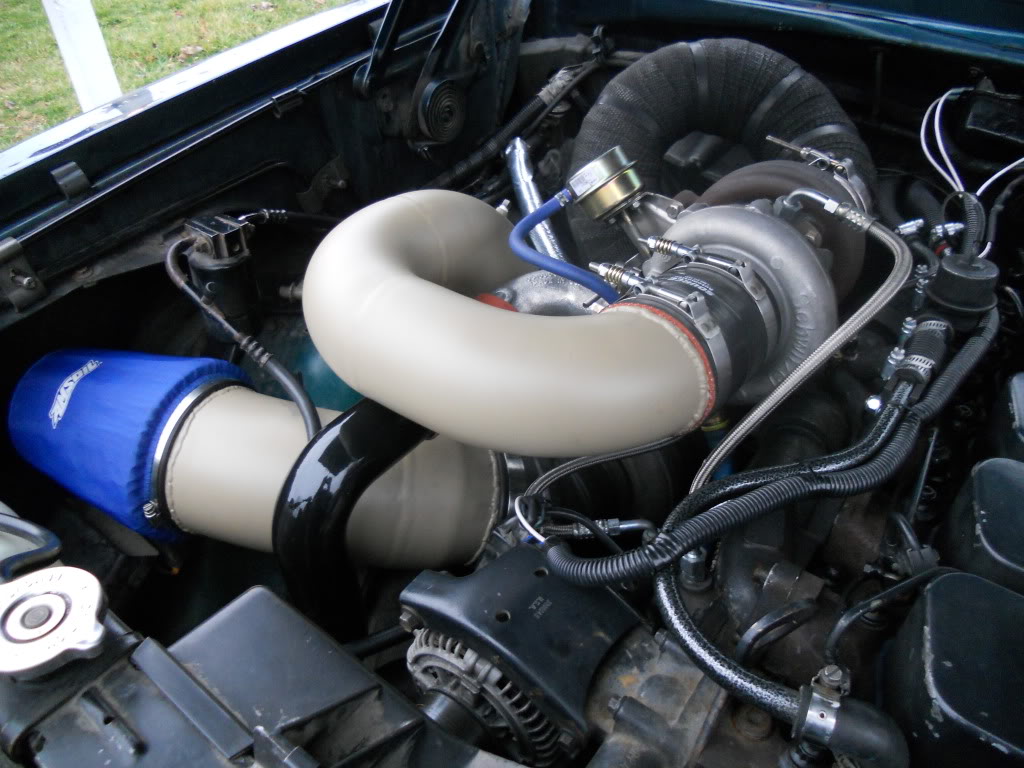

I mocked them up 2nd gen style first...puts downpipe right into the fire wall on a first gen. This way I don't have any issues fitting the 5" downpipe. I was not about to cut the firewall. Spools just fine .
#16
The following 2 users liked this post by LORDDiESEL:
aguilar_15 (07-13-2011),
RAW (07-13-2011)
