BHAF and Old Smokey mount in the works
#1
BHAF and Old Smokey mount in the works

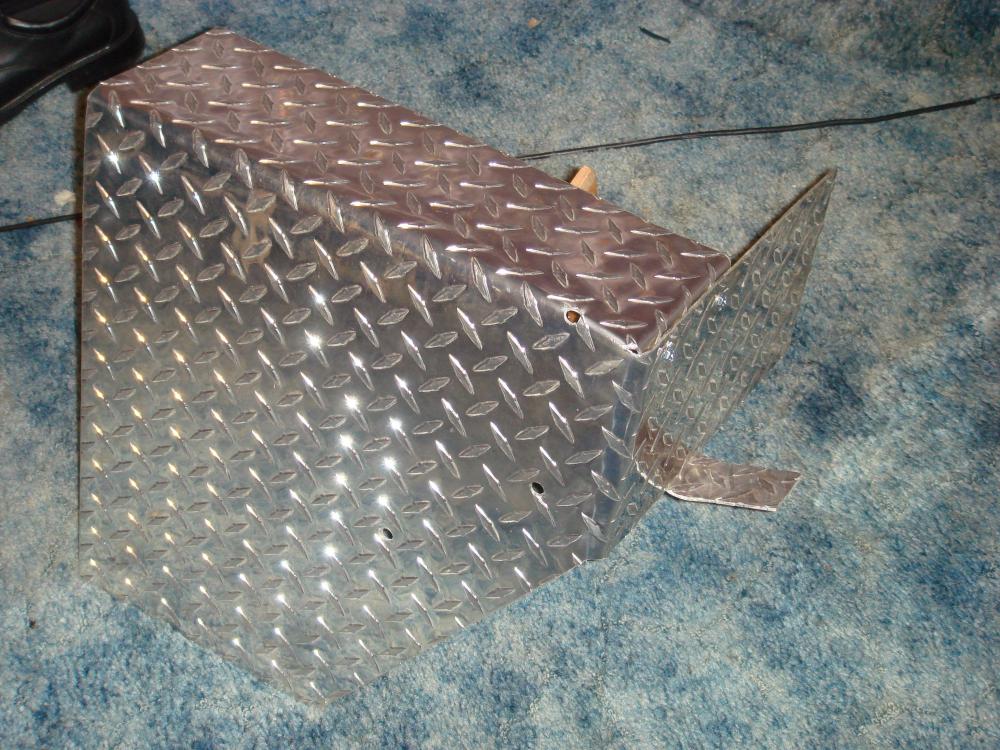

so, i got abit dangerous with the tape measure a day or two ago, made all of my measurements drew it out on a piece of paper then transfered it all to scale on the big sheet of diamond plate, cut it all out, de-burred it and bent it all up tonight, finish product looks pretty freakin good i think i improved the mount abit so i'm going to include a thing of the blue prints, still not perfect; some added fabrication will be needed... hole for the filter needs to be cut and then the supports for the filter itself aren't included but; here's the semi finished result
