5.9L 12V Performance Discussion of 12 Valve 5.9 Liter Dodge Cummins Diesels with P7100 Injection Pumps Related to Performance and Longevity

Trying to identify a turbo

Thread Tools

Search this Thread

  #1
Old 02-19-2012, 06:08 PM
93ford's Avatar
Diesel Fan
Thread Starter
Join Date: Sep 2011
Posts: 31
Likes: 0
Received 2 Likes on 2 Posts
Default Trying to identify a turbo

I need to buy a compressor wheel for this turbo and can't figure out what it is. I believe it's some sort of industrial turbo, it's a Garrett and was sold by AlliedSignal (a company that no longer exists). It has a 4" inlet and 4" outlet. I used a mic and the compressor wheel inducer is 60mm

Here is the info I have and some pics. Any help would be greatly appreciated.

Information on compressor housing:
Garrett
AR.56
M43
AlliedSignal
P/N 1825457C91
S/N BDL30502

Center:
448315-1

Turbine housing:
M3
G3
A/R 1.11

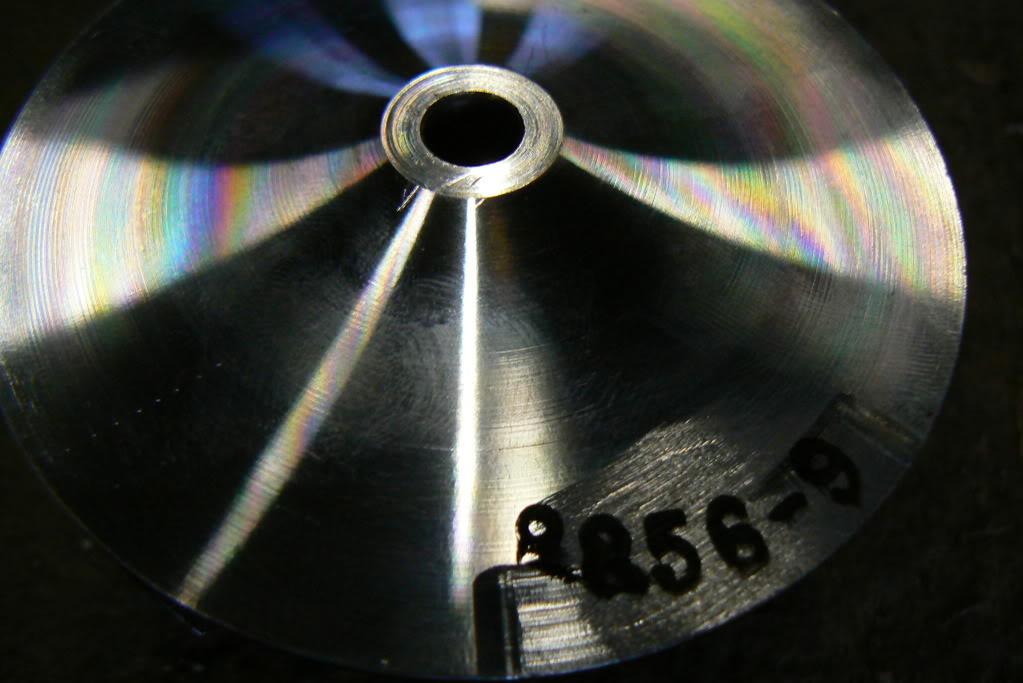

The compressor wheel has a part number, 8856-9. I couldn't find it on any turbocharger part websites.

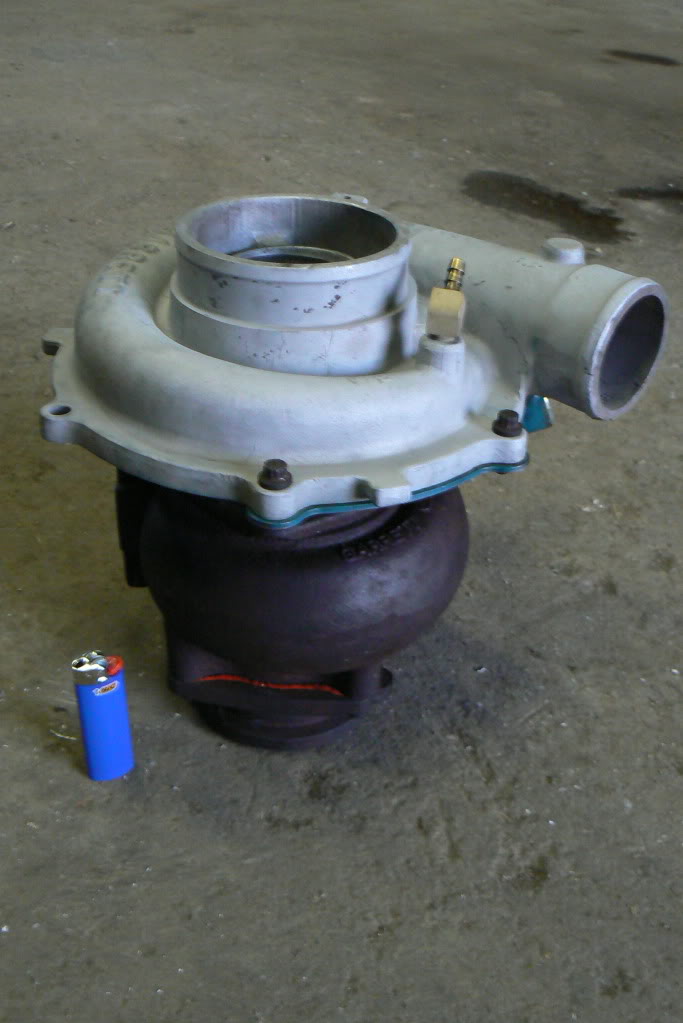

Name:  P1030161.jpg
Views: 412
Size:  67.9 KB

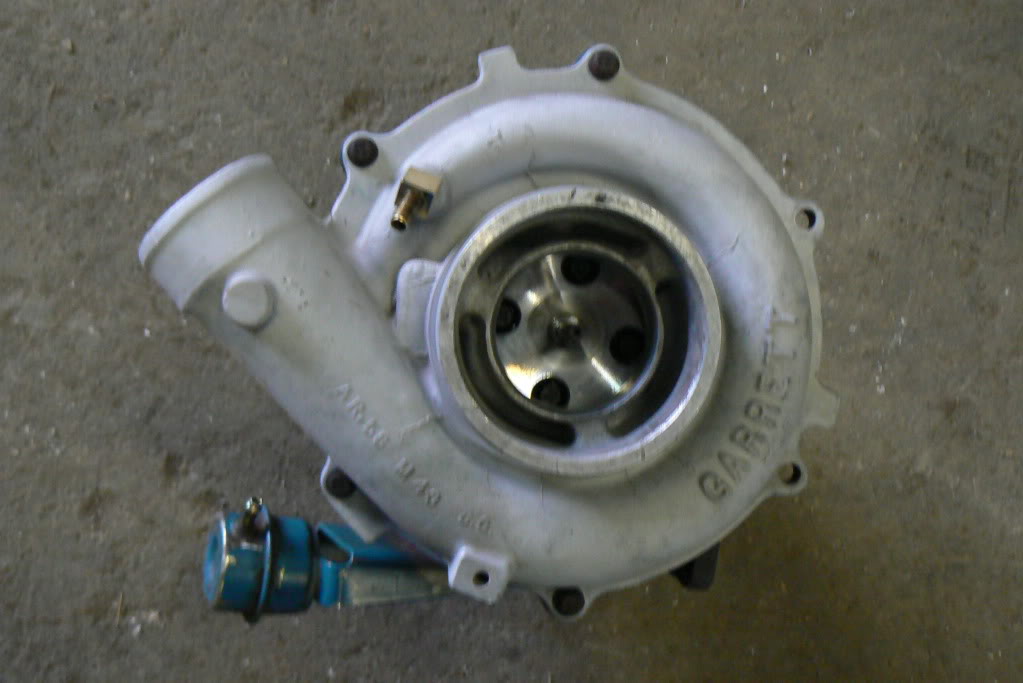

Name:  P1030162.jpg
Views: 405
Size:  67.6 KB
Name:  P1030163.jpg
Views: 297
Size:  79.3 KB
Name:  P1030165.jpg
Views: 326
Size:  66.5 KB
Name:  P1030167.jpg
Views: 303
Size:  87.1 KB
Name:  P1030168.jpg
Views: 311
Size:  67.7 KB
Name:  P1030169.jpg
Views: 290
Size:  85.5 KB


Last edited by 93ford; 02-19-2012 at 06:11 PM.
  #2
Old 02-21-2012, 05:34 PM
93ford's Avatar
Diesel Fan
Thread Starter
Join Date: Sep 2011
Posts: 31
Likes: 0
Received 2 Likes on 2 Posts
Default

Found out. Just in case anyone else has this same turbo and wants to know what it is, its a gt3782.
