Default HX55 Turbo

How much better is this turbo than stock?

  #2
Old 01-11-2011, 04:55 PM
Whit's Avatar
Site Mascot
Join Date: Mar 2007
Location: Why-homing
Posts: 16,010
Received 940 Likes on 701 Posts
Default

where did you get it?????????off a big rig maybe

here is a chart I have had for years

Turbo---CFM----Racing HP-----Daily HP inducer
HX35----574------420----------330------ 56
TP38 767
HX40----763------560----------440------60
T66-----800-------560----------440-----66
GTP38R 897
B1------900-------630----------495
H2E-----868------700----------550
HX50----1000-----700-----------550-----63,67
HX55----1050------735----------578-----67
HT3B----1085------770----------605-----76
GT42----1302----------------------------75
T76-----1350------945----------743------76
HT60----1400------980----------770
B2,s400-1500------1050---------825-----75
GT47------------------------------------80
HX60----1550------1085---------853
TV81----1600----------------------------85
T88-----1750-------1225--------963-----88
HT4B----1800------1260---------990
Big Brother-1900----1330--------1045-----87
T91------2000------1400--------1100-----91
HC5A/HX82-2450----1715--------1348
T100------2600-----1820--------1430-----100
T105-----2900------2030--------1595------105


Last edited by Whit; 01-11-2011 at 05:04 PM.
  #3
Old 01-11-2011, 05:11 PM
Whit's Avatar
Site Mascot
Join Date: Mar 2007
Location: Why-homing
Posts: 16,010
Received 940 Likes on 701 Posts
Default

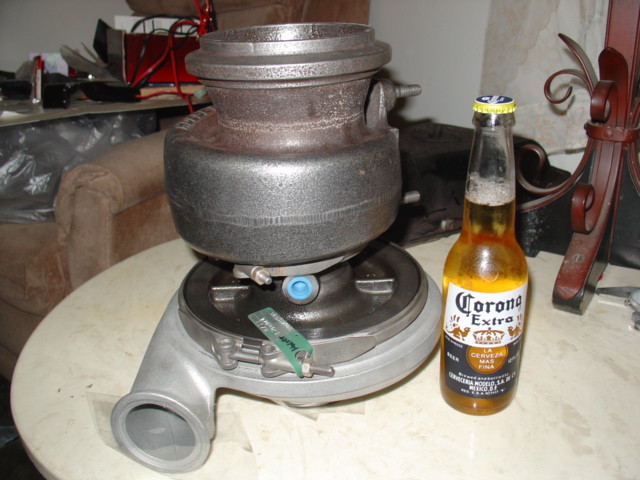

the hx55 was common on the 8.3 big rig Cummins.................here is a pic of one

as a single turbo I dont think you would have enough fuel to lite it bro..............as the bottom on a set of chargers it would be OK

Attached Thumbnails HX55 Turbo-coronahx55.jpg

Last edited by Whit; 01-13-2011 at 06:35 PM.
  #4
Old 01-13-2011, 05:04 PM
blazier18's Avatar
Diesel Bomber
Join Date: Jul 2010
Location: knox county tn
Posts: 1,176
Received 28 Likes on 28 Posts
Default

on the bottom it would be great

  #5
Old 01-13-2011, 06:31 PM
Hightech_Redneck's Avatar
Diesel Wrench
Join Date: Feb 2009
Location: Northeastern, OH
Posts: 912
Received 60 Likes on 49 Posts
Default

if its a 17cm housing with a lot of fuel you would be fine... they are a 65-67mm inducer turbo... you can take a S400 housing and get it machined to fit on it so you can run a smaller housing and not have such a laggy charger... it would be a great performance turbo but street characteristics arent that great...
