Default 05 dash center trim removal

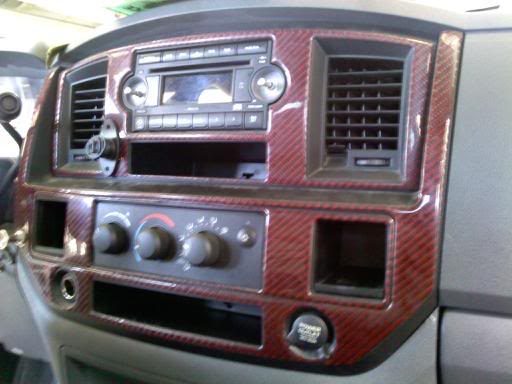

How do I take the center trim piece off the dash so I can take the stereo deck out on a 2006? Is there a screw somewhere for me to remove? It doesn't seem to move enough to just be held by the push fasteners. But there's not the usual cup holder/ash tray to slide out and remove the screws...I is confused.

Maybe some of that red carbon fiber stick-on crap needs to be peeled back?


Name:  downsized_0916091208.jpg
Views: 55
Size:  30.9 KB


Last edited by greasemonkey; 09-16-2009 at 02:31 PM.
  #2
Old 09-16-2009, 04:34 PM
TXAustin's Avatar
Diesel Enthusiast
Join Date: Sep 2009
Location: dallas
Posts: 107
Received 3 Likes on 3 Posts
Default

If I remember right on my old 06 model single cab it popped right off. The first time always was horrible to get it off though. I do not recall any screws holding the trim on but I am not 100%

  #3
Old 09-16-2009, 05:54 PM
mrsunk's Avatar
Diesel Enthusiast
Join Date: Dec 2007
Location: Barnhart,Missouri
Posts: 107
Received 0 Likes on 0 Posts
Default

on my manual i had to take out the cup holders. Then once thats out there are two screws that hold in the flat piece behind the cup holders. Once you get that out there is two screws holding on the bottom of the dash bezel. thats the way mine is atleast. Once i had it takin apart i just left the two screws out that hold on the bezel so i can just pop it off later

  #4
Old 09-16-2009, 06:54 PM
puffsmokeonya's Avatar
Diesel Enthusiast
Join Date: Nov 2008
Location: harrison arkansas
Posts: 271
Received 27 Likes on 20 Posts
Default

hit it with a hammer

  #5
Old 09-16-2009, 07:54 PM
Captain Call's Avatar
Diesel Bomber
Join Date: Dec 2008
Location: Utah
Posts: 1,315
Received 144 Likes on 90 Posts
Default

Start at the floor console and work up. There are screws to take out.
