fuel pressure

I need to get a guage on my fuel but i have a couple questions where do i hook the guage up and how many psi should it be runnin and also any refurals on guages? Thankyou

Reply Like

05-15-2010, 10:54 AM

Dr. Evil

BOMBARDIER

Join Date: Mar 2007

Location: North of You

Posts: 23,293

Likes: 884

Received 1,322 Likes on 1,071 Posts

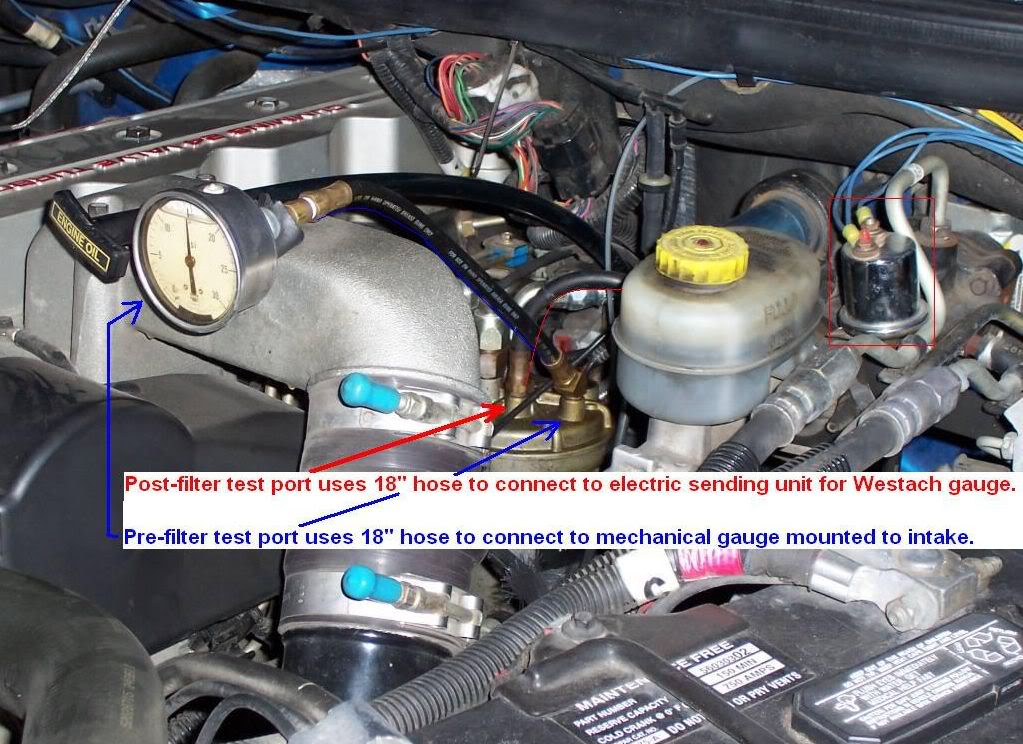

On a completely stock truck - you need a 1.8" npt fitting - goes in the forward port of your fuel filter housing (DO NOT forget a needle valve or pressure snubber to dampen the pressure spikes):

Name: 19529Gallery_Fuel_pressure_Hookup.jpg
Views: 35
Size: 22.7 KB

Name: 99RamFPHookup1.jpg
Views: 50
Size: 147.9 KB

Reply Like

05-15-2010, 10:56 AM

Dr. Evil

BOMBARDIER

Join Date: Mar 2007

Location: North of You

Posts: 23,293

Likes: 884

Received 1,322 Likes on 1,071 Posts

psi depends on the shape of your lift pump. You will want a minimum of 5 psi at Wide Open Throttle.

Reply Like

05-15-2010, 10:19 PM

cummins24

Diesel Enthusiast

Join Date: Feb 2008

Location: Ponder, Texas

Posts: 400

Likes: 84

Received 10 Likes on 10 Posts

Do I have to use the isolator with my isspro fp gauge? I have a needle valve before the isolator but the reason I ask is because the bleeder screw on the isolator doesnt want to seal anymore.
