Transfer case pops out of gear

Thread Tools

Search this Thread

  #21
Old 12-31-2009, 04:59 PM
JSPulliam21's Avatar
Diesel Enthusiast
Thread Starter
Join Date: Oct 2007
Location: Tennessee
Posts: 232
Received 5 Likes on 4 Posts
Default

It may. Does it pop out of gear, or just make the clunking sounds?

  #22
Old 01-10-2011, 08:49 AM
jchavis's Avatar
Newbie
Join Date: Jul 2010
Posts: 4
Likes: 0
Received 0 Likes on 0 Posts
Default 4x4 issues

Guys I am having some issues as well with my 2001 4x4 quad cab cummins
I just had a level kit put on the truck and now the 4x4 selector will not shift properly
no 4x4 light or 4x4. I can just push the lever back and forth with no change.
I can push up to 4lo and it seems to go into 4x4 but only for a moment.
Shift lever does not feel correct and I have no 4x4 any sugestions
Any help would be greatly appreciated, thanks!!

  #23
Old 01-10-2011, 11:16 AM
pukie370's Avatar
Diesel Enthusiast
Join Date: Dec 2010
Posts: 295
Received 6 Likes on 6 Posts
Default

my truck jumps in to neutral on deceleration with big load and a freind told me the 241s snapling on tailshaft comes loose. he said there is a updated snap ring, but that is just what i was told.

  #24
Old 01-10-2011, 07:01 PM
turbo20psi's Avatar
Diesel Bomber
iTrader: (1)
Join Date: Mar 2009
Location: MD,NC
Posts: 3,228
Received 180 Likes on 149 Posts
Default

Originally Posted by jchavis
Guys I am having some issues as well with my 2001 4x4 quad cab cummins
I just had a level kit put on the truck and now the 4x4 selector will not shift properly
no 4x4 light or 4x4. I can just push the lever back and forth with no change.
I can push up to 4lo and it seems to go into 4x4 but only for a moment.
Shift lever does not feel correct and I have no 4x4 any sugestions
Any help would be greatly appreciated, thanks!!

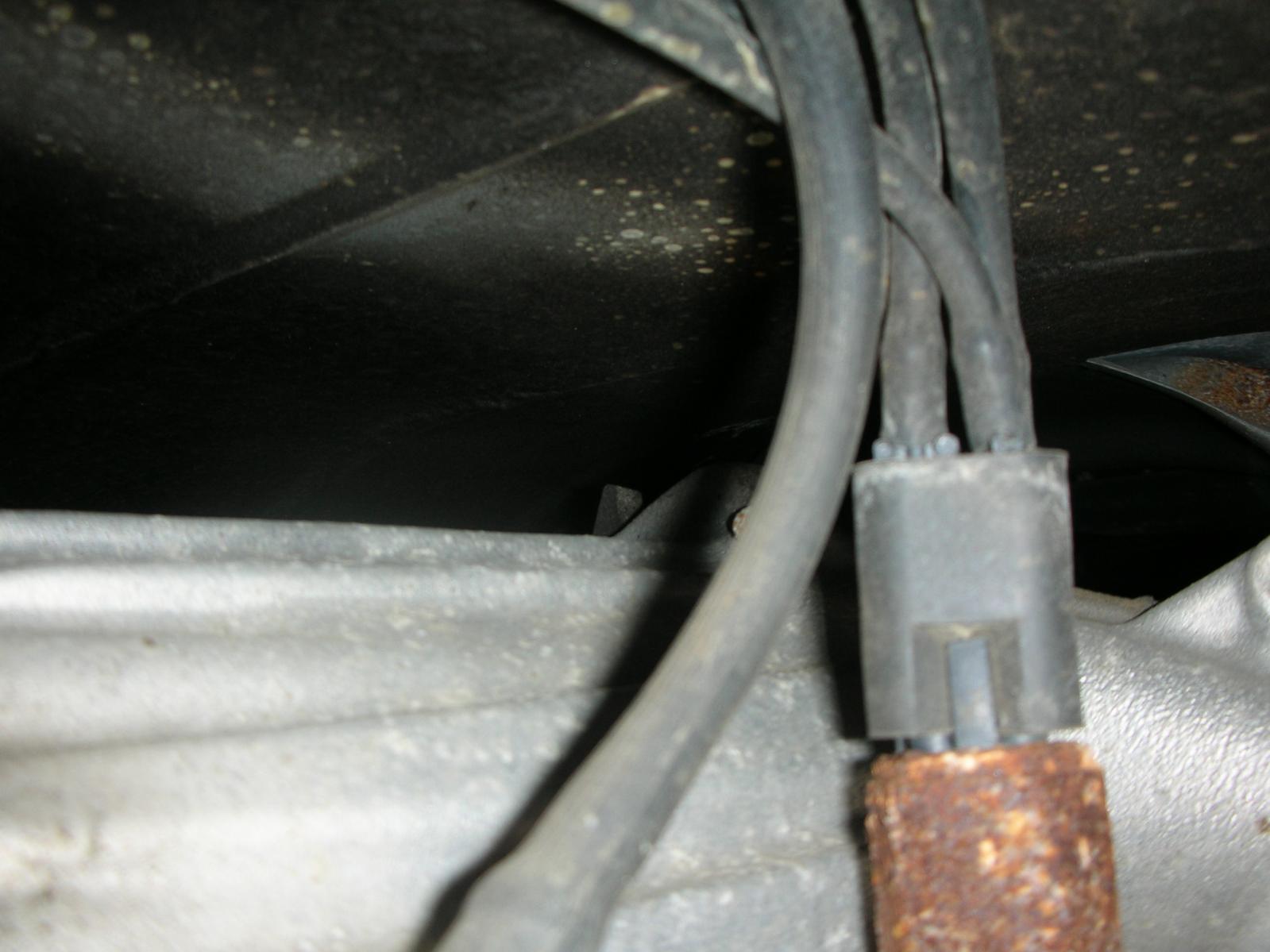

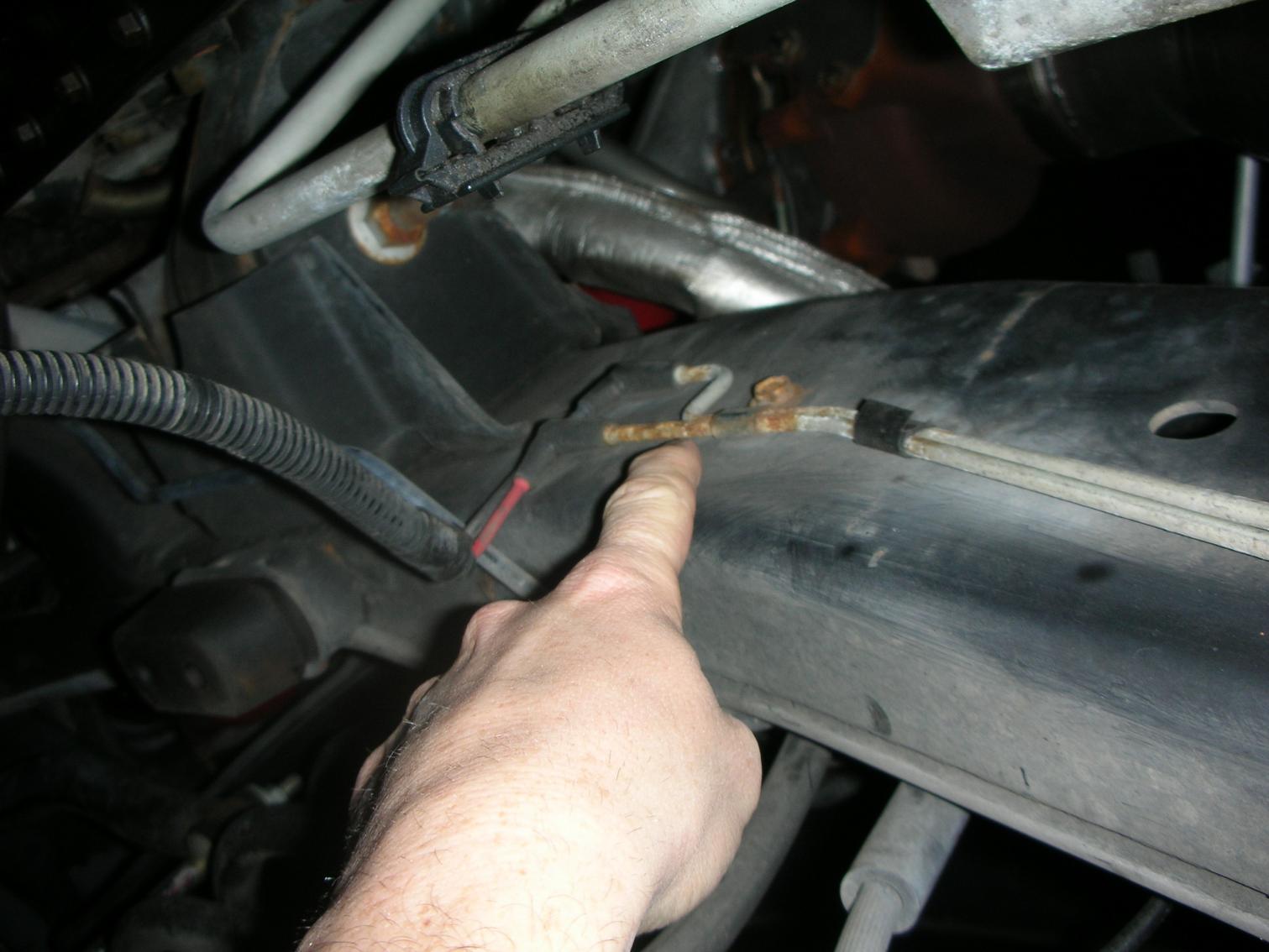

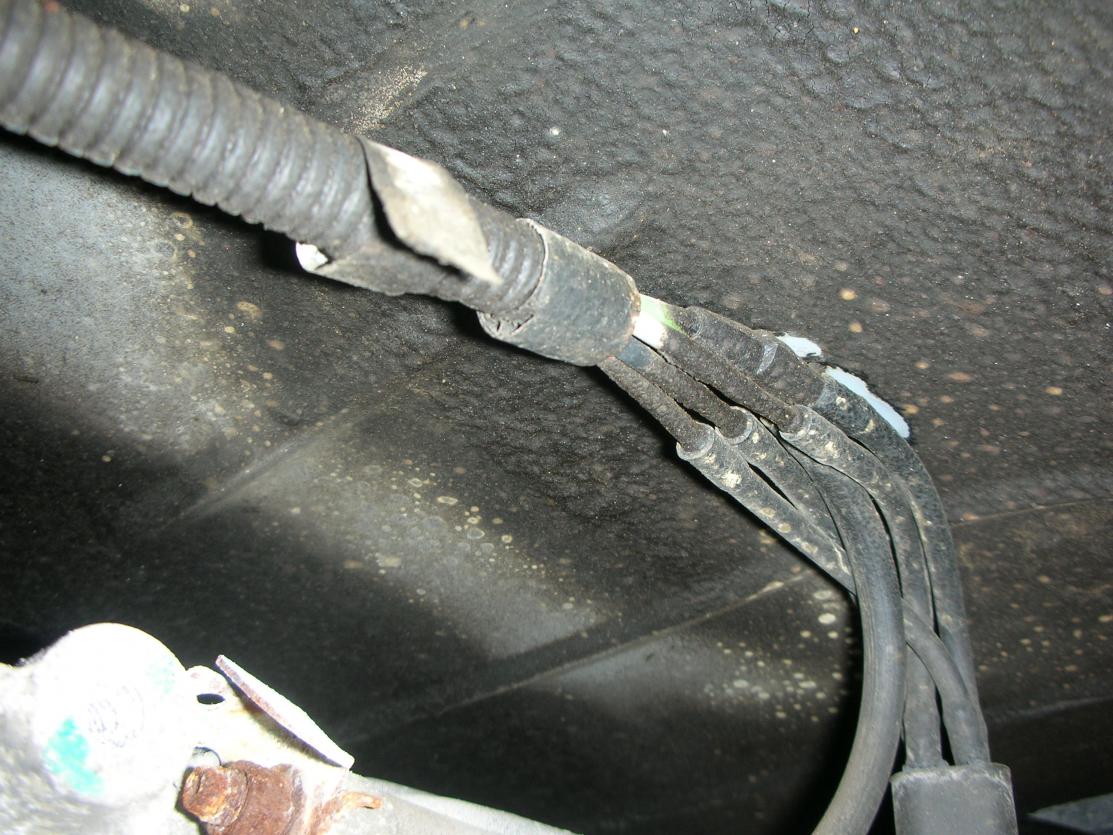

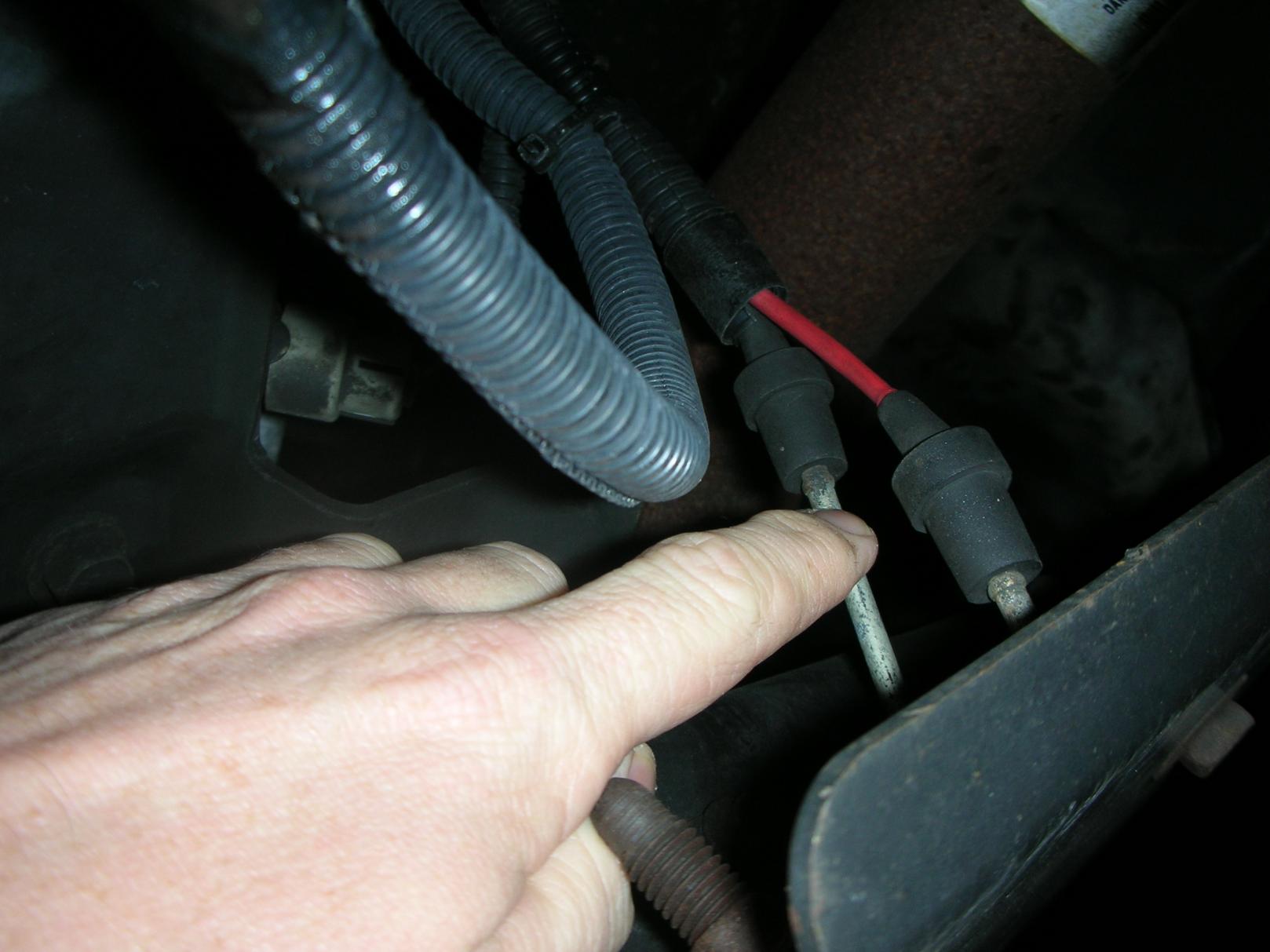

First check the vacuum lines from front to back for any breaks.

Attached Thumbnails Transfer case pops out of gear-dscn4000.jpg   Transfer case pops out of gear-dscn4001.jpg   Transfer case pops out of gear-dscn4002.jpg   Transfer case pops out of gear-dscn4007.jpg   Transfer case pops out of gear-dscn4008.jpg

Transfer case pops out of gear-dscn4009.jpg
  #25
Old 01-10-2011, 07:49 PM
fury9's Avatar
Diesel Fan
Join Date: Sep 2010
Location: illannyos
Posts: 12
Received 0 Likes on 0 Posts
Default

did you check the output shaft snap ring on the transfer case? A broken snap ring can cause the tcase to pop out of gear. I got one of these,Transfer case saver, don't leave home without it, DIY and save money! - Drivetrain.com.


Last edited by fury9; 01-10-2011 at 07:51 PM.
  #26
Old 01-10-2011, 07:52 PM
kazairl's Avatar
Diesel Bomber
Join Date: Sep 2008
Location: Nebraska Panhandle
Posts: 2,139
Received 126 Likes on 99 Posts
Default

Originally Posted by jchavis
Guys I am having some issues as well with my 2001 4x4 quad cab cummins
I just had a level kit put on the truck and now the 4x4 selector will not shift properly
no 4x4 light or 4x4. I can just push the lever back and forth with no change.
I can push up to 4lo and it seems to go into 4x4 but only for a moment.
Shift lever does not feel correct and I have no 4x4 any sugestions
Any help would be greatly appreciated, thanks!!

You might need to adjust the linkage under the truck. There is one bolt to loosen and then you adjust the rod so it shifts into all ranges properly. It shouldn't have messed with your adjustment much but you never know.


Last edited by kazairl; 01-10-2011 at 07:54 PM.
