1st Generation Dodge Cummins 89-93 Discussion of 12 Valve 5.9 Liter Dodge Cummins Diesels with Rotary Injection Pumps

Best way to paint 1st generations??? HELP

Thread Tools

Search this Thread

  #1
Old 08-01-2012, 12:48 PM
93DodgeDiesel's Avatar
Diesel Fan
Thread Starter
Join Date: Jul 2012
Location: Nebraska
Posts: 13
Likes: 0
Received 0 Likes on 0 Posts
Default Best way to paint 1st generations??? HELP

My 93 D250's paint is just like flaking right off! I wanna give her a new paint job but just dont know the best way to do it???

  #2
Old 08-01-2012, 02:30 PM
Cow tipper's Avatar
Diesel Enthusiast
Join Date: Jul 2012
Location: Colorado
Posts: 150
Received 3 Likes on 3 Posts
Default

A can of perfect match spray paint works great.

  #3
Old 08-02-2012, 06:28 PM
crazy clem's Avatar
Diesel Fan
Join Date: Jul 2010
Location: langley B C
Posts: 96
Received 6 Likes on 5 Posts
Default

quikie paint wont last , tried on mine dodge primer was faulty on some trucks , gotta get that primer off and start from the bottom .

  #4
Old 08-02-2012, 09:11 PM
jdbigblue12v's Avatar
Diesel Wrench
Join Date: Mar 2011
Location: new york
Posts: 502
Received 12 Likes on 10 Posts
Default

ahhh f**k my paint is flaking on driver side on the upper side of the bed almost on the rail guess i got some sandin to do..

  #5
Old 08-03-2012, 06:57 AM
Cummins12Club's Avatar
Diesel Enthusiast
Join Date: Dec 2011
Location: Northern Kentucky
Posts: 120
Likes: 0
Received 2 Likes on 1 Post
Default

My dad has done bodywork for 32 years and ive been in it my whole life too, only way to fix a "peeler" as they were known, is to sand all the way to the bare metal, if u dont do this you'll have horrible feather edge issues and rings in ur new paint, every bit of paint on ur truck has to be sanded off to do it right, if u take it to a good shop and u want a quality paint job dont be affraid to spend between 5 and 7 grand for an overall like this, they rnt ripping you off u will truley have atleast 3000 just in paint and materials to do one of these jobs so 5k is on the cheaper side 7k would be very high quality, food for thought

  #6
Old 08-03-2012, 03:20 PM
1STGENFARMBOY's Avatar
Diesel Enthusiast
Join Date: Jul 2010
Location: Pittsburg ILL
Posts: 234
Received 39 Likes on 25 Posts
Default

I painted my own truck, i have $650 in.....

1 gal sealer
1 qt green
1 qt silver
1 gal clear
1 gal reducer
1 qt activator
3 rolls blue tape
1 gal plastic filler
1 qt fiberglass filler
1 gal 3M fill-n-sand primer
all paint is Nason base coat clear.


2 months of time fixing the bed
3 weeks getting the truck ready
1 weekend shooting

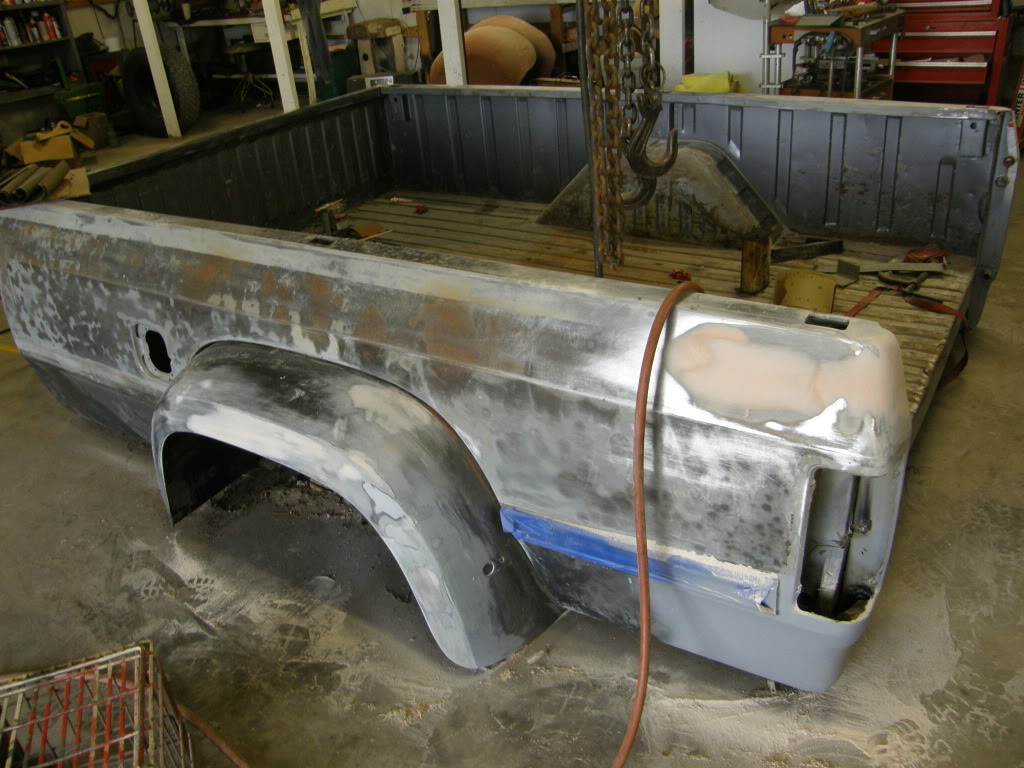

Name:  P5140350.jpg
Views: 5357
Size:  131.4 KB

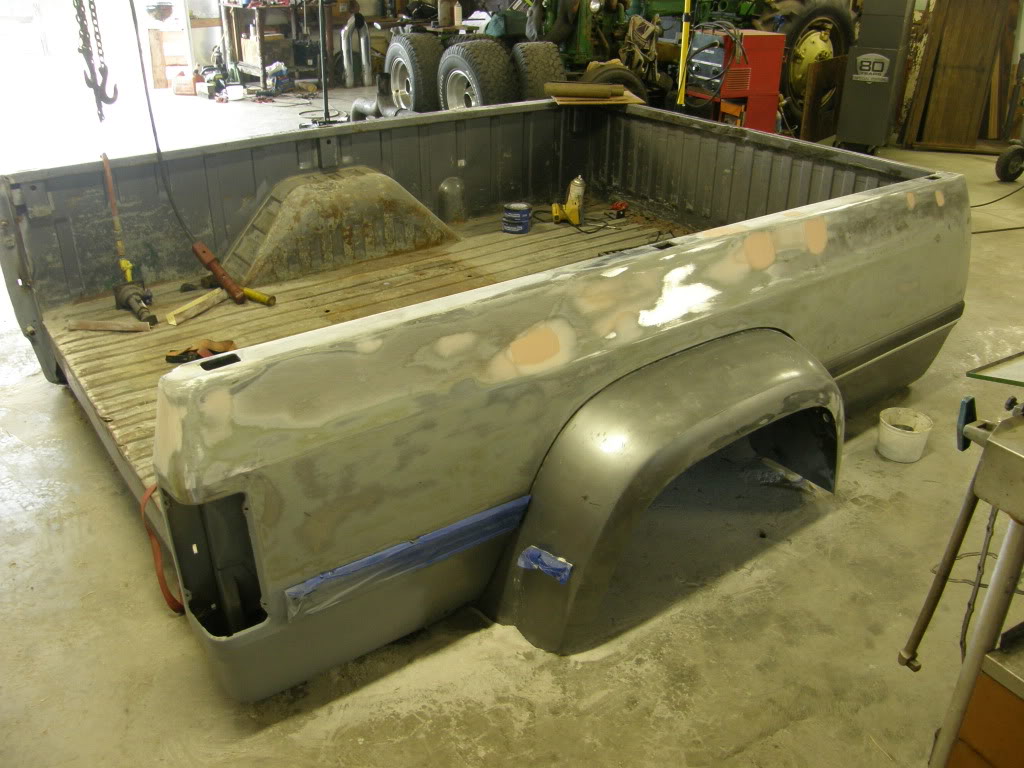

Name:  P5140349.jpg
Views: 4306
Size:  128.7 KB
Name:  P8050609.jpg
Views: 6390
Size:  184.0 KB

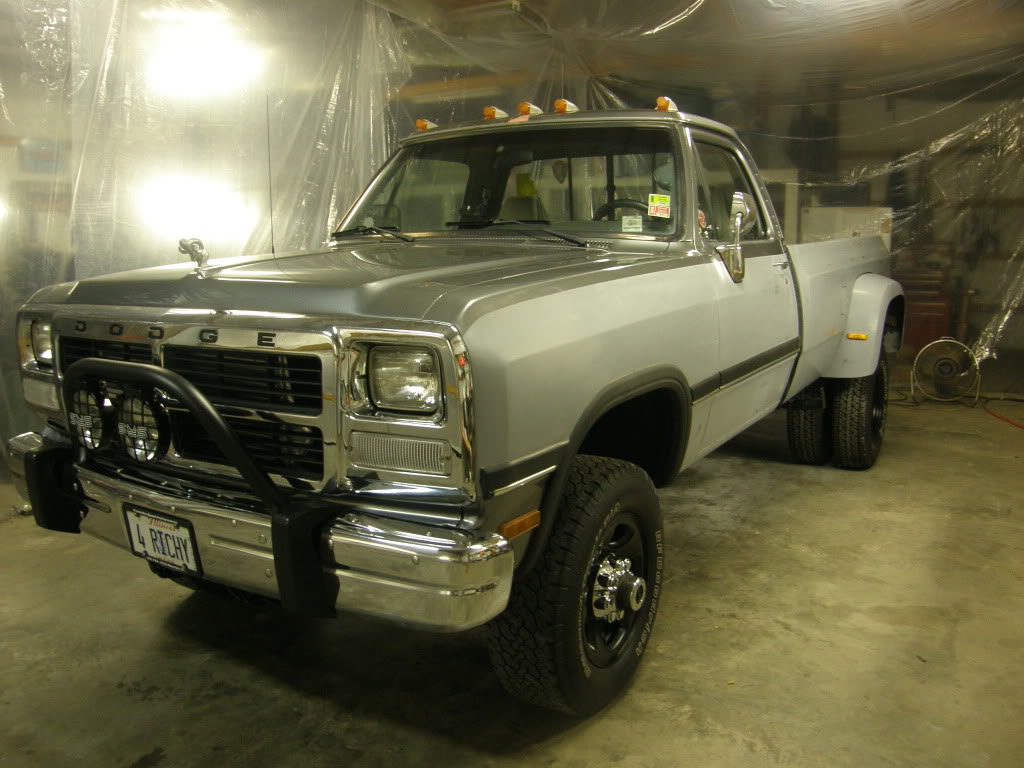

Name:  P8060614.jpg
Views: 4882
Size:  111.3 KB

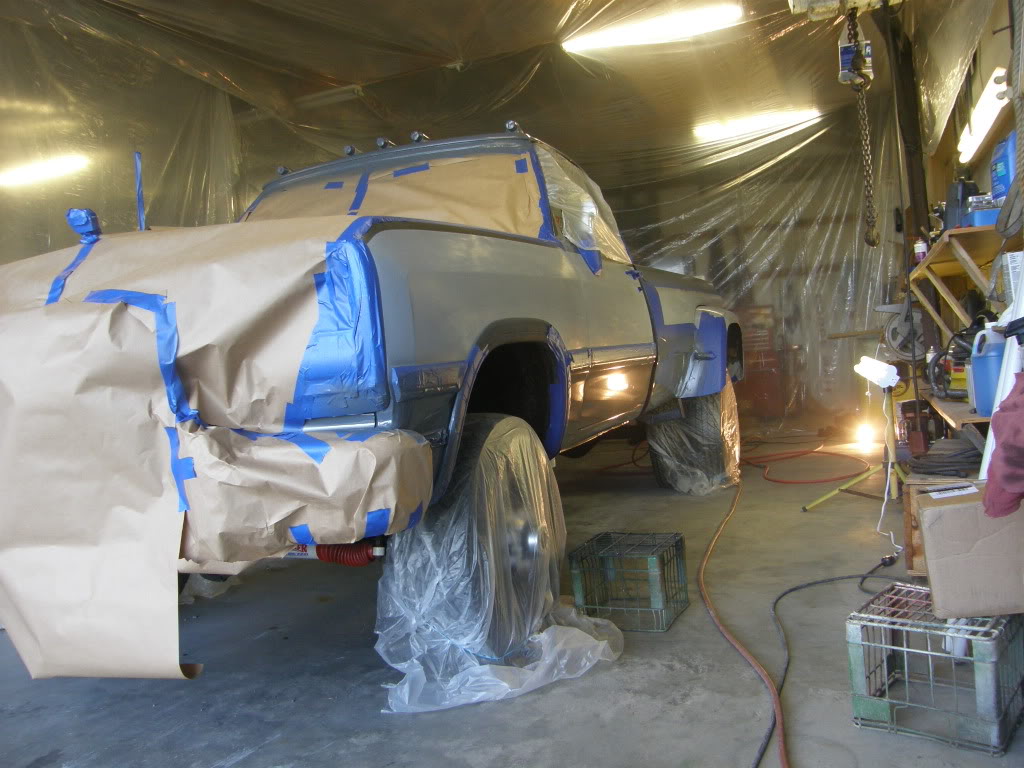

Name:  P8090616.jpg
Views: 4099
Size:  128.2 KB

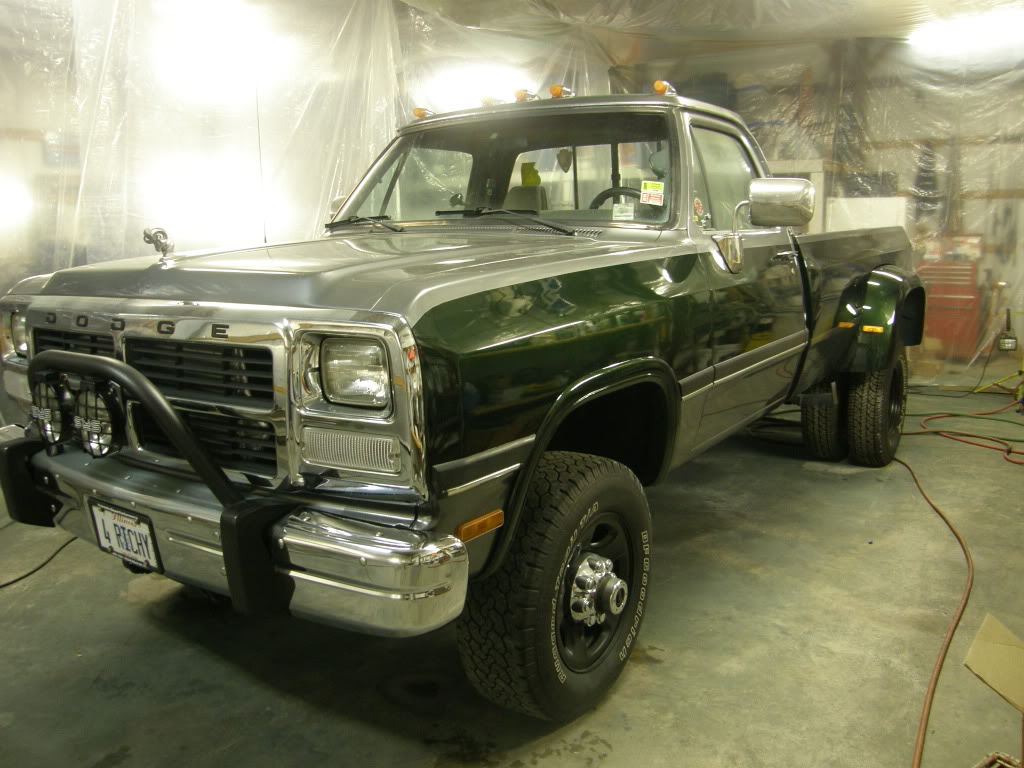

Name:  P8100617.jpg
Views: 5357
Size:  125.9 KB
Name:  P8130635.jpg
Views: 34938
Size:  252.4 KB
Name:  P8130632.jpg
Views: 10222
Size:  230.7 KB
Name:  P1141160.jpg
Views: 16894
Size:  1.63 MB

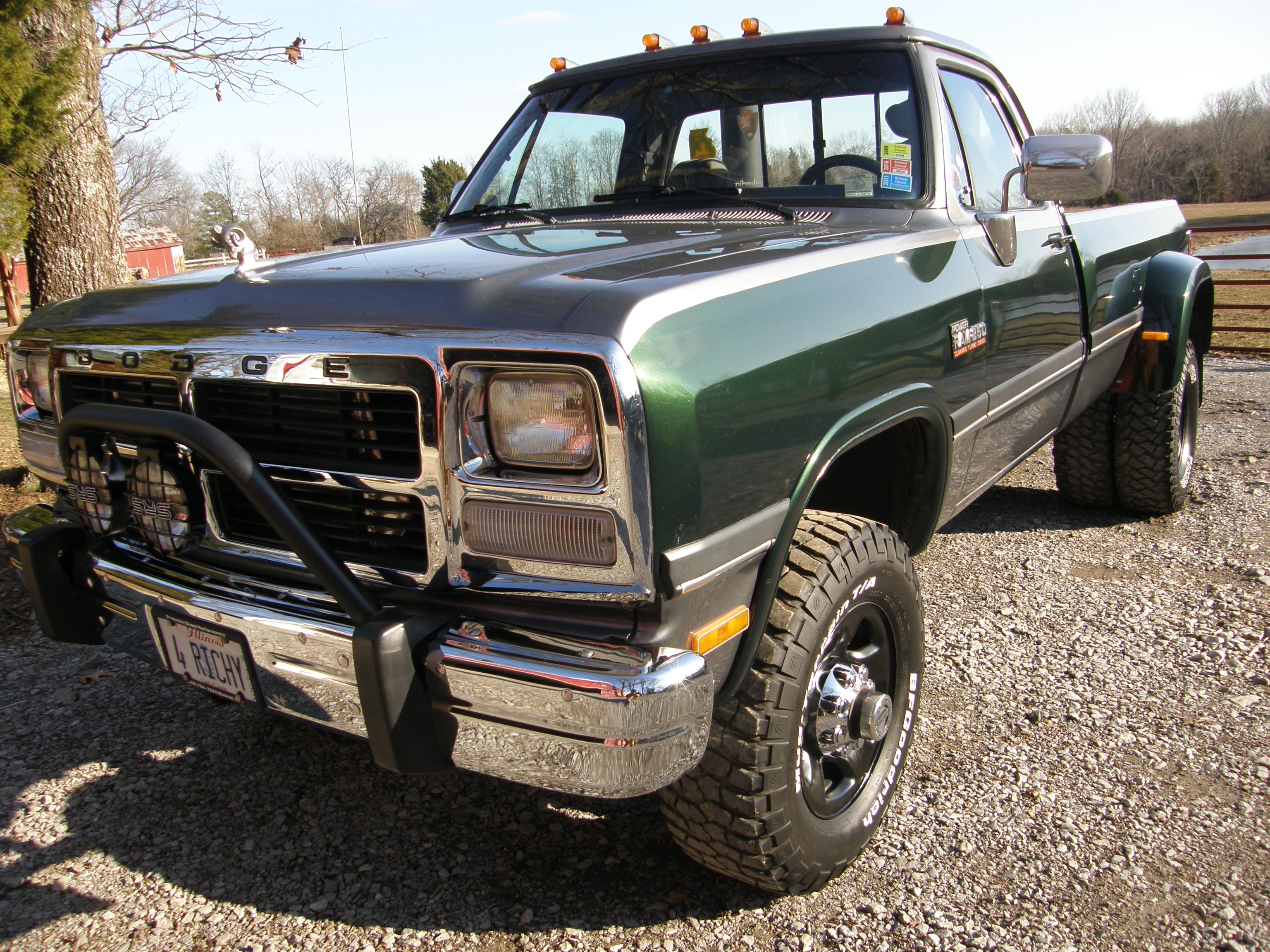

Name:  P1141162.jpg
Views: 8860
Size:  1.47 MB


just started wet sanding this weekend with 2000 and starting to buff out some dust specs that settled in the clear, can't wait to get it finnished.

Darwin

  #7
Old 08-03-2012, 09:19 PM
firstgencummins's Avatar
Diesel Fan
Join Date: Jun 2012
Location: Philadelphia
Posts: 13
Likes: 0
Received 1 Like on 1 Post
Default

wow color combo looks crazy good on your truck so how many hours total do you think you have invested into prep and paint.

The following users liked this post:
1STGENFARMBOY (08-03-2012)
  #8
Old 08-03-2012, 11:29 PM
1STGENFARMBOY's Avatar
Diesel Enthusiast
Join Date: Jul 2010
Location: Pittsburg ILL
Posts: 234
Received 39 Likes on 25 Posts
Default

Maybe 225-250hrs, it's hard to judge i only worked on it in the evenings, weekends, and when i wasn't on a tractor.

  #9
Old 08-04-2012, 12:28 AM
NKY 1stGener's Avatar
Diesel Fan
Join Date: Jul 2012
Location: Kentucky
Posts: 29
Received 1 Like on 1 Post
Default

Nice paint work.

The following users liked this post:
1STGENFARMBOY (08-04-2012)
  #10
Old 08-05-2012, 01:58 PM
flyingcrodeo's Avatar
Diesel Enthusiast
Join Date: Jan 2010
Location: Madill, OK
Posts: 260
Likes: 0
Received 4 Likes on 4 Posts
Default

I'm with 1stgenfarmboy I just got done repainting my 92 reg dually 1 ton and I have $350 in it and I sanded down to the bare metal and took the fenders and hood and doors off along with all the glass and grille and EVERYTHING, repainted the inside of them along with the inside of the cab and put everything back on and repainted the whole outside of the truck but I didn't repaint a bed the truck didnt have one when i bought it it had a flatbed on it. But I used Duplicolor Paintshop Paint
did primer then sand then reprimed then sanded then base coat white then light coat of pearl followed by 3 coats of clear then wet sanded and it looks AWSOME! And I had about 150 hours in it and $350 to $400 in paint and materials.

But it not a PROFFESIONAL paint job just a do it yourself money saver
