brake issues....need pictures and a part name
#1
brake issues....need pictures and a part name
I've got a 97 12v, 3500. Since I bought it, the abs and brake light have been on. When I was checking it out with the guy who upgraded my trans, he said there was a module that should have been on the drivers side fenderwell that was missing. He found the connector that went to it, as well as you can see the holes where it mounted. Can someone take a picture of thirs if they have it, and let me know what exactly that is? I thought it might be the abs module, but it didn't seem to be in the right spot for any of them, according to what I've been researching. I need to get that taken care of before I move, since the next state I'm moving to has inspections. I've already replaced the rear wheel sensor, and that didn't fix the issue, so im assuming that this missing module is at least part of my problem.
#2
#3
#4
#6
#7
Yeah, I'm pretty sure my wheel cylinders are bad-I'm just afraid to start it until I've got a few days, since I'm not sure how long it's going to take me to get my drums free...my parking brake doesn't work, so I can't use my usual method of jacking the back end up, putting it in gear, and using the parking brake to pop the drums loose. It looks like I'll be beating it with a sledgehammer trying to brake the drums loose...and I know they're going to be rusted on, because all my wheels have been a PITA to get off the first time.
---AutoMerged DoublePost---
BTW, here's the pics...

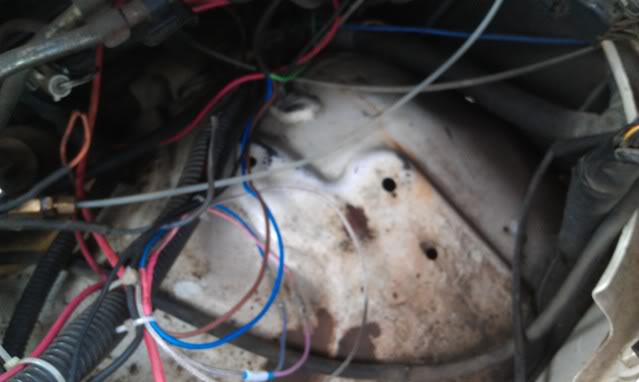

drivers side fenderwell

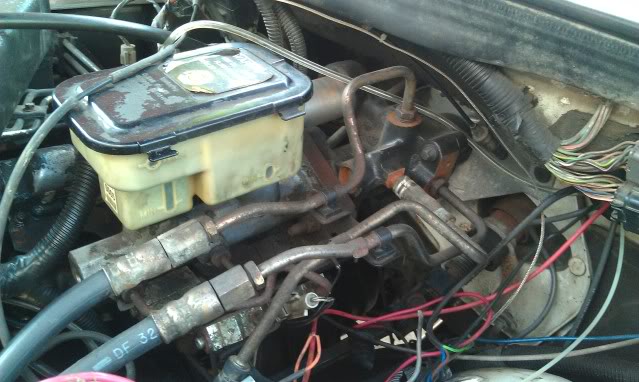

brake master/hydroboost...
---AutoMerged DoublePost---
BTW, here's the pics...
drivers side fenderwell
brake master/hydroboost...
Last edited by dennhop; 06-08-2011 at 03:35 PM. Reason: Automerged Doublepost
#8
#9

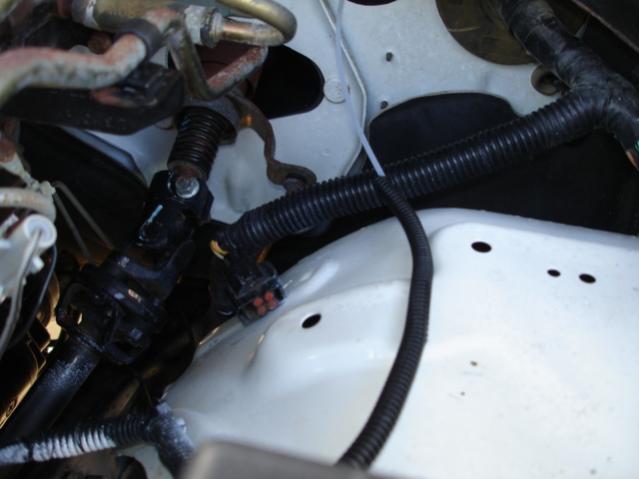

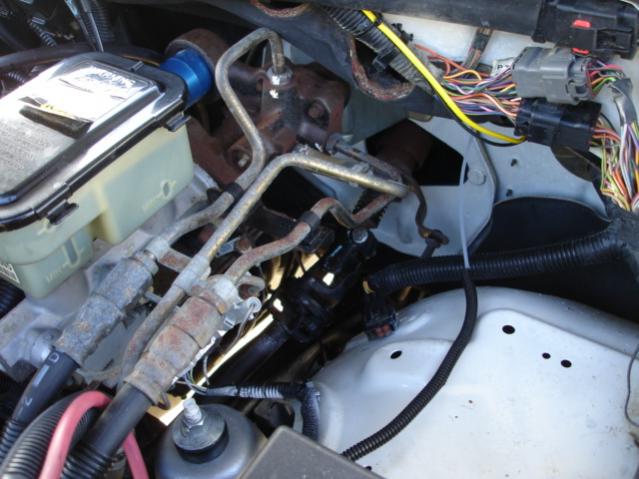

your distribution block is there, I can see the sensor and the block
if you follow the red wire down it goes right to the sensor. right below that one, there should be a smaller one, that has no sensor in it.
for you emergency brake, check the line, that line goes right across the hump in the tail pipe, if it is to close, it can burn the outside cover of the wire and cause it to hang up.
I replaced lines, cylinders, rear seals, and one bearing, in all I think I spent no more than 300.00, 100.00 was the weel bearing.
if you follow the red wire down it goes right to the sensor. right below that one, there should be a smaller one, that has no sensor in it.
for you emergency brake, check the line, that line goes right across the hump in the tail pipe, if it is to close, it can burn the outside cover of the wire and cause it to hang up.
I replaced lines, cylinders, rear seals, and one bearing, in all I think I spent no more than 300.00, 100.00 was the weel bearing.
