EGT sensor location
#2

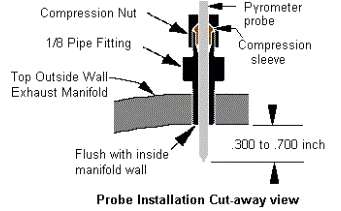

The manifold is split into 2 'banks' (front and back, divided between cylinders 123/456). you want the probe to be pre turbo (in the manifold) and in the rear bank. their are specific measurements over at cumminsforum for drilling the hole. But its not really rocket science, i just popped a hole in the manifold fairly central to the rear bank about 1.5" towards the engine from the turbo flange
#4
#6
The following users liked this post:
cumminsdad08 (03-07-2009)
#10
the exhust psi will blow the chips out of the hole in stead of them falling in. when i did mine i did it with it off but i put grease on my bit and tap to grab all the shavings and thn looked in the hole with a flashlight to make sure i had them all. if not you can use a stick or something that will fit with some more grease and get the rest out.
