Default Just another Fummins with lots of pics!

Ok so I started out with a 1991 F 350 7.3L zf-5 truck.

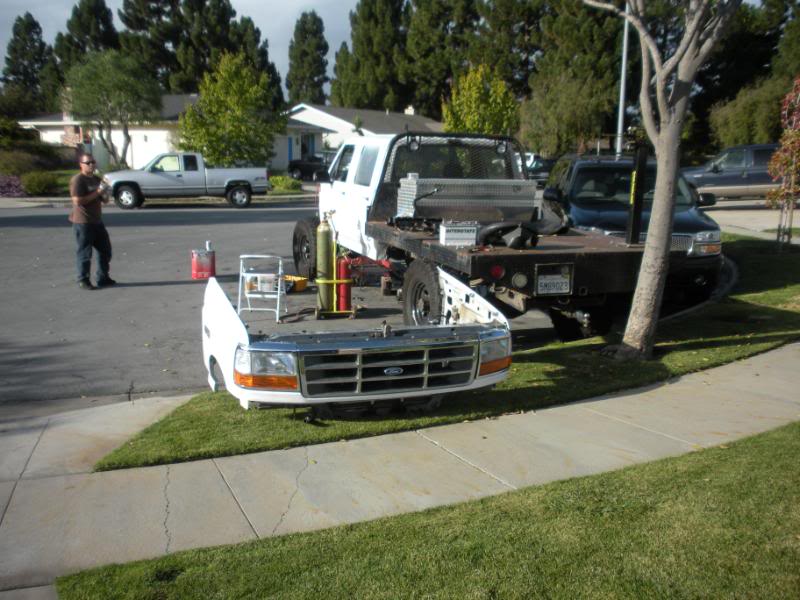

Pulled the front clip

Click the image to open in full size.

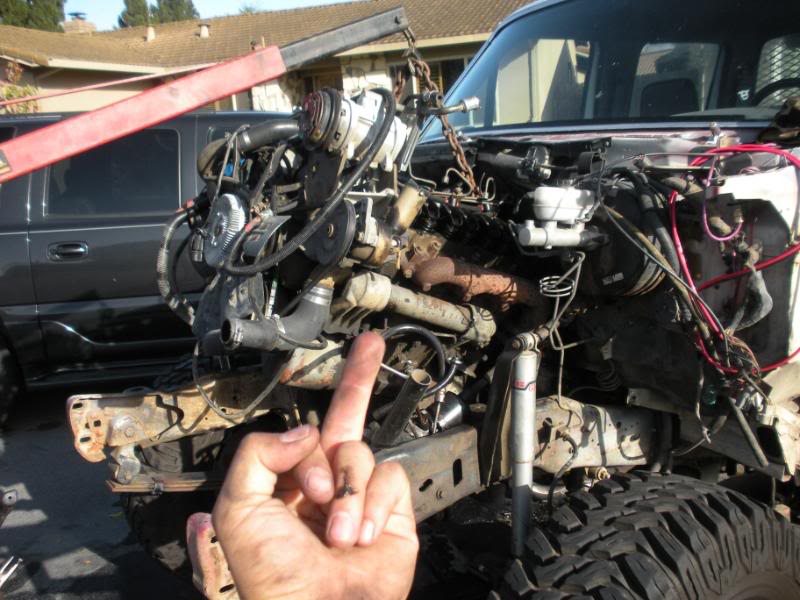

Pulling the piece of crap idi

Click the image to open in full size.

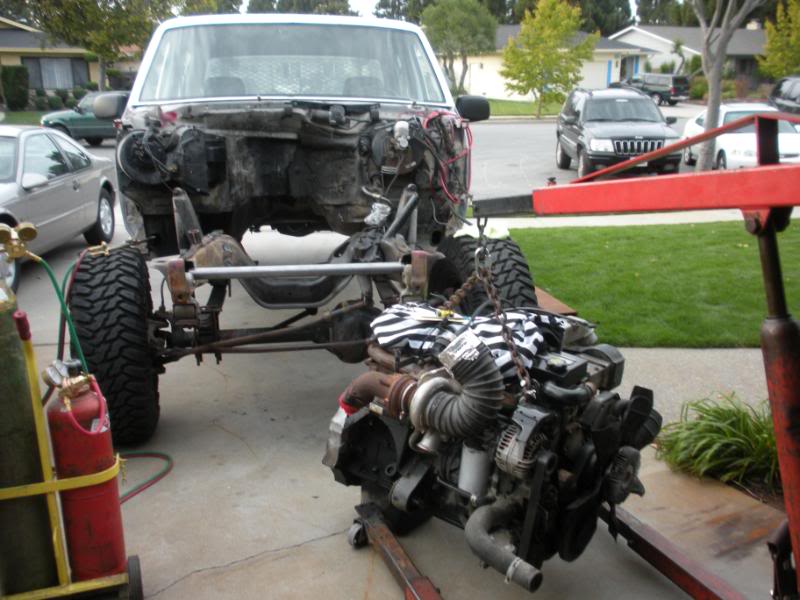

Yay new powerplant

Click the image to open in full size.

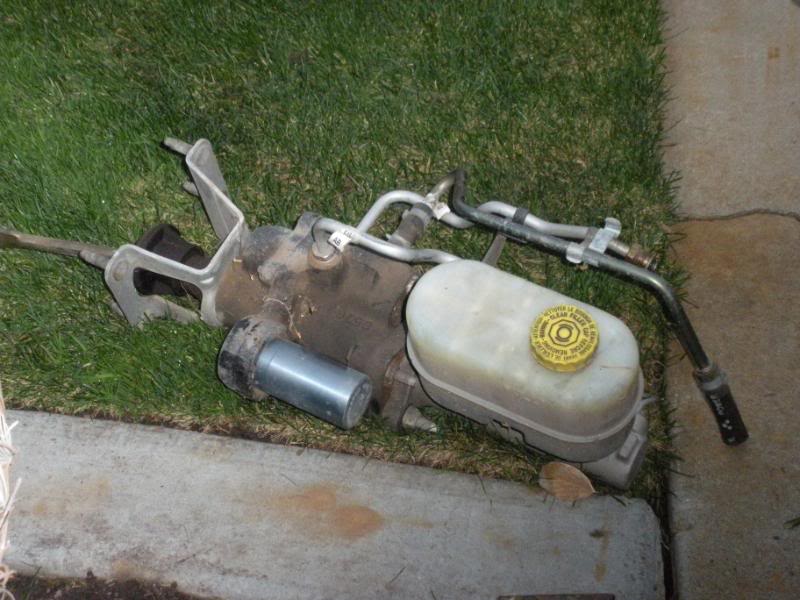

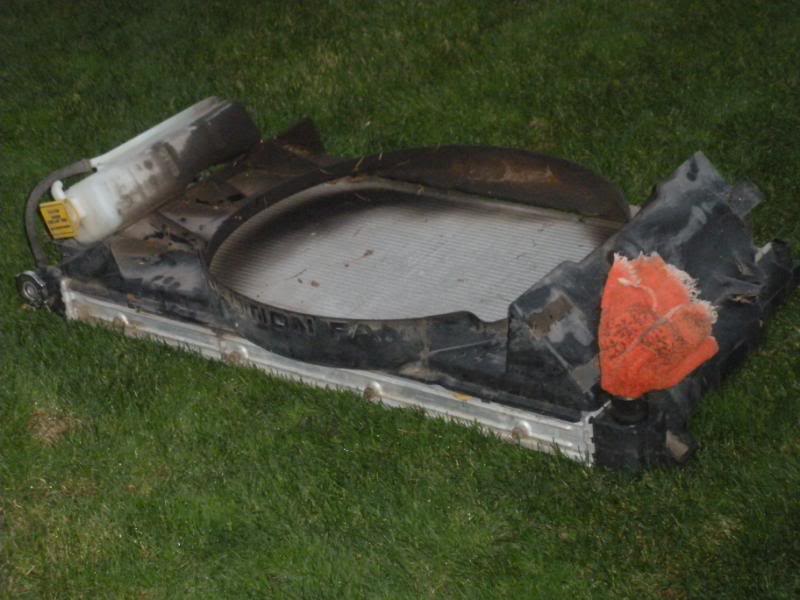

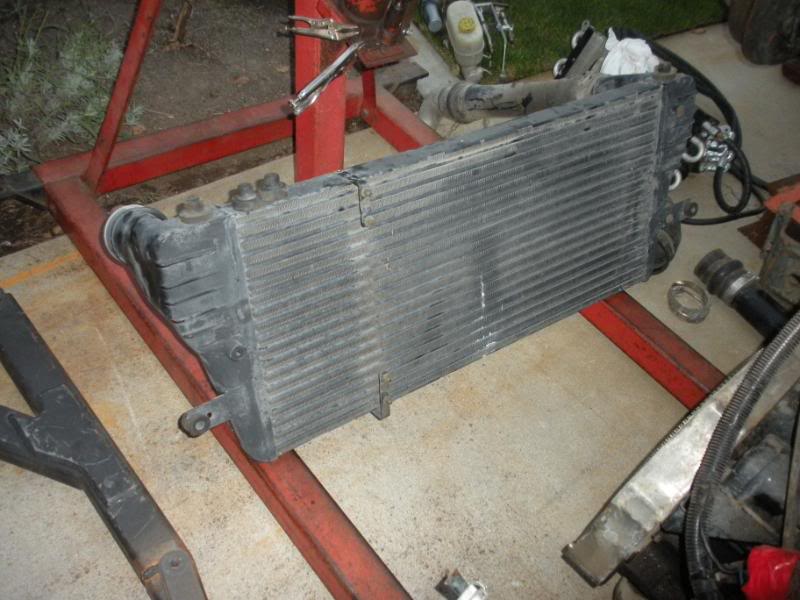

I scored like no other with this non 53 block 01 24v. 100k miles, turbo, radiator, intercooler, boost tubes, wiring, computer, and hydroboost for $1650!

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

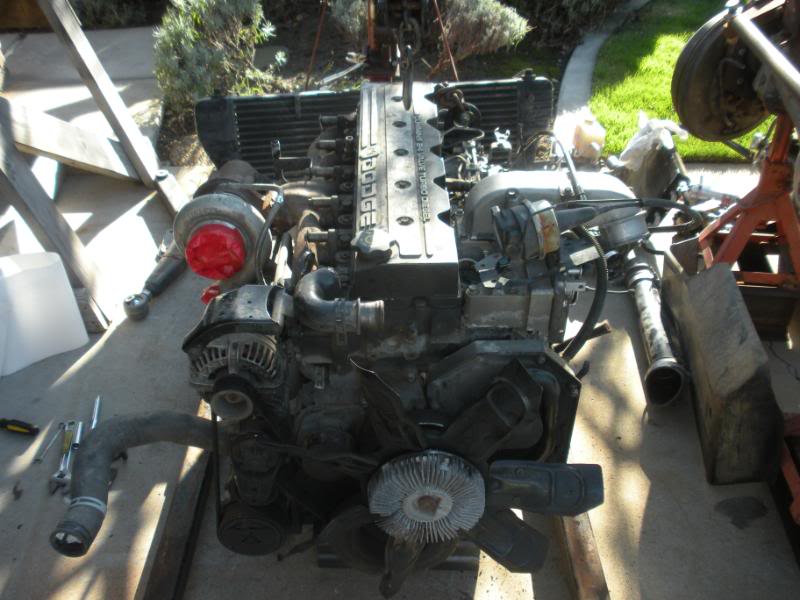

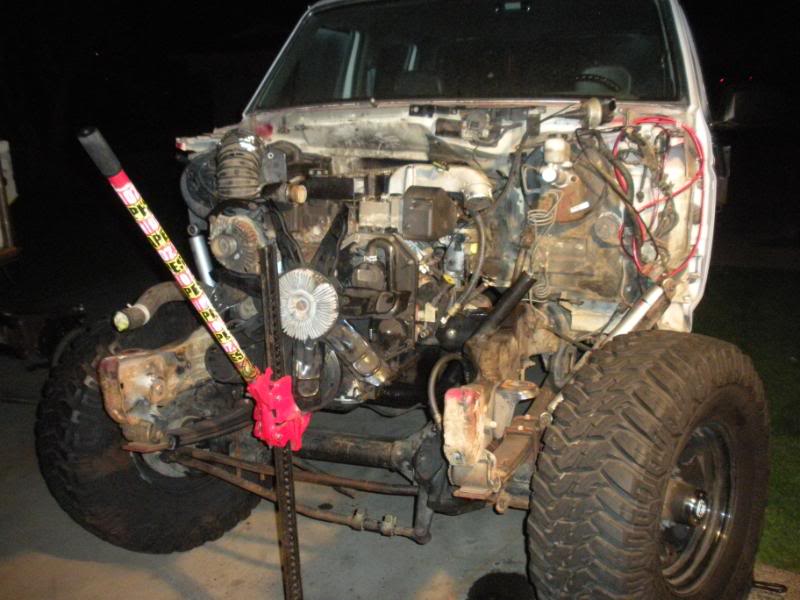

Stripped of wiring and cleaned up somewhat

Click the image to open in full size.

Getting ready to start the fabwork

Click the image to open in full size.

All cut out

Click the image to open in full size.

bajabomber87's Sig:*Tyler*
1991 Ford F-350 24v Fummins (sold)

2012 Dodge Ram 2500 Cummins H&S equipped/deleted
Reply With Quote
  #2
Old 11-17-2009, 12:24 AM
bajabomber87's Avatar
Diesel Enthusiast
Status: Play stupid games, win stupid prizes


View Member's Albums View Member's FaceBook Profile

Default

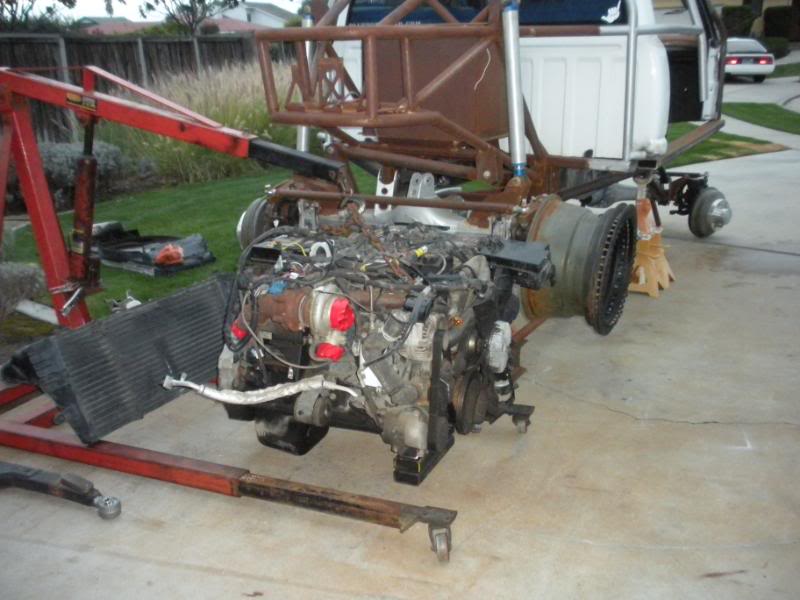

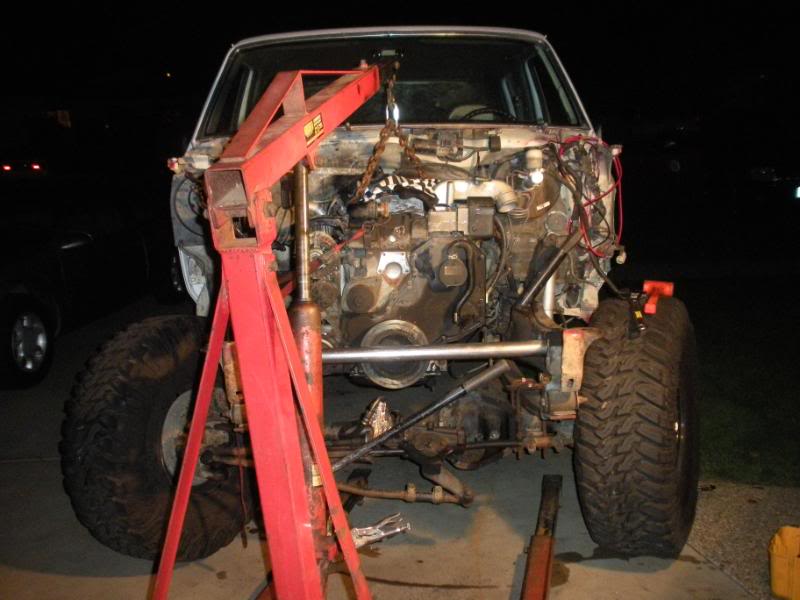

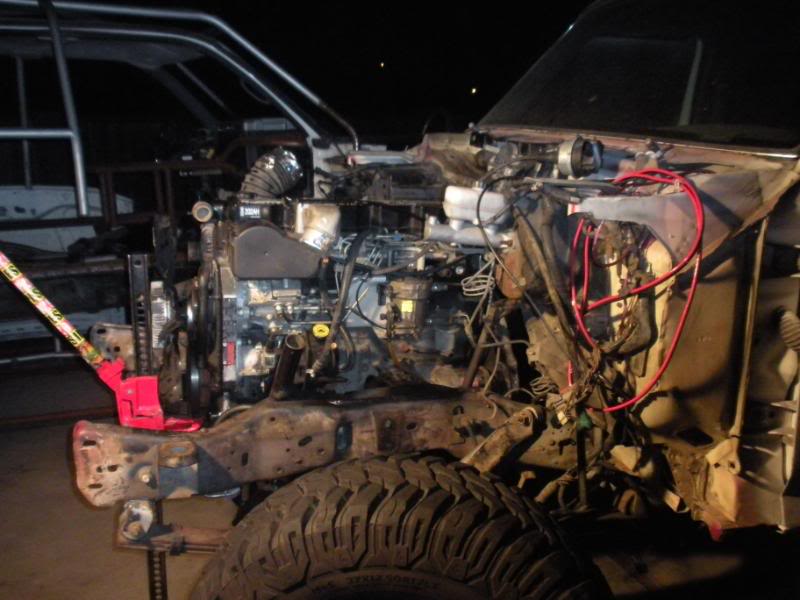

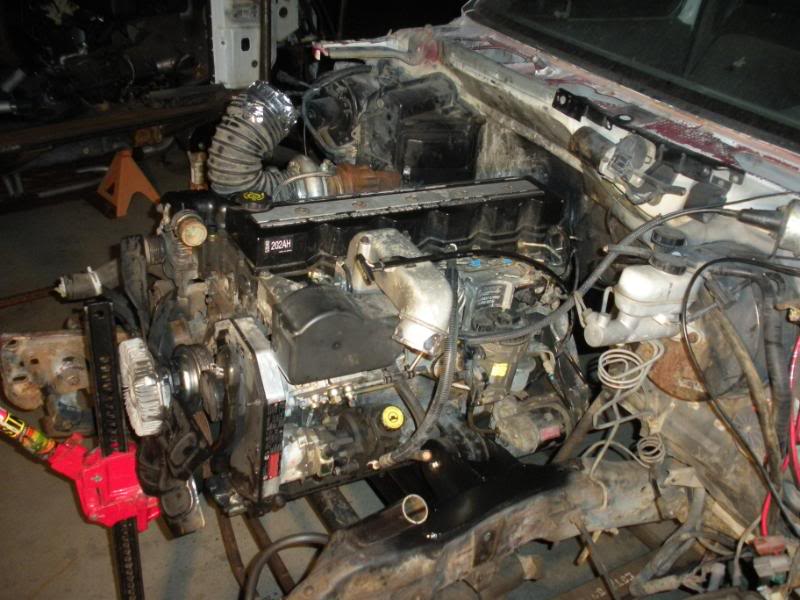

Setting it in for mock up and days of staring

Click the image to open in full size.

Click the image to open in full size.

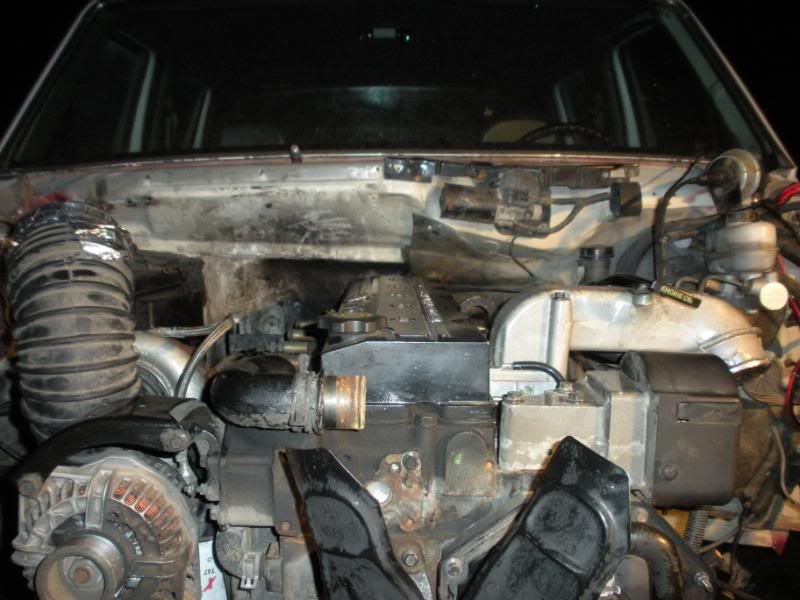

Firewall clearance

Click the image to open in full size.

Click the image to open in full size.

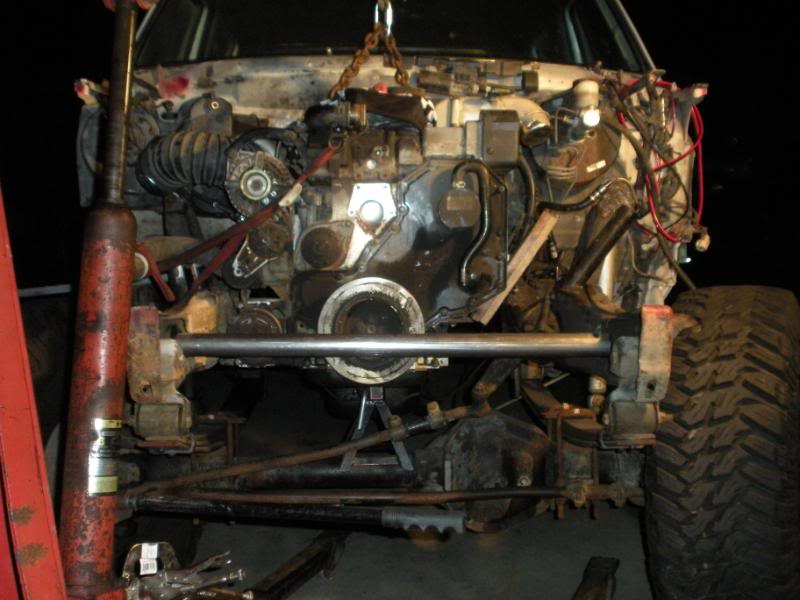

All tacked in

Click the image to open in full size.

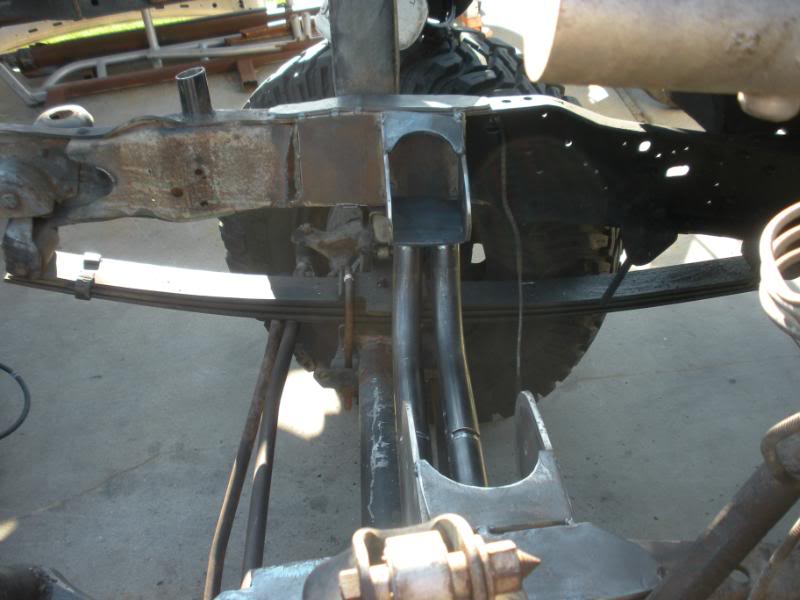

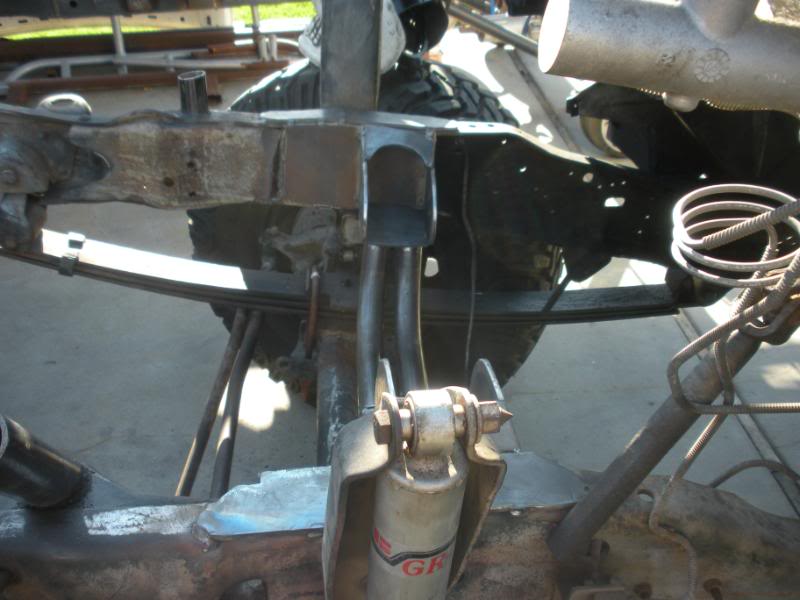

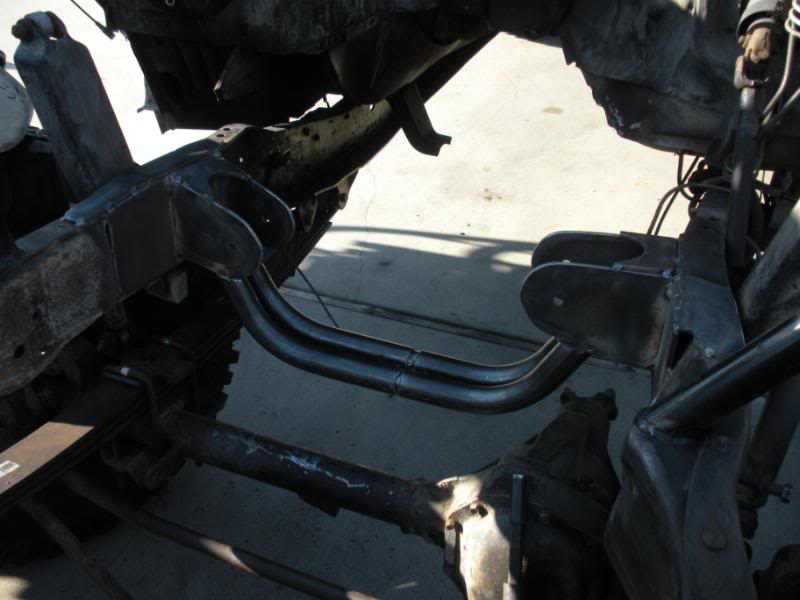

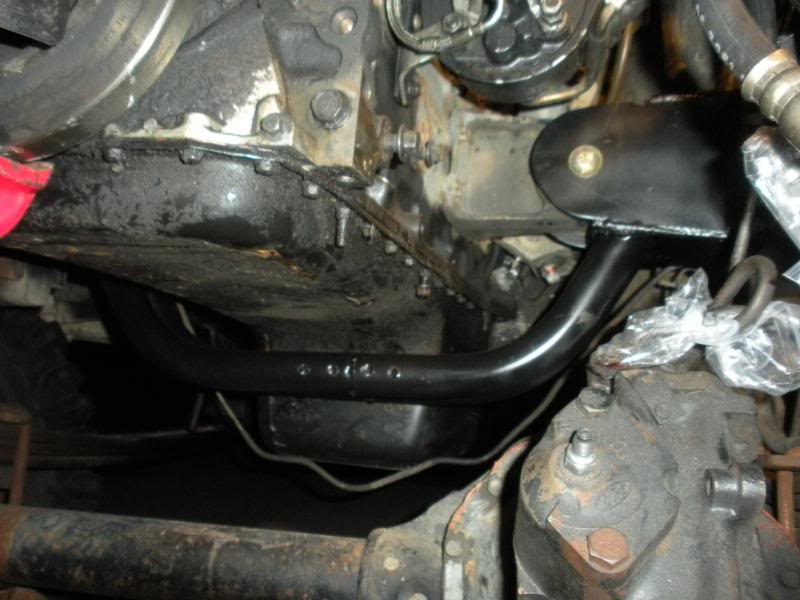

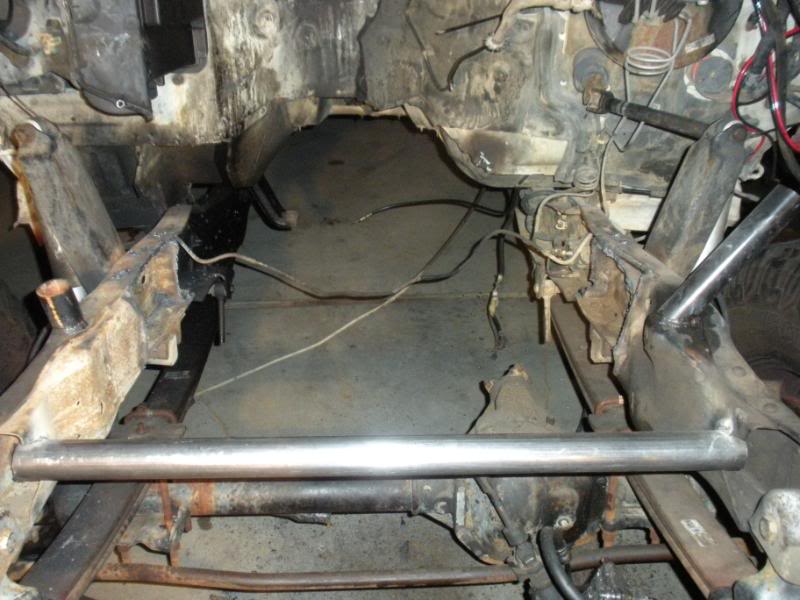

Made the mounts out of 1/4'' plate, and the crossmember tubing is 1 3/4" DOM tubing, but what ever it was, had a higher rating than normal because it was tough on my bender.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

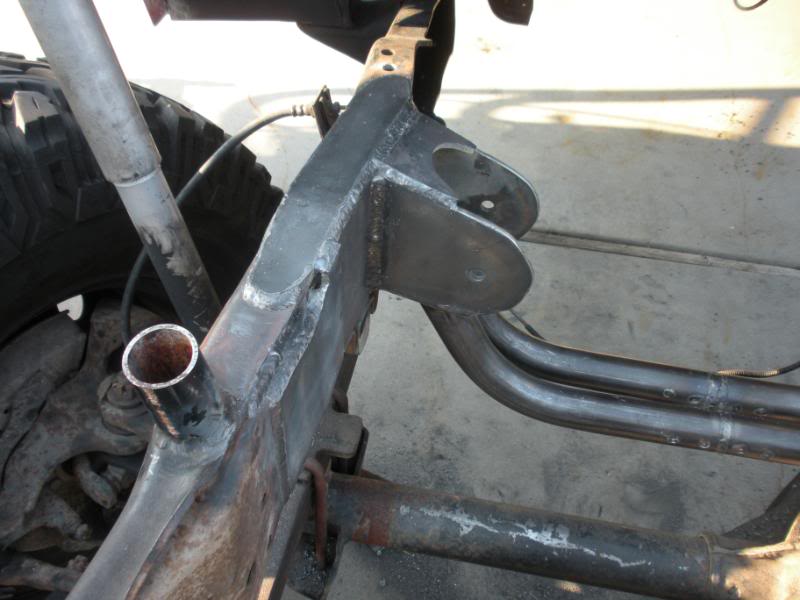

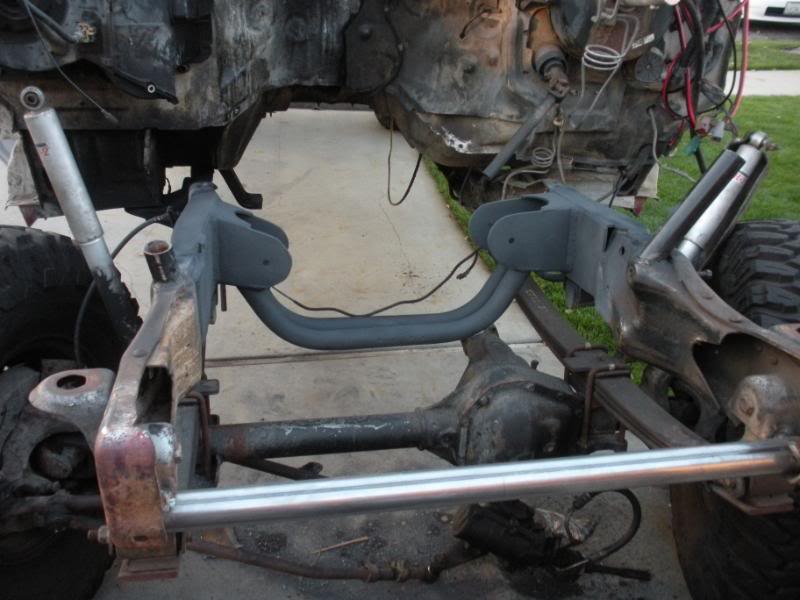

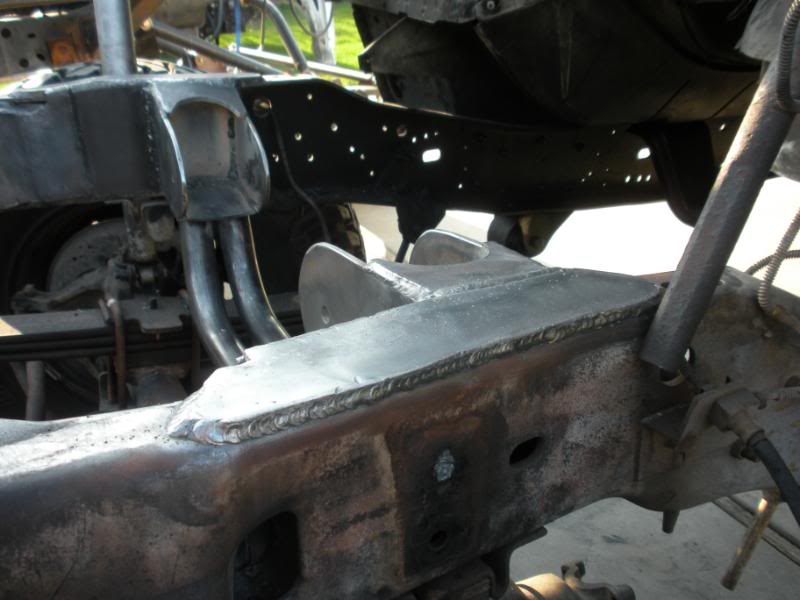

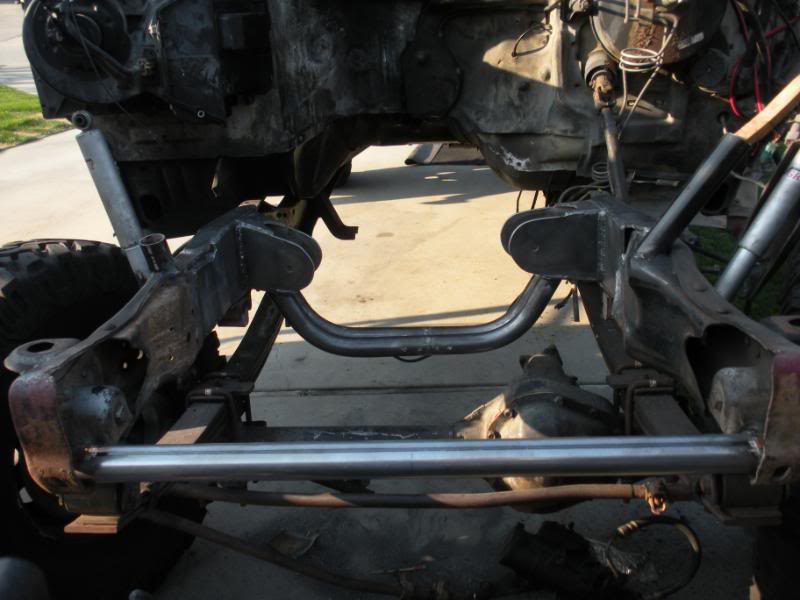

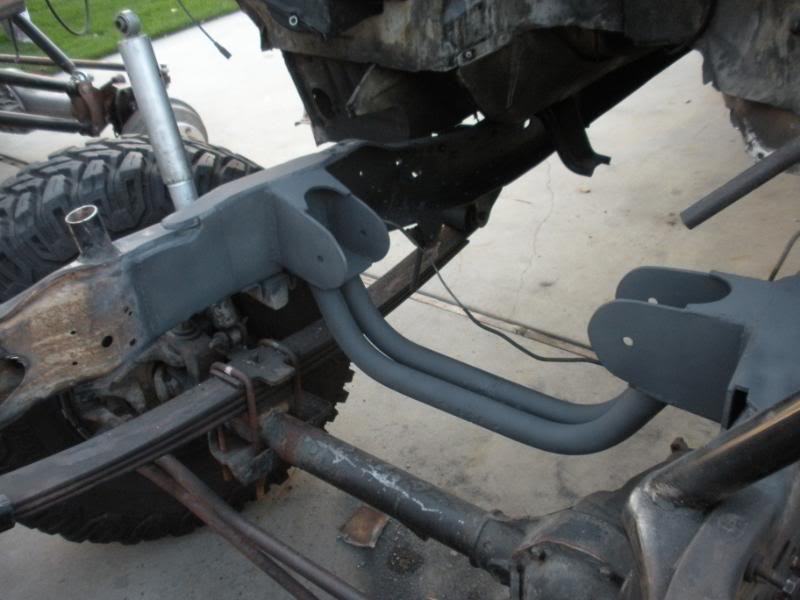

All welded up and re-plated the passenger side inner frame rail

Click the image to open in full size.

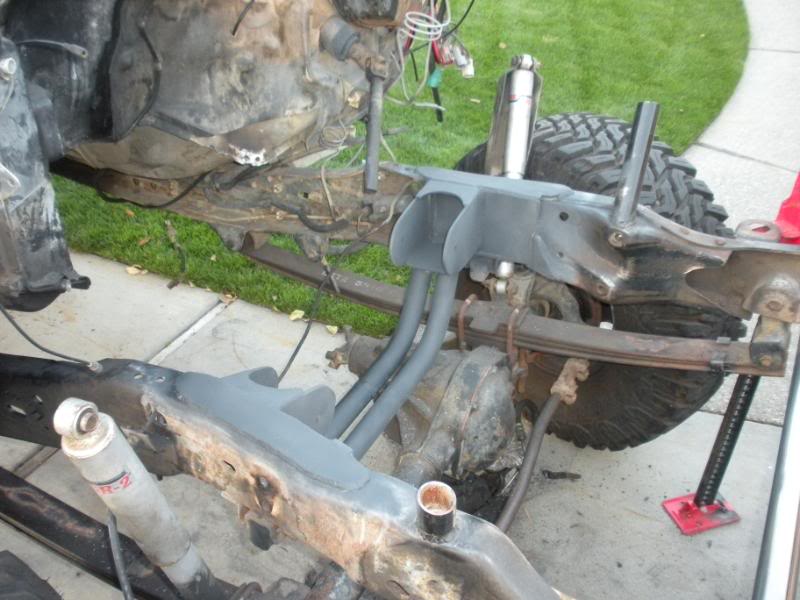

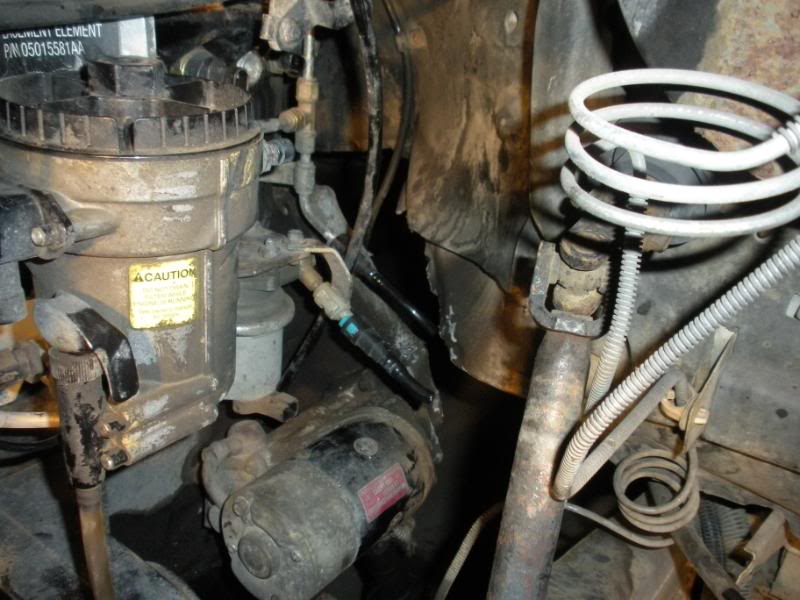

Driverside all welded up

Click the image to open in full size.

Driverside top of framerail

Click the image to open in full size.

Click the image to open in full size.
Reply With Quote
  #3
Old 11-17-2009, 12:25 AM
bajabomber87's Avatar
Diesel Enthusiast
Status: Play stupid games, win stupid prizes


View Member's Albums View Member's FaceBook Profile

Default

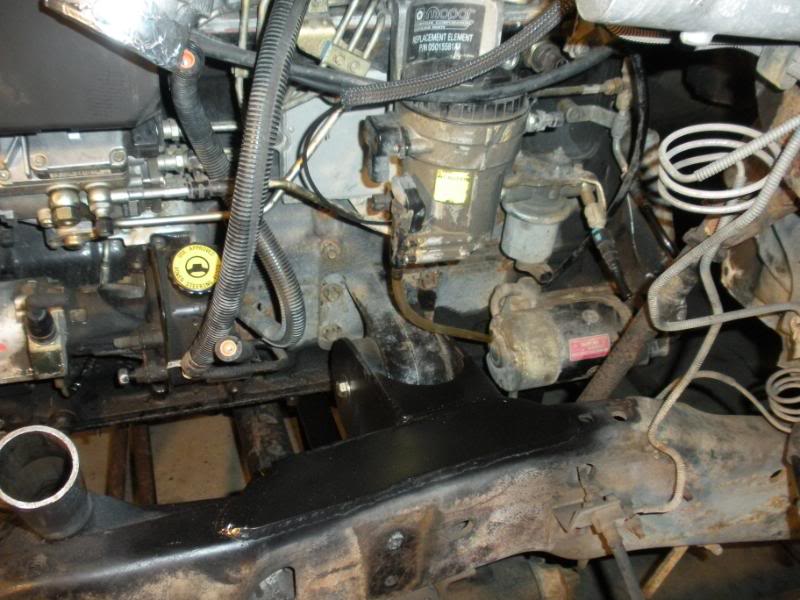

Primered shows up a little better

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

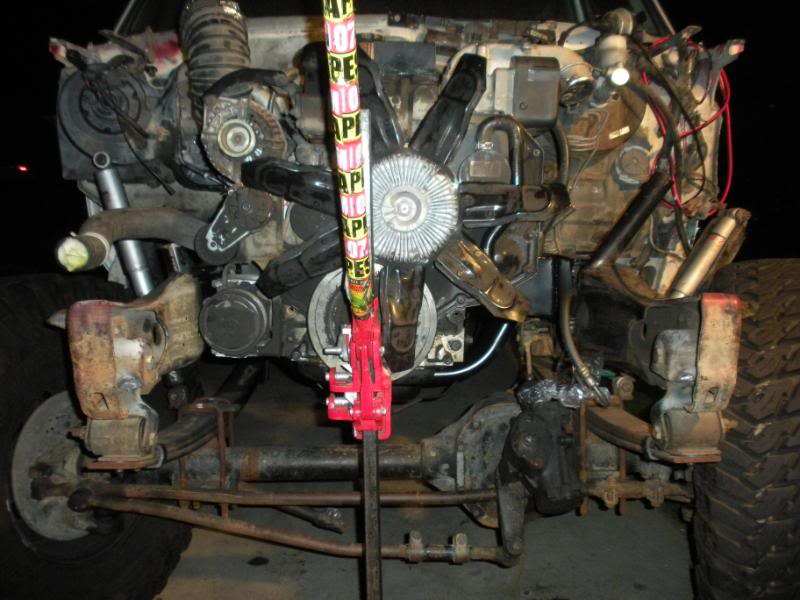

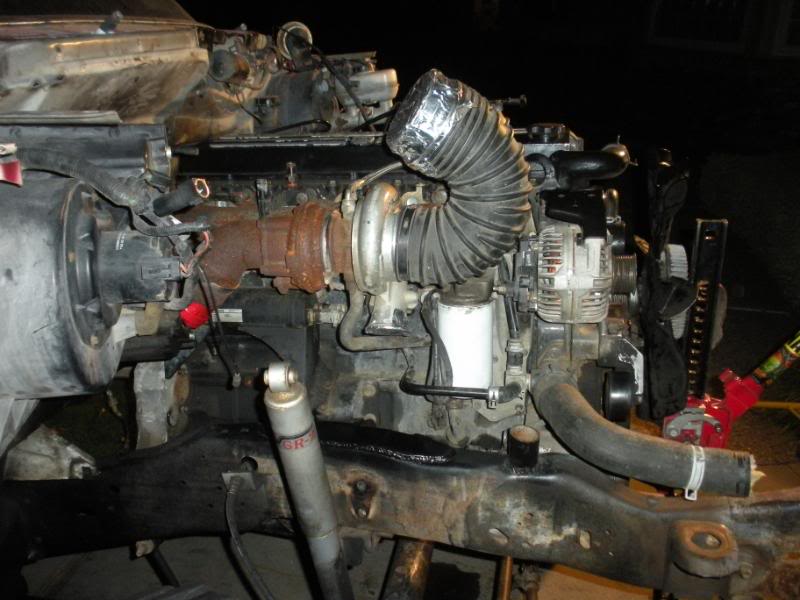

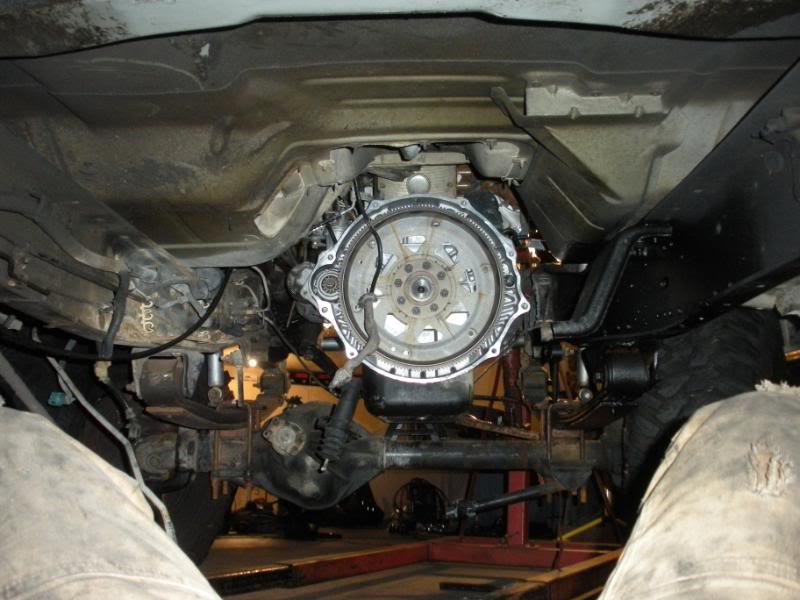

After an hour of wrestling it in by myself

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Need to tack a piece of scrap to hold the front of the engine up so I can roll the truck around.

Click the image to open in full size.

Click the image to open in full size.

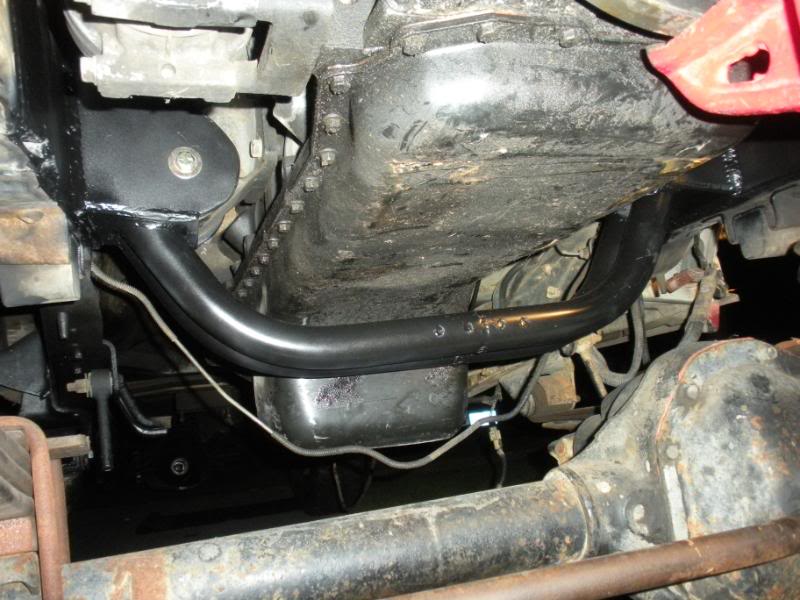

Crossmember to oil pan clearance

Click the image to open in full size.

Click the image to open in full size.
Reply With Quote
  #4
Old 11-17-2009, 12:26 AM
bajabomber87's Avatar
Diesel Enthusiast
Status: Play stupid games, win stupid prizes


View Member's Albums View Member's FaceBook Profile

Default

Sits pretty low

Click the image to open in full size.


Tomorrow I'm planning to start mounting the Dodge radiator and intercooler and adapt the front of the frame to hold it. By having the engine a few inches forward than normal, I'll have to do some trimming on the Ford core support and grill.

Or I'll just build a tube core support and make it work

Plans for the rest of the build is an NV5600, south bend con ofe clutch and flywheel, BW 13-56 t-case, FASS 95gph, 100-150hp injectors, Adrenaline w/pulse control which will save me on having a bunch of gauges, putting brand new Dodge hydraulics in for the slave, eventually putting twins in whether it be on my own or in a kit, o-ringing the head, head studs, blending the dodge gauge cluster into my Fords dash, reusing my 4'' exhaust, new white paint with pearl, new glass all around, and installing my 2nd gen Dodge seats too.


Any comments, advice, feedback is gladly WANTED/needed.

Tyler

Last edited by bajabomber87; 11-17-2009 at 12:34 AM..
