Towing and Hauling Diesel Discussions of Towing and Hauling Practices , Techniques , Tips Including Trailers , Campers , 5th Wheels , Goosenecks , Boats and More

Trailer wiring pin dilema

Thread Tools

Search this Thread

  #11
Old 07-18-2010, 08:20 AM
motorboat's Avatar
Diesel Enthusiast
Join Date: Jun 2010
Location: Lower Alabama
Posts: 119
Likes: 0
Received 10 Likes on 10 Posts
Default

redneckroper, all trailers if they are wired to industry standards, with 12 volt accessories i.e. interior lights, load lites etc. have a hot line in the trailer plug.

  #12
Old 07-18-2010, 01:13 PM
rednekroper05's Avatar
Diesel Enthusiast
Join Date: Aug 2009
Location: Big Lake/ Cameron
Posts: 488
Received 21 Likes on 18 Posts
Default

not all of them. I have a alum trailer that has interior lights and such that came from the factory with a 6 way that does not have a hot line.

Plus my experience with trailers that have a hot line is when the battery terminals corrode they have a tendency to blow fuses and burn wiring.

The only trailer we have that has a hot line is a travel trailer and that hot line is worthless

  #13
Old 07-18-2010, 02:47 PM
motorboat's Avatar
Diesel Enthusiast
Join Date: Jun 2010
Location: Lower Alabama
Posts: 119
Likes: 0
Received 10 Likes on 10 Posts
Default

Sorry to hear about your TT. I like the convienence of using the 12v with out running the genset.

I guess we will have to agree to disagree..........

  #14
Old 07-18-2010, 03:14 PM
RSWORDS's Avatar
BOMBARDIER

Join Date: Mar 2007
Location: Gloucester, VA
Posts: 11,159
Received 918 Likes on 537 Posts
Default

Originally Posted by rednekroper05
not all of them. I have a alum trailer that has interior lights and such that came from the factory with a 6 way that does not have a hot line.

Plus my experience with trailers that have a hot line is when the battery terminals corrode they have a tendency to blow fuses and burn wiring.

The only trailer we have that has a hot line is a travel trailer and that hot line is worthless
Sounds like you problem is bad wiring and improper maintenance. the 12v constant is there to keep your battery charged up to 12v in the case that the trailer breaks away from the truck. If you just use a trickle charger you run the risk of you battery not being up to par and the brakes not activating god forbid it comes loose. 99% of trailer that have electric breaks charge the battery with the 12v hot from the truck. And it IS the industry standard.

  #15
Old 07-18-2010, 03:49 PM
rednekroper05's Avatar
Diesel Enthusiast
Join Date: Aug 2009
Location: Big Lake/ Cameron
Posts: 488
Received 21 Likes on 18 Posts
Default

Like motorboat said we agree to disagree but I can tell I'm guilty of riggin a lot of stuff but don't ever say I imporperly maintain equipment unless you have facts
My trailers aint the newest or best looking trailers but when I hook a trailer to my truck it is one of the safest on the road.heck we have a 73 20' gooseneck flatbed that is in better shape than most trailer that are 30 years newer.

  #16
Old 07-18-2010, 04:20 PM
gijohn45's Avatar
Diesel Enthusiast
Join Date: Aug 2009
Location: Farmington, Utah
Posts: 143
Received 6 Likes on 6 Posts
Default

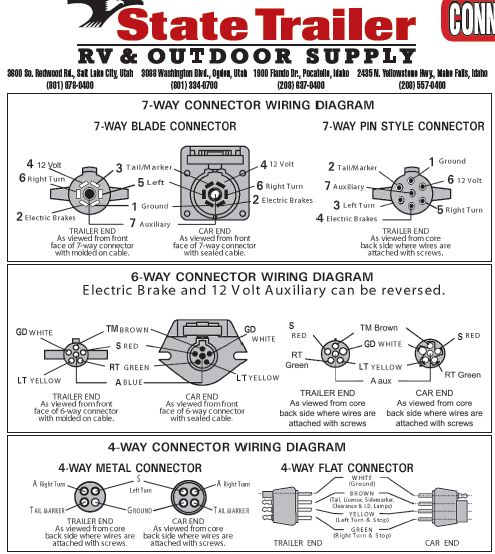

here is the wiring diagram for FYI

Attached Thumbnails Trailer wiring pin dilema-capture.jpg
  #17
Old 07-18-2010, 04:20 PM
6.0 kiddo's Avatar
Diesel Fan
Thread Starter
Join Date: Aug 2009
Location: McPherson, KS
Posts: 93
Received 6 Likes on 4 Posts
Default

Thank you guys for all the advice. It seems like the general consensus is to swap to the 7 pin instead of using an adapter. Im looking for safety first and reliability. RAwilliams i appreciate the wiring diagram! Im going to get into this next weekend hopefully and see what its going to take to get this thing set! I appreciate everyones advice! You guys are the best!

  #18
Old 07-18-2010, 08:29 PM
busta's Avatar
Diesel Bomber
Join Date: Jan 2008
Location: hampstead nc
Posts: 1,739
Received 147 Likes on 118 Posts
Default

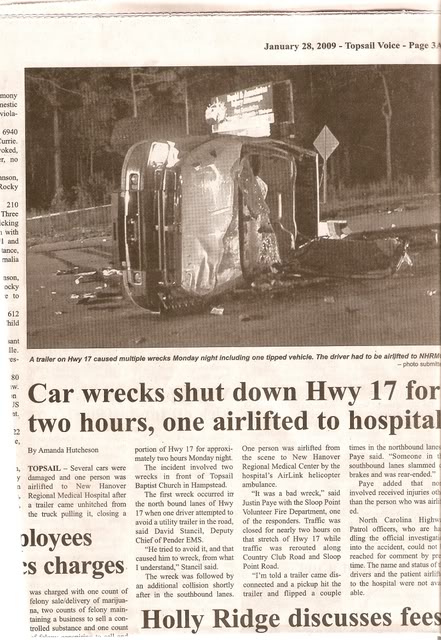

what ever you do just please make sure that trailer never comes loose when you are towing it
ya never know it could be another member of db that finds it going down the road and end up like this

Name:  scan0001.jpg
Views: 126
Size:  86.8 KB
