working on relocating my crankcase breather to its own colection canister here is what ive got so far.



I just have mine dumped behind the fuel tank... Same with the wifes excursion... But it looks good so far.



How are u filtering the air? So that u don't suck dirt back in?



I remove the factory fitting from the intake altogether, its a piece of 4" exhaust... Then turn the doghouse around to where the outlet is at the back of the motor, and run 3/4" hose from there over the brake booster to the back of the truck. The crank case always has positive pressure so there is no issue with anything sucking back in.



Ok good to know.... Saves me from buying the mini kn filter!

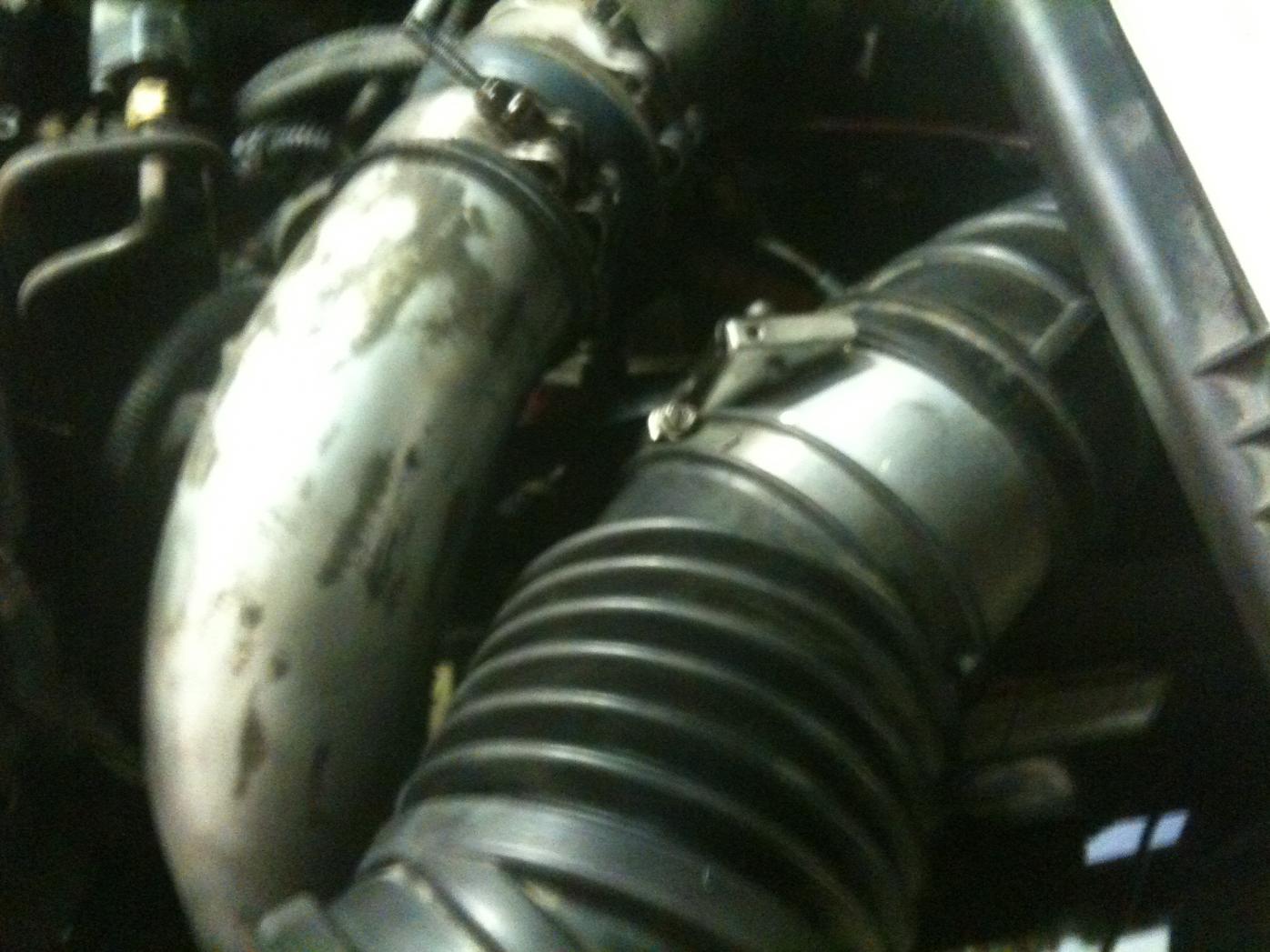

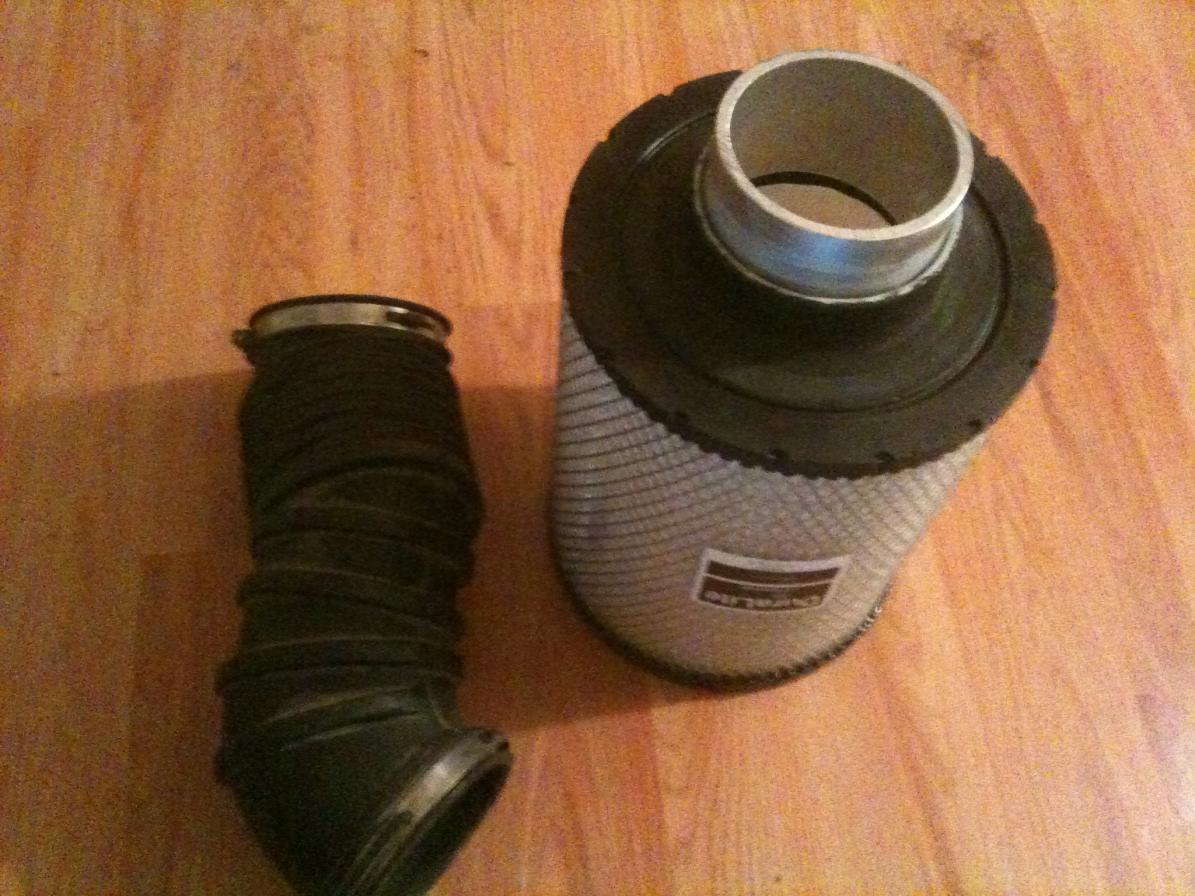

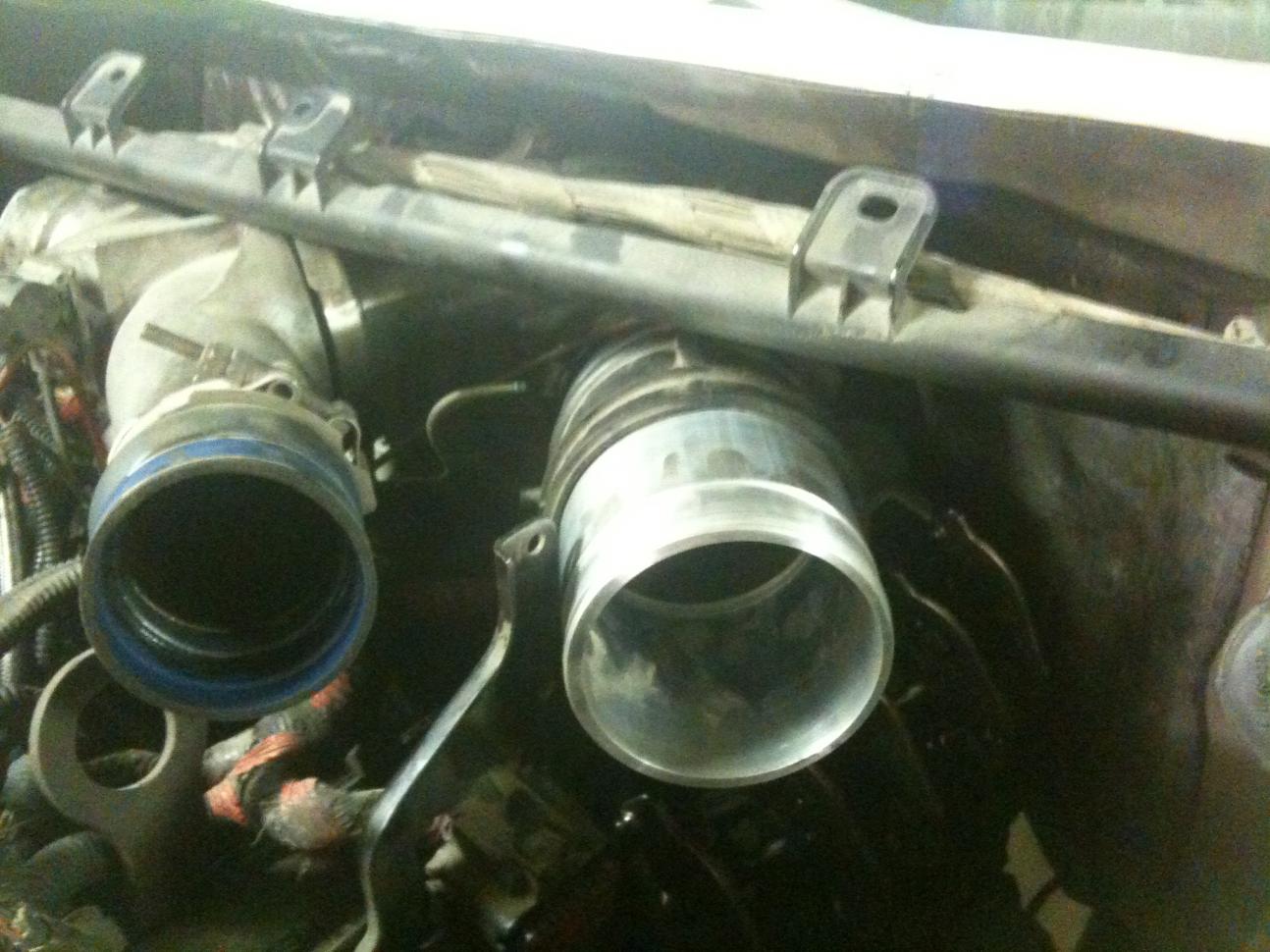

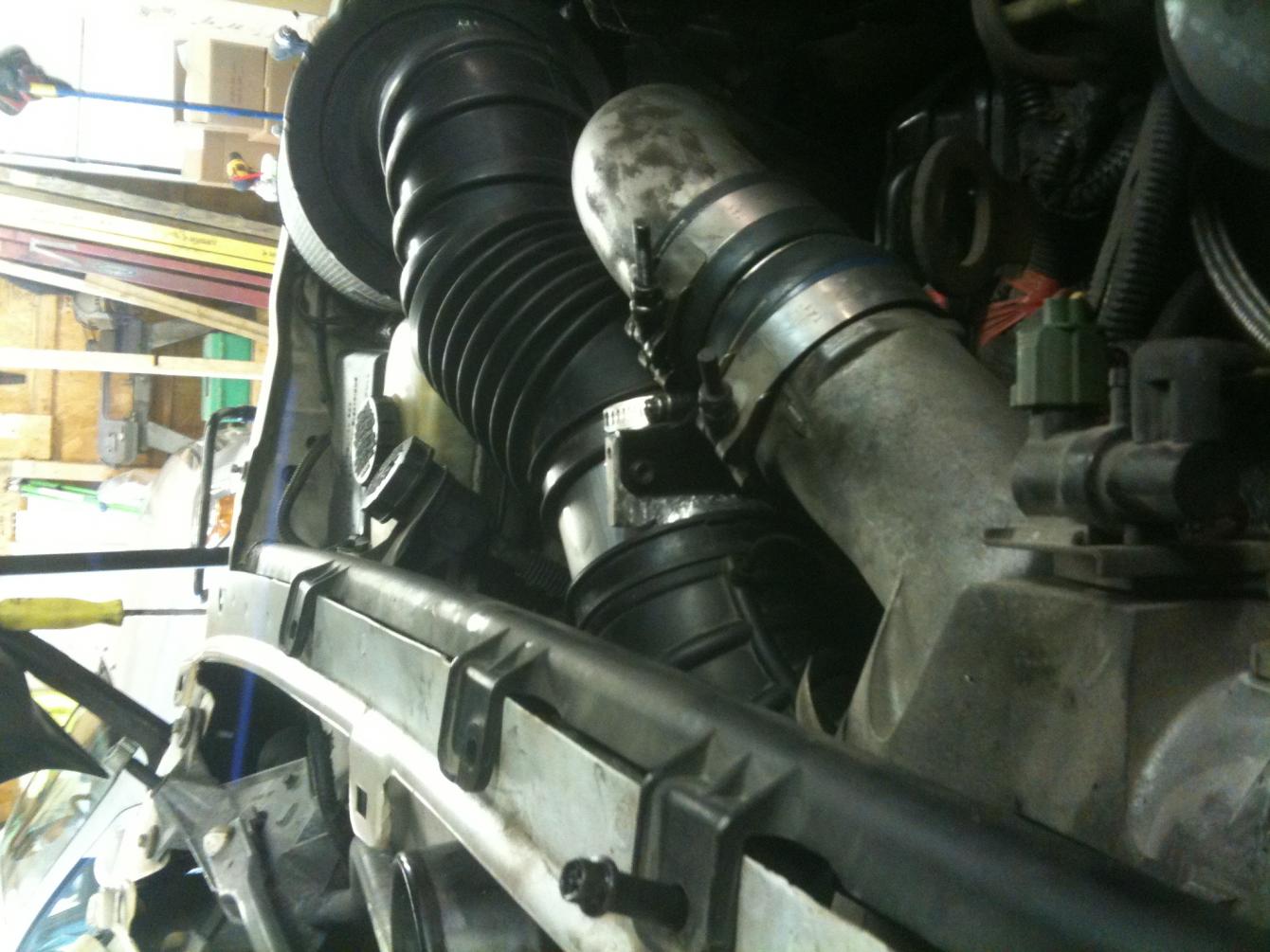

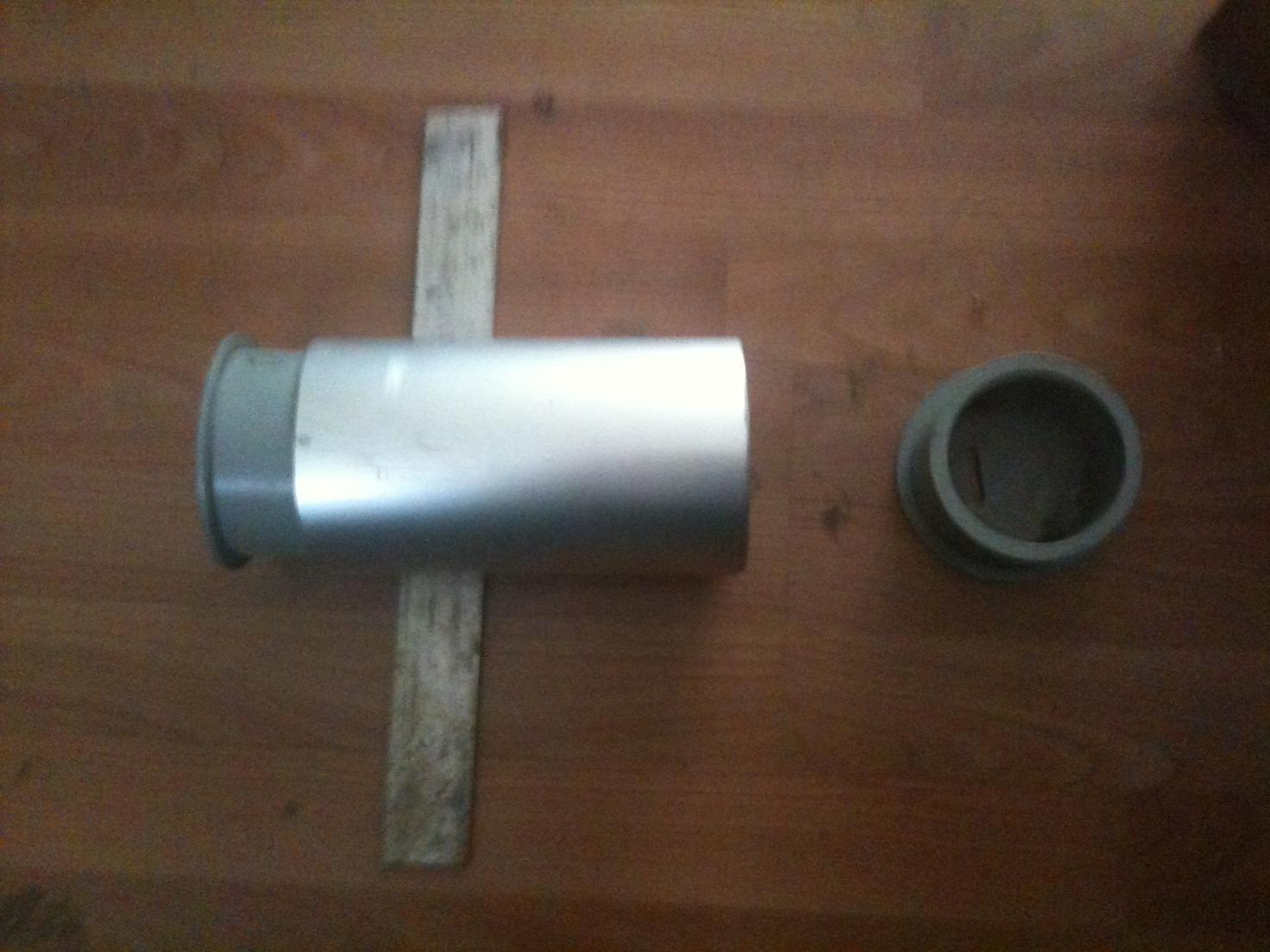

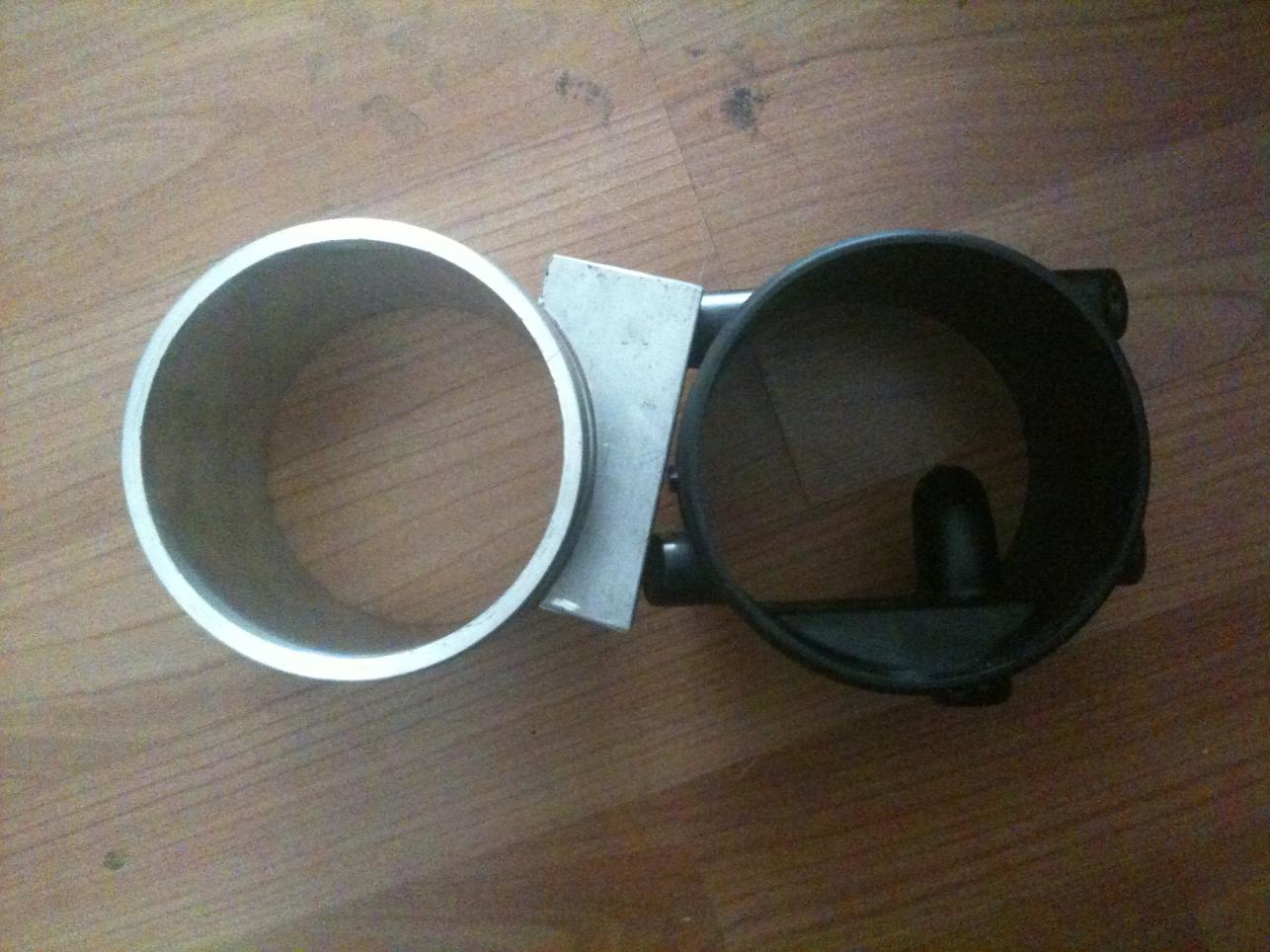

well here is my crankcase vent delet installed also my new air filter, i used a 4" 6061 for everything including the adapter for the air filter.



Looks good!
