New Guy w. Questions
#11
#12
I cant tell if it is even hooked to the wastegate from that picture... but here is a few different ways to connect it...

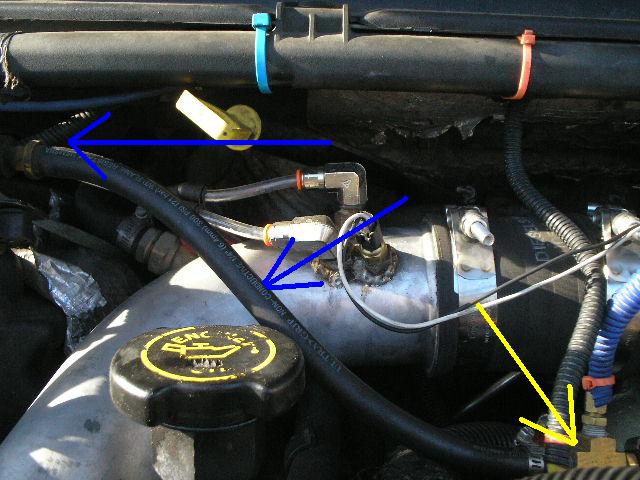

On the picture attached...Blue is the map sensor and map line, Yellow is the Brass T you can make to connect your 1/8" plastic line.
This one the teal line, this is where your factory intake air heater is, delete it and install a plug there, then hook your boost line there.
On the picture attached...Blue is the map sensor and map line, Yellow is the Brass T you can make to connect your 1/8" plastic line.
This one the teal line, this is where your factory intake air heater is, delete it and install a plug there, then hook your boost line there.
#14
#15
