Running boards
#1
#3
#6
Thanks guys.

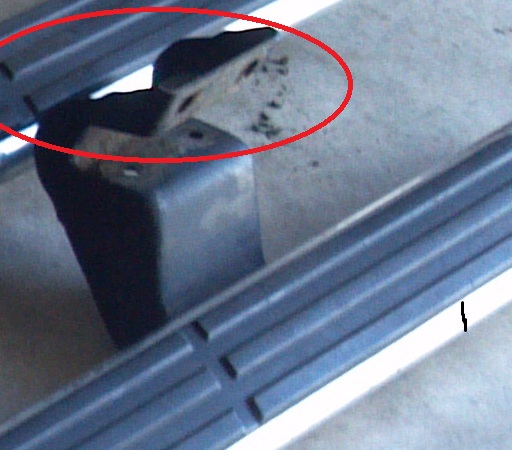

I used the original mounts and cut off the top part. See attached photo with the circle.

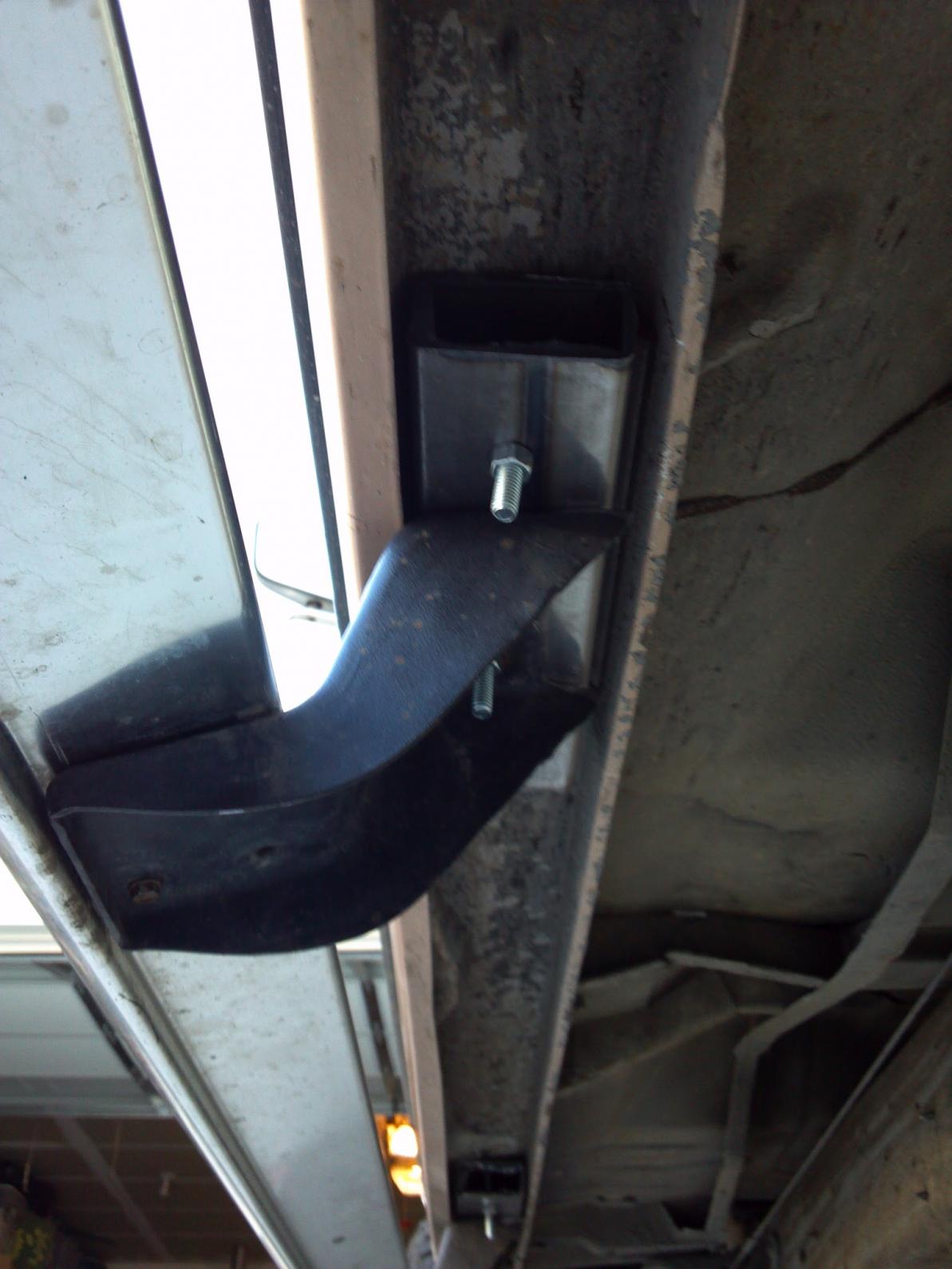

Then I bought four 1 foot sections of 2" x 3" rectangle steel to put in the channel for stiffness. I drilled 4 holes in each block and used 3" carriage bolts. I had to use a piece of 1/2" flat stock between the tube and the truck to shim it to level up the running boards. They are a little off level, but tilted right so that step in feels good. The steel tube will get coated with some herculiner to prevent rust.
There is a little flex when I step on them. I weigh 200lbs. The flex is LESS than the Carr hoop steps that were on the truck.
I used the original mounts and cut off the top part. See attached photo with the circle.
Then I bought four 1 foot sections of 2" x 3" rectangle steel to put in the channel for stiffness. I drilled 4 holes in each block and used 3" carriage bolts. I had to use a piece of 1/2" flat stock between the tube and the truck to shim it to level up the running boards. They are a little off level, but tilted right so that step in feels good. The steel tube will get coated with some herculiner to prevent rust.
There is a little flex when I step on them. I weigh 200lbs. The flex is LESS than the Carr hoop steps that were on the truck.
