Quick Question???

Thread Tools

Search this Thread

  #1
Old 09-14-2009, 07:53 PM
cumminthru's Avatar
Diesel Fan
Thread Starter
Join Date: Aug 2008
Location: Lake City PA.
Posts: 36
Likes: 0
Received 0 Likes on 0 Posts
Cool Quick Question???

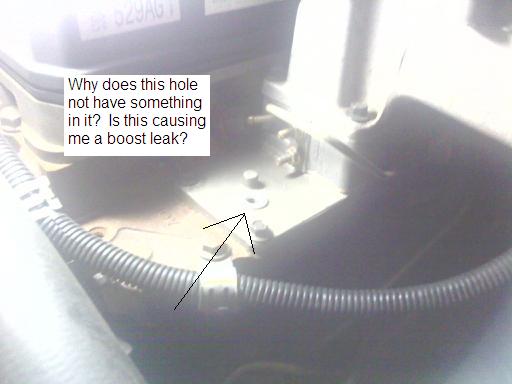

Alright I have a really crazy question...at least I think it is crazy. I am going to attach a picture of my intake horn. In the picture there is a hole that will accept a bolt but does not have one in it. The question is what exactly is this, and why is there something appearing to be an empty hole in my intake manifold. For starters I know that it is supposed to be there and without a bolt. I checked my buddies and he is in the same wonderment as myself. Please help!

Attached Thumbnails Quick Question???-intakehorn2.jpg
  #2
Old 09-15-2009, 04:36 PM
Wyatt Earp's Avatar
Diesel Bomber
Join Date: Mar 2007
Location: Nanaimo, BC Canada,
Posts: 2,015
Received 102 Likes on 98 Posts
Default

Which truck is it on? Without knowning what your boost gauge is telling you I'd say yes it is. Most likely this is where the other owner had a boost bolt installed.

  #3
Old 09-15-2009, 07:53 PM
cumminthru's Avatar
Diesel Fan
Thread Starter
Join Date: Aug 2008
Location: Lake City PA.
Posts: 36
Likes: 0
Received 0 Likes on 0 Posts
Default

It is on the 06. Does anybody know. What this hole is

  #4
Old 09-15-2009, 08:15 PM
mysterync's Avatar
Diesel Bombers Sponsor
Join Date: Mar 2007
Location: Blowing Rock,NC
Posts: 3,791
Received 367 Likes on 251 Posts
Default

That location, Now that I can see what your talking about it is used for grounding the grid heater.

  #5
Old 09-15-2009, 08:17 PM
mysterync's Avatar
Diesel Bombers Sponsor
Join Date: Mar 2007
Location: Blowing Rock,NC
Posts: 3,791
Received 367 Likes on 251 Posts
Default

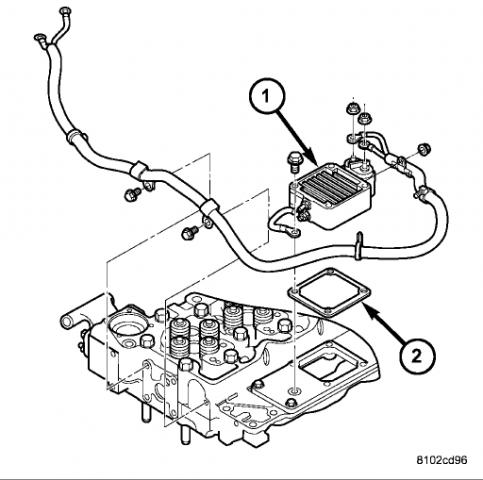

Here's a picture!

Attached Thumbnails Quick Question???-121561624.jpg
  #6
Old 09-16-2009, 08:20 PM
cumminthru's Avatar
Diesel Fan
Thread Starter
Join Date: Aug 2008
Location: Lake City PA.
Posts: 36
Likes: 0
Received 0 Likes on 0 Posts
Default

thanks, funny thing is that there is no ground bolt on either of the two trucks that I looked at. I put a allen wrench down that hole and it went in about 1/2 inch. I am plugging that hole right now.Thanks to all those who helped.

  #7
Old 09-16-2009, 08:43 PM
07redsled's Avatar
Diesel Enthusiast
Join Date: Nov 2008
Location: schnecksville pa
Posts: 465
Received 18 Likes on 17 Posts
Default

its were the apps mounts my 04 uses it for the throttle sensor / cable block its a blind hole
