Thanks to a SCREAMING deal from Kens_PS at www.kensperformancesolutions.com I got a ISSPRO 2" 5K tach for the pulling truck. His service was top notch and shipping was very quick! So hang on while I run through the install real quick and also show you how I mounted my gauges in the dash.
Here is the tach, just your run the mill 5K Tack
Seeing as how my early 1st gen does not have the factory pig tail that the later models do I also had to get a magnetic pick up that reads off magnets you put on the balancer on from the engine.
The sending unit for the pick up mounts on one of the oil pan bolts. It has a angle to it so make sure you put it on the right one.
Next clean two spots 180* apart on the balancer. Use some coarse sand paper to scuff it up some. These little magnets are gonna be spinning REAL fast! Use the two part epoxy to glue the magnets 180* apart from each other, blue side out.
Next run two wires from the sending unit into the cab to hook to the tach. Use some weather proof connectors because these will be out in the open.
After running the wires into the cab this is how they attach to the back of the tach.
The - Terminal gets one wire (does not matter which one) from the sending unit and another to a good ground
The other wire from the sending unit goes to the s Terminal
And There you go... You should have a tach! Now to mount it. Seeing as how we as 1st genners are limited on mounting locations and my A-Pillar is already taken up with gauges I decided to put the tach and my fuel pressure gauge, which is hard to see under the dash, up in the dash. The best spot I could find is the information pod in the 1st gen dash. This little pod holds the water in fuel, wait to start, ABS, and low fuel lights. Seeing as I no longer have the sender for the water in fuel, no grid heater for the wait to start, my ABS is long gone, and I have a fuel gauge I figured I wont miss these lights at all!
Here is a pic (mot my truck) the pod I'm talking about is the part on the dash that says cummins.
First pull the dash out and unscrew all the pods from the back so you have a clean dash
Here is the tach, just your run the mill 5K Tack
Seeing as how my early 1st gen does not have the factory pig tail that the later models do I also had to get a magnetic pick up that reads off magnets you put on the balancer on from the engine.
The sending unit for the pick up mounts on one of the oil pan bolts. It has a angle to it so make sure you put it on the right one.
Next clean two spots 180* apart on the balancer. Use some coarse sand paper to scuff it up some. These little magnets are gonna be spinning REAL fast! Use the two part epoxy to glue the magnets 180* apart from each other, blue side out.
Next run two wires from the sending unit into the cab to hook to the tach. Use some weather proof connectors because these will be out in the open.
After running the wires into the cab this is how they attach to the back of the tach.
The - Terminal gets one wire (does not matter which one) from the sending unit and another to a good ground
The other wire from the sending unit goes to the s Terminal
And There you go... You should have a tach! Now to mount it. Seeing as how we as 1st genners are limited on mounting locations and my A-Pillar is already taken up with gauges I decided to put the tach and my fuel pressure gauge, which is hard to see under the dash, up in the dash. The best spot I could find is the information pod in the 1st gen dash. This little pod holds the water in fuel, wait to start, ABS, and low fuel lights. Seeing as I no longer have the sender for the water in fuel, no grid heater for the wait to start, my ABS is long gone, and I have a fuel gauge I figured I wont miss these lights at all!
Here is a pic (mot my truck) the pod I'm talking about is the part on the dash that says cummins.
First pull the dash out and unscrew all the pods from the back so you have a clean dash
#2
11-25-2008, 05:35 PM

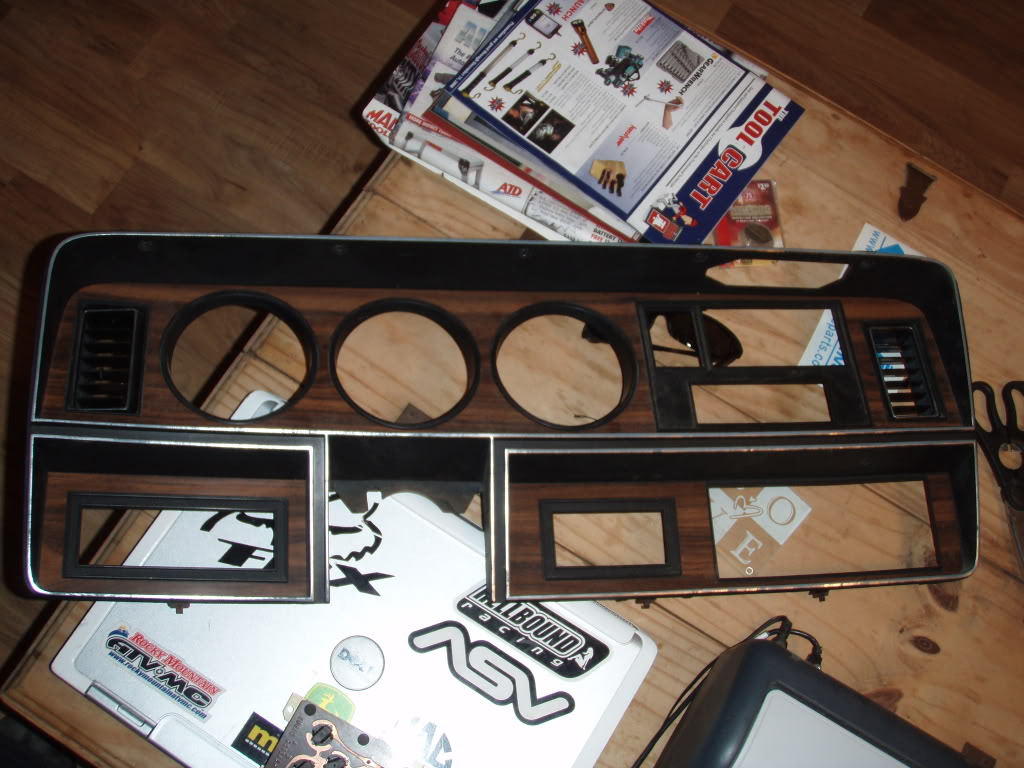

Then flip it over, make a template, and cut it out of something. I chose a marine plastic called Star-Board. This stuff is AWESOME!!! Cuts and sands like wood and NOTHING will stick to it! No glues, caulks, stains, ect. It peals right off.

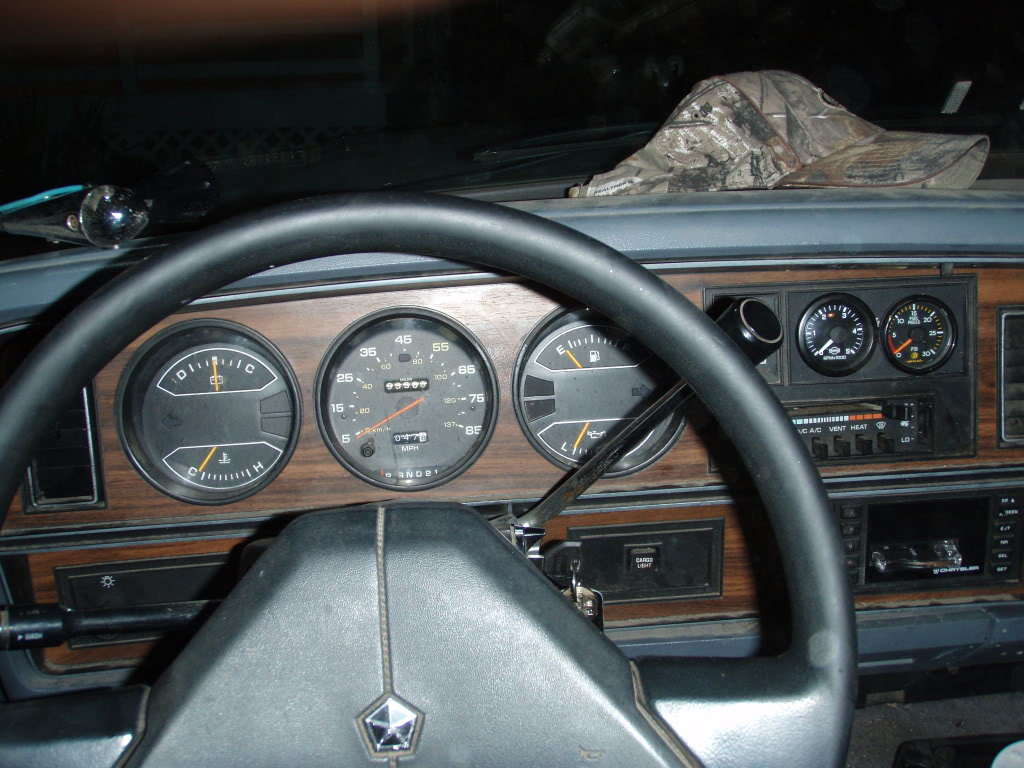

Then drill your 2" holes and drop in your gauges and put it all together! Here is the complete project
And from the drivers seat you can see them great!
Then drill your 2" holes and drop in your gauges and put it all together! Here is the complete project
And from the drivers seat you can see them great!
