OK, I've finally made enough progress and taken enough pictures to get started on my build thread.


Engines coming home. There are not one, but TWO complete 4.3L V6 Oldsmobile diesels in the back of this Jeep - note how low the rear is squatting compared to the front.


The 84 Cherokee Chief as it was the day I brought it home. Soon to be a diesel XJ!

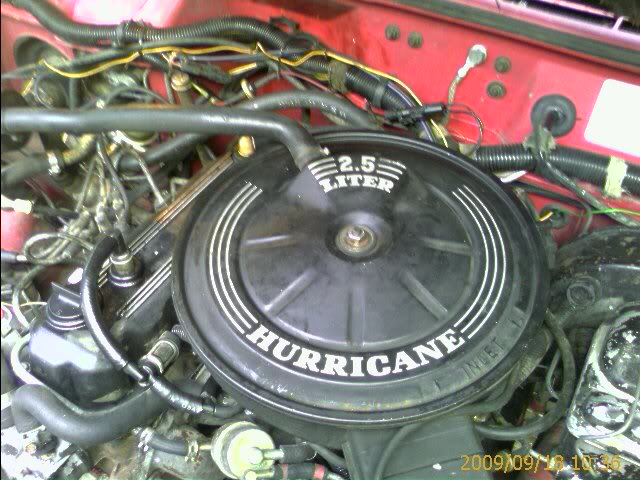

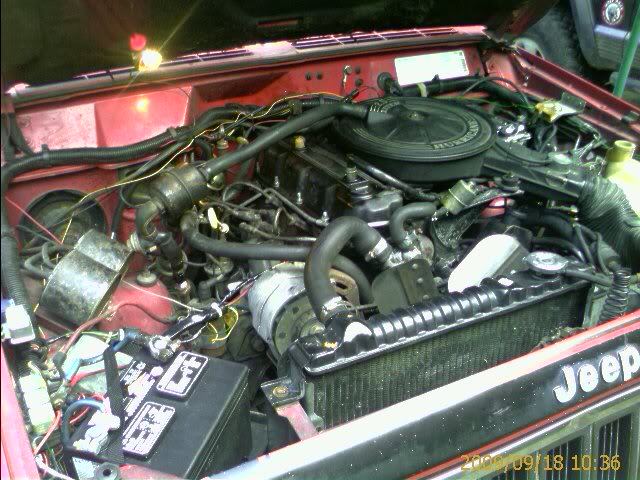

Original engine - the mighty Hurricane 2.5 liter I-4

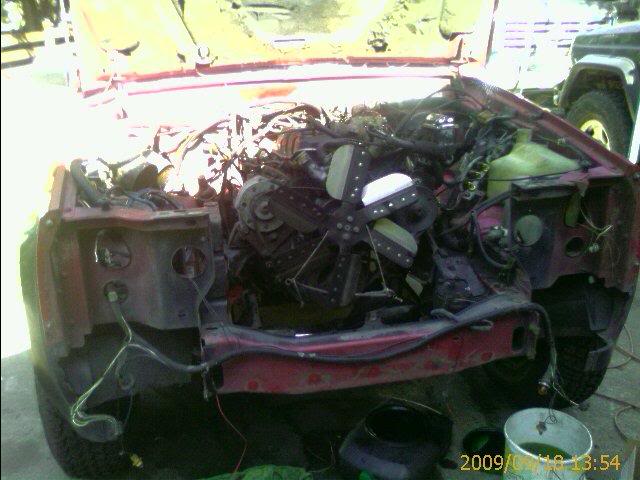

Pulled the entire front end (bumper, header panel, radiator, etc.)

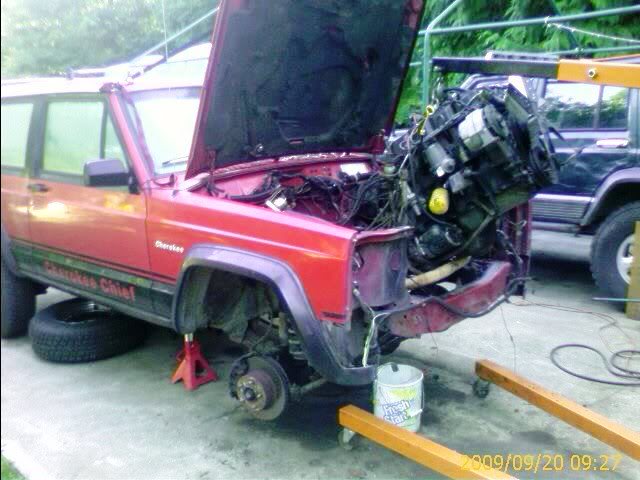

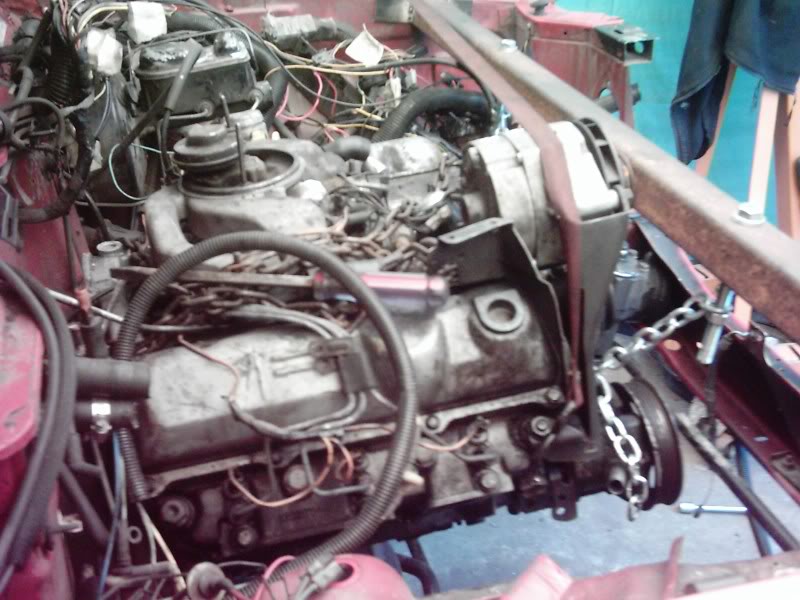

Engine, tranny, and T-case came out as one unit

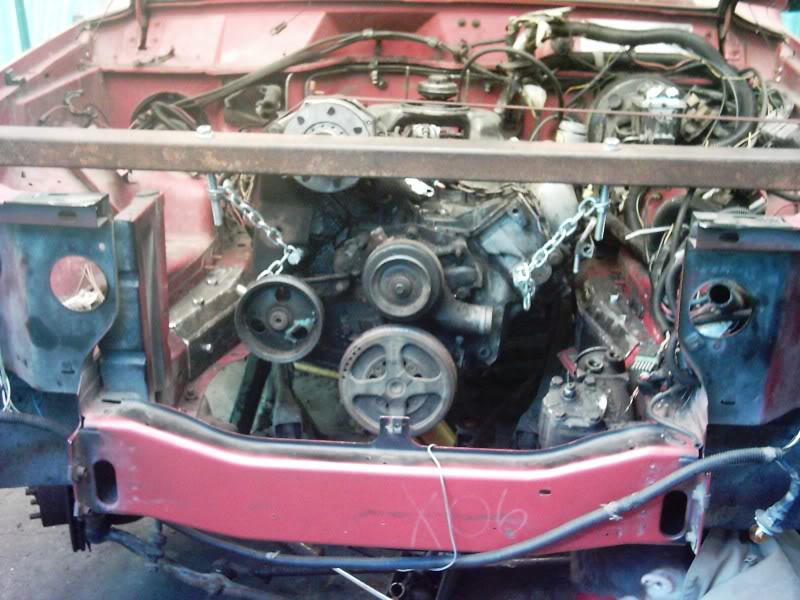

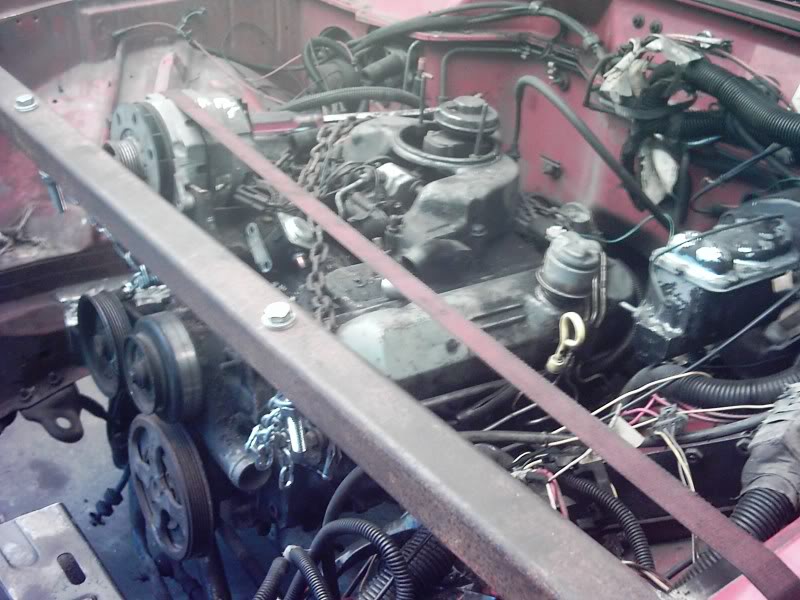

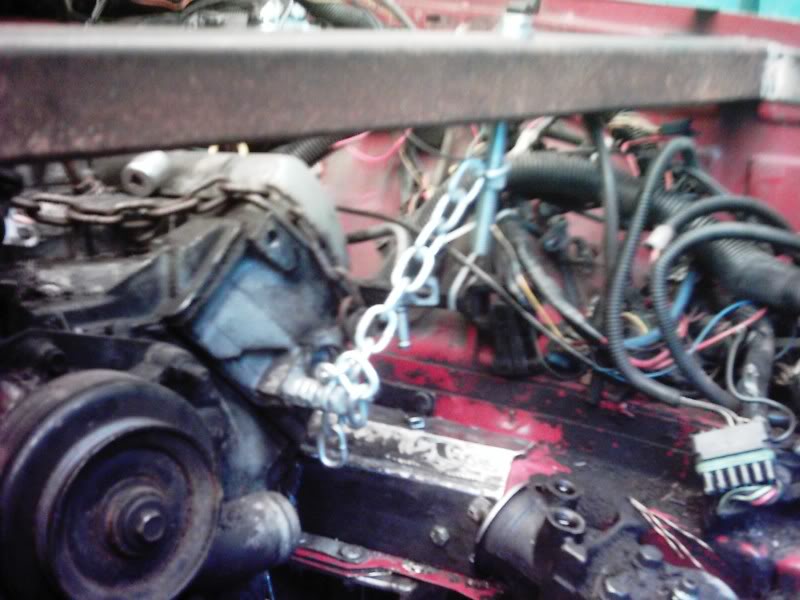

Fabbed and installed an engine support bar to suspend the engine in place with short lengths of chain. The 700R4 tranny is bolted to the engine and sitting on the stock crossmember to support the rear of the engine.

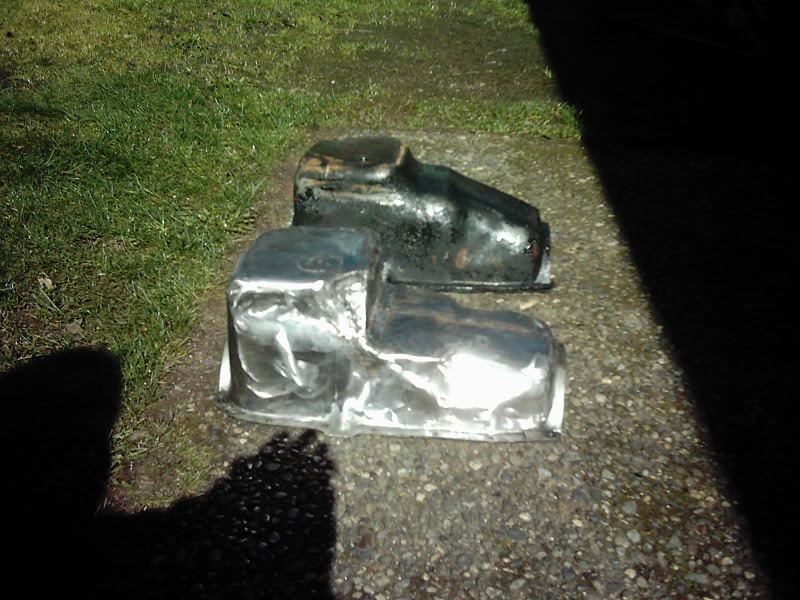

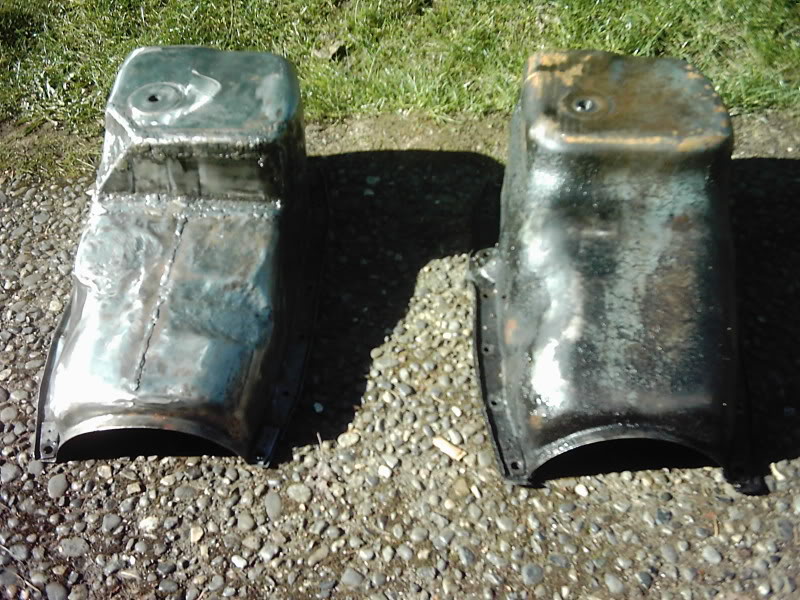

Modified the oil pan to clear the front axle and the soon to be installed crossmember. Note the notched corner of the sump to clear the front differential.

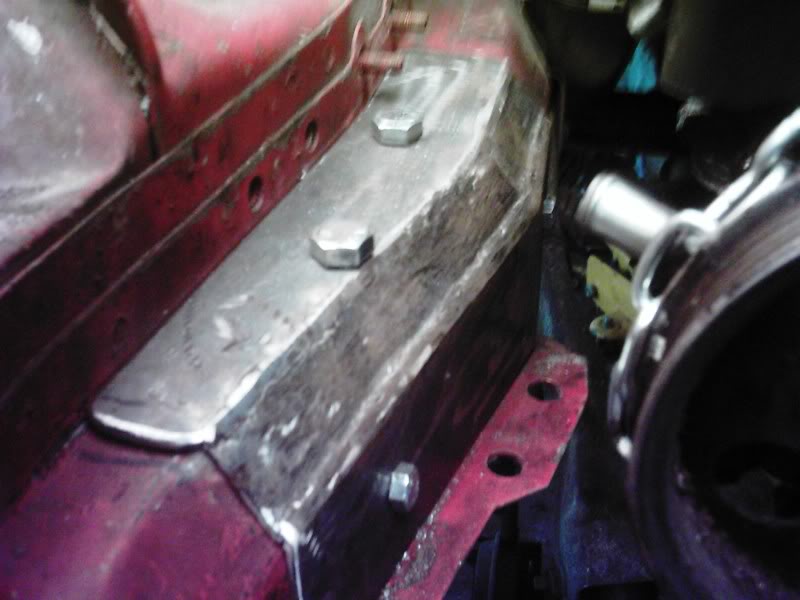

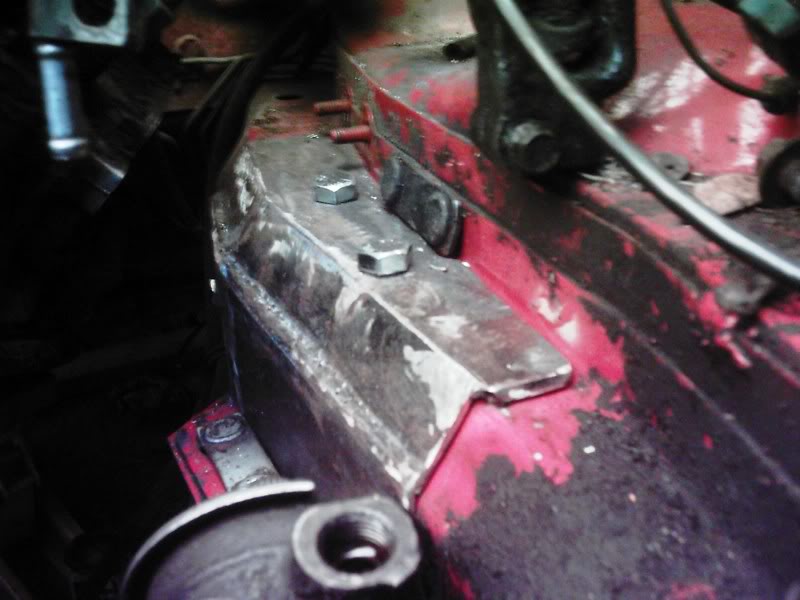

Fabricated and installed reinforcement plates for the uniframe rails. This will make them strong enough to support the engine and crossmember mounts without collapsing

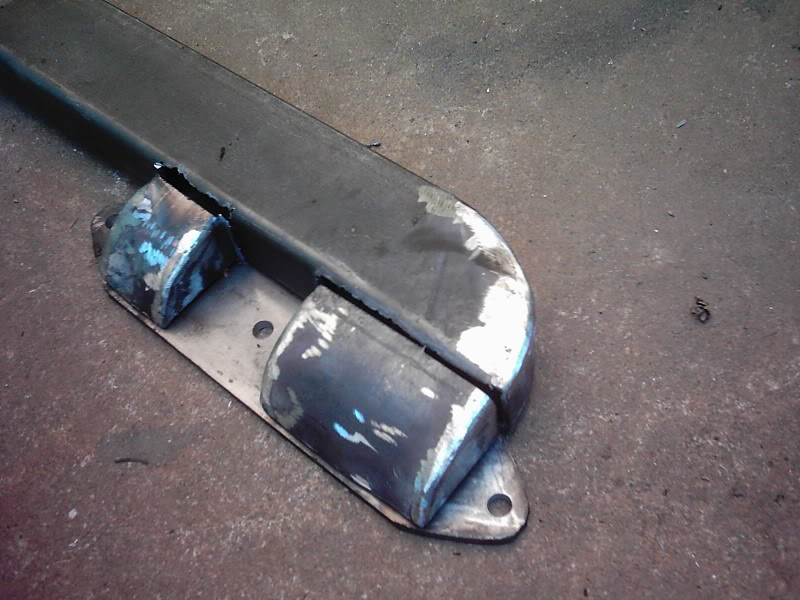

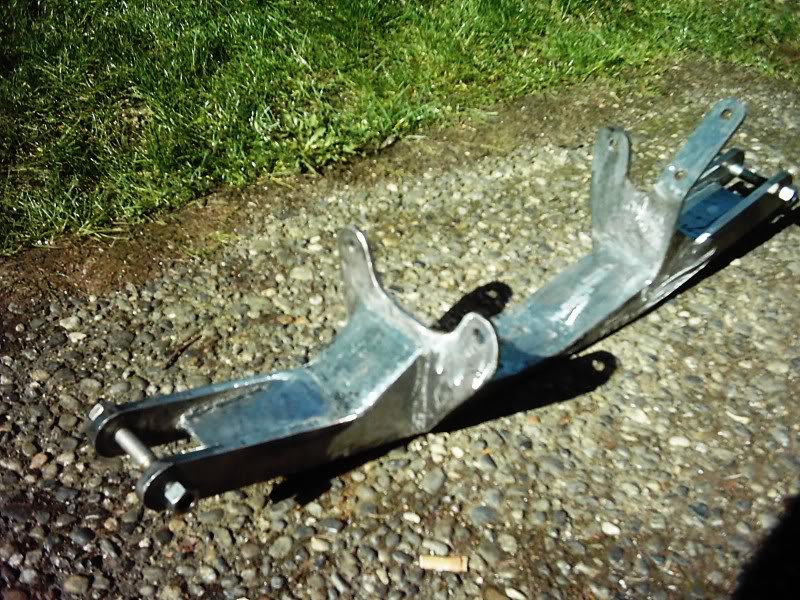

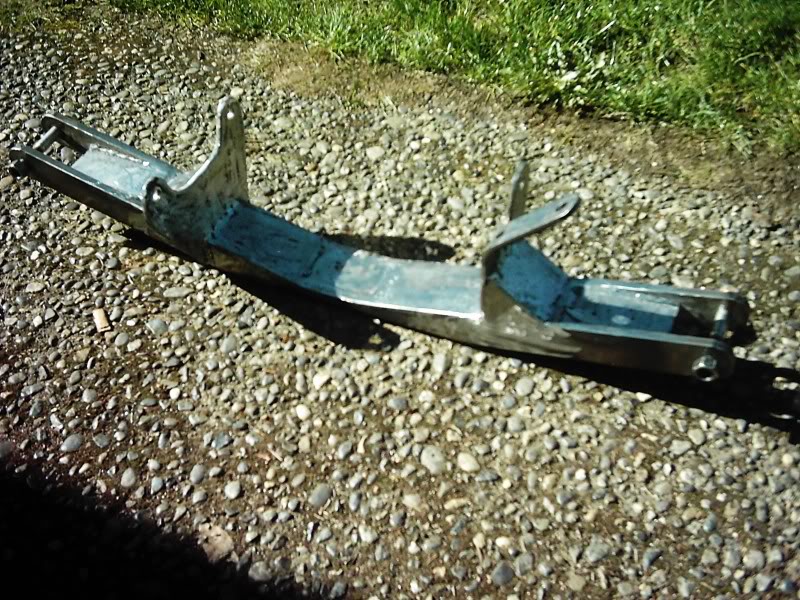

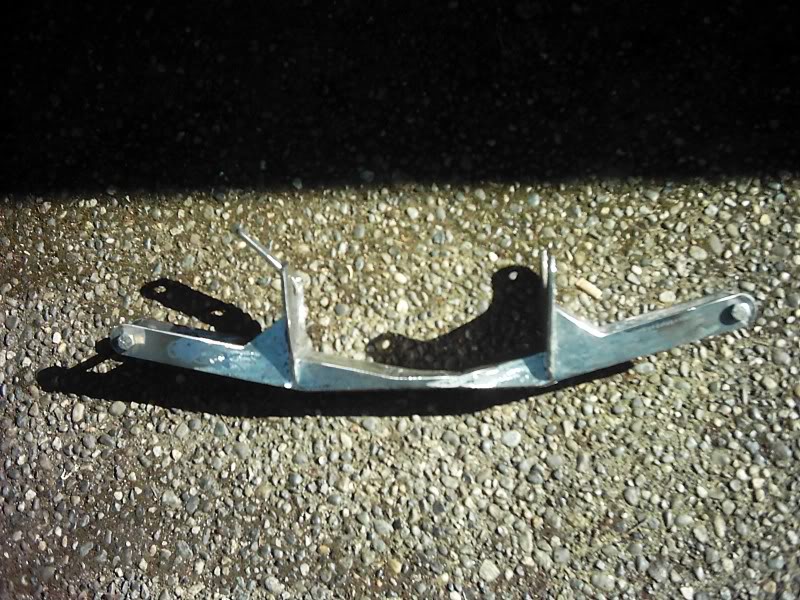

Fabricated a custom engine cradle / crossmember

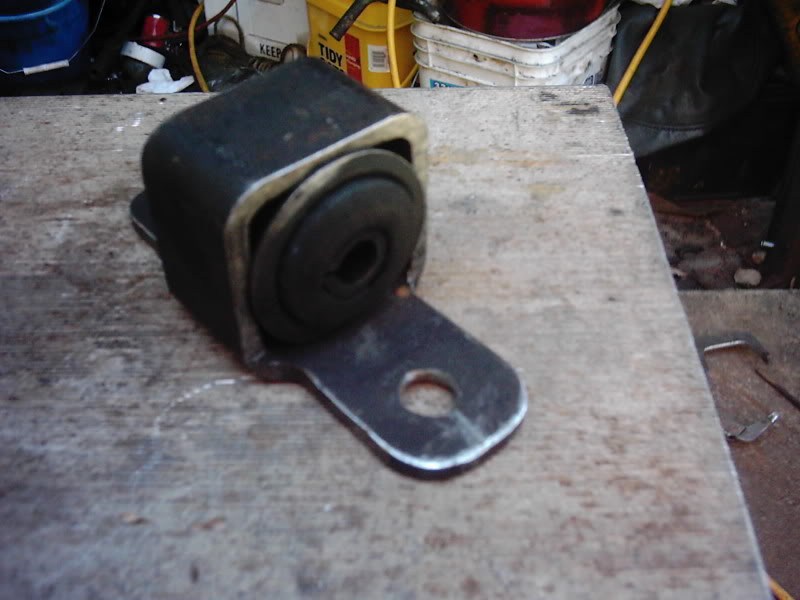

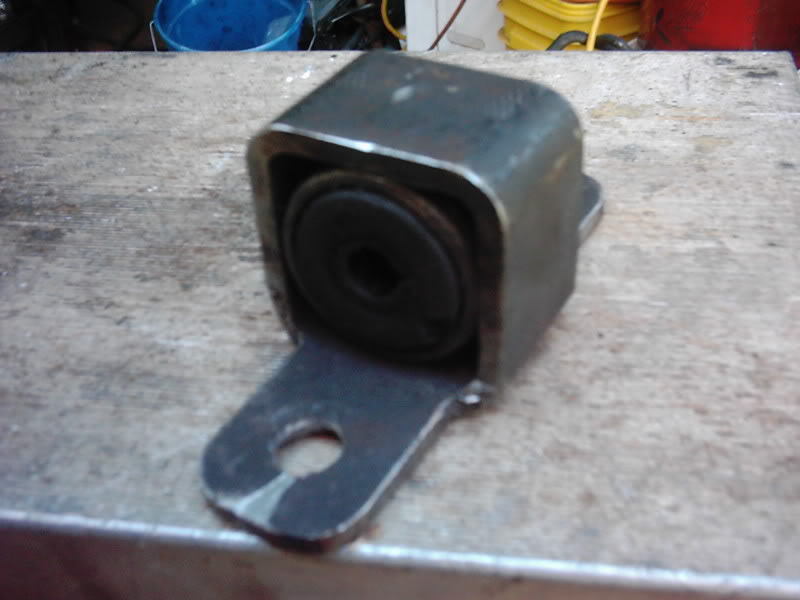

Fabricated a couple of crossmember mounts using UCA bushings

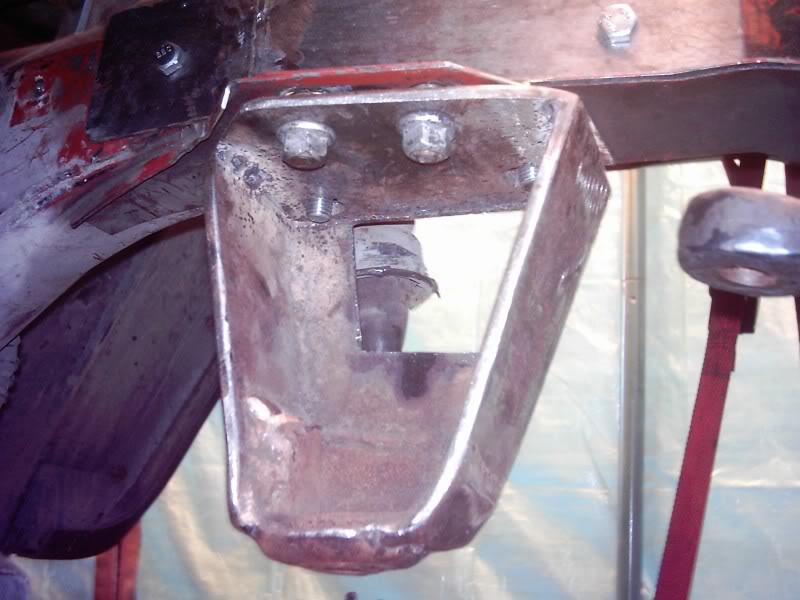

Fabricated a replacement trackbar bracket to incorporate a crossmember mount

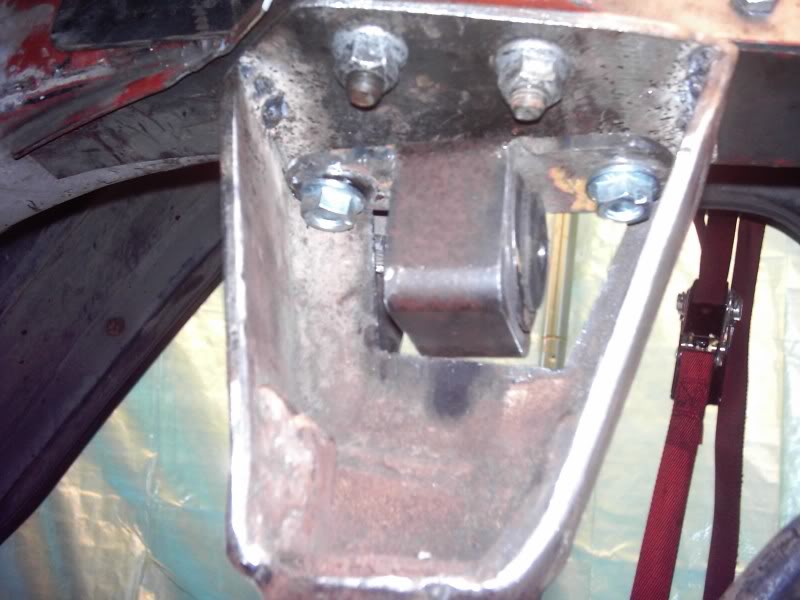

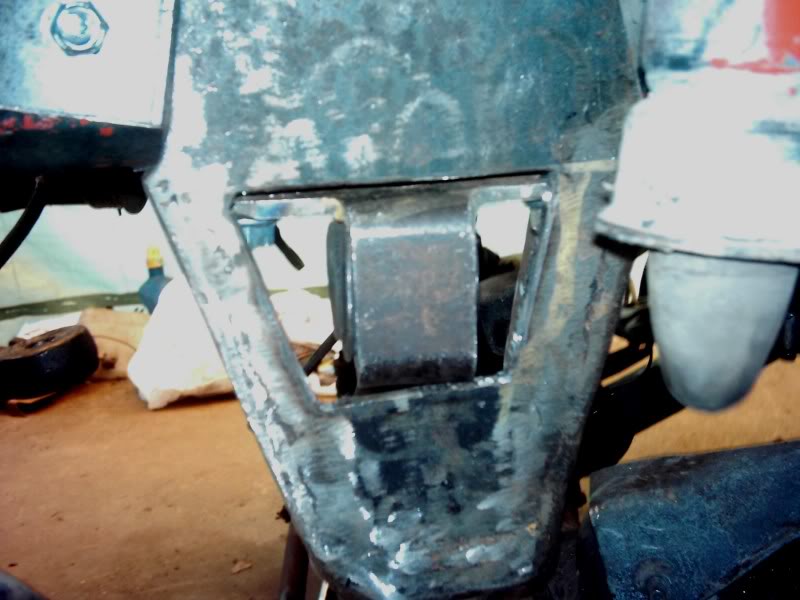

Crossmember mount inside trackbar bracket

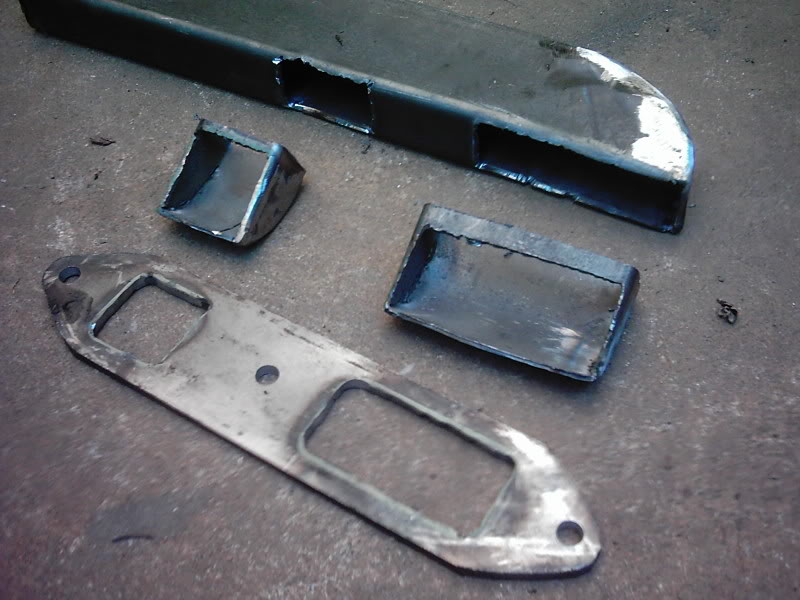

Fabricated the pieces to make a set of block-hugger exhaust manifolds...

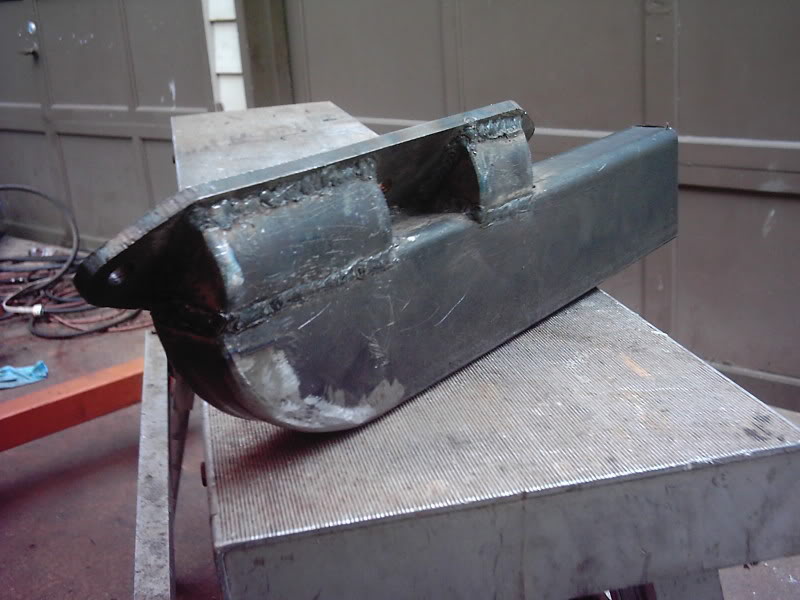

...and welded them together to make a (mostly) finished manifold.

That's where its at as of this afternoon. More to come...
