Om617 96 Jeep Cherokee build thread - Diesel Bombers



Diesel Engine Conversions Diesel Engine Swaps , 4bt Diesel and All Diesel Engine Conversion Related Discussions
Sponsored by:
Sponsored by:

Reply



LinkBack Thread Tools Search this Thread
  #1
Old 01-28-2014, 10:23 PM
Diesel Enthusiast
Thread Starter

Join Date: Nov 2012
Posts: 249
Default Om617 96 Jeep Cherokee build thread

1984 om617 in 1996 jeep Cherokee. 4.5" BDS long arm lift, Ford 8.8 LSD disc rear, NP231

New here, here's my build. Questions welcome.

---AutoMerged DoublePost---

Ok, pictures didn't post?

Last edited by Evenglass; 01-28-2014 at 10:23 PM. Reason: Automerged Doublepost
Reply With Quote
  #2
Old 02-02-2014, 10:19 AM
Diesel Enthusiast
Thread Starter

Join Date: Nov 2012
Posts: 249
Default Here they both are

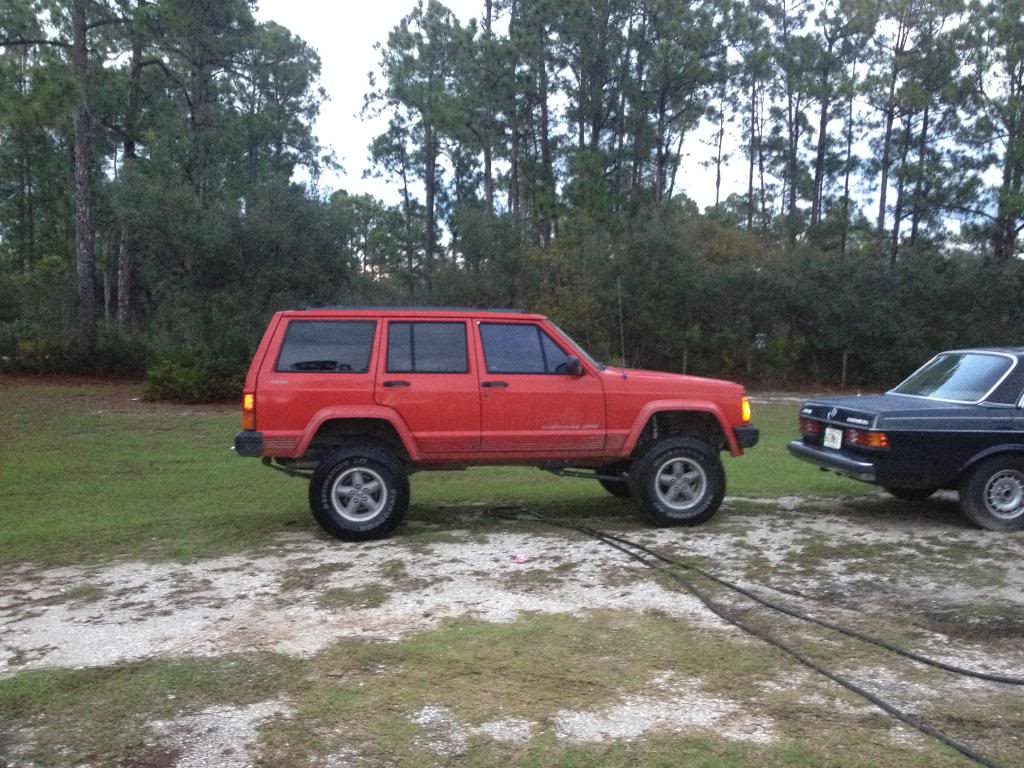

Name:  IMG_0060_zps2eeb13d8.jpg
Views: 799
Size:  178.2 KB

---AutoMerged DoublePost---

Name:  IMG_0777_zpsfe56ed41.jpg
Views: 775
Size:  153.0 KB

---AutoMerged DoublePost---

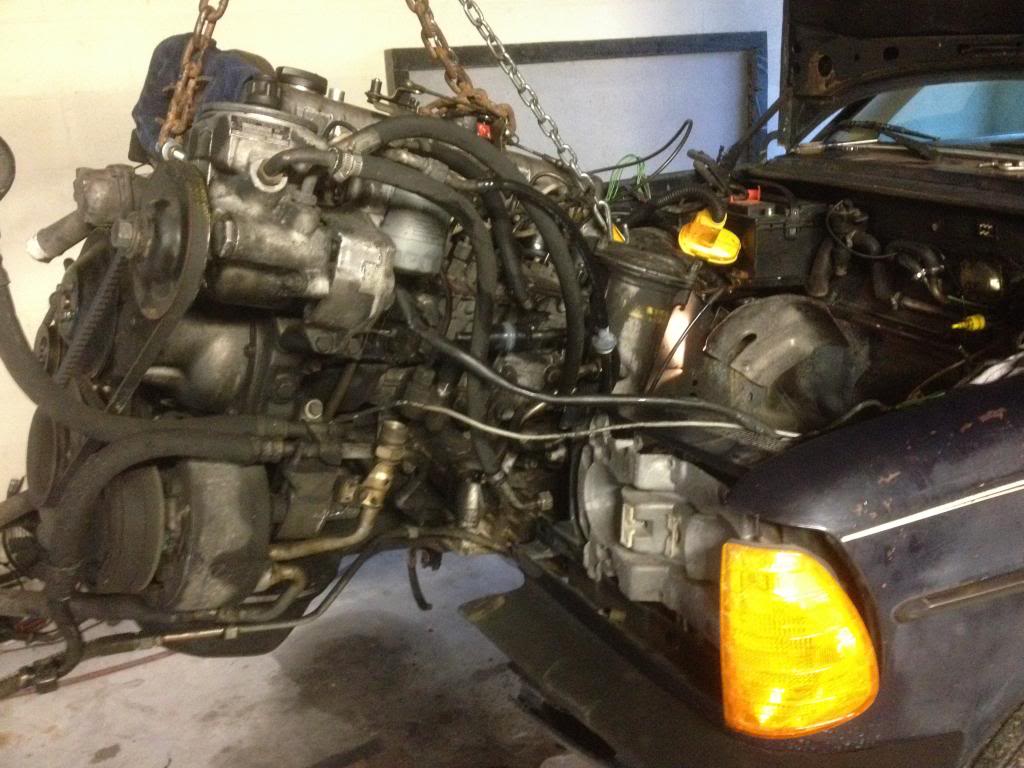

Motor pulled

Name:  IMG_2316_zpsec3d4b2d.jpg
Views: 683
Size:  103.3 KB

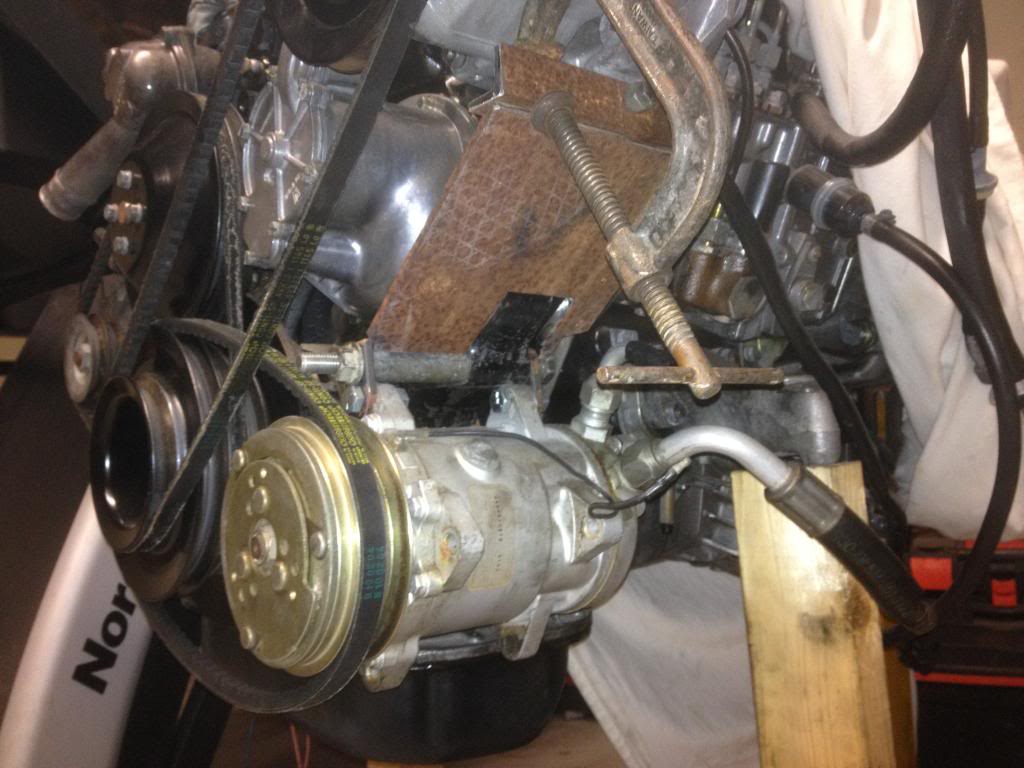

Sanden 510 bracket in progress

Name:  IMG_2937_zps12c52e61.jpg
Views: 693
Size:  100.5 KB

---AutoMerged DoublePost---

Name:  IMG_2934_zps4b251f69.jpg
Views: 684
Size:  92.3 KB

Last edited by Evenglass; 02-02-2014 at 10:19 AM. Reason: Automerged Doublepost
Reply With Quote
  #3
Old 02-02-2014, 10:55 AM
geddy's uncle's Avatar
Diesel Enthusiast

Join Date: Sep 2010
Location: Keller, TX
Posts: 415
Default

Looking like a tasty project. I like the "square-o-kee"
Reply With Quote
  #4
Old 02-03-2014, 04:42 PM
Newbie

Join Date: Sep 2013
Location: Richardson, TX
Posts: 7
Default

keep it coming!
Reply With Quote
  #5
Old 02-03-2014, 08:26 PM
Diesel Enthusiast
Thread Starter

Join Date: Nov 2012
Posts: 249
Default

I've got so many pictures, is there anything people might want to see specifically?

---AutoMerged DoublePost---

I don't have the fastest connection and it takes a long time to load the pics to photo bucket.

Last edited by Evenglass; 02-03-2014 at 08:26 PM. Reason: Automerged Doublepost
Reply With Quote
  #6
Old 02-03-2014, 09:50 PM
Diesel Enthusiast

Join Date: Dec 2010
Location: south Texas
Posts: 443
Default

have you got some pics of the engine/motor mounts? What Rubber mounts did you use?
Also what about your track bar and steering? and steering stabilizer? What adapter did you use? what transmission are you running. Pics are always good
Reply With Quote
  #7
Old 02-03-2014, 10:04 PM
Diesel Enthusiast
Thread Starter

Join Date: Nov 2012
Posts: 249
Default

Might be a good idea to post what I've done to the Jeep this far.

Body:
1996 Jeep Cherokee Classic. 97+ side mirrors. Hide-A-Hitch. Homemade sound deadening undercoating.

Interior:
New Carpet. Custom leather back seats made from WJ seats. Boost and EGT gauges. Digital volt meter in dash. Pioneer AVH4300 7" screen DVD, navigation blah blah touch screen, 8" bass tube. Auto dimming ZJ rear-view mirror. Some switches.

Suspension:
BDS 4.5" long arm lift. Front end HP Dana 30 with 4.56 gears. Rear end Ford 8.8 limited slip disc brake with 4.56 gears. Tires are 31" Firststone AT.

Drive train:
1993 Chevy 700R4 out of an Astrovan rebuilt by Kevin's Performance Transmission in Orlando, 1800rpm stall torque converter. Jeep NP231 transfer case with Advanced Adapters SYE.


Engine and accessories:
Engine: 1984 Mercedes OM617.95 with KKK turbo and MW injection pump. Bosch 115AMP alternator. Diehard 880CCA AGM battery and upgraded cables. 9 blade cooling fan with matching clutch. 3 row all aluminum radiator with aux electric fan.

I couldn't have done most of this without forums like this one, so now I feel like its time to give back some. Feel free to ask questions regarding any of the above mods.
Reply With Quote
  #8
Old 02-03-2014, 10:29 PM
Diesel Enthusiast

Join Date: Dec 2010
Location: south Texas
Posts: 443
Default

what engine to trans adapter? And what are you doing with the flex plate/converter, and mb flywheel?
Reply With Quote
  #9
Old 02-03-2014, 10:34 PM
Diesel Enthusiast
Thread Starter

Join Date: Nov 2012
Posts: 249
Default

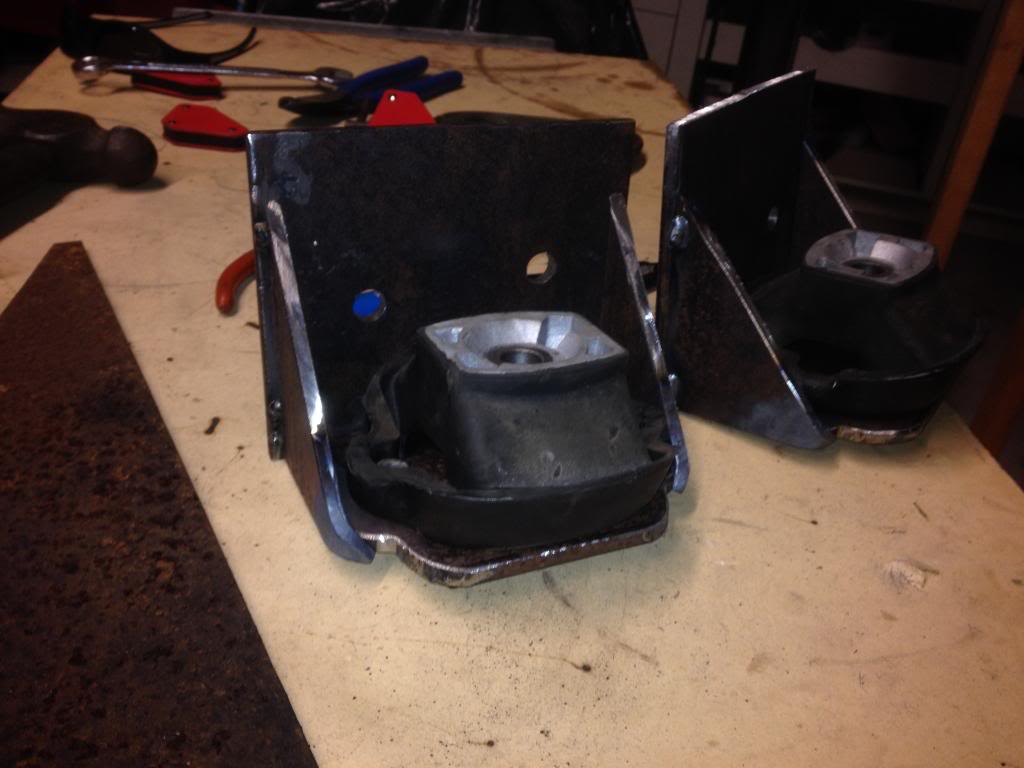

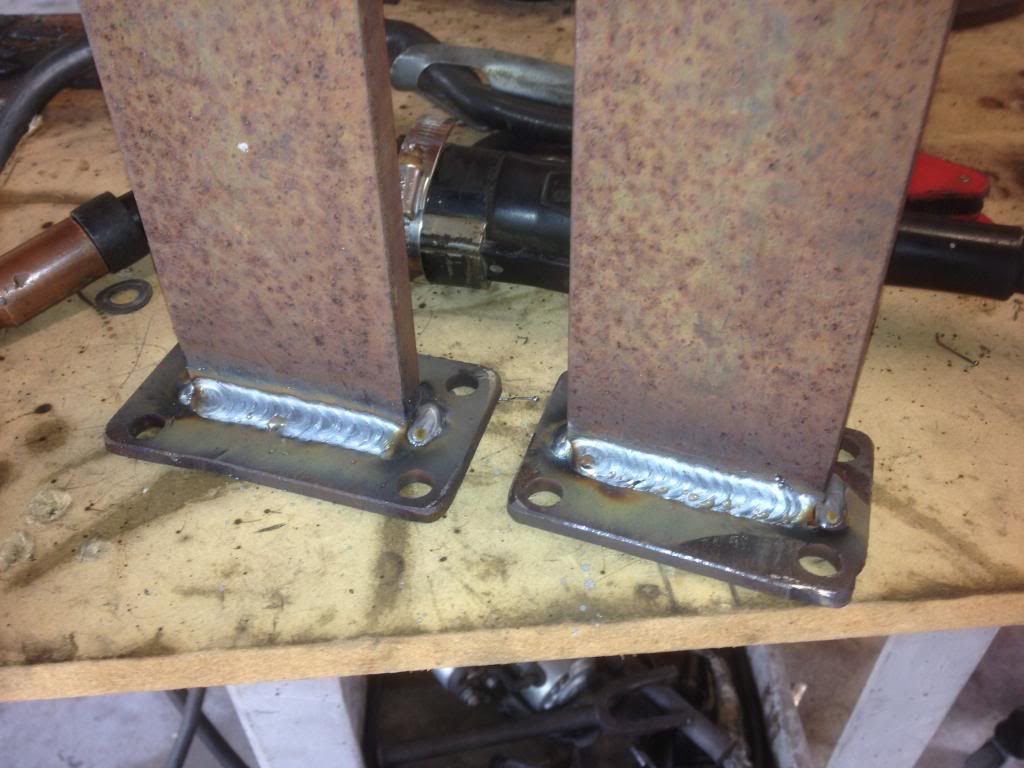

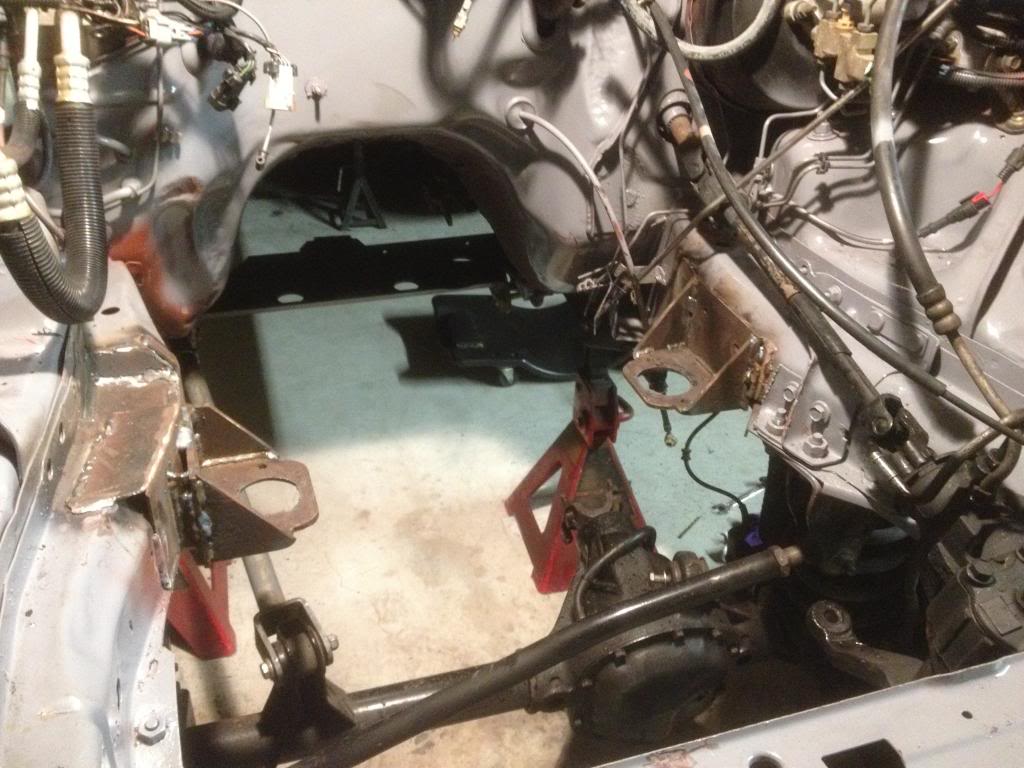

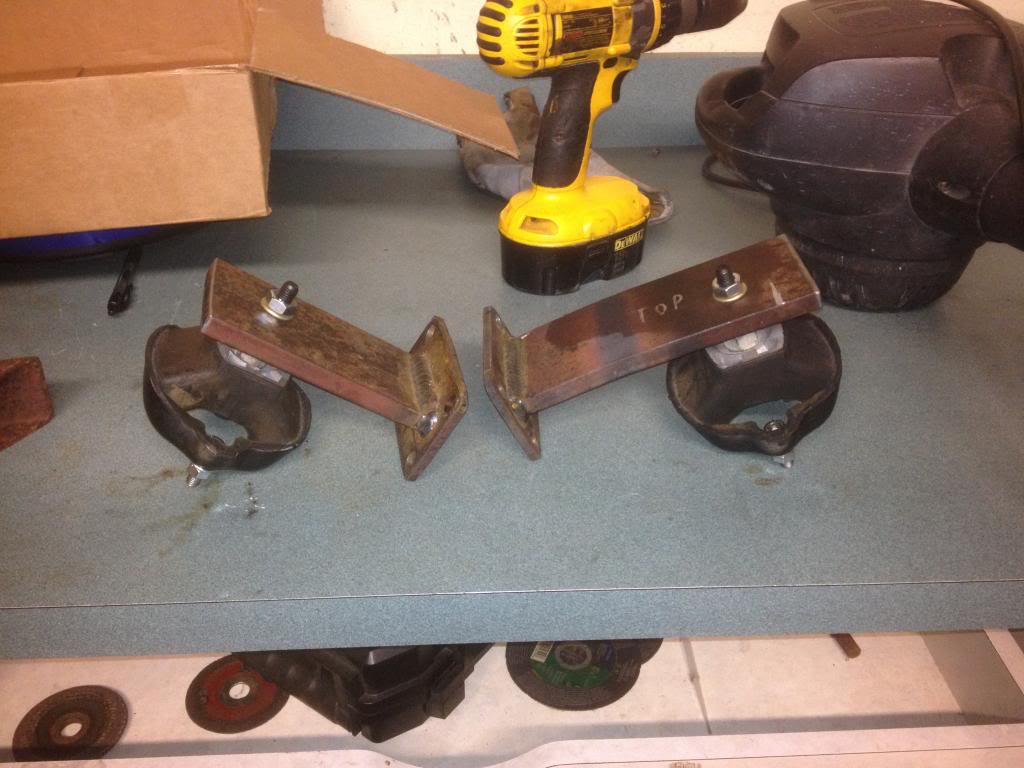

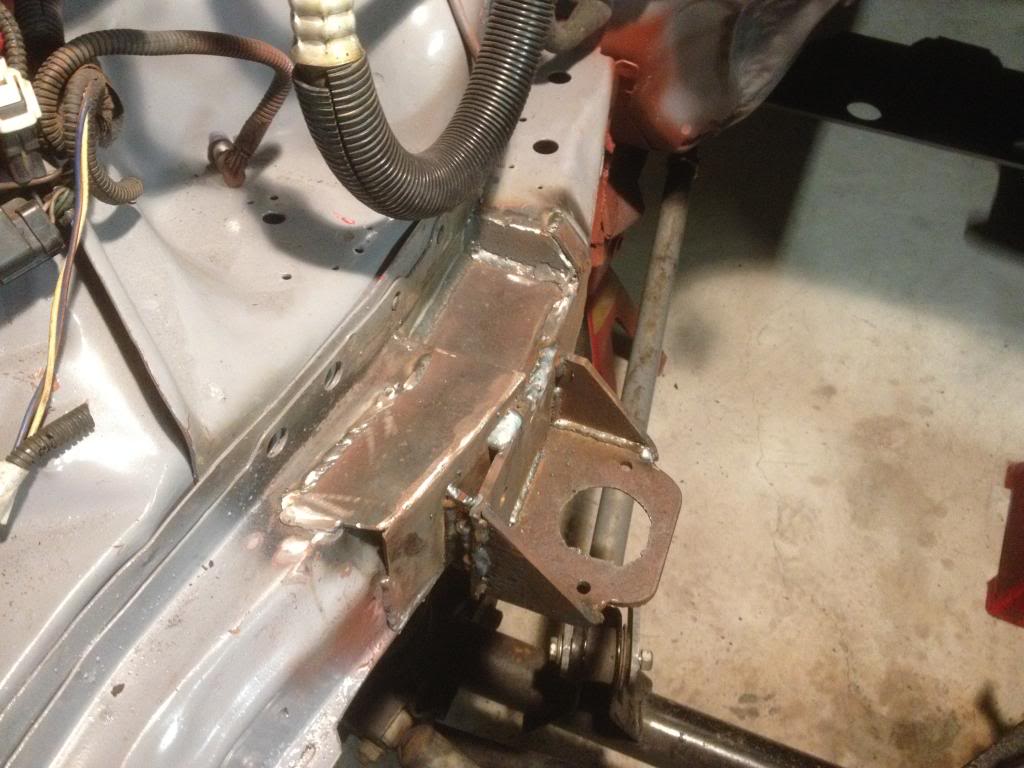

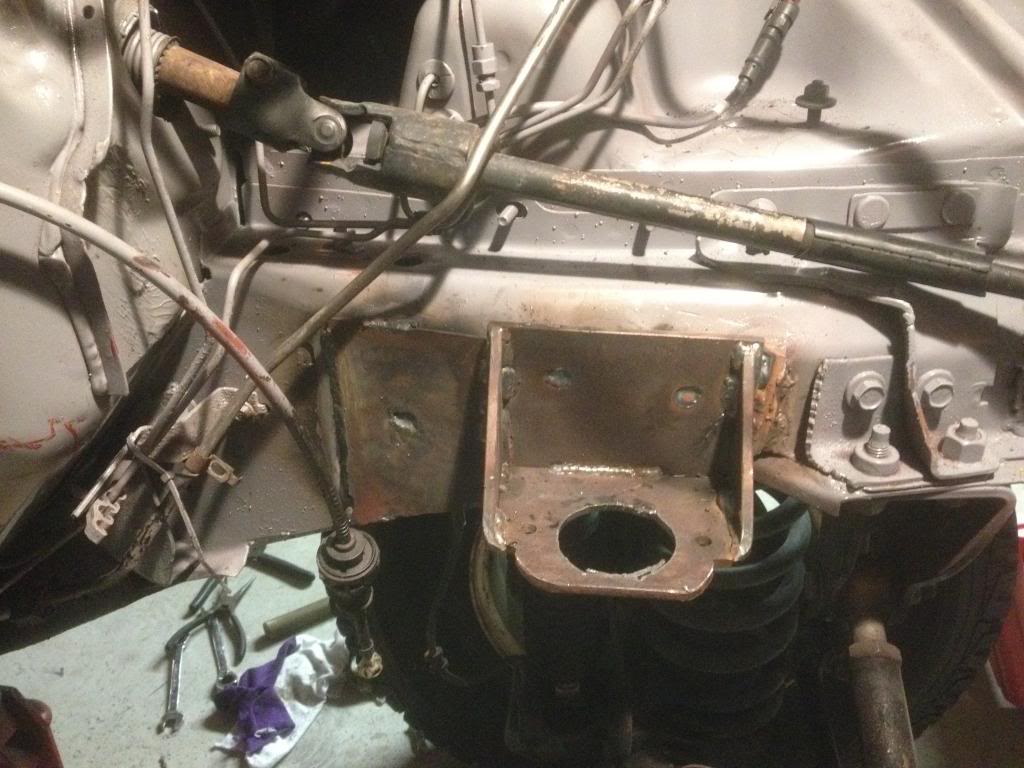

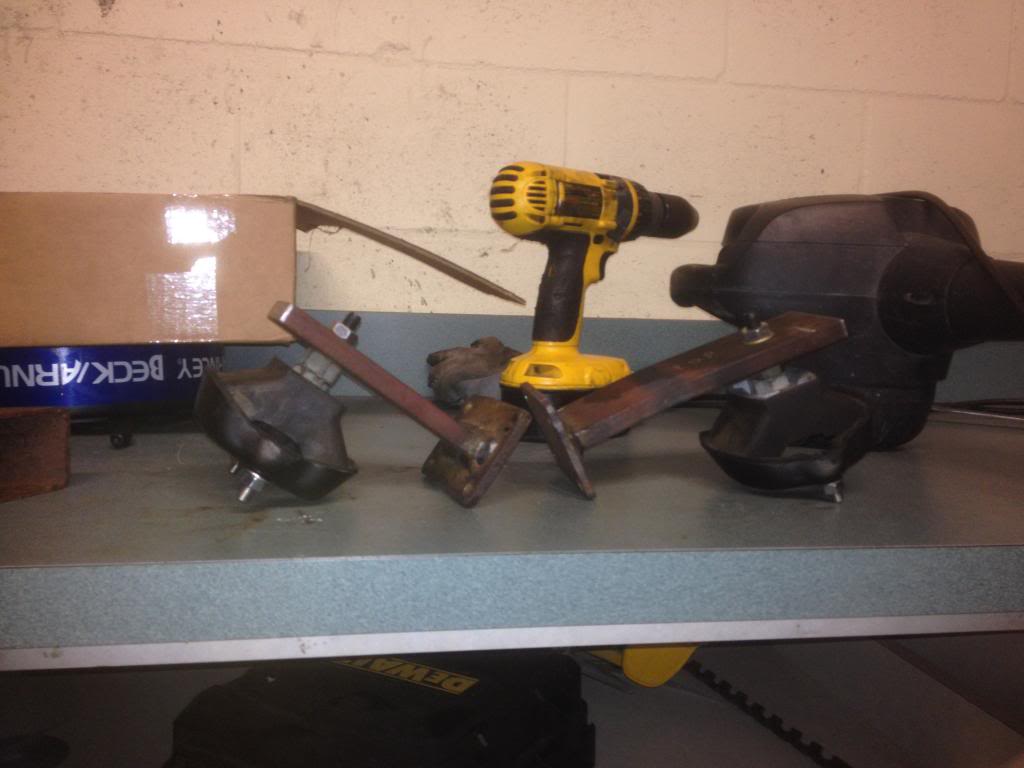

Name:  IMG_3456_zps1c8cfa01.jpg
Views: 719
Size:  64.3 KB

Name:  IMG_3554_zps7c702e37.jpg
Views: 683
Size:  101.4 KB

Name:  IMG_3552_zps4bfad06e.jpg
Views: 687
Size:  92.2 KB

Name:  IMG_3551_zps4c8699e9.jpg
Views: 678
Size:  106.5 KB

Name:  IMG_3546_zpsbe2bf813.jpg
Views: 670
Size:  87.3 KB

Name:  IMG_3547_zps246f2b06.jpg
Views: 671
Size:  58.3 KB

Name:  IMG_3545_zps88919add.jpg
Views: 677
Size:  92.0 KB

---AutoMerged DoublePost---

I've got an old Linde welder and as you can see from the welds on the frame I couldn't get the damn thing set right, by the time I got to the upper mounts I had worked it all out.

Last edited by Evenglass; 02-03-2014 at 10:34 PM. Reason: Automerged Doublepost
Reply With Quote
  #10
Old 02-03-2014, 10:43 PM
Diesel Enthusiast

Join Date: Dec 2010
Location: south Texas
Posts: 443
Default

Nice work.
