Default intake torque
could one of you guys tell me the torque on the intake and sequence that the bolts are torqued in. thanks again to all of you for the help

Reply Like
  #2
Old 01-10-2011, 10:08 PM
Crazy's Avatar
Diesel Bomber
Join Date: Sep 2010
Location: Reddick,Fl.
Posts: 1,322
Likes: 0
Received 51 Likes on 45 Posts
ATTN
Intake Manifold:

* Lower Bolts & Studs--31 (42)
* Center Bolts--17 (23)
* Upper Intake--17 (23)

Attached Thumbnails intake torque-1.jpg
Reply Like
  #3
Old 01-10-2011, 10:11 PM
Crazy's Avatar
Diesel Bomber
Join Date: Sep 2010
Location: Reddick,Fl.
Posts: 1,322
Likes: 0
Received 51 Likes on 45 Posts
Default

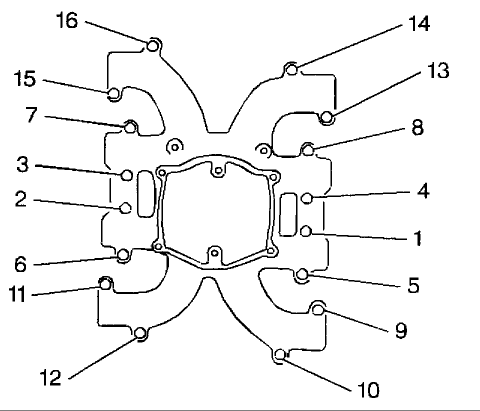

here better pic

Attached Thumbnails intake torque-1.gif   intake torque-2.jpg
Reply Like
  #4
Old 01-11-2011, 05:22 PM
bjennen's Avatar
Diesel Fan
Join Date: Sep 2010
Location: Gentry, Ar
Posts: 83
Likes: 0
Received 1 Like on 1 Post
Default
Hey crazy what size is the bolts on the top intake I need one cause it got stripped off when I was taking my intake off

Reply Like
  #5
Old 01-11-2011, 06:36 PM
Crazy's Avatar
Diesel Bomber
Join Date: Sep 2010
Location: Reddick,Fl.
Posts: 1,322
Likes: 0
Received 51 Likes on 45 Posts
Default
bjennen think there M 8x1.25 and 5 cm long

Reply Like
  #6
Old 08-10-2014, 07:46 AM
jrsavoie's Avatar
Diesel Enthusiast
Join Date: May 2008
Location: East north central Illinois
Posts: 322
Received 18 Likes on 17 Posts
Default
4 of the bolts or studs require sealant. 9, 11, 13 & 15 are exposed to the crankcase

Reply Like
