Default Snorkel Mod

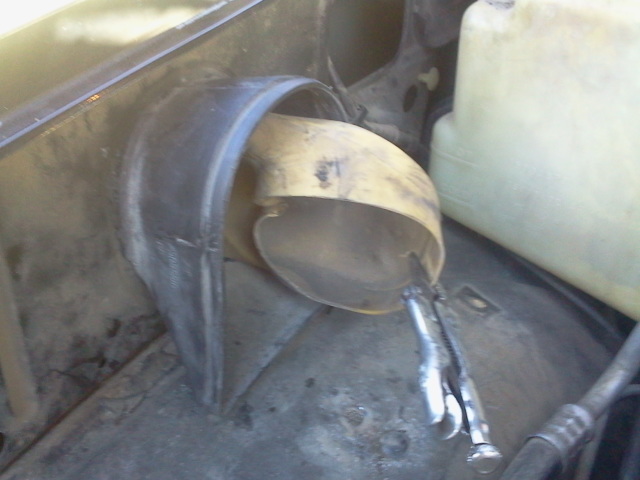

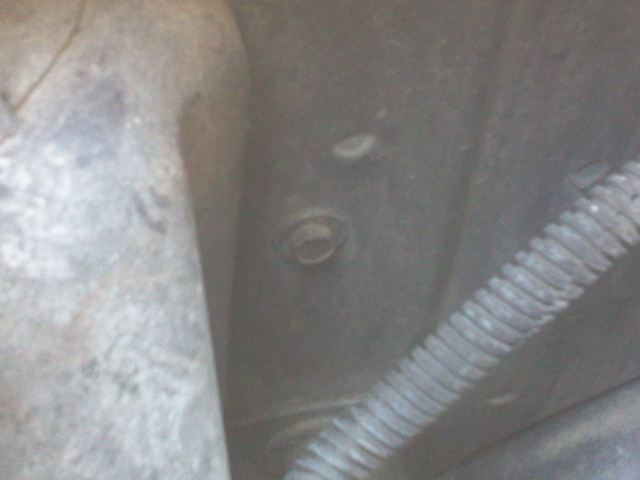

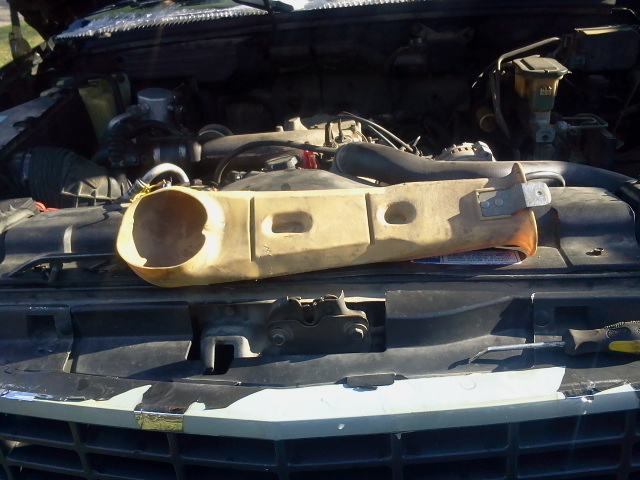

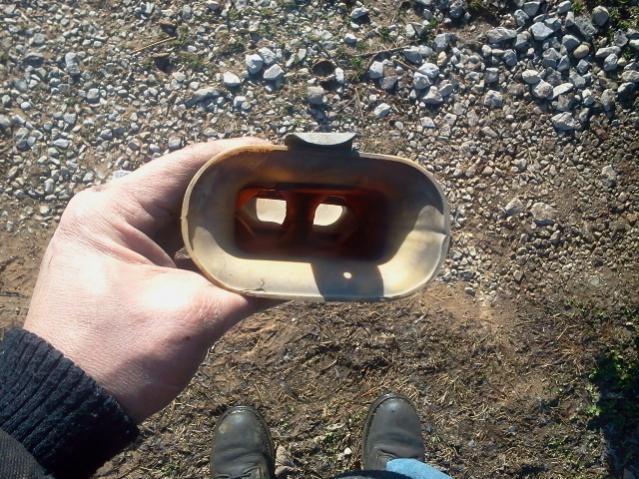

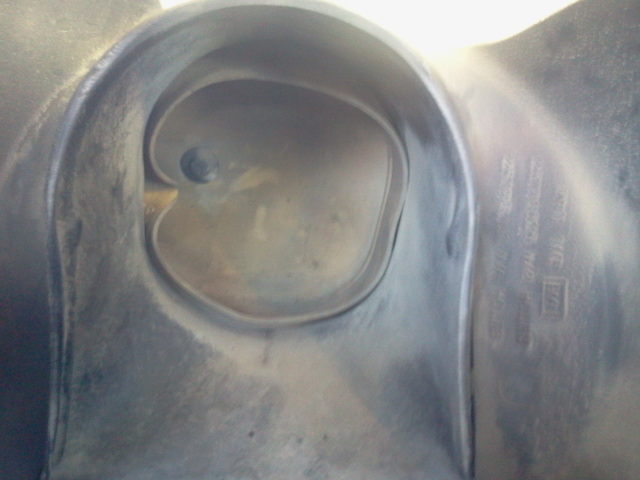

Hey guy's did a little research here awhile back and found out something I did not know but 1993-1994 6.5s apparently had installed from the factory a snorkel type device inside the passenger fender well that is kind of restrictive to find out whether or not you still have this in your truck first remove the air filter and look for a black push pin behind the intake side of the filter and remove push pin then loosen the passenger side battery and move towards drivers side of engine compartment,I did not have to disconnect my battery so you may or may not have too But behind the battery on the fender well there is a 7mm screw remove this screw then with vise grips and a pry bar I was able to squeeze it out a little at a time until it was all the way out now the truck has a little more of a throaty mean sound than before Hope all this helps us early model 6.5 owners

  #2
Old 12-10-2013, 01:45 PM
Mayhem's Avatar
Diesel Wrench
Thread Starter
Join Date: Jun 2012
Location: Middle of nowhere Tn
Posts: 1,255
Received 128 Likes on 121 Posts
Default

here are my pics

Attached Thumbnails Snorkel Mod-snorkel5.jpg   Snorkel Mod-snorkel-6.jpg   Snorkel Mod-snorkel4.jpg   Snorkel Mod-snorkel.jpg   Snorkel Mod-snorkel-2.jpg

  #3
Old 12-10-2013, 06:21 PM
racer55's Avatar
Diesel Bomber
Join Date: Oct 2012
Location: Scugog Island ONT.
Posts: 1,848
Likes: 0
Received 103 Likes on 103 Posts
Default

get that outa there!
