I am ordering some new guages and I have an important question.

I want to install a new Motor Oil Pressure Guage in my 1998.5 Dodge Cummins, but I also want continue the use of the factory guage. How and where would I attach the new guage into the oil pressure system? Thanks, Kerley

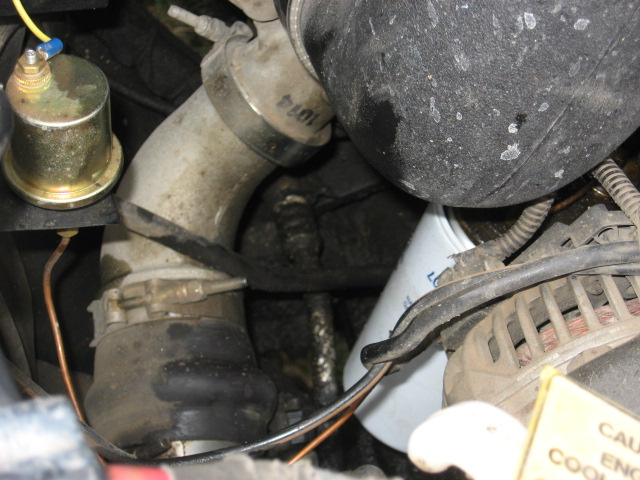

theres a secondary oil feed on the top of ur oil filter housing thats 1/8 thread thats what i hooked mine up to but youll have to run tubing from the oil feed to ur sending unit because heater lines run to close to the feed I'll see if i can find a pic of how i did mine

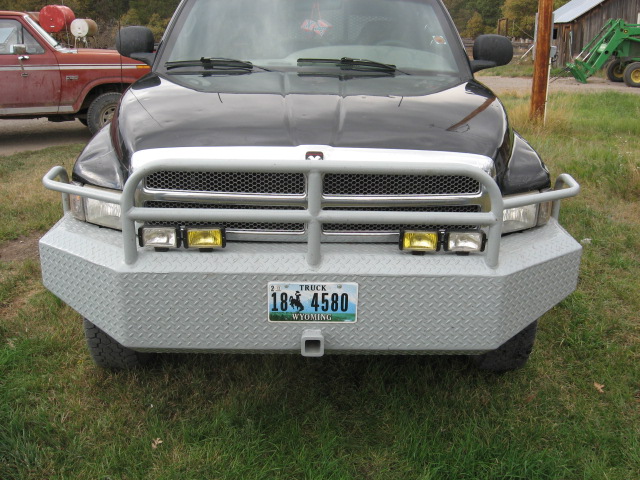

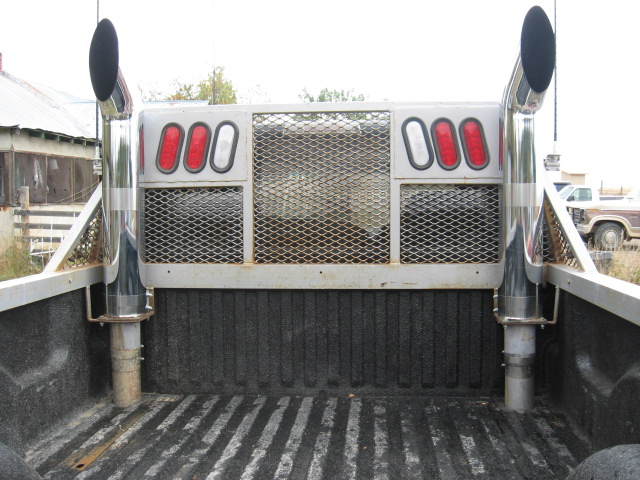

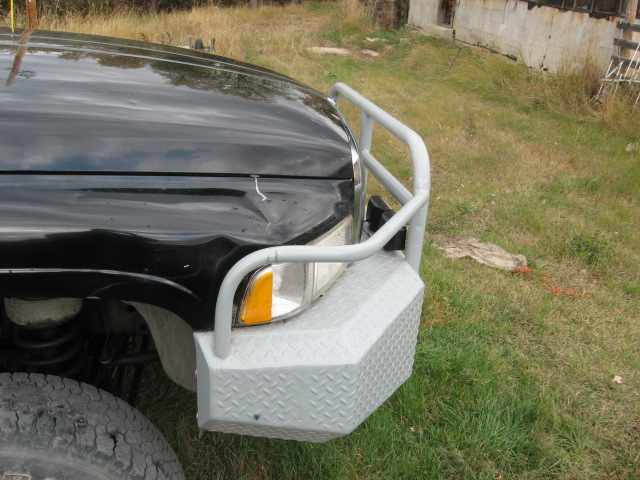

Hey 24vcumminscowboy; I appreciate the help. When/if you send a picture please send one of your home made cattle head gate and headache rack, Thanks, Kerley

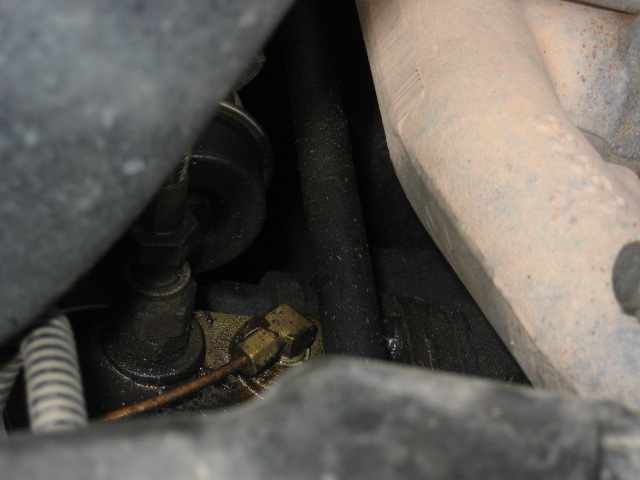

Sorry it took so long i had to wait for rain to clear out but hopfully this will give you an idea there not the best pics



That copper tubing will eventually break from the vibration.

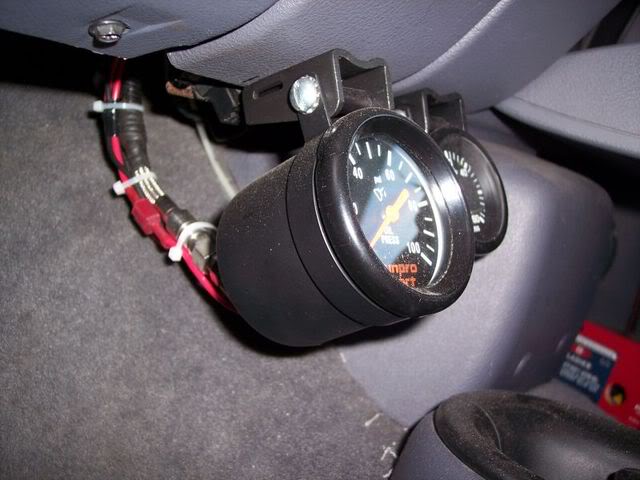

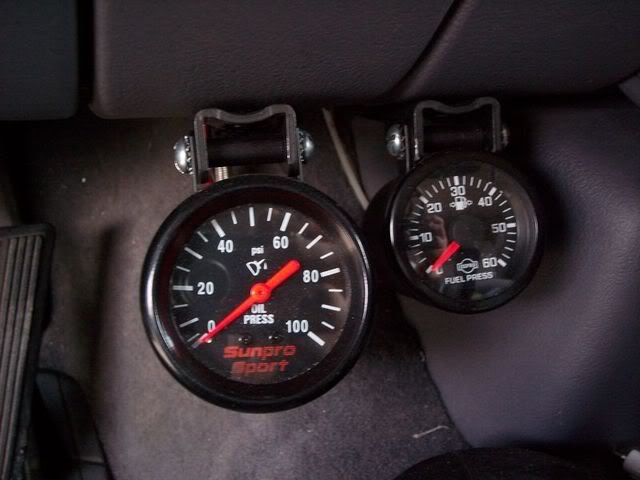

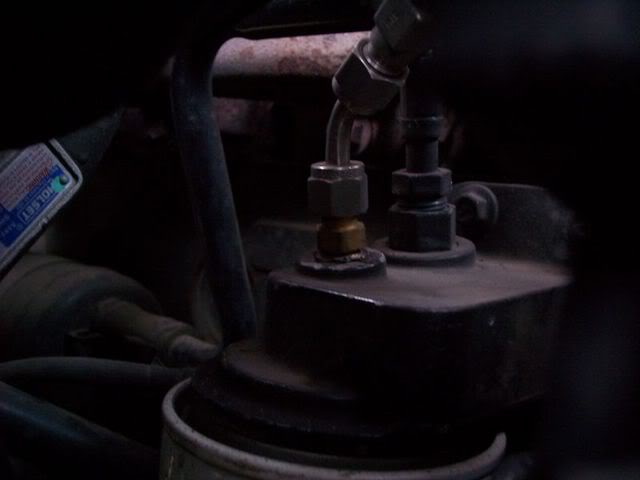

Heres my setup. I run the oil right into the cab through braided SS 1/4" line:



Nice pictures. You are lucky to have rain. We are so dry here in Central Alabama that I have to sell some cows for lack of grass. What brand of Oil Pressure guage did you install. I see in your photo that the sending unit has only one wire to the guage, Looks like an easy install. Thanks Kerley



its an auto meter ultra lite thats what all my gauges are
