Problems With AutoMeter Phantom Boost Gauge
Hi Yall,

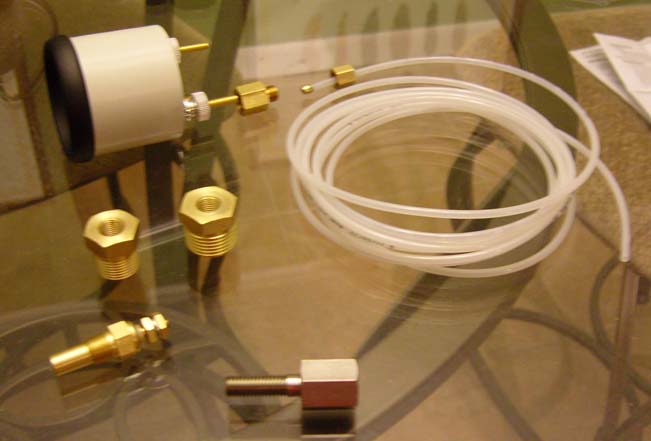

Santa brought me a Autometer 3 Pod Gauge Kit and I've been scratching head regarding the boost line. I am not sure but I think I may be missing parts. I ordered the boost adapter online from Genos Garage for my 07 Dodge Ram 2500 5.9, and I'm still wondering whats going on. How many ferruls are supposed to come with the autometer kit? ( I only got one ) I have the portion attaching to the back of the gauge figured out, but I cant figure out how the other side of the boost line is set up. How do I compress the line on the engine side? Am I missing something? Here is a pic of the parts.
Something doesnt add up.
-Silver Bullet 1980
Santa brought me a Autometer 3 Pod Gauge Kit and I've been scratching head regarding the boost line. I am not sure but I think I may be missing parts. I ordered the boost adapter online from Genos Garage for my 07 Dodge Ram 2500 5.9, and I'm still wondering whats going on. How many ferruls are supposed to come with the autometer kit? ( I only got one ) I have the portion attaching to the back of the gauge figured out, but I cant figure out how the other side of the boost line is set up. How do I compress the line on the engine side? Am I missing something? Here is a pic of the parts.
Something doesnt add up.
-Silver Bullet 1980
#2
looks like a trans temp sending unit ya got there, your going to need a 1/8"npt male to 1/8" compression fitting, any local parts store should have them, also while your there pick up some 1/8" black nylon air line and throw the white plastic away and get 2 of the 1/8" inserts so the tube dosnt collapse when you tighten the nut down
The following users liked this post:
SilverBullet1980 (01-06-2012)
