I OWN A 2003 DODGE 3500 5.9 WITH A 6 SPEED NV-5600 DOES ANYONE OUT THERE HAVE PICTURES OF HOW THE SHIFT RAILS GO. I AM CLOSE TO RIGHT BUT NOT EXACTLY I HAD TO PUT NEW BEARINGS IN THE TRANNY AND WAS NOT SMART I DID NOT TAKE PICTURES OF THE SHIFT RAILS HAVe A GREAT DAY bsafe@windstream.net



Lemme look, I think I took some.... If not I'll take some in the next day or so.....

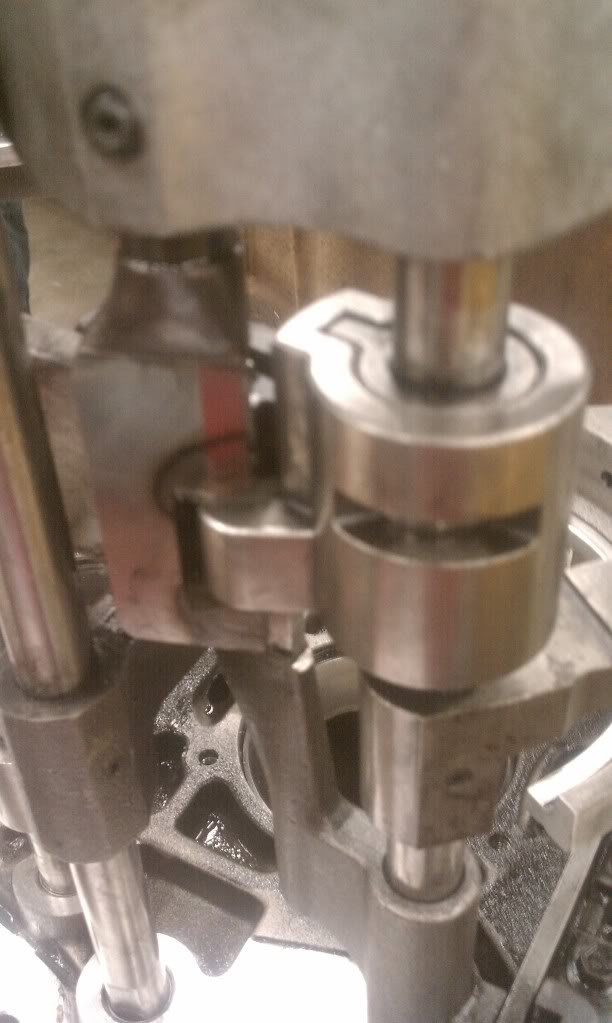

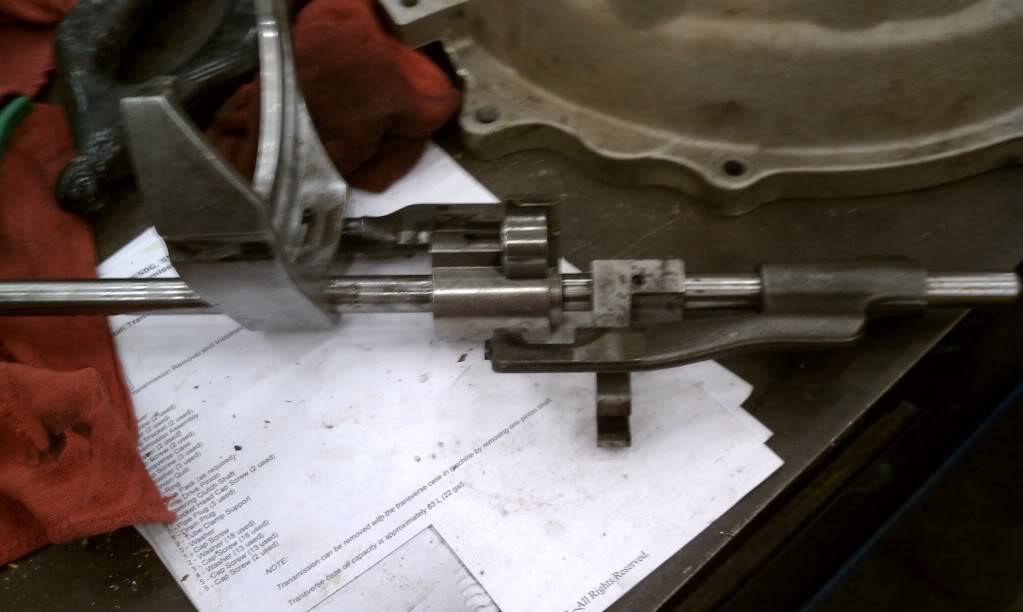

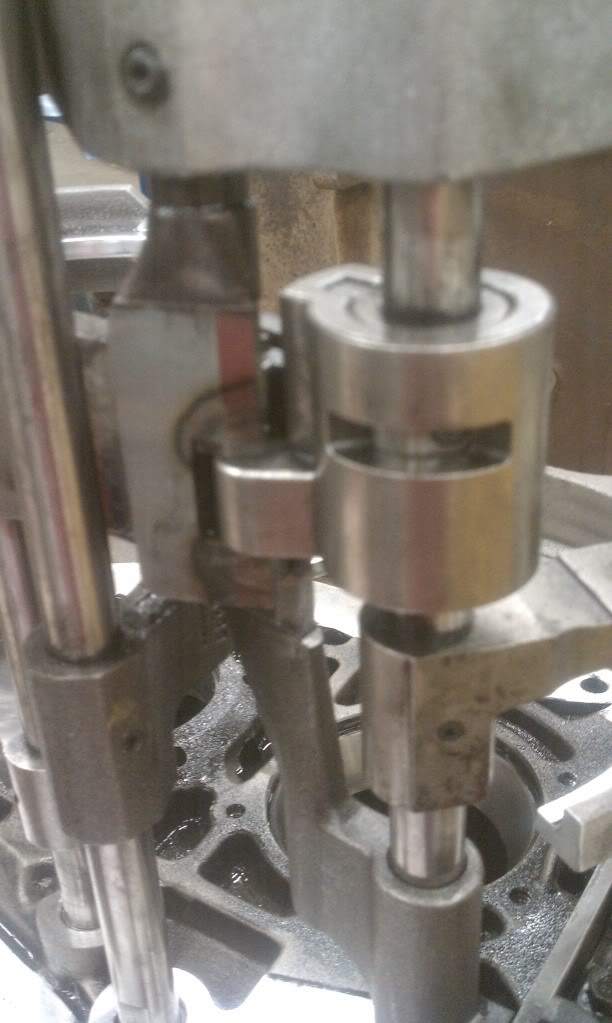

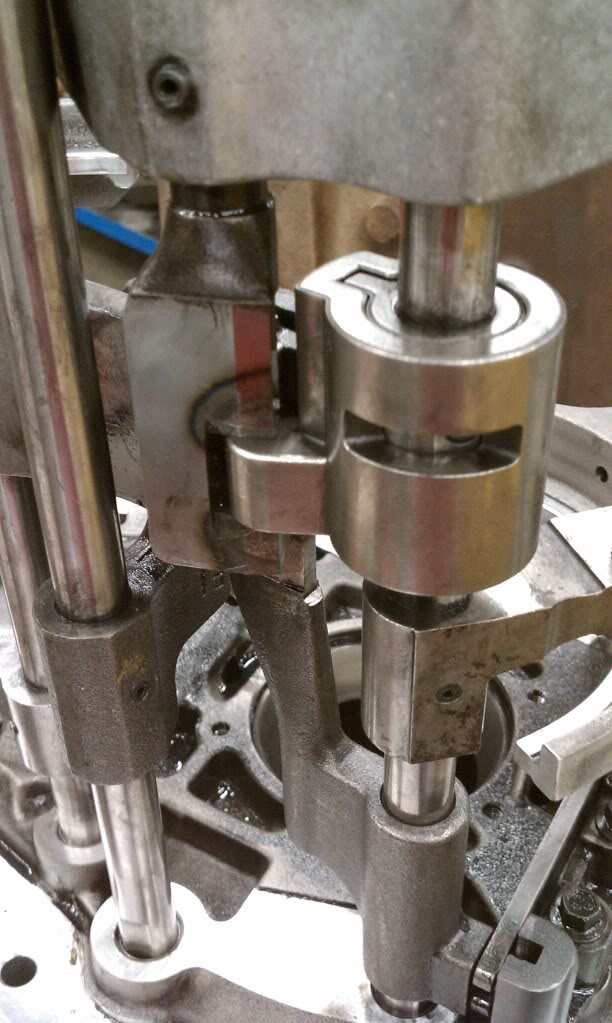

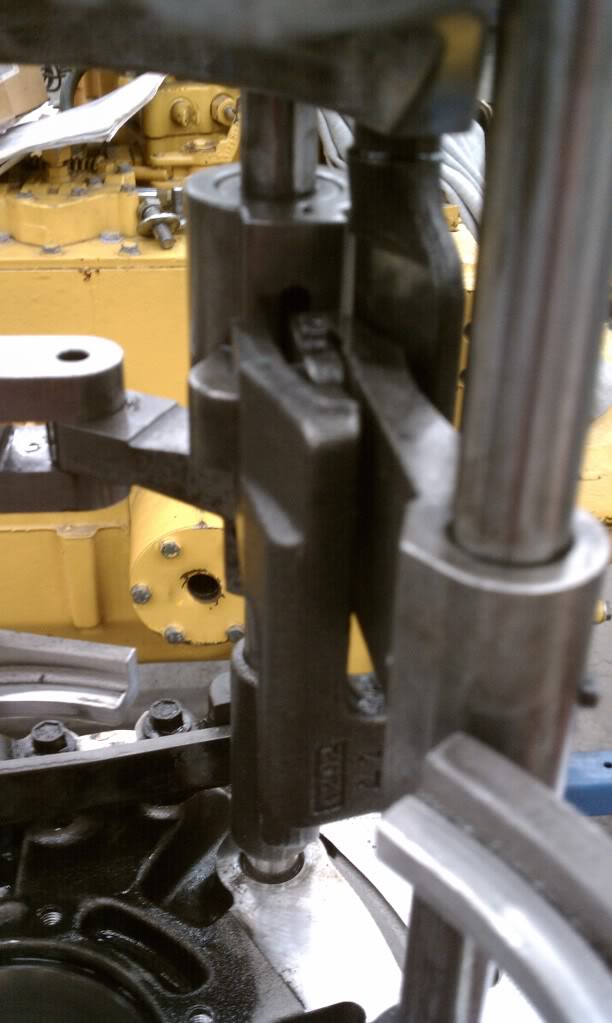

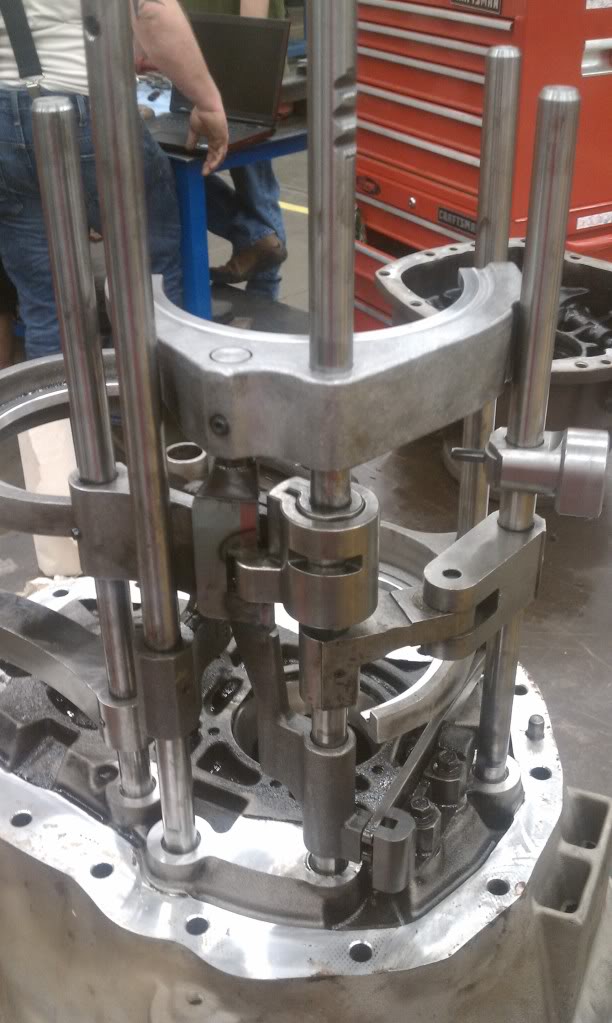

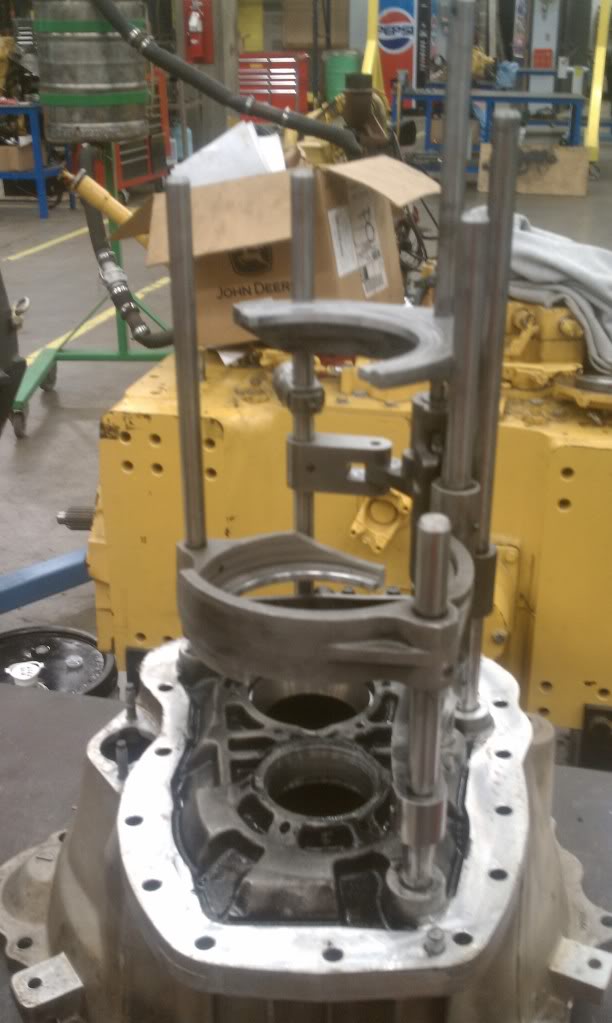

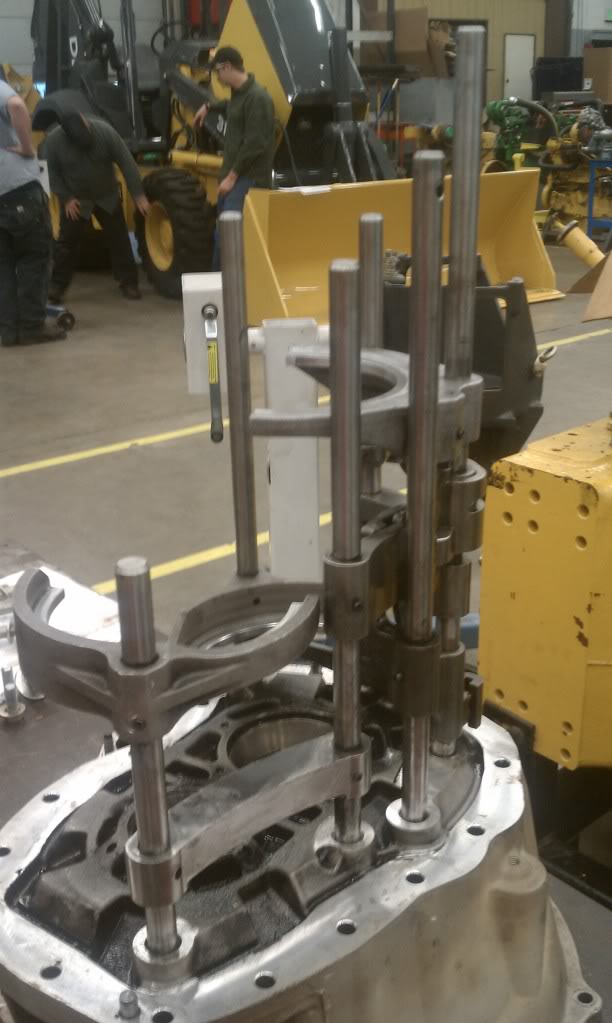

[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]










Happy Thanksgiving

---AutoMerged DoublePost---

http://rs72.rapidshare.com/files/527....com-03DRM.pdf
NV5600 Transmission
these help also
