Throttle rod end.
#1
Throttle rod end.
Hoping to make it into the sticky . I broke on these plastic ball n cup joints a while back n made a temp joint as cummins wanted to much for the kit.
So after about 2 hours n three different parts store companies I found what I was looking for. Now I coulda got any old ball n cup joint n had a new rod made up but I finally found one that fit.

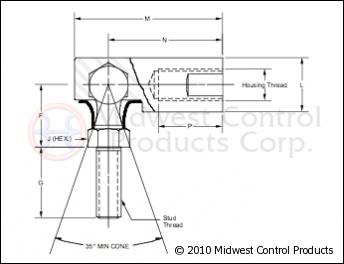

Part Number Papco 262-204, Stud 5/16-24", F 0.531", G 0.688", J 0.438", L 0.500", M 1.406", N 1.125", P 0.563".
But I also found it here n this is where I got all the specs on it. ES312: ES - Midwest Control Products Corp.
If I ever have to replace the other end I will get a custom rod made up and another joint the same as what I have now n run both. OH I paid almost 8 dollars for the joint where cummins wants $56 CAD for both ends and the rod. I told em where to put there kit.

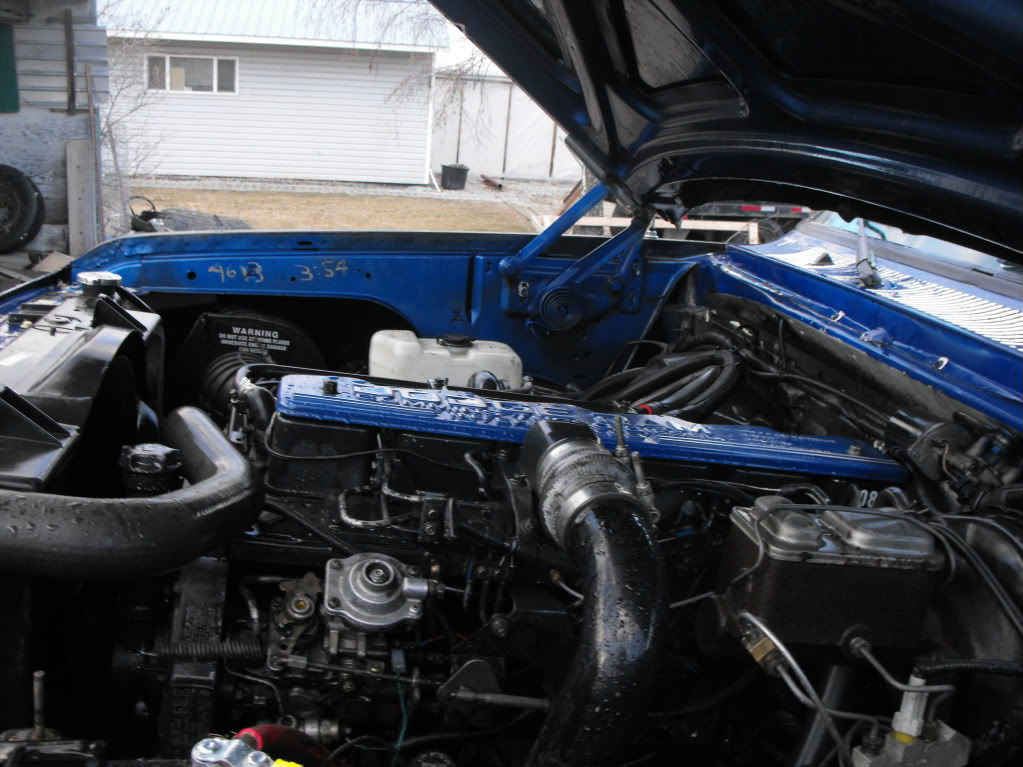

Here's a pic of the setup as of now.

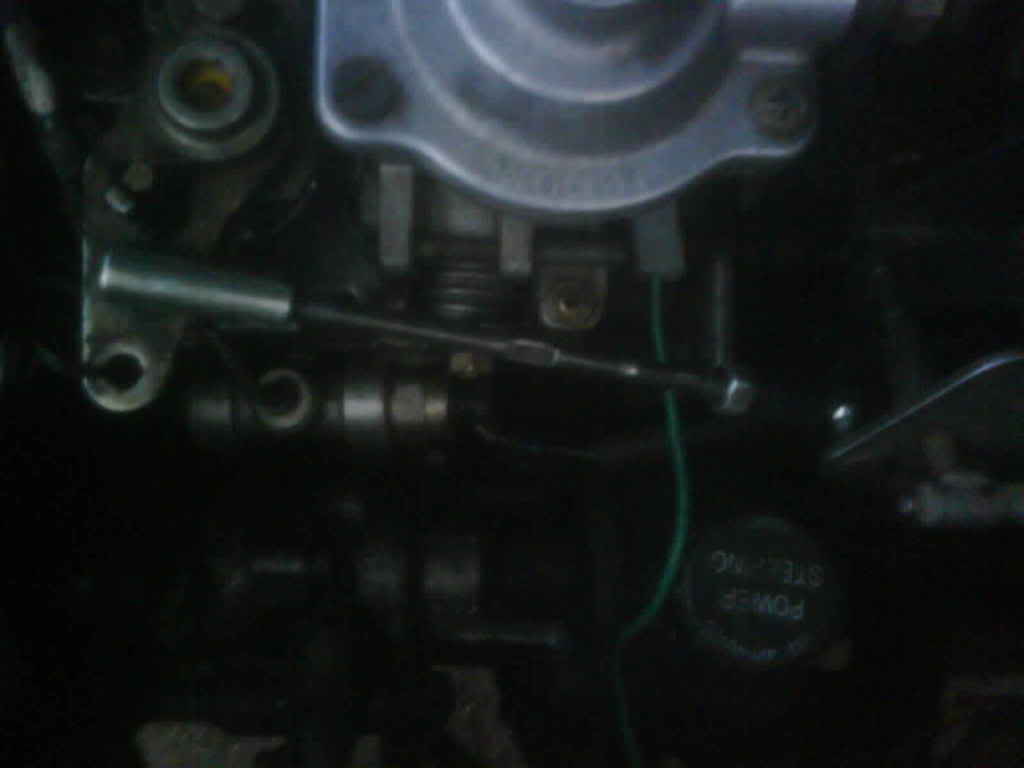

Here is the joint I had made up front a piece of ready rod n a bolt coupler.
So after about 2 hours n three different parts store companies I found what I was looking for. Now I coulda got any old ball n cup joint n had a new rod made up but I finally found one that fit.
Part Number Papco 262-204, Stud 5/16-24", F 0.531", G 0.688", J 0.438", L 0.500", M 1.406", N 1.125", P 0.563".
But I also found it here n this is where I got all the specs on it. ES312: ES - Midwest Control Products Corp.
If I ever have to replace the other end I will get a custom rod made up and another joint the same as what I have now n run both. OH I paid almost 8 dollars for the joint where cummins wants $56 CAD for both ends and the rod. I told em where to put there kit.
Here's a pic of the setup as of now.
Here is the joint I had made up front a piece of ready rod n a bolt coupler.
