injector disassembly
#1
#3
Those instructions are for the electronic injector used on the 6.7ltr injector.
In our injector, the puck is substantially larger and easily handled. It sits on top of the spring inside the body's bore. Under that spring are the shims used to adjust the injector POP pressure. Those shims quantity may number with one or more. They'll be of different thicknesses. You can mix how they stack in a given injector. DO NOT mix this injector's shims with that injectors shims. Work with one injector at a time.
Having said that, don't be afraid to completely disassemble the entire injector and clean everything thoroughly. Just keep an eye on the shims when removed so as not to loose any as some can be very thin. Pay attention how the parts are stacked and put it back like you found it.
GREEN BOX= Puck
RED BOX= Spring
BLACK BOX= Shim(s)
Below the blue box is the actual nozzle.
This image was stolen from 1stgen.org.

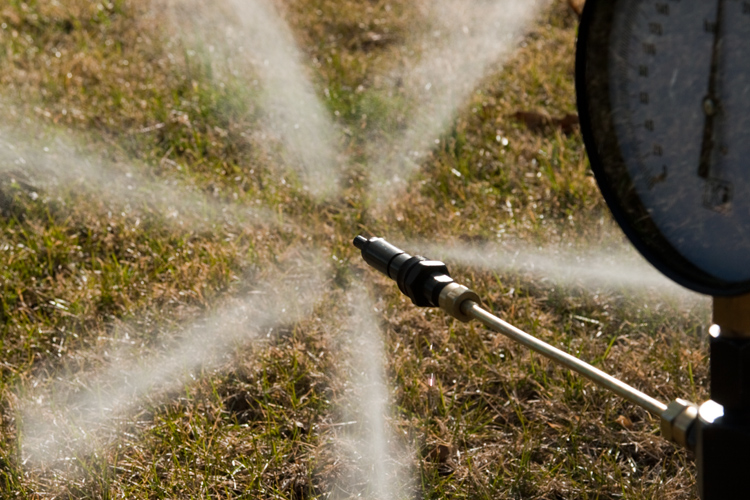

This would be a sweet time to check and adjust the pop-pressures.
In our injector, the puck is substantially larger and easily handled. It sits on top of the spring inside the body's bore. Under that spring are the shims used to adjust the injector POP pressure. Those shims quantity may number with one or more. They'll be of different thicknesses. You can mix how they stack in a given injector. DO NOT mix this injector's shims with that injectors shims. Work with one injector at a time.
Having said that, don't be afraid to completely disassemble the entire injector and clean everything thoroughly. Just keep an eye on the shims when removed so as not to loose any as some can be very thin. Pay attention how the parts are stacked and put it back like you found it.
GREEN BOX= Puck
RED BOX= Spring
BLACK BOX= Shim(s)
Below the blue box is the actual nozzle.
This image was stolen from 1stgen.org.
This would be a sweet time to check and adjust the pop-pressures.
Last edited by BC847; 09-18-2011 at 11:38 AM.
#4
#5
thanks bc847 super helpfull you wouldn't happen to have the torque spec for tightening the nozzle back on.
---AutoMerged DoublePost---
you need a pop pressure tester like in the pic above, to adjust you have to add or subtract shims or replace the spring if it's worn out. As far as which is cheaper nozzles are usually cheaper, I just picked up a set on ebay for $77
---AutoMerged DoublePost---
you need a pop pressure tester like in the pic above, to adjust you have to add or subtract shims or replace the spring if it's worn out. As far as which is cheaper nozzles are usually cheaper, I just picked up a set on ebay for $77
Last edited by mnwild_05; 09-19-2011 at 03:01 PM. Reason: Automerged Doublepost
