Does any have a wiring diagram for the OD trans in a 93. My wiring is fried so it's really hard to trace colors or do any testing with a test light cuz all the wires are melted into one giant glob.

Or if you know what would have caused this in the first place would also help.

I need to get the wires bypassed for the OD so it will kick in. Driving down the highway at 65 MAX really sucks!

I would like to get this baby ASAP.

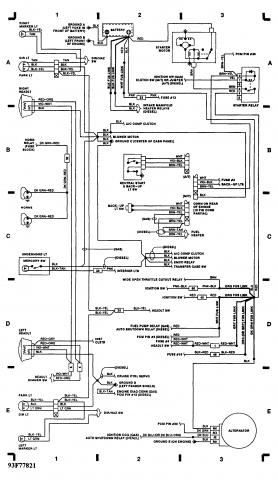

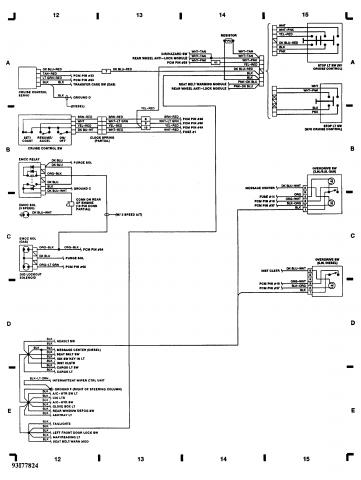

Here ya go! Im pretty sure you will need both of these diagrams for a complete re-wire. Hope this helps!



Well I think it would be exactly what I need, but I guess I'm just having a Special ED moring. I can't get it to expand large enough that I can read it, once it gets expanded it nothing but a blur.



Hey 1stgenjunkie.
Could you send me the link to those diagrams. They don't want to open large enough to read. If I could just get the link to them so I can actually read them that would be great.
