Ok so I tore my trans down rebuilt it better internals, still stock shafts, an 4 gear planets etc...now my weak link will be my Flexplate......anyone know a flexplate that will fit Suncoast needs a billet converter cover to run theirs BD said a 2nd gen one wont fit...ats isnt a flexplate....any input would be great!

---AutoMerged DoublePost---

DTT Billet SFI Rated Flexplate

Think I just found my answer



I run a custom Suncoast unit and don't run a billet flexplate. I've never heard that one is required for the Suncoast NON lock-up converter either. Ernie (Suncoast Dodge converter guru) would have said so.

And your flexplate isn't a weak link at your power level.

I run a 46RH case with a 48RE rotating assembly. It eventually became a 48RE rotating assembly with all billet/alloy shafts as I broke them one at a time over a couple of years.
-> Still running the same stamped (SFI rated) flexplate through it all. No issues.



OEM Dodge flexplate? Ill be around 450whp area when its done. Lastnight I was lookin at the suncoast site had a side note on the flexplate stating doesnt fit the non lockup 46rh



- No, it's an aftermarket flexplate. Can't remember whos (sorry).

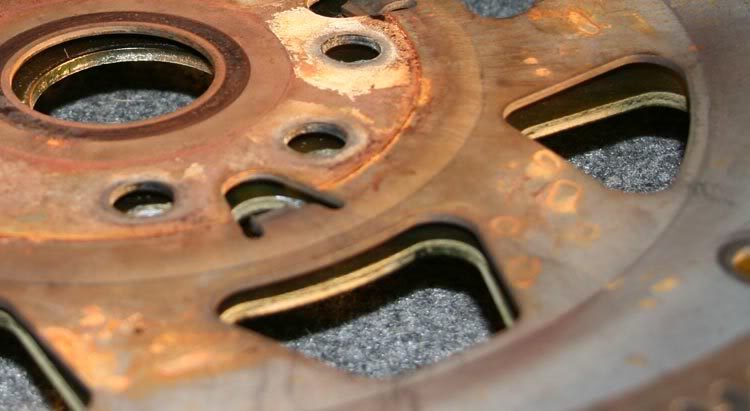

One can see the difference in thickness (as comparted the stock/OEM)





- I'm north of 450whp.

- Look at it again: "*89-93 requires a Sun Coast billet cover converter." That means the stock cover-plate of the converter won't fit. That converter Suncoast offers, has a billet cover-plate.

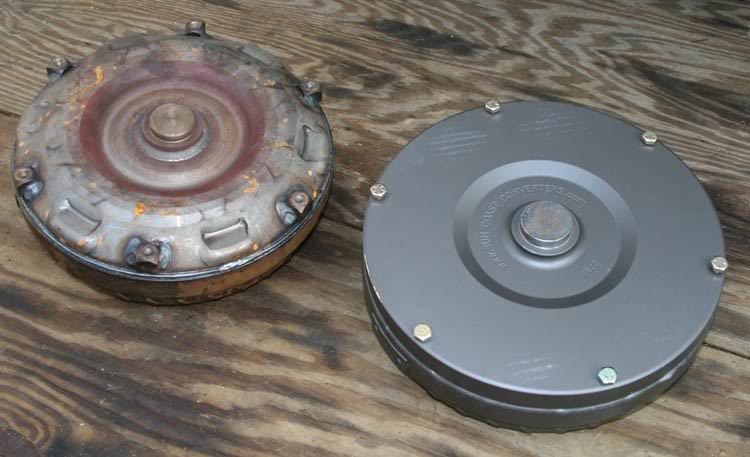

In the following image, you can see the stock/OEM converter on the left, the Suncoast unit on the right. Note the difference in the cover-plates: Stock/OEM = Stamped-Steel. Suncoast = Machined billet steel.







Go here: PATC 46RE 47RE 48RE Transmissions, Performance Transmission A518, 518

Give it a minute or two to load the page (LOTS of parts).

Scroll down perhaps 1/4th of the way and look at part number #58PFP



So both 56bfp an 58pfp will fit a stock converter no issues correct? I just wanna cover the bases so when I get the cash Im not in second guessing the parts.
Also does sun coast makes a non lockup converter for the 46rh?

---AutoMerged DoublePost---

Nevermind found the Suncoast converter...so with that I could run the Suncoast billet flexplate? Build im based off of is just shy of 500s but Ill have bigger injectors an bigger turbo then the base one Im using. Thanks for the help with the issue an helpin me clear the air on this issue.



At the end of the day, if you're gonna run the Suncoast product, I'd call Suncoast and speak to Ernie. He will tell you what you need to accomplish your goals. He's helped me tremendously with technical aspects of my trans build. Knows the trans and will not steer you toward stuff you don't need.


Care to share details of your build? I'm just shy of 500rwhp and am always looking a couple more.



For now waiting on 7x.012 sac injectors from CPP, 7.3l all aluminum intercooler may run a CO2 bar on it to cool the air charge when needed, Borg Warner 366 66mm turbo T4, going to run a Steed Speed or make a steed style manifold, arp studs or possible custom studs, 150lb springs, Going to get a hamilton cam think it was a 188/210, new tappets extreme duty push rods, may pull the head to pull uppper #6 exhaust stud out an if thats the case do some polish work check the valves fire ring the head, at that point check my pistons may add mahle pistons with sides cut out dont know part # to those, fass 150 pump runnin in 1/2 inch line, a 55 gallon fuel tank gravity fed rat rod style, plan to upgrade to a new water pump new be cool aluminum radiator, might pull the VE Pump an add a 4mm cam plate to it an debate on a 14mm head, for now dana 60/70 axles prepd for power 6inch lift on military tires hope a 39 inch, then when i get my hands on a military truck pull the Rockwell 2.5tons from it swap em an gear em to 4.90 an run some 44s or 54s 4 link it an run coil overs on it box the chassis an finally run my huge bumper i have started for it....project Doomsday(Call the truck Ophion) Itll be a Fun rig an a multi use truck for me. Lot to take on only bein 21.

Btw love your truck!
