Boost gauge problems
#1
#2
I would assume thats a Glow shift guage???

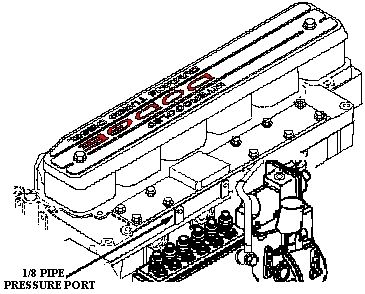

You need to drill and tap the intake manifold or use the 1/8" pipe plug on the side of the head. Youll need the 1/8" fitting (and probably a new ferrule). And of course youll need to fix the vacume line that you incorrectly teed into.
This should help:
You need to drill and tap the intake manifold or use the 1/8" pipe plug on the side of the head. Youll need the 1/8" fitting (and probably a new ferrule). And of course youll need to fix the vacume line that you incorrectly teed into.
This should help:
#4
#6
#7
#8
ok took out the plug that was there and put in the plug with the fitting that came with the gauges but still no boost ? i sure i put it in the right place
---AutoMerged DoublePost---
its right were the picture shows ... and i dont get it
---AutoMerged DoublePost---
never mind ... got it working ... lame the hose that came with the gauge was craked so replaced it with some line i had at the house and we golden ... thanx for the help guys
---AutoMerged DoublePost---
its right were the picture shows ... and i dont get it
---AutoMerged DoublePost---
never mind ... got it working ... lame the hose that came with the gauge was craked so replaced it with some line i had at the house and we golden ... thanx for the help guys
Last edited by mylilpwny; 11-07-2009 at 02:05 PM. Reason: Automerged Doublepost
