BD Diesel's Duramax Variable Vane Exhaust Brake
#1
01-17-2012, 09:40 PM
BD Diesel's Duramax Variable Vane Exhaust Brake

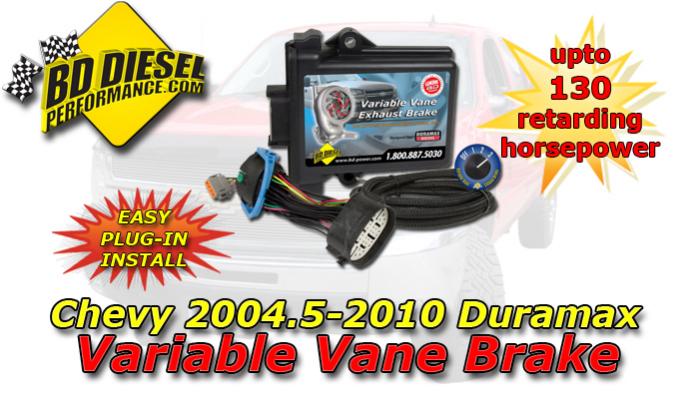

BD Diesel's Duramax Variable Vane Exhaust Brake
Up to 130 Retarding Horsepower
Easy Plug In Install
New Warm Up Feature on select applications

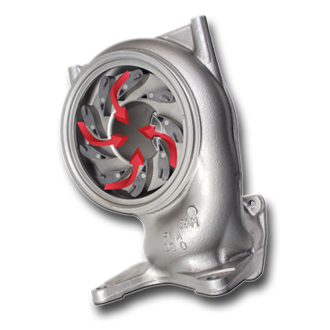

The variable vane turbocharger design used in the 2004.5-up Duramax engines to reduce turbo lag and increase power can also help slow you down. BD utilizes this technology to electronically close off the vanes which can create up to 130 retarding horsepower. This braking force will help to maintain your speeds on descents and curves, giving you better control of your truck and load.
While in Tow/Haul mode, switch BD's Variable Vane Brake (V.V.B.) on and every time you let off the throttle, it will close the variable vanes in the turbo, developing exhaust back pressure in the engine's combustion chamber which creates resistance against the piston from reaching top dead center.
The V.V.B. rotary switch offers a mutliple of different modes including automatic moderate and aggressive downshifting programs for the 2007.5 - 2010 Allison transmissions to give better weight control. Exhaust braking also works in Allison's manual shift selections. The V.V.B. integrates with the cruise control to automatically accelerate and decelerate to maintain vehicle speed.
NEW! On select applications the Warm Up feature will close the vanes while at idle until engine temperature reaches a preset level. Great for getting your truck up to operating temperature quicker on cold mornings.
Easily and simply installs by plugging into existing factory ports and by mounting the rotary switch on your dash. All of these features in one package which with some competitors would require two separate kits at nearly twice the price and twice as long to install. Now that is value added engine retarding at it's engineered finest.
Now Shipping!
Chevy 2007.5-2010 LMM Duramax - Part # 2001030 - $895.00
Shipping this month!
Chevy 2006-2007 LBZ Duramax - Part # 2001020 - $695.00
Coming Spring 2012!
Chevy 2004.5-2005 LLY Duramax - Part # 2001010 - $695.00
CALL 877-354-7008 TO ORDER YOURS!
Up to 130 Retarding Horsepower
Easy Plug In Install
New Warm Up Feature on select applications
The variable vane turbocharger design used in the 2004.5-up Duramax engines to reduce turbo lag and increase power can also help slow you down. BD utilizes this technology to electronically close off the vanes which can create up to 130 retarding horsepower. This braking force will help to maintain your speeds on descents and curves, giving you better control of your truck and load.
While in Tow/Haul mode, switch BD's Variable Vane Brake (V.V.B.) on and every time you let off the throttle, it will close the variable vanes in the turbo, developing exhaust back pressure in the engine's combustion chamber which creates resistance against the piston from reaching top dead center.
The V.V.B. rotary switch offers a mutliple of different modes including automatic moderate and aggressive downshifting programs for the 2007.5 - 2010 Allison transmissions to give better weight control. Exhaust braking also works in Allison's manual shift selections. The V.V.B. integrates with the cruise control to automatically accelerate and decelerate to maintain vehicle speed.
NEW! On select applications the Warm Up feature will close the vanes while at idle until engine temperature reaches a preset level. Great for getting your truck up to operating temperature quicker on cold mornings.
Easily and simply installs by plugging into existing factory ports and by mounting the rotary switch on your dash. All of these features in one package which with some competitors would require two separate kits at nearly twice the price and twice as long to install. Now that is value added engine retarding at it's engineered finest.
Now Shipping!
Chevy 2007.5-2010 LMM Duramax - Part # 2001030 - $895.00
Shipping this month!
Chevy 2006-2007 LBZ Duramax - Part # 2001020 - $695.00
Coming Spring 2012!
Chevy 2004.5-2005 LLY Duramax - Part # 2001010 - $695.00
CALL 877-354-7008 TO ORDER YOURS!
