LMM Performance Discussion of Chevy and GMC Trucks with LMM Duramax Turbo Diesel Engines Related To Performance And Longevity

Water/Meth Which system?

  #11
Old 07-10-2009, 11:59 PM
BLACKDX's Avatar
BOMBARDIER
Thread Starter
Join Date: Aug 2008
Location: Red Deer Alberta
Posts: 189
Likes: 0
Received 4 Likes on 4 Posts
Default

Well the wait is over pulled the trigger on a Labonte Stage 3 from [email protected] Will post results when I get it installed...


Last edited by BLACKDX; 07-11-2009 at 12:00 AM. Reason: spelling
  #12
Old 08-10-2009, 11:18 PM
BLACKDX's Avatar
BOMBARDIER
Thread Starter
Join Date: Aug 2008
Location: Red Deer Alberta
Posts: 189
Likes: 0
Received 4 Likes on 4 Posts
Default

Got the system installed finally..Had about 400 mile commute to test it out. A bit of trial and error but I am very happy with the system. Mounted the tank and pump under the sled deck. As hard to find room under the hood for the pump..
Anyhow long story short, I have travelled the same commute for 4 years now and there was an increase in mileage for sure. Never had time to caculate what it was I will in the future. On level 5 with the PPE there was a increase in HP for sure, felt like an extra 50 or so with the injection on and off . The big thing I wanted was cooler EGT temps, I didn't notice that much difference. But i started out with a 50/50 distilled water and meth.With that tuning I really dont need more fuel but even so it kept temps the same or below so it is doing its job.With a stock truck I'm told 100-70 HP no prob with this kit..so it looks like I'll cut back on the mix of meth and this should drop EGTs , maybe 25/75 or drop the tune down. when I get the chance I'm gonna hit level 6 which is about 300 flywheel HP on the LMM and run straight water and see what gives. For my app its looking like summer run more water and big tune. Winter drop Hp and crank up the meth, almost have to in this climate Over all very happy just have to get the right mix and set up. Very easy to use screen also. Any experts please chime in with advise

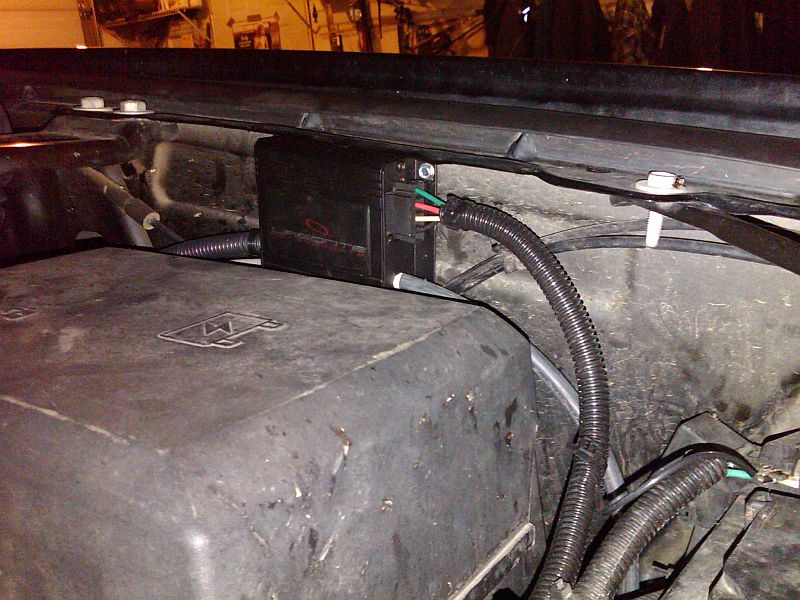

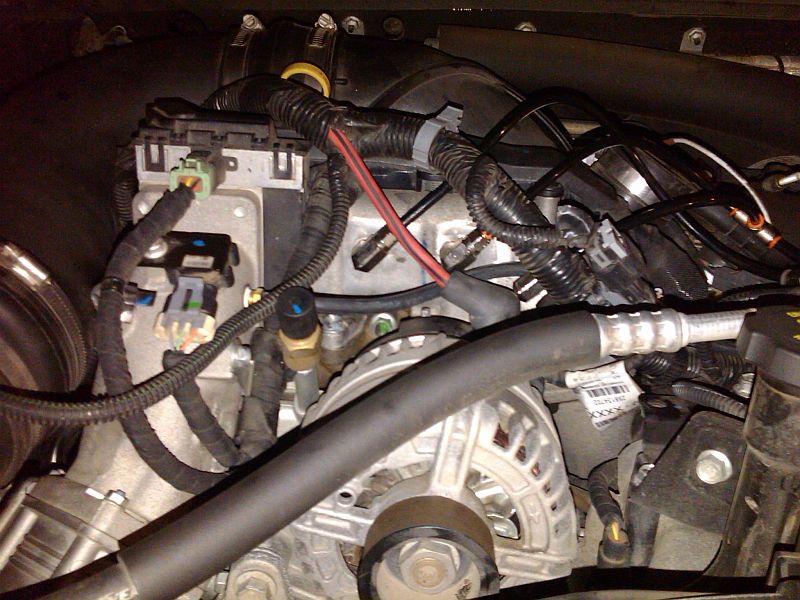

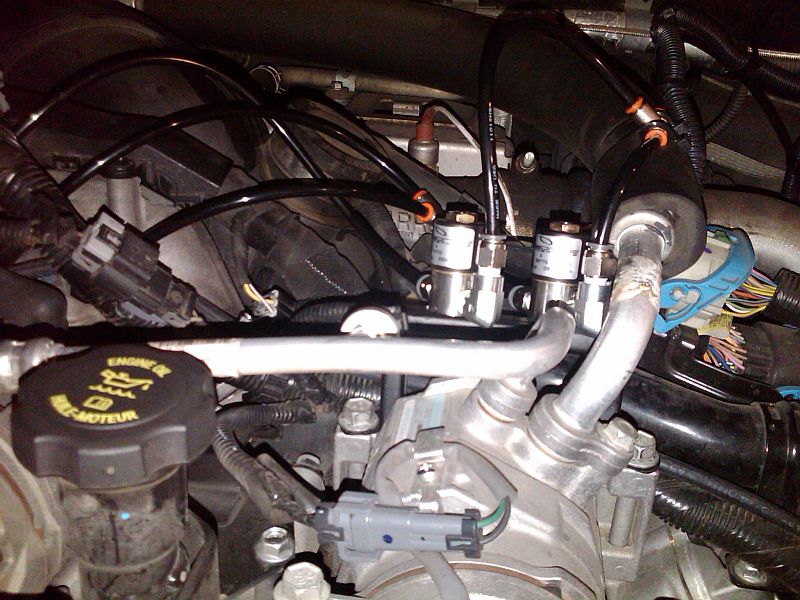

Attached Thumbnails Water/Meth Which system?-img00167-20090808-2249.jpg   Water/Meth Which system?-img00168-20090808-2250.jpg   Water/Meth Which system?-img00169-20090808-2250.jpg
  #13
Old 08-11-2009, 12:35 PM
Diesel Bombers Sponsor
Join Date: Apr 2009
Location: Columbus, IN
Posts: 152
Likes: 0
Received 10 Likes on 7 Posts
Default

Looks good Sheldon, hope you are enjoying it.

  #14
Old 08-12-2009, 09:51 PM
dieselboy04''s Avatar
Diesel Fan
Join Date: Jul 2009
Location: Va
Posts: 23
Likes: 0
Received 1 Like on 1 Post
Default

I went with labonte. works well and was an easy install. Also running a 50/50 mix I mixed myself it gave me a 71rwhp gain... on dunbars dyno 7-25-09. Egt's went down pretty close to what they said it would also. So I'm hooked till I can afford one of those bigger spinny things or maybe a compound set haha.

  #15
Old 08-19-2009, 04:27 PM
BLACKDX's Avatar
BOMBARDIER
Thread Starter
Join Date: Aug 2008
Location: Red Deer Alberta
Posts: 189
Likes: 0
Received 4 Likes on 4 Posts
Default

Looks like I need some bigger Nozzles on the WFO pulls. with the HP setting at 600 FWHP it goes thro water like crazy just cruisin ,only running the 2 main nozzles to come on in the top end. So as of now I'm running 100% on wide open pulls with the m7 an m10 and am seeing some reduced egts for sure. Ordered the m14 should be a big help. Im just guessing but what it looks like is with this high of tune, the hp setting could be set lower and run the big nozzles when you need the cooling at WFO..
