Begle's Water Fumigation
#13
#14

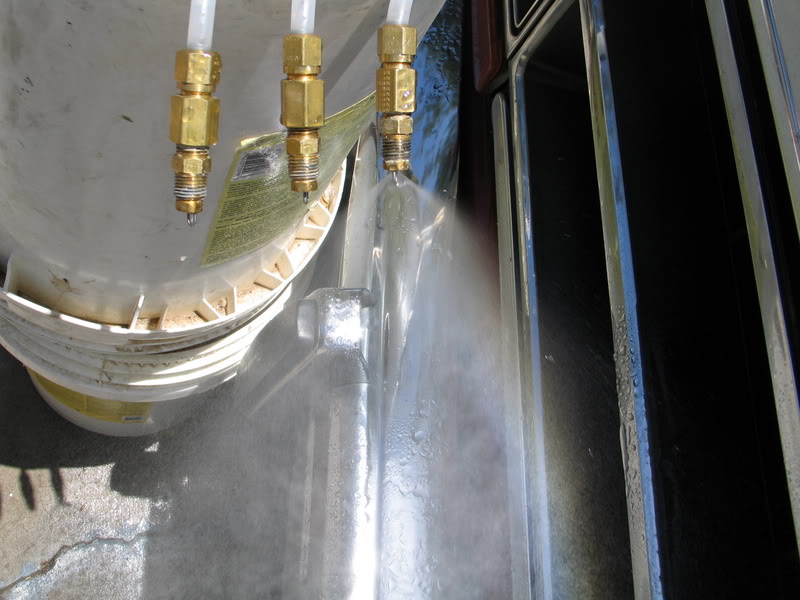

One nozzle:
http://i159.photobucket.com/albums/t...rGation046.jpg
Two nozzle:
http://i159.photobucket.com/albums/t...rGation048.jpg
Three nozzle:
http://i159.photobucket.com/albums/t...rGation049.jpg
They only flowed 34 GPH. I think I need another Shurflo.
#16
#19
#20
Currently I'm only running 3 phases; small nozzle comes on at 5 PSI, small and medium come on at 10 PSI, and all three come on at 15 PSI. I could have up to 7 stages if I turned one nozzle on while turning another one off, but I don't think there's much of a need for that. Maybe when I get more water pressure or put methanol in it.
I haven't noticed a mileage increase, but I don't really drive enough to tell. Anymore my truck is a weekend plaything only, which means when I am driving it I'm driving pretty aggressively when I am driving it.
The system doesn't care if it's controlling a variable propane regulator or nitrous solenoids (be they NOS solenoids, Nitrous Express solenoids, Zex solenoids or any of the other nitrous companies out there). I'm planning on getting a couple nitrous solenoids to use with a 1000 PSI water injection system, and then using the little solenoids for a really accurate methanol system.
I haven't noticed a mileage increase, but I don't really drive enough to tell. Anymore my truck is a weekend plaything only, which means when I am driving it I'm driving pretty aggressively when I am driving it.
The system doesn't care if it's controlling a variable propane regulator or nitrous solenoids (be they NOS solenoids, Nitrous Express solenoids, Zex solenoids or any of the other nitrous companies out there). I'm planning on getting a couple nitrous solenoids to use with a 1000 PSI water injection system, and then using the little solenoids for a really accurate methanol system.
