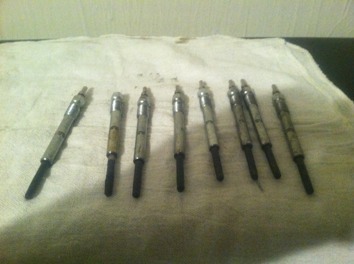

Old glow plugs

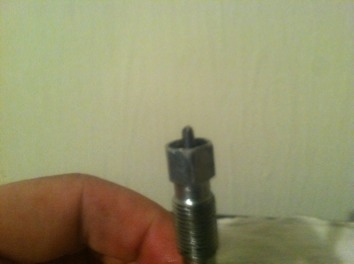

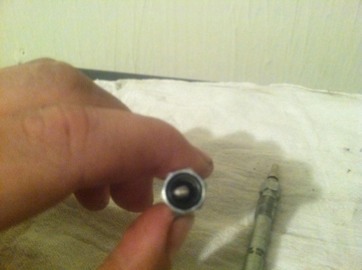

The bastard child that broke and took 6 hours to remove

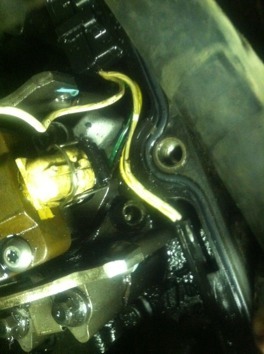

Below the yellow wires is the glow plug that broke the threaded part came out just not the actual element itself

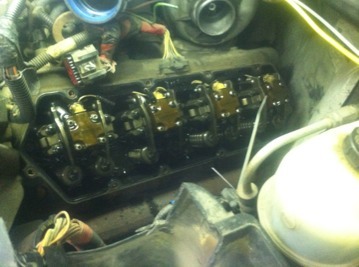

Driver side valve cover removed


All in all it was easy we had the drivers side tore down new plugs in in less than an hour and the passenger was a bit more painful less room and more crap in the way I used a 13mm open end ratchet to remove the two valve cover bolts near the fenderwell where you can't get a socket, ended up having to remove injector to get more room for pliers and what not.


Strokin' Away



i have never had a problem getting to the VC bolts. but atleast you got er done! did it take 1.5 hours to get the VC's off?



Valve cover bolts will come out no prob if u got an unijoint with a long extension an a very short socket on the end...



Well we didnt have any short u joints to fit and no it didn't take 1.5 hours it to an hour or less to do the driver side and have it all back together besides air intake and IC tube.


Strokin' Away
