Ford Powerstroke 03-07 6.0L Discussion of 6.0 Liter Ford Powerstroke Turbo Diesels

Homemade Ram Air

Thread Tools

Search this Thread

  #1
Old 09-01-2010, 05:05 AM
Diesel_Daddy6.0's Avatar
Diesel Wrench
Thread Starter
Join Date: Feb 2010
Location: El Cajon, CA
Posts: 513
Received 52 Likes on 38 Posts
Default Homemade Ram Air

Has anyone cut the plastic that separates the tube on the front of the air filter housing and the grille out to increase air flow? If so how did you go about it and how well did it work?

  #2
Old 09-01-2010, 05:33 AM
scrotom's Avatar
Diesel Enthusiast
Join Date: May 2009
Location: asheville area NC
Posts: 144
Received 30 Likes on 19 Posts
Default

look up zoodad.

  #3
Old 09-01-2010, 06:40 AM
HeavyAssault's Avatar
Diesel Wrench
Join Date: Jan 2009
Location: VA
Posts: 854
Received 62 Likes on 59 Posts
Default

Get a big hole saw, a drill and a dremel. Have fun!! This was the first mod I ever did with less than 600 miles on the truck!!

  #4
Old 09-01-2010, 11:29 AM
Mdub707's Avatar
BOMBARDIER
Join Date: Oct 2007
Posts: 8,208
Received 630 Likes on 510 Posts
Default

I just used a hacksaw blade and went to town.

  #5
Old 09-02-2010, 02:12 AM
Diesel_Daddy6.0's Avatar
Diesel Wrench
Thread Starter
Join Date: Feb 2010
Location: El Cajon, CA
Posts: 513
Received 52 Likes on 38 Posts
Default

How big of a difference did it make?

---AutoMerged DoublePost---

Also should I cut on the vertical slat side of the grille or the or on the horizontal side?


Last edited by Diesel_Daddy6.0; 09-02-2010 at 02:12 AM. Reason: Automerged Doublepost
  #6
Old 09-04-2010, 07:59 AM
hock6.0's Avatar
Diesel Enthusiast
Join Date: Feb 2009
Location: St. Marys, PA
Posts: 420
Received 16 Likes on 16 Posts
Default

i used a dremal tool and a deck of cards. trace the deck of cards and cut. i also found that it increased the volume of bugs and leafs in the air filter so i covered the hole with a piece of hardware cloth with a piece of screen from a screen door. works good.

  #7
Old 09-24-2010, 07:54 PM
parkercoman's Avatar
Diesel Fan
Join Date: Jun 2010
Location: Amarillo,TX
Posts: 16
Likes: 0
Received 1 Like on 1 Post
Default

mine as just a bunch of 1 1/2 inch holes in it

  #8
Old 04-28-2012, 08:59 PM
04 Stroke's Avatar
Diesel Fan
Join Date: Dec 2011
Location: Cumberland, WI
Posts: 44
Likes: 0
Received 0 Likes on 0 Posts
Default

did anyone have problems with water getting into the tube during heavy rain? i cut mine out with hole saw and am a little worried about water getting in?

  #9
Old 04-29-2012, 04:04 PM
Karls03's Avatar
Diesel Wrench
Join Date: Mar 2010
Location: Fallon, NV
Posts: 996
Received 49 Likes on 47 Posts
Default

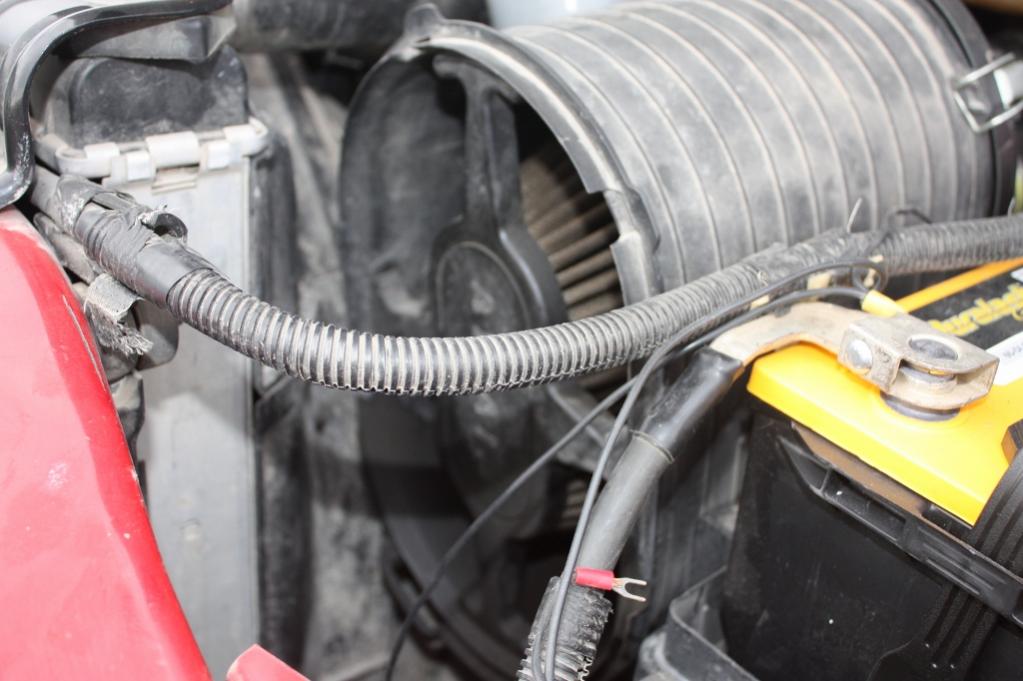

After notching the fiberglas, I ditched the front of the OEM air box, this helped with my mpg since I had already switched to 35s when I did it. No, I am NOT getting 20 mpg, but it was an improvement.

I haven't had any problems in the rain, but mud racing that my club does is COMPLETELY out of the question!

Attached Thumbnails Homemade Ram Air-air-intake.jpg
  #10
Old 04-29-2012, 09:39 PM
dslpwr7.3's Avatar
Diesel Fan
Join Date: Jan 2008
Location: Langley, BC, Canada
Posts: 25
Likes: 0
Received 2 Likes on 1 Post
Default

Originally Posted by Karls03
I haven't had any problems in the rain, but mud racing that my club does is COMPLETELY out of the question!
Ya id recommend being very careful driving your truck through any water after the zoodad mod...ask how i know
