Progress has been slow - a little here & a little there during Jan & Feb.

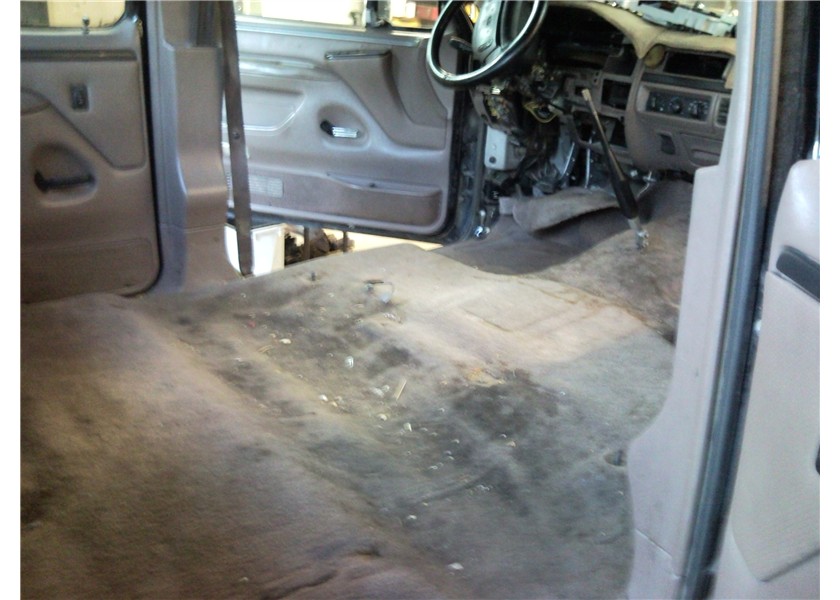

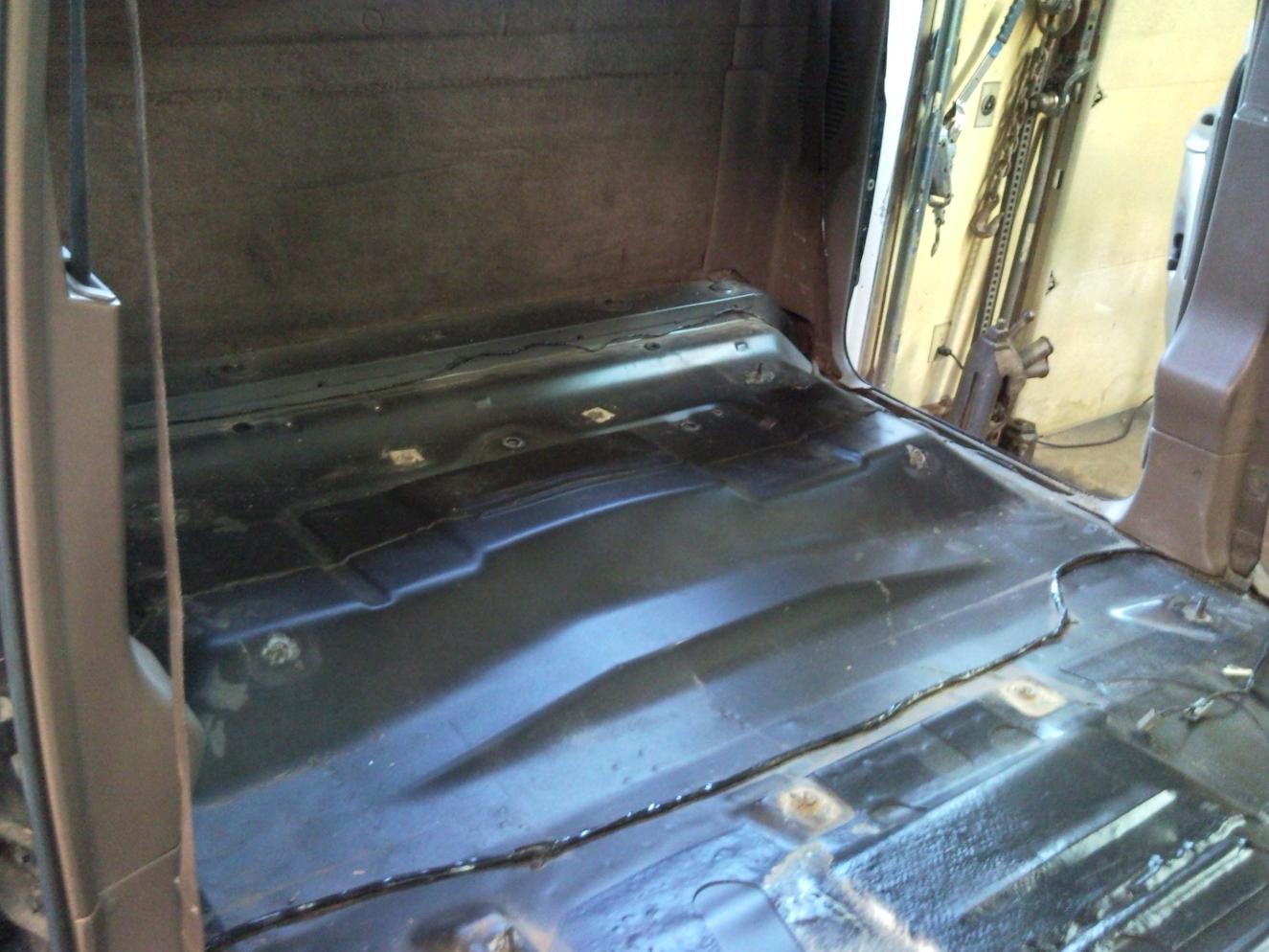

Pulled DIRTY carpets & pressure washed (freeze dried!!) Major improvement. Installed dynamat knockoff in floorboards.
'97 F350 4x4 Crew  '97 12V P-Pump & G56 Build thread-snc00319.jpg '97 F350 4x4 Crew  '97 12V P-Pump & G56 Build thread-snc00323.jpg

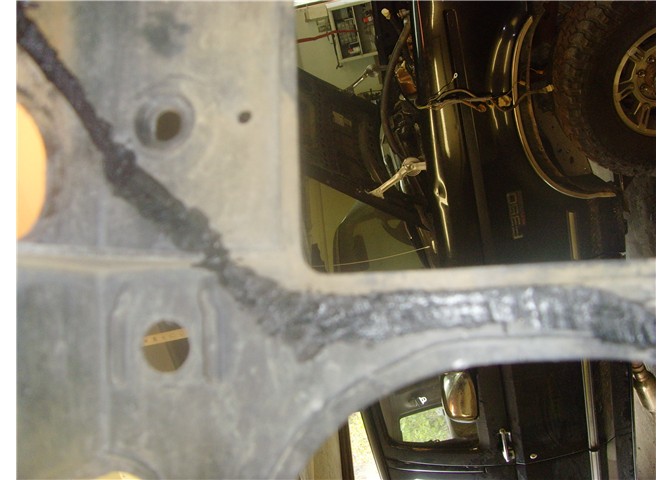

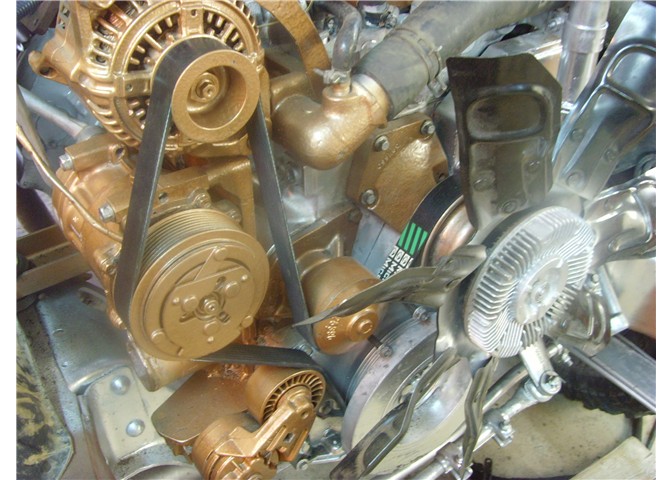

Finished up lots of little stuff, cleaned up wiring harness, ran wiring for new headlights & led running lights. Installed internal regulator in alternator & an 'R' post to run my tach. Did some plastic 'welding' with my soldering iron to fix a crack in my header panel behind the grille.
'97 F350 4x4 Crew  '97 12V P-Pump & G56 Build thread-snv31893.jpg '97 F350 4x4 Crew  '97 12V P-Pump & G56 Build thread-snv31892.jpg

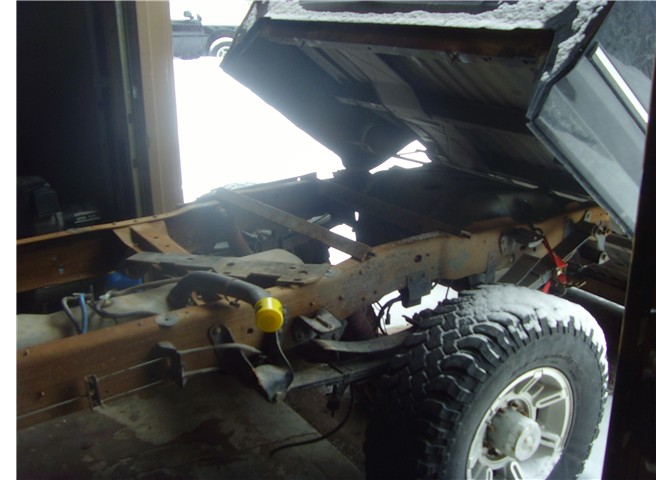

Removed rear fuel tank & sold it. Scored a Bronco (35 gal) rear tank & brackets. Swapped in fuel selector valve & wiring from a diesel, prepped for an Airdog (eventually). Also began installing B&W gooseneck hitch under the bed.
'97 F350 4x4 Crew  '97 12V P-Pump & G56 Build thread-snv32512.jpg

Wired in heater grids to switch in cab & ignition switch. Built new IC tubes. Began planning for downpipe, exhaust brake, etc.
Got mockups for front & rear bumpers, but haven't begun fab work yet.

  #22
Old 03-04-2011, 09:10 PM
EasternAggie's Avatar
Diesel Bomber
Join Date: Jul 2010
Location: Broken Bow, Oklahoma
Posts: 2,139
Received 107 Likes on 100 Posts
Default

Lookin good
