37 GMC Cummins
Hey guys I'm new to this site, but I've looked at some of the other conversions in this forum and thought you might wanna see what i was workin on this spring. Its a 37 Gmc 1.5 ton on a 96 dodge 3500 dually chassis 6bt, custom hauler bed air ride, 22.5 wheels, etc. I'll get with it today and put on some pics, and i got alot so i'll start with pics from the beginning. I left the project right at paint (had to go make a living) but it was a driver last time i worked on it. Hope you enjoy.
---AutoMerged DoublePost---
this was the start, had to move engine back 8 1/2 inches build all the cab mounts, fender mounts,etc.
---AutoMerged DoublePost---
this was the start, had to move engine back 8 1/2 inches build all the cab mounts, fender mounts,etc.
Last edited by FoxyJ; Oct 29, 2009 at 03:48 PM. Reason: Automerged Doublepost
Thread Starter
|
Newbie
Joined: Oct 2009
Posts: 7
Likes: 0
From: Cheyenne, Wyoming

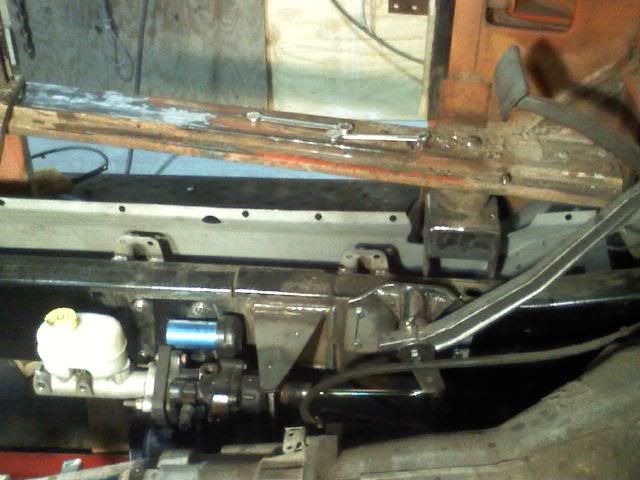

made my own brackets to install the hydra boost under the floor
---AutoMerged DoublePost---
Made the four inch down pipe and exhaust to the stacks
Last edited by FoxyJ; Oct 29, 2009 at 04:10 PM. Reason: Automerged Doublepost
Thread Starter
|
Newbie
Joined: Oct 2009
Posts: 7
Likes: 0
From: Cheyenne, Wyoming

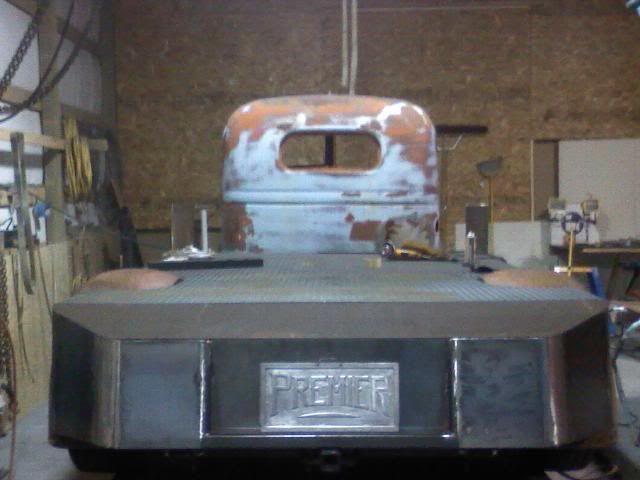

I built a custom hauler bed for the truck, this took quite a bit of time and work. But I think it was worth it.
---AutoMerged DoublePost---
This is the bed with the sides on it.
I made a pretty cool hidden fuel door between the tool box and rear fender.
And because of the tight space i put on an air cylinder to pull the lever for the gooseneck ball. Just flip a switch in the cab and the spring loaded ball pops up.
---AutoMerged DoublePost---
This is the bed with the sides on it.
I made a pretty cool hidden fuel door between the tool box and rear fender.
And because of the tight space i put on an air cylinder to pull the lever for the gooseneck ball. Just flip a switch in the cab and the spring loaded ball pops up.
Last edited by FoxyJ; Oct 30, 2009 at 02:00 PM. Reason: Automerged Doublepost
Thread Starter
|
Newbie
Joined: Oct 2009
Posts: 7
Likes: 0
From: Cheyenne, Wyoming
Here is the engine and chassis after some cleaning and a fresh coat of paint.
---AutoMerged DoublePost---
This shows some of the bed work up close after sandblast. It took alot of fab work to get it looking this nice.
---AutoMerged DoublePost---
This shows some of the bed work up close after sandblast. It took alot of fab work to get it looking this nice.
